Product Description
Built to endure the toughest job sites, this 2020 Hyundai HX60 mini excavator demonstrates exceptional reliability after years of proven performance. Operating at 6 tons with a robust Yanmar 4TNV94L engine delivering 36.2 kW of rated power, this compact workhorse combines precision with durability. The water-cooled, 4-cylinder engine produces 201.1 N.m of maximum torque, ensuring consistent performance across demanding applications.
Engineered for versatility, the HX60 features impressive digging capabilities with 46.7 kN bucket digging force and 27.5 kN rod digging force. A maximum digging depth of 3,760 mm and reach of 6,127 mm provide substantial working range for a machine in this class. The variable piston pump hydraulic system, paired with axial piston motors, delivers smooth operation and responsive control.
- Working Weight: 5,720 kg with 0.21 m³ bucket capacity

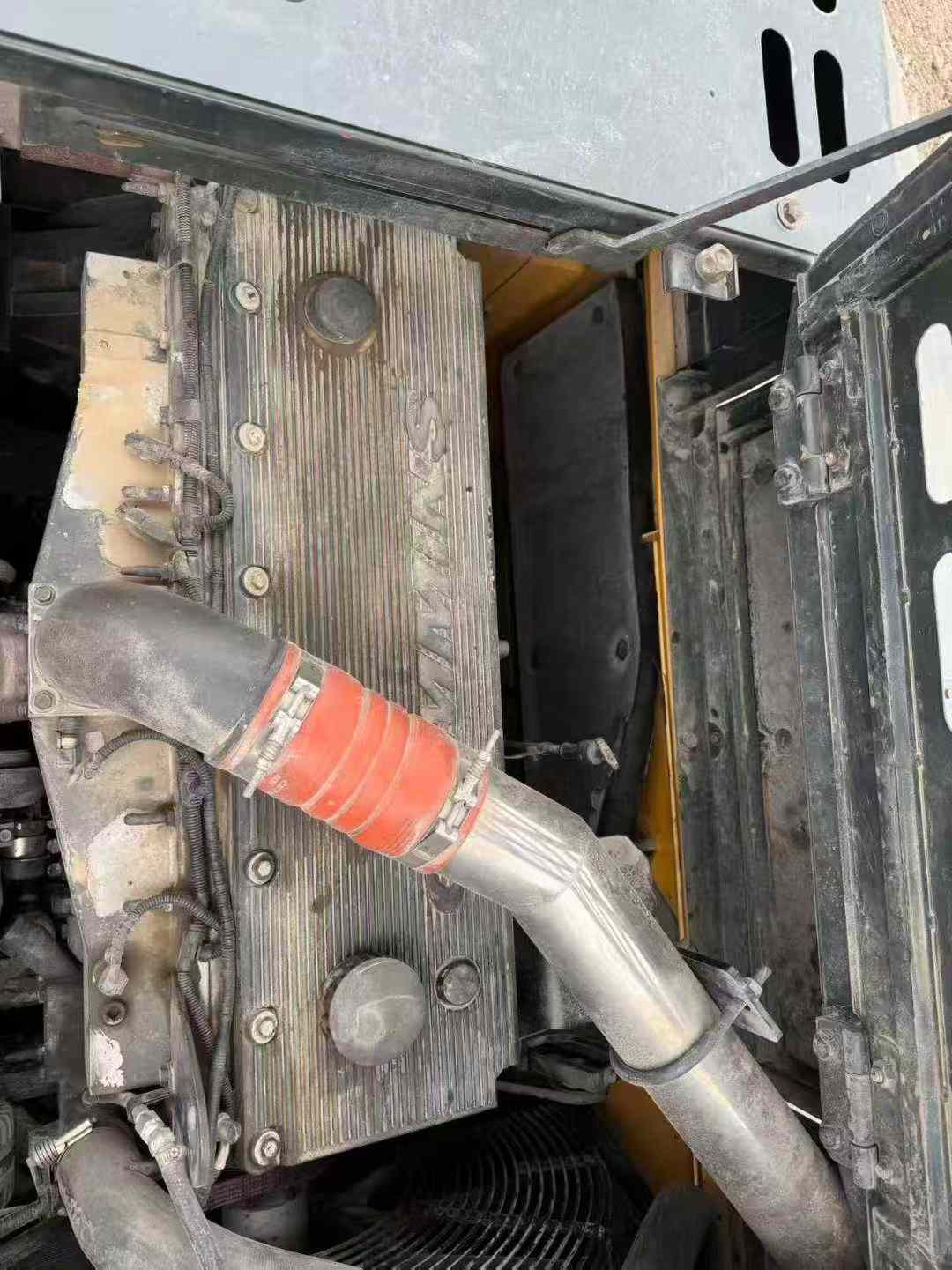

- Proven Power: Yanmar 4TNV94L engine with 3.053L displacement
- Hydraulic Crushing Pipeline: Standard equipment
- Compact Dimensions: 5,900 mm length, 1,920 mm width for tight access
- Location: Zhejiang, ready for global deployment
| Specifications | Value |
|---|---|
| No. | 1012909 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5720 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L-ZXSHYB(XSNSRE) |
| Rated power (kw/rpm) | 36.2/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 94 x 110 |
| Maximum torque (N.m) | 201.1/1400 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.053 |
| Working form | 4 stroke, direct injection engine |
| Rotation speed (rpm) | 10.88 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 46.7 |
| Rod digging force (kN) | 27.5 |
| Travel speed (km/h) | 4.6 / 2.4 |

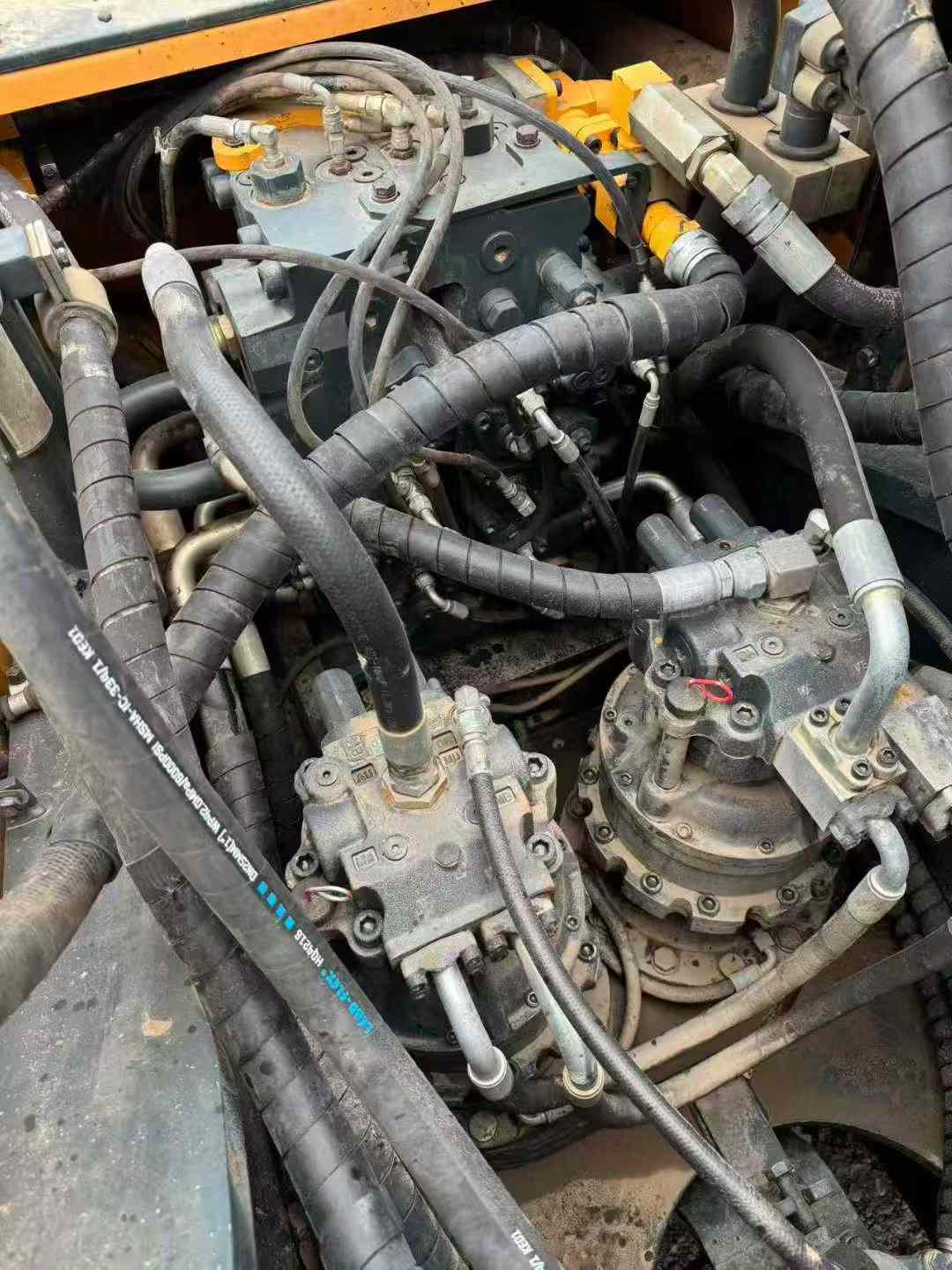

| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 138 |
| Hydraulic crushing pipeline is standard | is |

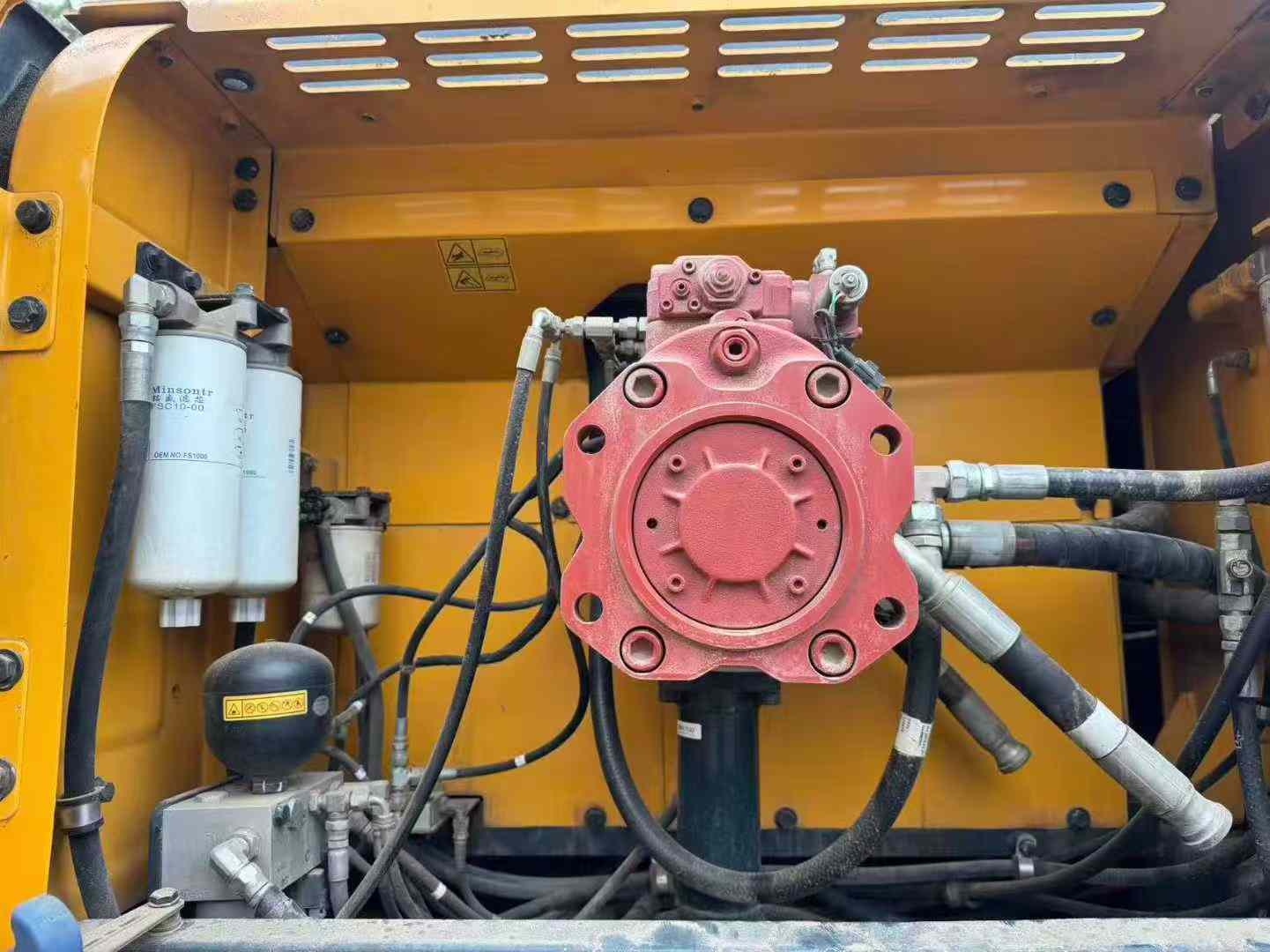

| Main pump type | Variable piston pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-80 * 50 * 660 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-85 * 55 * 850 |

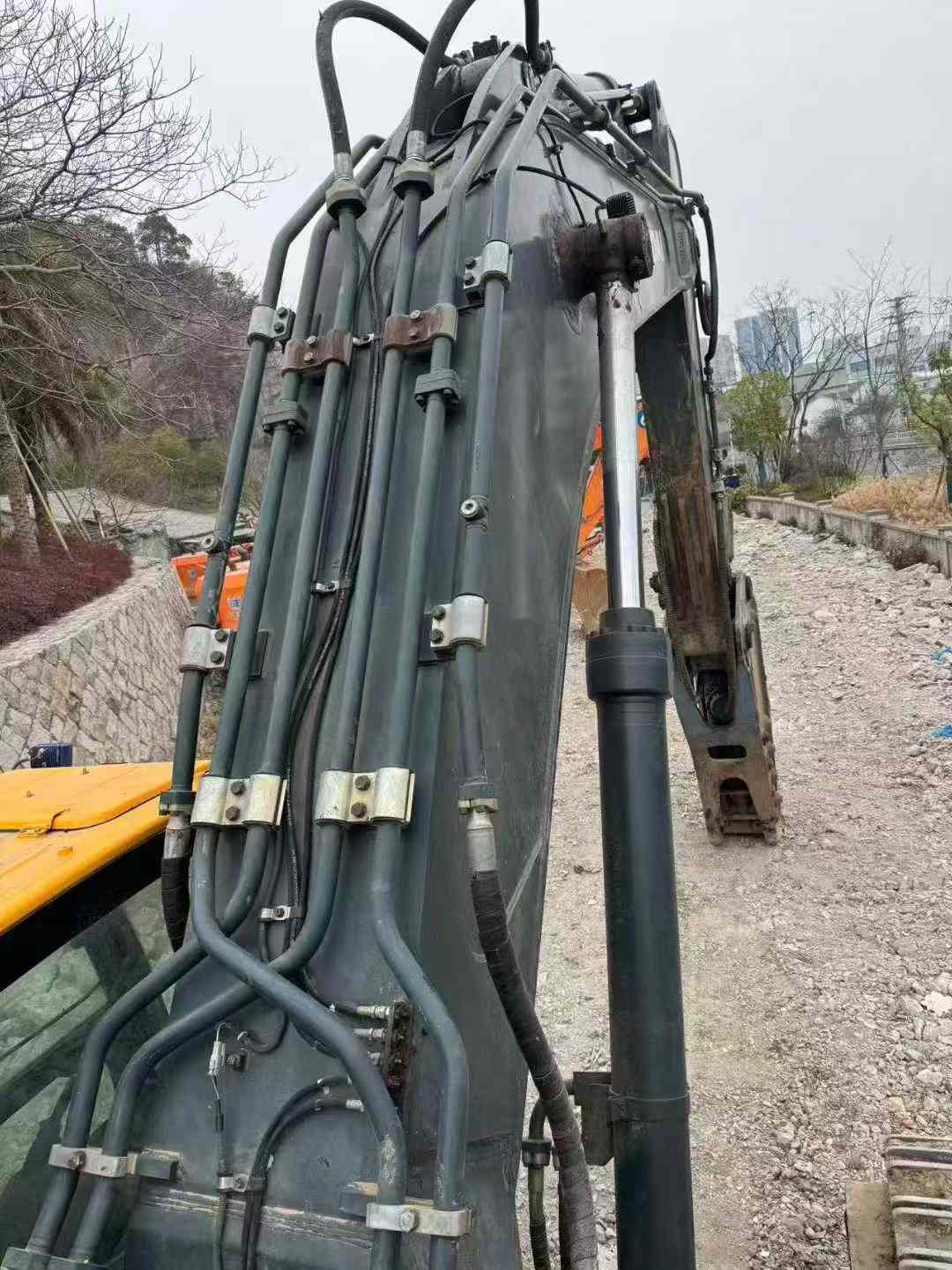

| Boom cylinders - Number × diameter × stroke (mm) | 1-105 * 60 * 715 |
| Fuel Tank (L) | 118.5 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 11.6 |
| Coolant (L) | 10 |
| Hydraulic System (L) | 120 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 1860 |
| Minimum turning radius of front working device (mm) | 2350 |
| Back end turning radius (mm) | 1650 |
| Track ground length (mm) | 1990 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6127 |
| Maximum digging depth (mm) | 3760 |
| Maximum excavation height (mm) | 5753 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 2915 |
| Maximum excavation radius of stop surface (mm) | 5990 |
