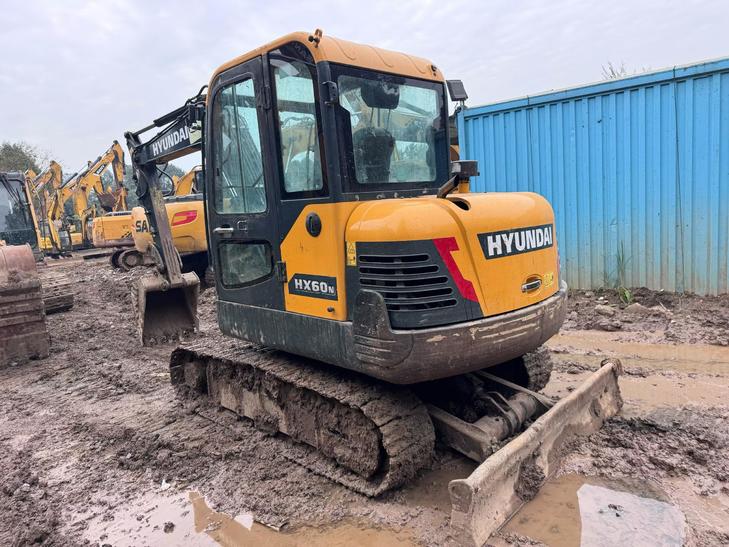

Buy Hyundai HX60 Used Excavator / 1
Buy Hyundai HX60 Used Excavator / 2
Buy Hyundai HX60 Used Excavator / 3
Buy Hyundai HX60 Used Excavator / 4
Buy Hyundai HX60 Used Excavator / 5
Buy Hyundai HX60 Used Excavator / 6
Buy Hyundai HX60 Used Excavator / 7

Product Description

This 2021 Hyundai HX60 excavator offers reliable performance for mid-sized earthmoving operations. Manufactured by Hyundai Construction Equipment, this 6-ton class machine combines compact dimensions with productive digging capabilities, making it suitable for urban construction, utility work, and agricultural applications.

Currently located in Sichuan, China, this unit represents an opportunity to acquire recent Japanese-Korean engineering at used equipment value. The HX60 is known for its fuel-efficient engine, responsive hydraulics, and operator-friendly cab design.

Key features typically include:

  • Approximately 6-ton operating weight
  • Compact radius design for confined jobsites
  • Hydraulic quick coupler compatibility
  • Robust undercarriage for extended service life

Ideal for contractors seeking dependable performance in a versatile platform. Contact us for detailed inspection reports, shipping quotes, and export documentation assistance.

SpecificationsValue
No.1173601
Tonnage (tons)6
Working weight (kg)5720
Bucket capacity (m³)0.21
Boom length (mm)3000
Rod length (mm)1600
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV94L-ZXSHYB(XSNSRE)
Rated power (kw/rpm)36.2/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)94 x 110
Maximum torque (N.m)201.1/1400
Number of cylinders (PCS)4
Displacement (L)3.053
Working form4 stroke, direct injection engine
Rotation speed (rpm)10.88
Climbing ability (%)70
Bucket digging force (kN)46.7
Rod digging force (kN)27.5
Travel speed (km/h)4.6 / 2.4
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)138
Hydraulic crushing pipeline is standardis
Main pump typeVariable piston pump
Bucket cylinders - Number × diameter × stroke (mm)1-80 * 50 * 660
Bucket rod cylinders - Number × diameter × stroke (mm)1-85 * 55 * 850
Boom cylinders - Number × diameter × stroke (mm)1-105 * 60 * 715
Fuel Tank (L)118.5
Hydraulic Tank (L)70
Engine Oil changes (L)11.6
Coolant (L)10
Hydraulic System (L)120
Total transport length (mm)5900
Total transport width (mm)1920
Total transport height (mm)2550
Full cab height (mm)1860
Minimum turning radius of front working device (mm)2350
Back end turning radius (mm)1650
Track ground length (mm)1990
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)40
Maximum digging radius (mm)6127
Maximum digging depth (mm)3760
Maximum excavation height (mm)5753
Maximum unloading height (mm)4080
Maximum vertical digging depth (mm)2915
Maximum excavation radius of stop surface (mm)5990
