Product Description

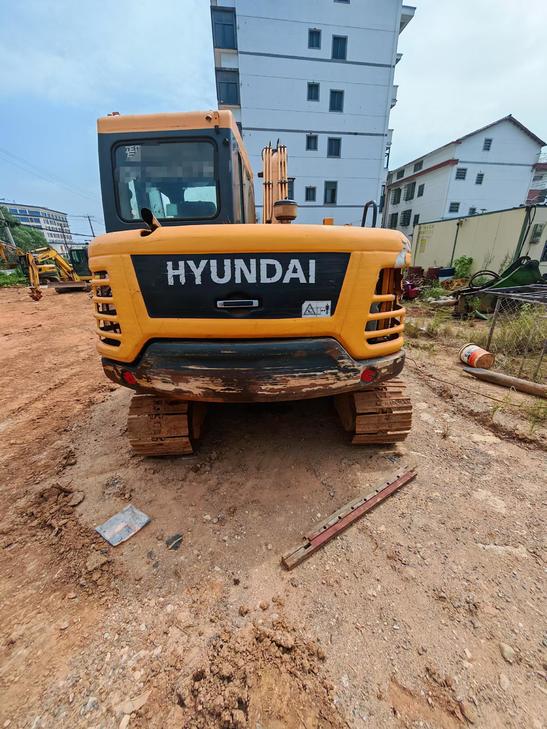

FairTradeMachinery lists a 2018 Hyundai HX75 tracked excavator, located in Anhui Province, China. The HX75 sits in the 7.5-tonne compact class — a size that suits urban excavation, utility trenching, and light site preparation, where Hyundai's HX range is a familiar machine on contractor and rental fleets across the region.
The details below are taken directly from the seller's listing:
- Year: 2018
- Brand: Hyundai
- Model: HX75
- Location: Anhui, China
- Indicative asking price: 70,000+ RMB
Working hours, undercarriage wear, hydraulic performance, and maintenance history have not been verified by us and should be confirmed with the seller or through an independent inspection before purchase. This listing contains only the information supplied with the unit; no additional specifications have been added or assumed. Buyers sourcing mid-size excavators for domestic resale or export are encouraged to arrange their own due diligence and inspection prior to committing.
| Specifications | Value |
|---|---|
| No. | 1144425 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000 |
| Bucket capacity (m³) | 0.32 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98-Z |
| Rated power (kw/rpm) | 44.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 55.9 |
| Rod digging force (kN) | 43.9 |
| Travel speed (km/h) | 4.0/2.4 |
| Maximum flow of main pump (l/min) | 158 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 9.2 |
| Coolant (L) | 11 |
| Hydraulic System (L) | 75 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2550 |
| Counterweight ground clearance (mm) | 755 |
| Minimum turning radius of front working device (mm) | 1750 |
| Back end turning radius (mm) | 1730 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6335 |
| Maximum digging depth (mm) | 4015 |
| Maximum excavation height (mm) | 7175 |
| Maximum unloading height (mm) | 5080 |
| Maximum vertical digging depth (mm) | 3120 |
| Maximum excavation radius of stop surface (mm) | 6185 |
