2018 Hyundai HX75

1/8

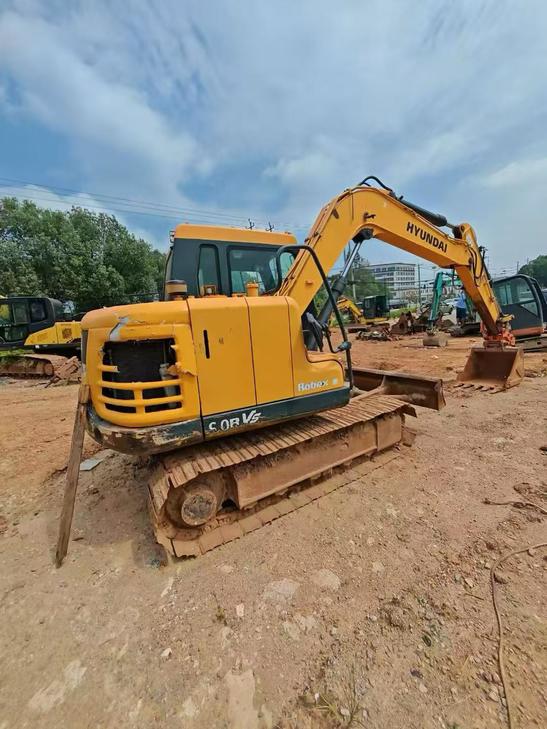

Buy Hyundai HX75 Used Excavator / 1
Buy Hyundai HX75 Used Excavator / 2
Buy Hyundai HX75 Used Excavator / 3
Buy Hyundai HX75 Used Excavator / 4
Buy Hyundai HX75 Used Excavator / 5
Buy Hyundai HX75 Used Excavator / 6
Buy Hyundai HX75 Used Excavator / 7
Buy Hyundai HX75 Used Excavator / 8

Product Description

This 2018 Hyundai HX75 compact excavator is available from Hunan, China. With approximately 70,000 hours of operational use, this machine represents a high-utilization asset from Hyundai's reliable construction equipment lineup. The HX75 is designed for versatility in confined work sites while maintaining the performance standards expected in excavation, trenching, and material handling applications.

Key features of the Hyundai HX75 series include:

  • Compact design suitable for urban construction and tight job sites
  • Proven hydraulic system for efficient operation
  • Operator-focused cab design
  • Robust undercarriage built for demanding terrain

This unit's extensive service history reflects its capability as a workhorse in commercial operations. Ideal for contractors seeking cost-effective earthmoving capacity, this excavator offers an opportunity to acquire established Hyundai engineering at a competitive price point. Inspection recommended prior to purchase.

SpecificationsValue
No.1144660
Tonnage (tons)7
Working weight (kg)7000
Bucket capacity (m³)0.32
Boom length (mm)3700
Rod length (mm)1670
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV98-Z
Rated power (kw/rpm)44.4/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)98 x 110
Number of cylinders (PCS)4
Rotation speed (rpm)12.5
Climbing ability (%)70
Bucket digging force (kN)55.9
Rod digging force (kN)43.9
Travel speed (km/h)4.0/2.4
Maximum flow of main pump (l/min)158
Main pump typeVariable piston pump
Fuel Tank (L)140
Hydraulic Tank (L)130
Engine Oil changes (L)9.2
Coolant (L)11
Hydraulic System (L)75
Total transport length (mm)6080
Total transport width (mm)2260
Total transport height (mm)2550
Counterweight ground clearance (mm)755
Minimum turning radius of front working device (mm)1750
Back end turning radius (mm)1730
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)38
Maximum digging radius (mm)6335
Maximum digging depth (mm)4015
Maximum excavation height (mm)7175
Maximum unloading height (mm)5080
Maximum vertical digging depth (mm)3120
Maximum excavation radius of stop surface (mm)6185
see more

Overview

No.1144660

Brand Name:

Hyundai

Model Number:

HX75

Year:

2018

Location:

Hunan China
