Product Description

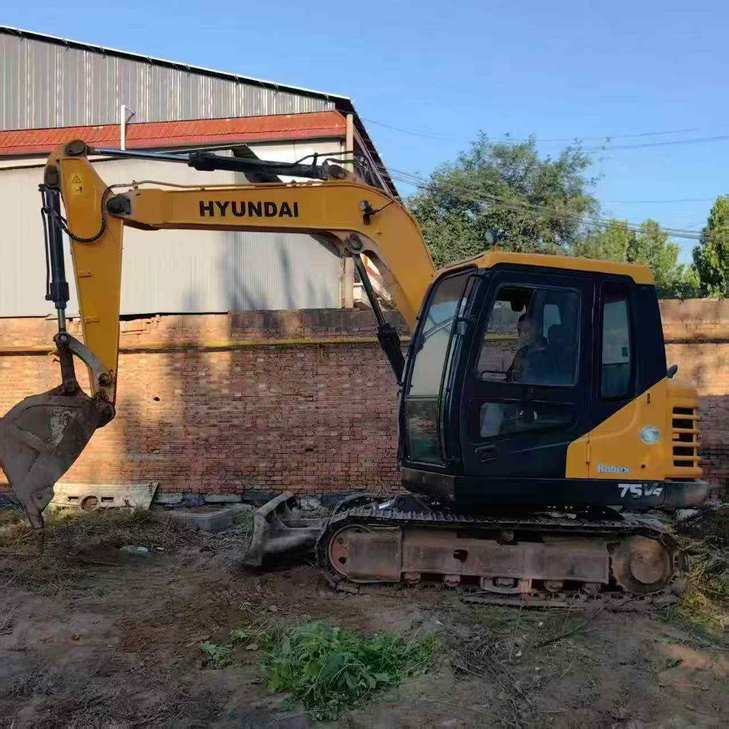

This 2019 Hyundai HX75 mini excavator offers reliable performance for contractors seeking quality used equipment. With approximately five years of service, this 7.5-ton class machine combines compact dimensions with productive digging capabilities suitable for urban construction, landscaping, and utility work.
Currently located in Sichuan, China, this unit is competitively priced at 89,000 RMB, representing solid value in the pre-owned compact excavator market. The Hyundai HX series is recognized for fuel efficiency and straightforward maintenance protocols.
- Year of manufacture: 2019
- Model: Hyundai HX75
- Operating weight class: approximately 7.5 tons
- Location: Sichuan Province, China
- Asking price: 89,000 RMB
Ideal for contractors requiring a versatile compact excavator with established brand support. Contact us for detailed inspection reports, additional photographs, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1163882 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000 |
| Bucket capacity (m³) | 0.32 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98-Z |
| Rated power (kw/rpm) | 44.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 55.9 |
| Rod digging force (kN) | 43.9 |
| Travel speed (km/h) | 4.0/2.4 |
| Maximum flow of main pump (l/min) | 158 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 9.2 |
| Coolant (L) | 11 |
| Hydraulic System (L) | 75 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2550 |
| Counterweight ground clearance (mm) | 755 |
| Minimum turning radius of front working device (mm) | 1750 |
| Back end turning radius (mm) | 1730 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6335 |
| Maximum digging depth (mm) | 4015 |
| Maximum excavation height (mm) | 7175 |
| Maximum unloading height (mm) | 5080 |
| Maximum vertical digging depth (mm) | 3120 |
| Maximum excavation radius of stop surface (mm) | 6185 |
