2019 Hyundai HX75

1/4

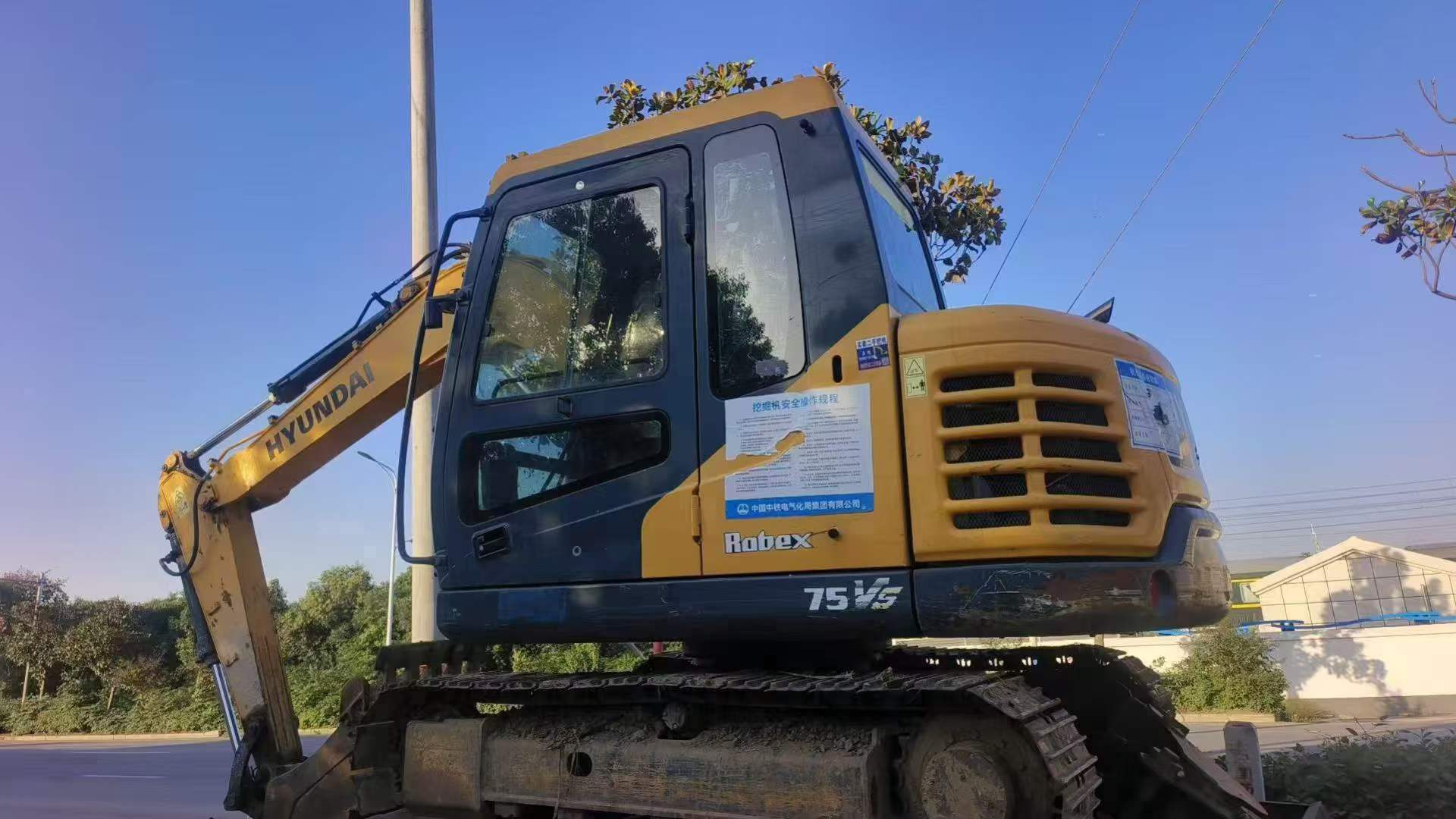

Buy Hyundai HX75 Used Excavator / 1

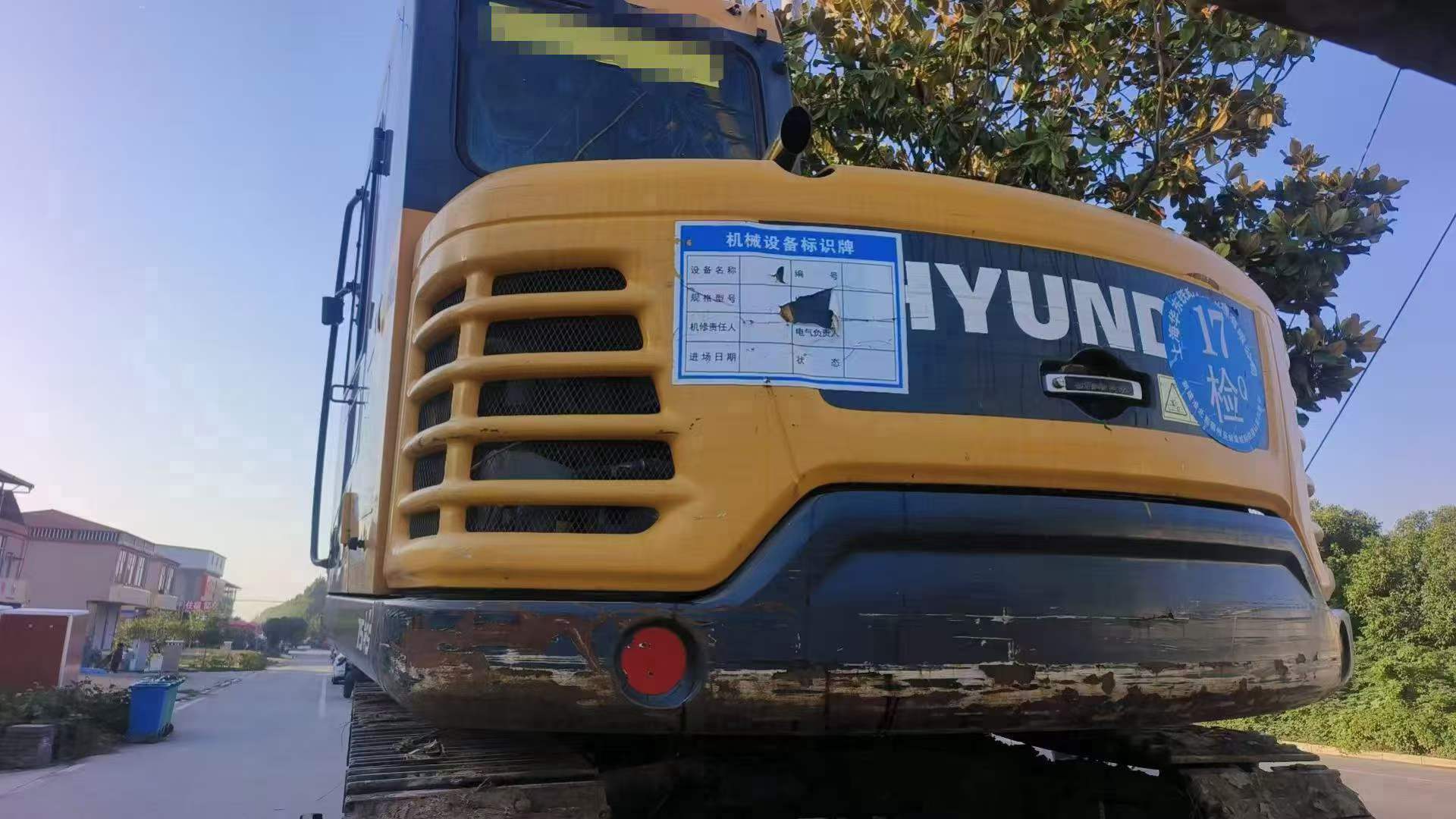

Buy Hyundai HX75 Used Excavator / 2

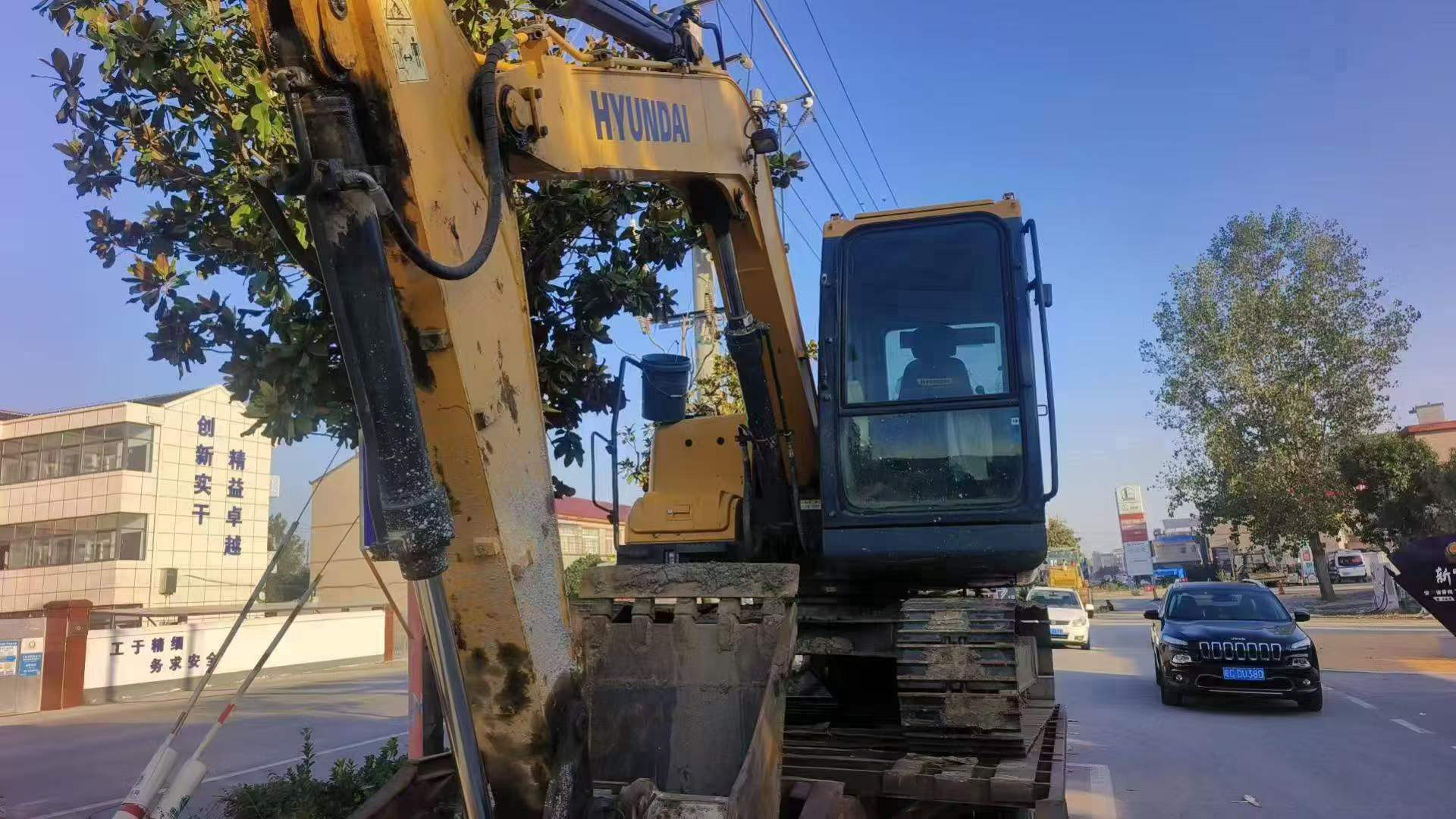

Buy Hyundai HX75 Used Excavator / 3

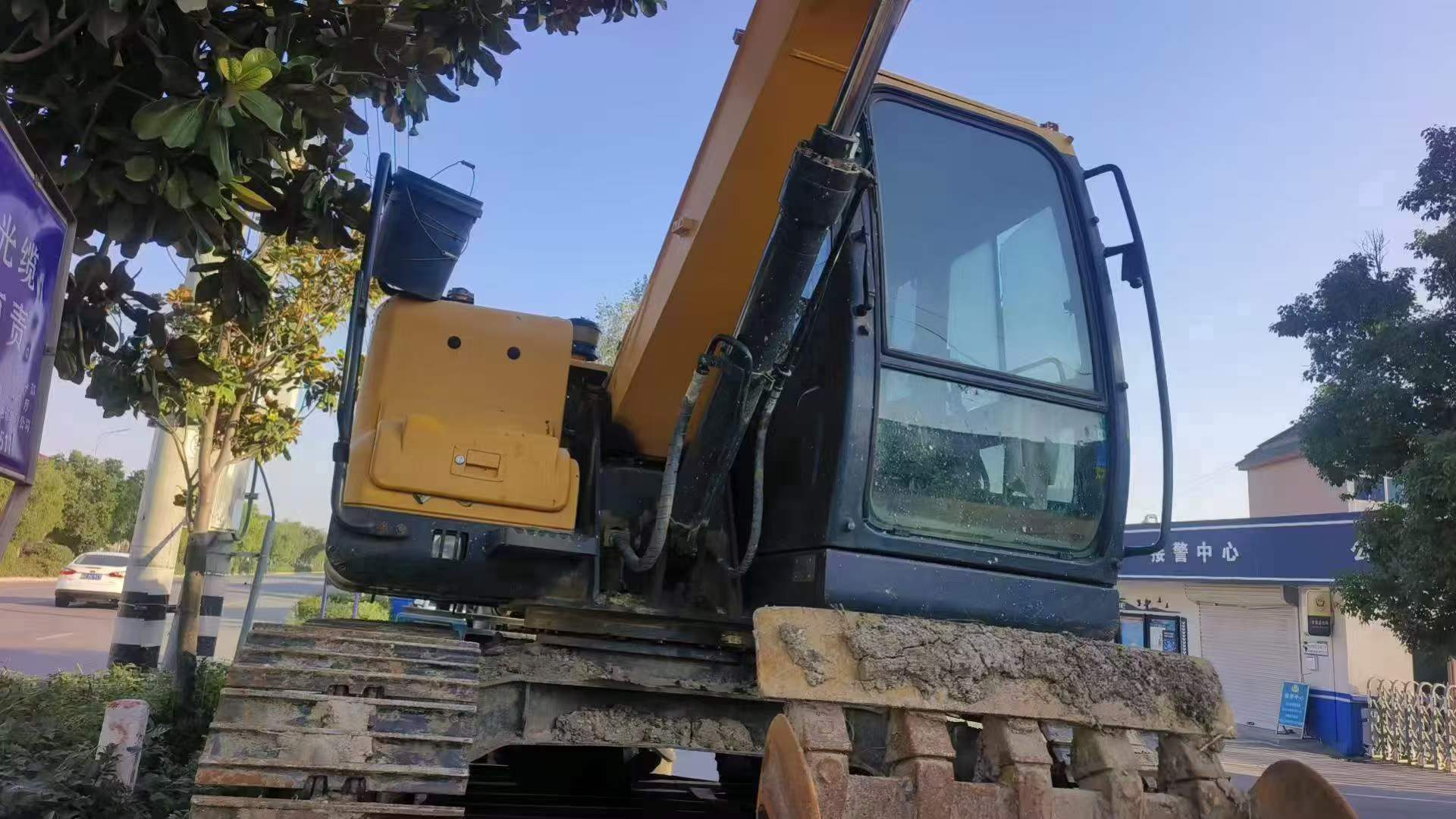

Buy Hyundai HX75 Used Excavator / 4

Product Description

This 2019 Hyundai HX75 crawler excavator offers reliable performance for mid-sized earthmoving operations. With approximately 6,000 actual operating hours recorded on the meter, this machine represents solid value in the 7.5-ton class segment. The HX75 is recognized for its hydraulic efficiency and operator comfort in confined job sites and utility work applications.

Currently located in Zhejiang, China, this unit is available for inspection. Key features of the HX75 platform include:

  • Compact radius design for urban and restricted access projects
  • Fuel-efficient diesel engine with reliable power delivery
  • Robust undercarriage suited for varied terrain conditions
  • Ergonomic cab layout with clear sightlines
  • Proven hydraulic system for smooth operation

This excavator is suited for contractors seeking dependable equipment with moderate hours in the compact excavator category. Machine specifications and additional documentation available upon request.

SpecificationsValue
No.1173934
Tonnage (tons)7
Working weight (kg)7000
Bucket capacity (m³)0.32
Boom length (mm)3700
Rod length (mm)1670
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV98-Z
Rated power (kw/rpm)44.4/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)98 x 110
Number of cylinders (PCS)4
Rotation speed (rpm)12.5
Climbing ability (%)70
Bucket digging force (kN)55.9
Rod digging force (kN)43.9
Travel speed (km/h)4.0/2.4
Maximum flow of main pump (l/min)158
Main pump typeVariable piston pump
Fuel Tank (L)140
Hydraulic Tank (L)130
Engine Oil changes (L)9.2
Coolant (L)11
Hydraulic System (L)75
Total transport length (mm)6080
Total transport width (mm)2260
Total transport height (mm)2550
Counterweight ground clearance (mm)755
Minimum turning radius of front working device (mm)1750
Back end turning radius (mm)1730
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)38
Maximum digging radius (mm)6335
Maximum digging depth (mm)4015
Maximum excavation height (mm)7175
Maximum unloading height (mm)5080
Maximum vertical digging depth (mm)3120
Maximum excavation radius of stop surface (mm)6185
see more

Overview

No.1173934

Brand Name:

Hyundai

Model Number:

HX75

Year:

2019

Location:

Zhejiang China
