Product Description

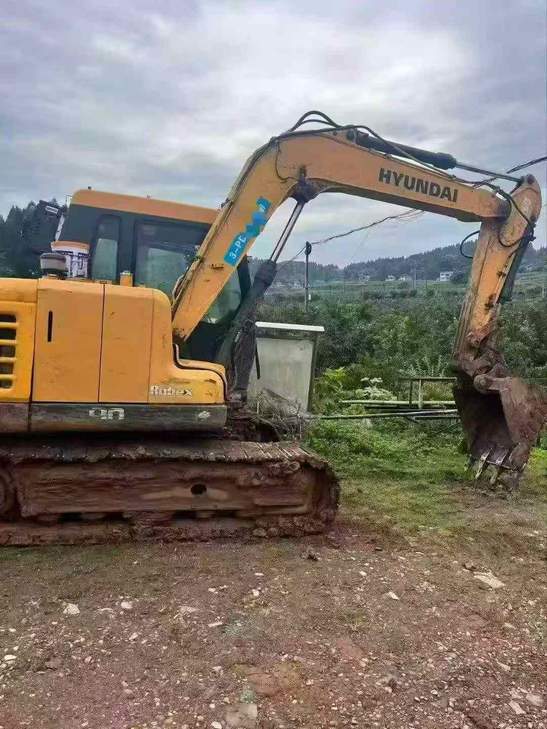

This 2020 Hyundai HX75 excavator offers reliable performance for construction and earthmoving operations. With approximately four years of service, this mid-size crawler excavator delivers proven hydraulic power and operational efficiency suitable for various jobsite applications.
Currently located in Sichuan, China, this machine represents an opportunity to acquire established Hyundai engineering at a competitive price point. The HX75 is known for its balanced combination of digging force, reach, and fuel efficiency in the 7-ton class.
- Year: 2020
- Make: Hyundai
- Model: HX75
- Location: Sichuan, China
- Category: Mini/Midi Excavator
Ideal for contractors seeking dependable equipment for excavation, trenching, and material handling tasks. Contact us for detailed inspection reports, shipping options, and current availability.
| Specifications | Value |
|---|---|
| No. | 1162856 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000 |
| Bucket capacity (m³) | 0.32 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

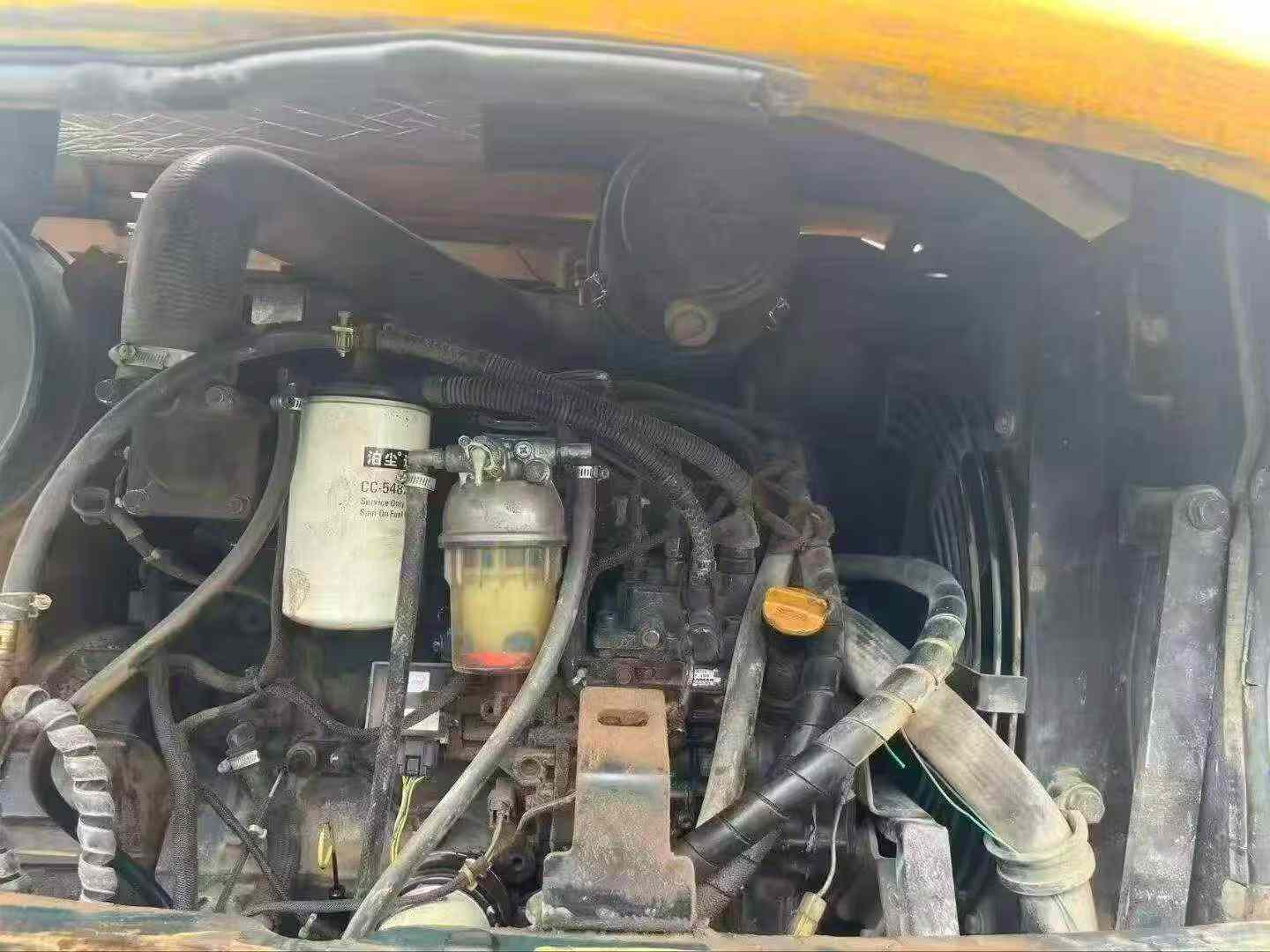

| Engine type | Yanmar 4TNV98-Z |
| Rated power (kw/rpm) | 44.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 55.9 |
| Rod digging force (kN) | 43.9 |
| Travel speed (km/h) | 4.0/2.4 |
| Maximum flow of main pump (l/min) | 158 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 9.2 |
| Coolant (L) | 11 |
| Hydraulic System (L) | 75 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2550 |
| Counterweight ground clearance (mm) | 755 |
| Minimum turning radius of front working device (mm) | 1750 |
| Back end turning radius (mm) | 1730 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6335 |
| Maximum digging depth (mm) | 4015 |
| Maximum excavation height (mm) | 7175 |
| Maximum unloading height (mm) | 5080 |
| Maximum vertical digging depth (mm) | 3120 |
| Maximum excavation radius of stop surface (mm) | 6185 |
