2021 Hyundai HX75

1/6

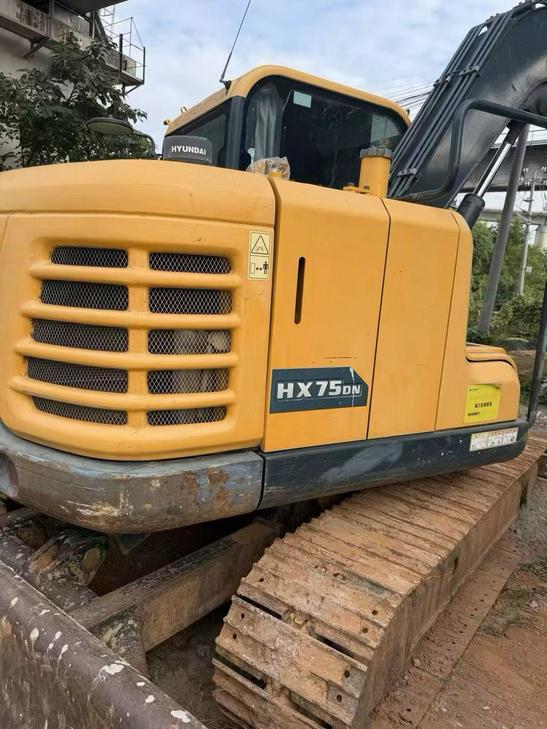

Buy Hyundai HX75 Used Excavator / 1
Buy Hyundai HX75 Used Excavator / 2
Buy Hyundai HX75 Used Excavator / 3
Buy Hyundai HX75 Used Excavator / 4
Buy Hyundai HX75 Used Excavator / 5
Buy Hyundai HX75 Used Excavator / 6

Product Description

This 2021 Hyundai HX75 excavator offers reliable performance for mid-sized construction and earthmoving operations. With approximately three years of service, this machine combines Hyundai's proven engineering with practical functionality for contractors seeking dependable equipment at competitive value.

The HX75 delivers solid digging force and operational efficiency in its weight class, suitable for site development, utility work, and general excavation tasks. Its compact dimensions provide maneuverability in confined jobsites while maintaining productive bucket capacity.

Currently located in Zhejiang, China, this unit is available for inspection. As a used machine, it presents an opportunity to acquire Korean-manufactured equipment with established parts availability and service support throughout Asian markets.

  • Manufacturing Year: 2021
  • Make: Hyundai Construction Equipment
  • Model: HX75 Crawler Excavator
  • Location: Zhejiang Province, China
SpecificationsValue
No.1144709
Tonnage (tons)7
Working weight (kg)7000
Bucket capacity (m³)0.32
Boom length (mm)3700
Rod length (mm)1670
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV98-Z
Rated power (kw/rpm)44.4/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)98 x 110
Number of cylinders (PCS)4
Rotation speed (rpm)12.5
Climbing ability (%)70
Bucket digging force (kN)55.9
Rod digging force (kN)43.9
Travel speed (km/h)4.0/2.4
Maximum flow of main pump (l/min)158
Main pump typeVariable piston pump
Fuel Tank (L)140
Hydraulic Tank (L)130
Engine Oil changes (L)9.2
Coolant (L)11
Hydraulic System (L)75
Total transport length (mm)6080
Total transport width (mm)2260
Total transport height (mm)2550
Counterweight ground clearance (mm)755
Minimum turning radius of front working device (mm)1750
Back end turning radius (mm)1730
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)38
Maximum digging radius (mm)6335
Maximum digging depth (mm)4015
Maximum excavation height (mm)7175
Maximum unloading height (mm)5080
Maximum vertical digging depth (mm)3120
Maximum excavation radius of stop surface (mm)6185
