Product Description

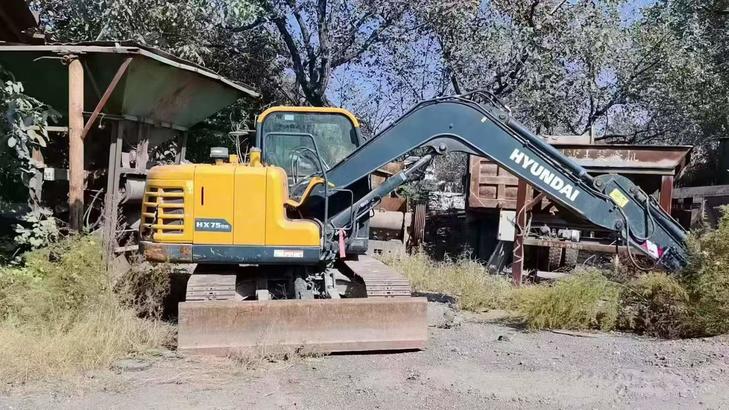

This 2021 Hyundai HX75 crawler excavator offers reliable mid-size performance for contractors seeking proven equipment at competitive value. Manufactured in 2021, this machine comes with a complete set of original components and attachments, ensuring operational readiness upon delivery. Currently located in Zhejiang, China, with logistics available to major industrial regions.
The HX75 represents Hyundai's commitment to durable construction equipment, combining efficient hydraulics with robust undercarriage systems suited for general earthmoving, trenching, and site development applications.
- Year of Manufacture: 2021
- Model: Hyundai HX75
- Configuration: Complete standard equipment package
- Current Location: Zhejiang Province, China
- Condition: Used, operational
Ideal for contractors expanding fleets or replacing aging equipment. Inspection available by appointment. Contact for detailed specifications, operational history, and delivery terms.
| Specifications | Value |
|---|---|
| No. | 1161812 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000 |
| Bucket capacity (m³) | 0.32 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98-Z |
| Rated power (kw/rpm) | 44.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 55.9 |
| Rod digging force (kN) | 43.9 |
| Travel speed (km/h) | 4.0/2.4 |
| Maximum flow of main pump (l/min) | 158 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 9.2 |
| Coolant (L) | 11 |
| Hydraulic System (L) | 75 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2550 |
| Counterweight ground clearance (mm) | 755 |
| Minimum turning radius of front working device (mm) | 1750 |
| Back end turning radius (mm) | 1730 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6335 |
| Maximum digging depth (mm) | 4015 |
| Maximum excavation height (mm) | 7175 |
| Maximum unloading height (mm) | 5080 |
| Maximum vertical digging depth (mm) | 3120 |
| Maximum excavation radius of stop surface (mm) | 6185 |
