Product Description

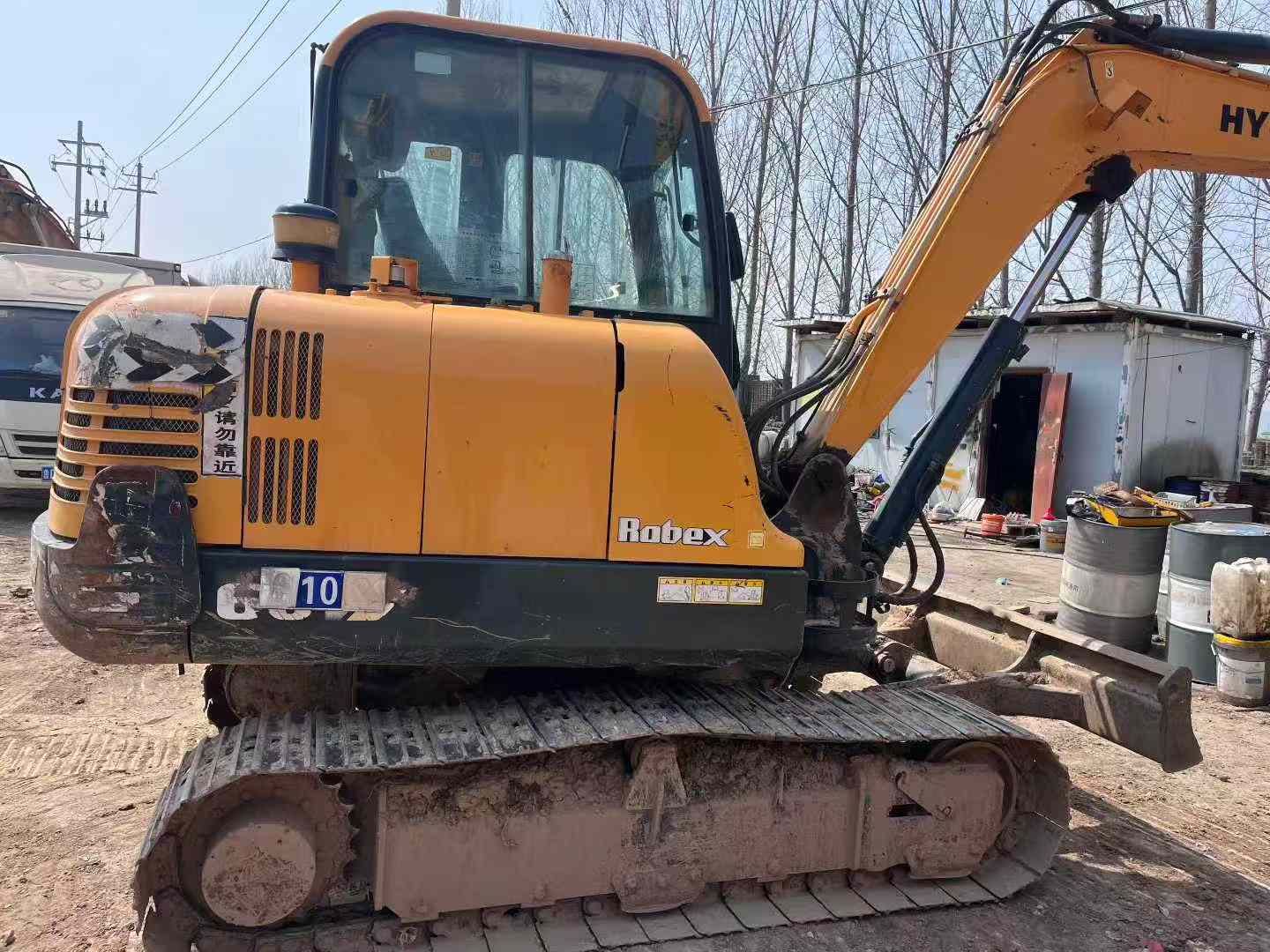

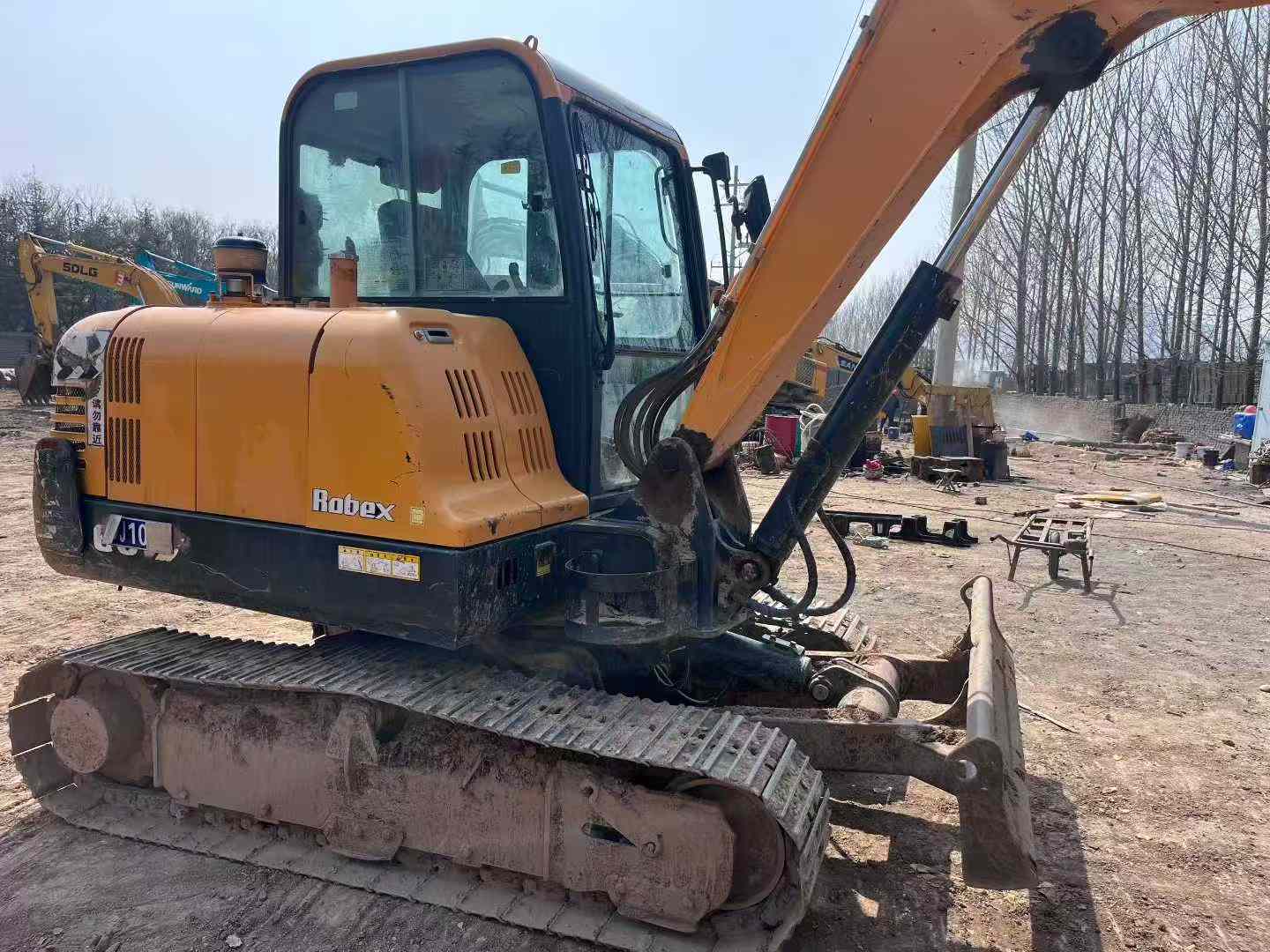

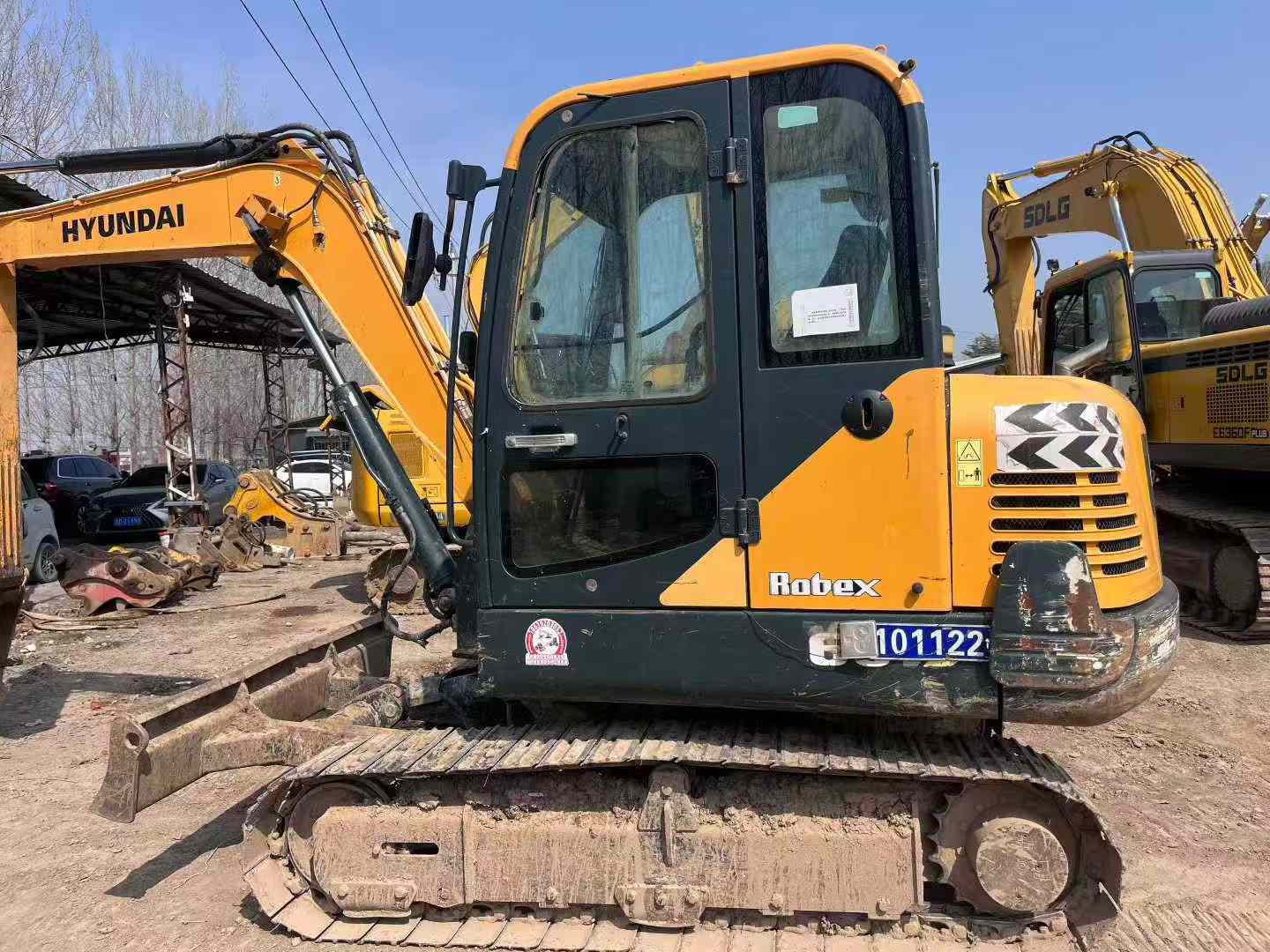

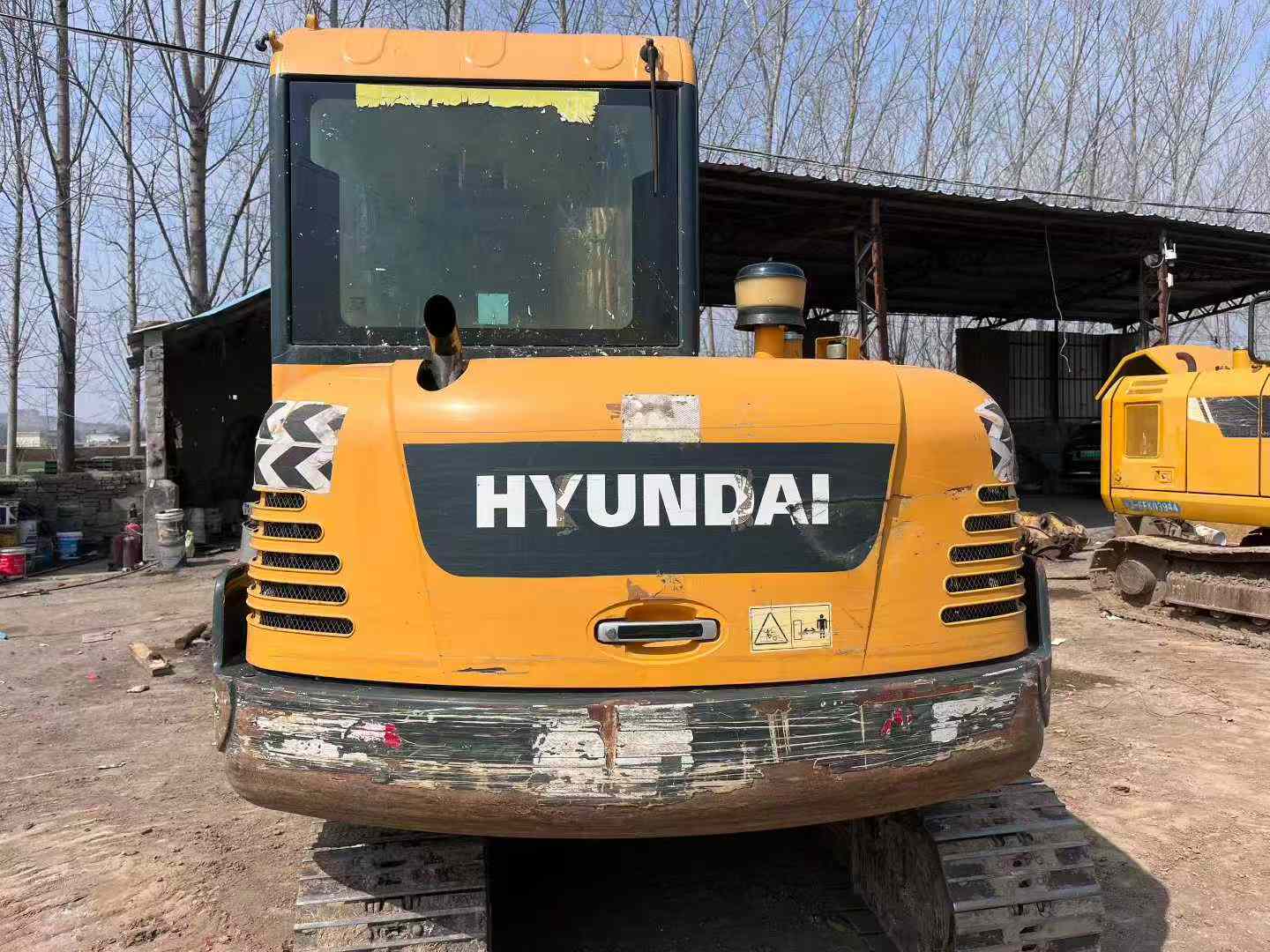

Built for the long haul, this 2018 Hyundai R 60VS mini excavator delivers proven performance in the 6-ton class. Powered by a robust Yanmar 4TNV98 water-cooled engine generating 54.3 kW at 2400 rpm, this workhorse combines reliable joint-venture engineering with field-tested durability. Operating weight of 5,850 kg provides excellent stability, while the 0.21 m³ backhoe bucket tackles diverse excavation tasks with precision.
- Maximum Digging Reach: 6,150 mm with 3,820 mm depth capability

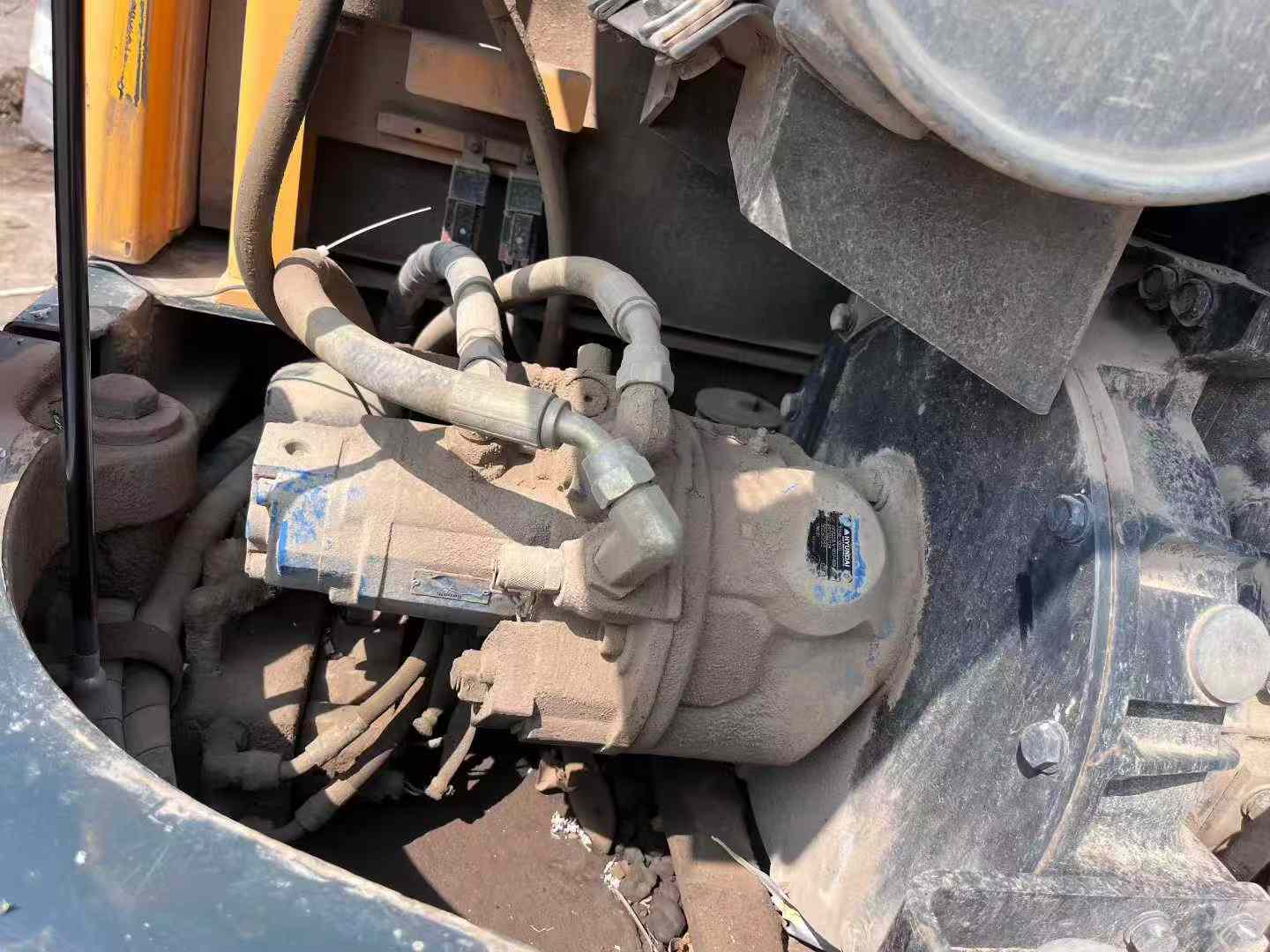

- Hydraulic Power: Dual variable plunger pumps (2 × 55 L/min) at 220 MPa working pressure
- Boom Configuration: 3,000 mm boom, 1,600 mm arm for versatile operation
- Mobility: 70% climbing ability with 4.0 km/h high-speed travel
- Compact Footprint: 1,920 mm width, 1,650 mm rear swing radius for confined sites
Currently located in Zaozhuang, Shandong, this proven machine demonstrates Hyundai's commitment to engineering excellence. With comprehensive hydraulic systems and efficient fuel capacity of 120 liters, it stands ready for demanding construction and excavation projects worldwide.
| Specifications | Value |
|---|---|
| No. | 1030401 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

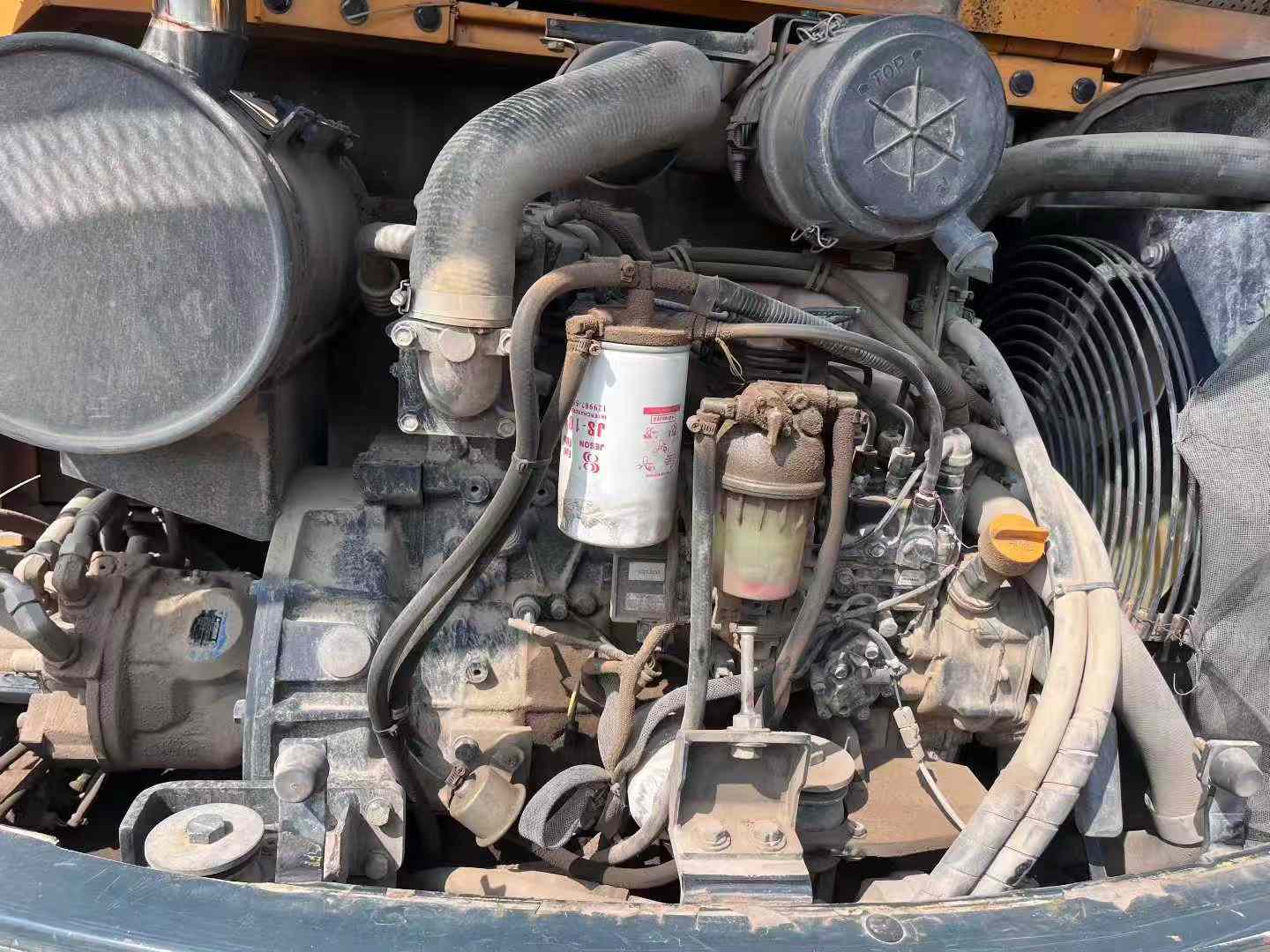

| Engine type | Yanmar 4TNV98 |
| Rated power (kw/rpm) | 54.3 / 2400 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 (3.86 ") x 110 (4.33 "). |
| Maximum torque (N.m) | 20.6 / 1800 |
| Displacement (L) | 3.319 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 4.0 / 2.2 |
| Maximum flow of main pump (l/min) | 2 x 55 |
| Traveling Hydraulic Circuit (Mpa) | 220 |
| Rotary Hydraulic Circuit (Mpa) | 220 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 220 |
| Pilot Oil Circuit (MPa) | 30 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-80 x 50 x 660 (3.1 "x 26.0") |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-90×55×850 (3.5 "×33.5") |
| Boom cylinders - Number × diameter × stroke (mm) | 1-110×65×715 (4.3 "×28.1") |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 12 |
| Coolant (L) | 10 |
| Hydraulic System (L) | 120 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Counterweight ground clearance (mm) | 690 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 1830 |
| Total track length (mm) | 2530 |
| Track gauge (mm) | 1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1990 |
| Maximum height at minimum turning radius (mm) | 2350 |

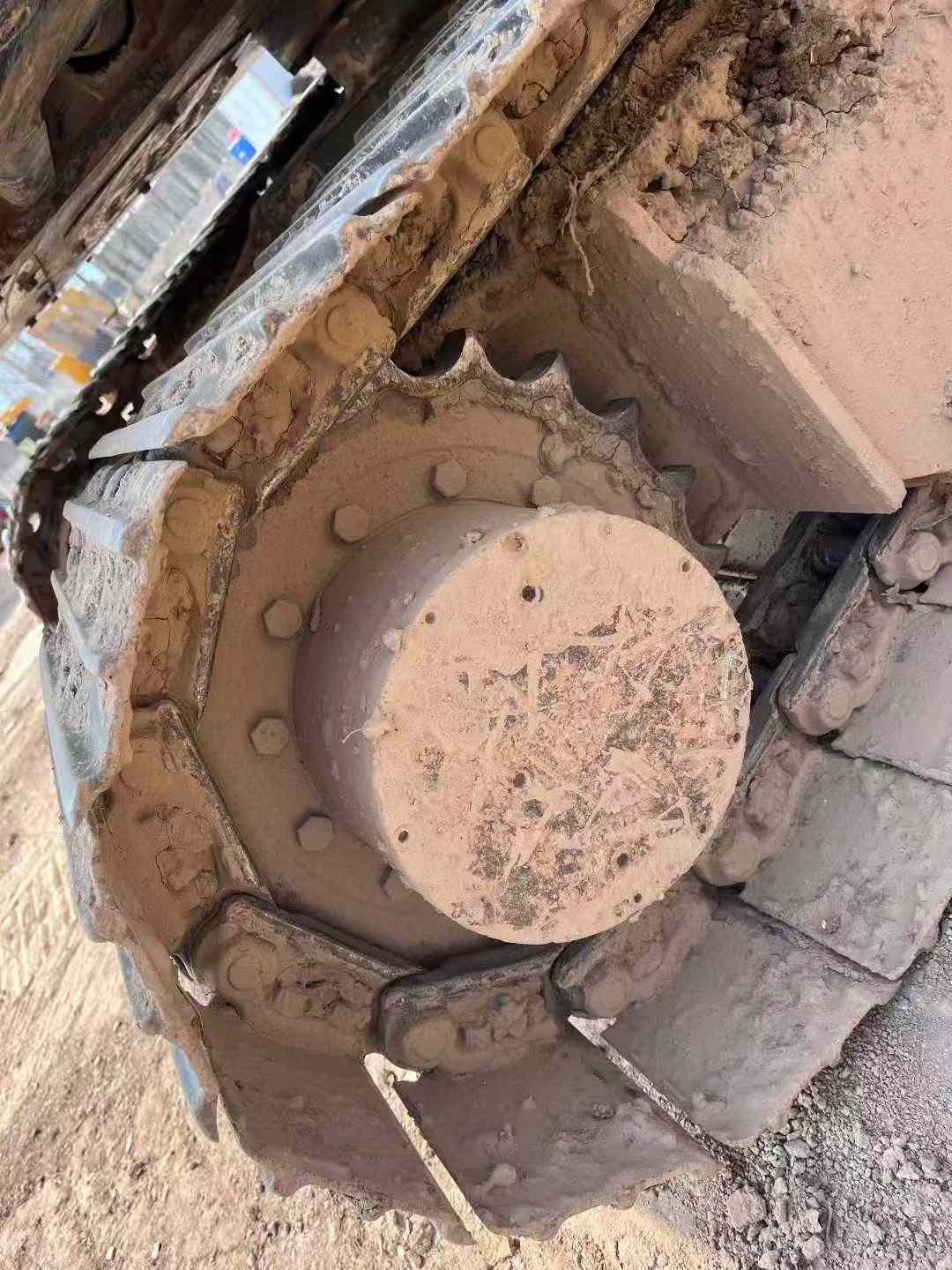

| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4050 |
| Maximum vertical digging depth (mm) | 3200 |
| Maximum excavation radius of stop surface (mm) | 6010 |
| Maximum effective digging depth (mm) | 3420 |
