Product Description

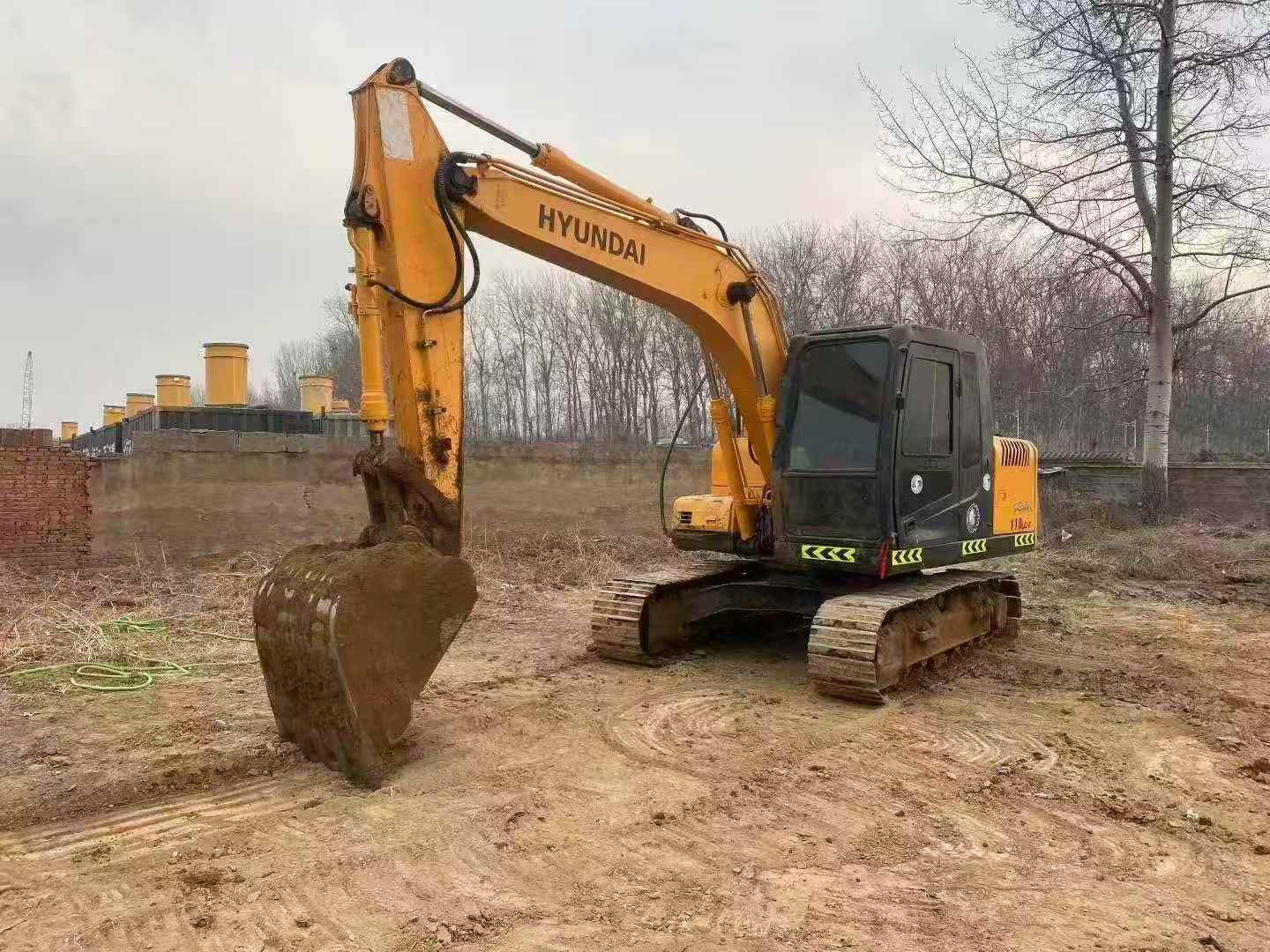

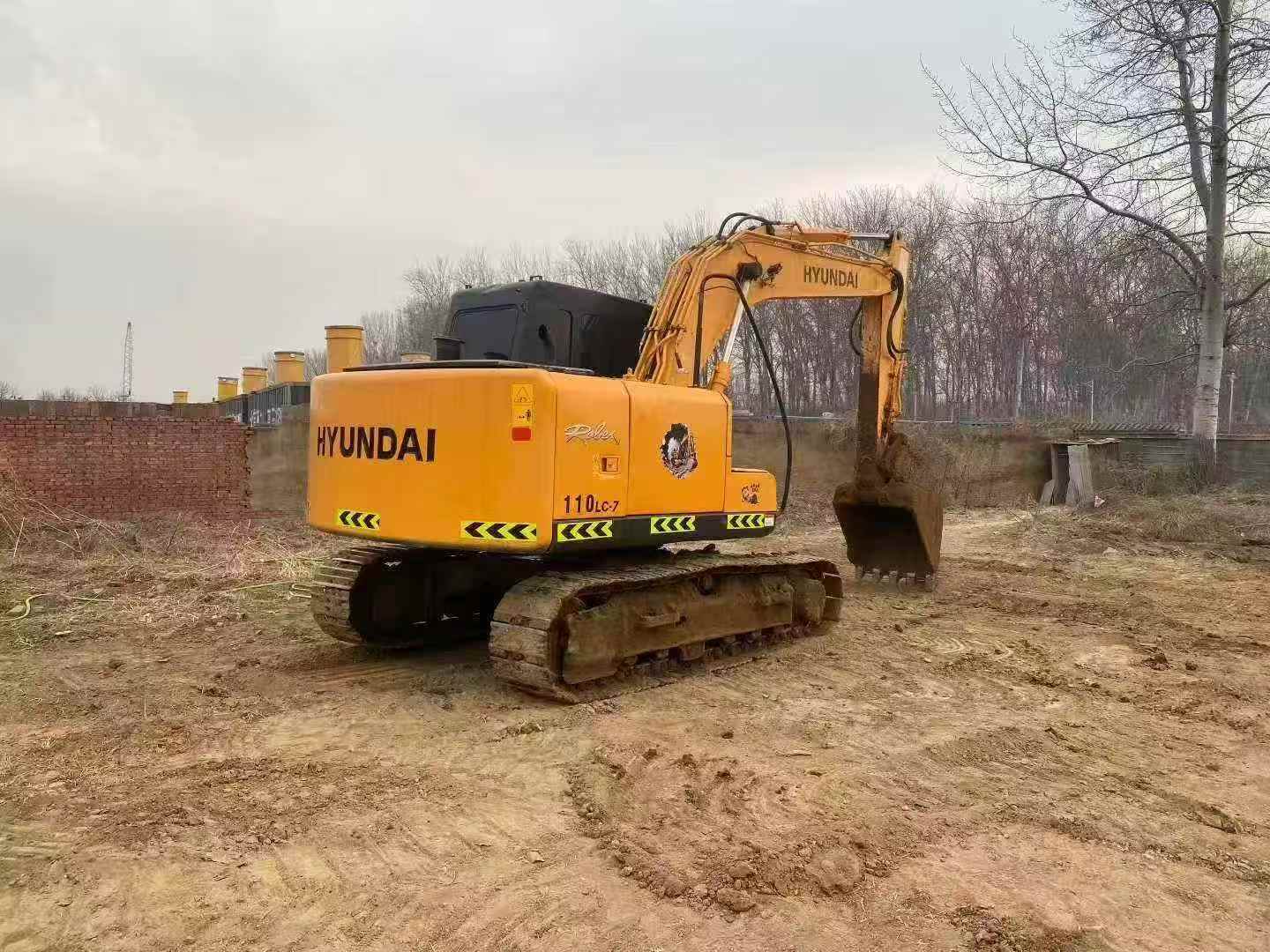

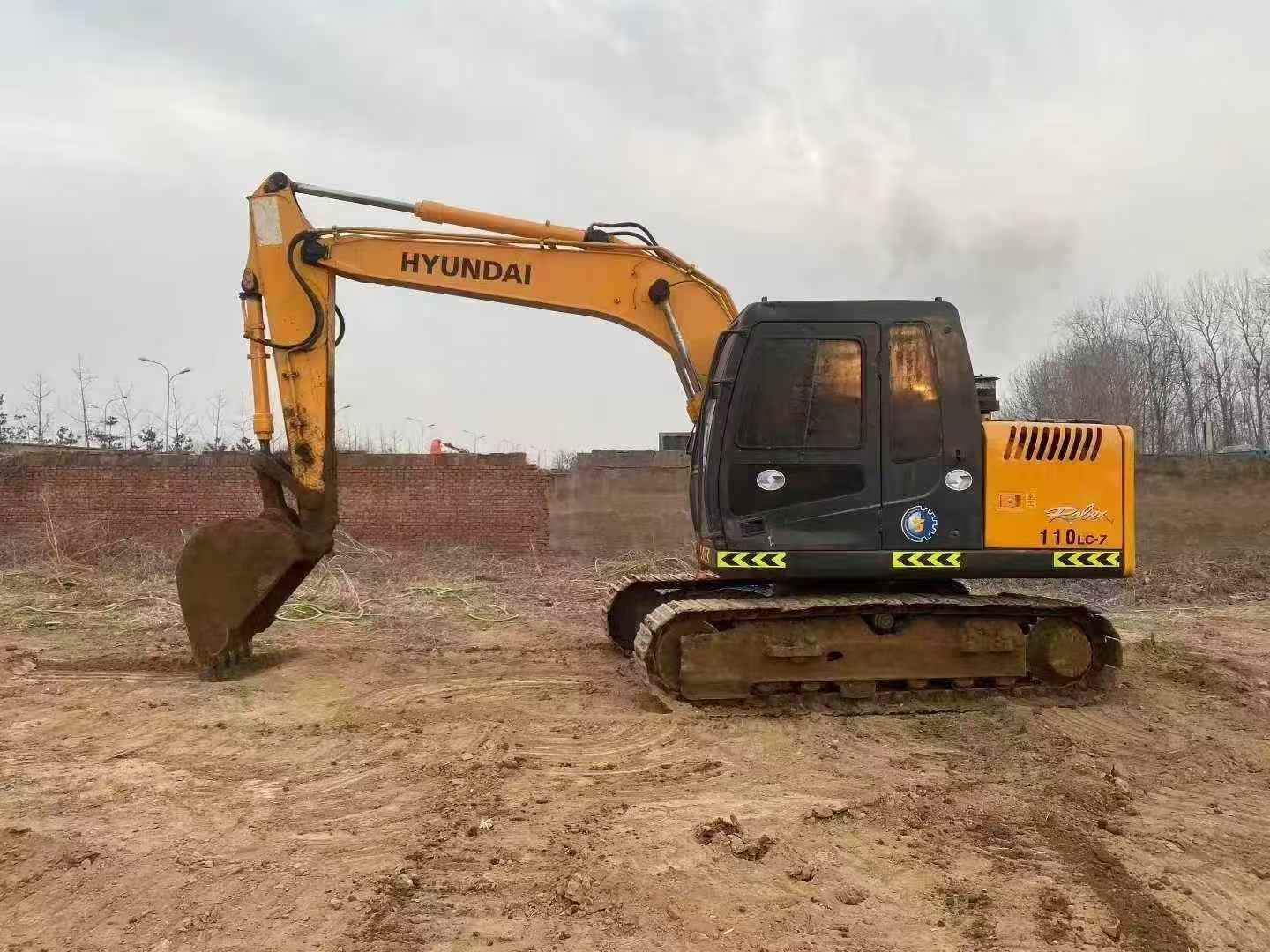

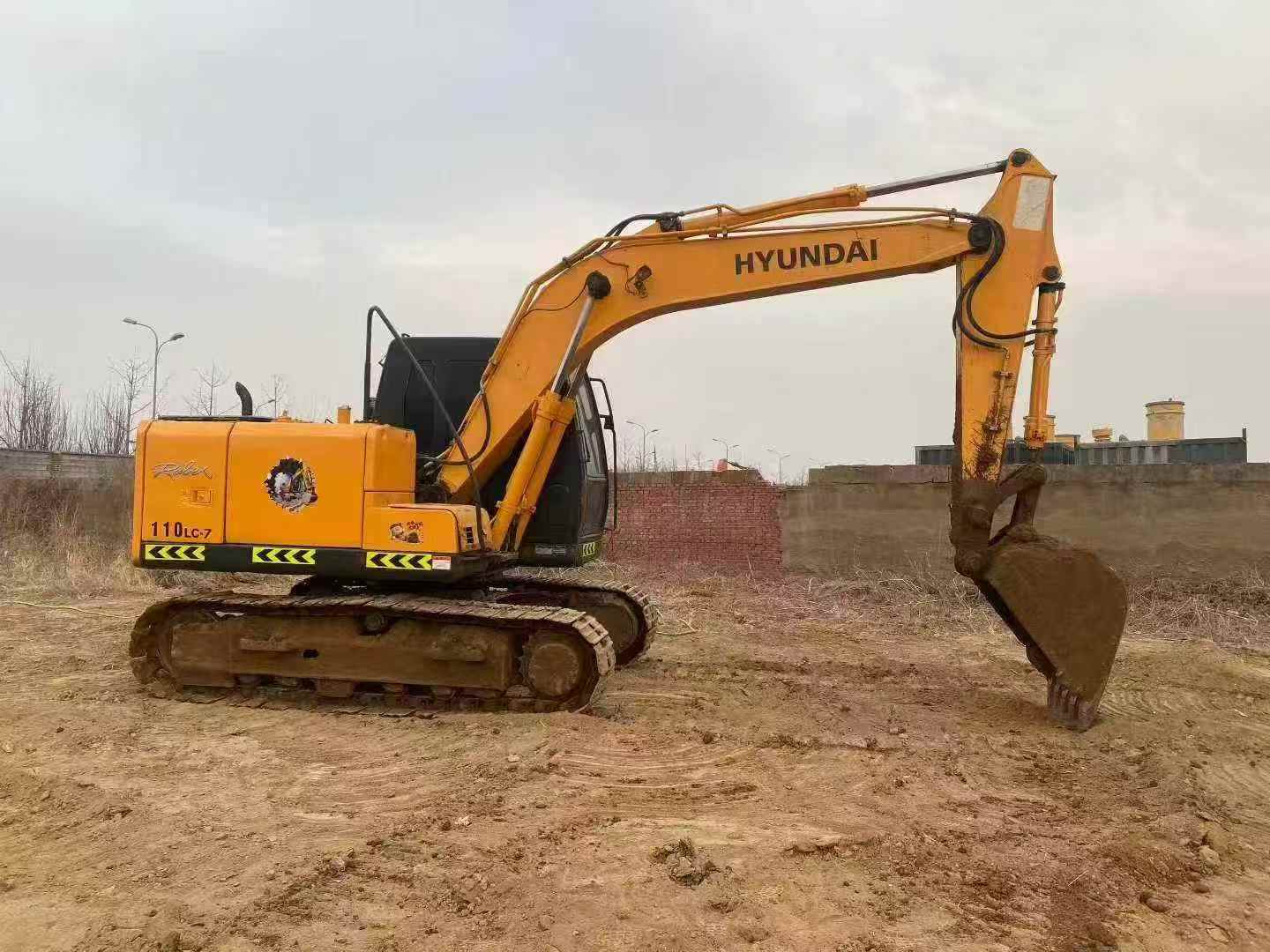

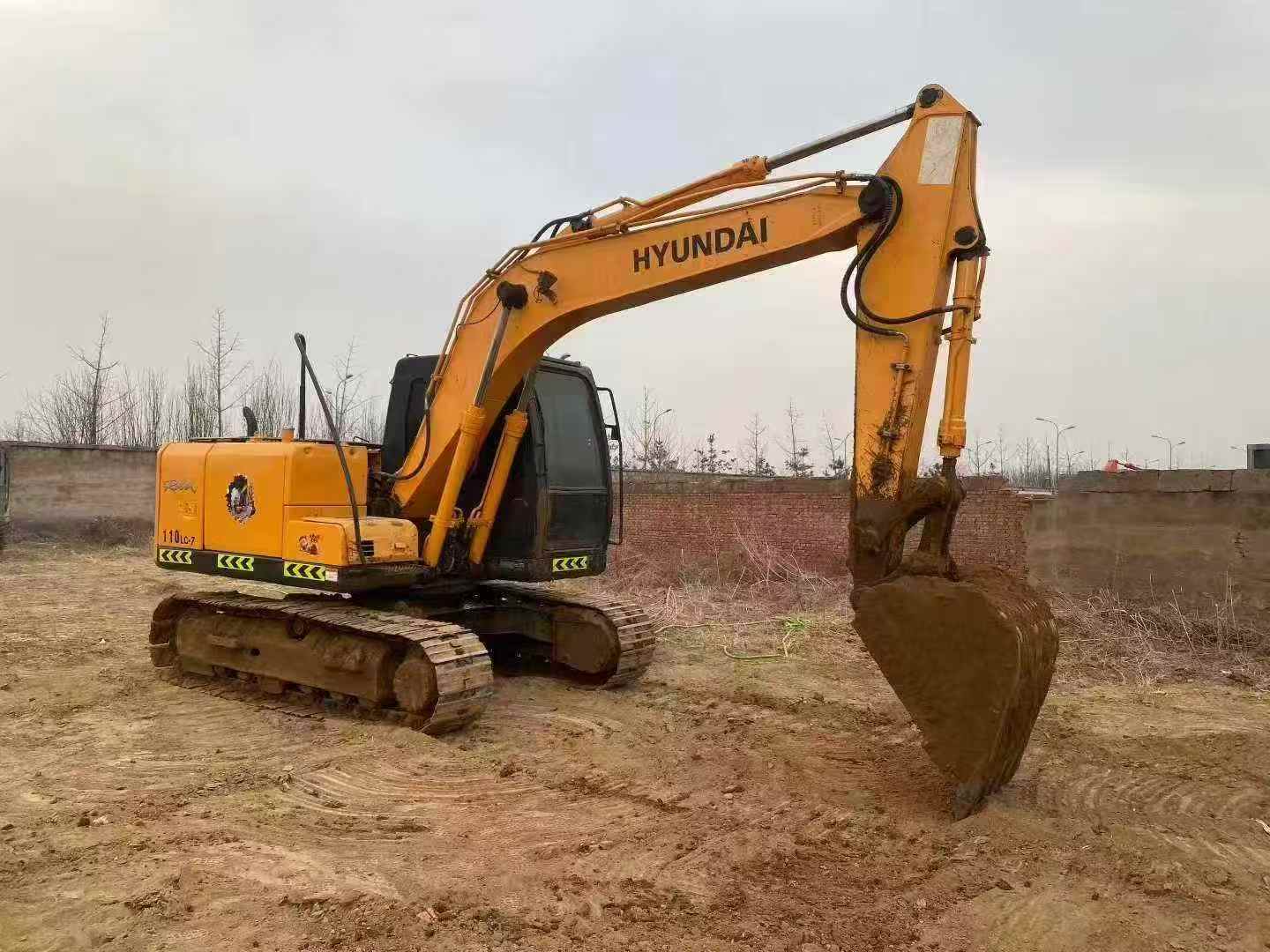

Available now in Hebei, this 2016 Hyundai R110-7 crawler excavator eliminates factory lead times and delivers immediate productivity to your construction site. Powered by a robust Mitsubishi S4K-T turbocharged diesel engine producing 70kW at 1950 rpm, this 11-ton machine combines proven reliability with impressive performance metrics. Skip the waiting—fast deployment means your project stays on schedule.
- Operating weight: 11,200 kg with 0.30-0.59 m³ bucket capacity
- Maximum digging reach: 7,740 mm; maximum digging depth: 5,090 mm
- Powerful digging forces: 78.5 kN bucket, 55.7 kN arm
- Dual variable axial piston pumps delivering 2×112 L/min flow
- Water-cooled 4-cylinder engine with 371.4 N·m maximum torque
- Compact transport dimensions: 7,270×2,490×2,800 mm
- Superior climbing ability: 70% (35°) grade capability
Located in Hebei province, this joint venture-manufactured excavator is ready for immediate inspection and delivery. Equipped with quantitative swash plate rotary motor and variable walking motors, it offers precise control for demanding applications. Contact us today for rapid site deployment.
| Specifications | Value |
|---|---|
| No. | 1006178 |
| Tonnage (tons) | 11 |
| Working weight (kg) | 11200 |
| Bucket capacity (m³) | 0.30-0.59 |
| Boom length (mm) | 4300 |
| Rod length (mm) | 2260 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi S4K-T |
| Rated power (kw/rpm) | 70/1950 |
| Cooling mode | water-cooling |
| Maximum torque (N.m/rpm) | 371.4 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.2 |
| Working form | Four-cylinder, four-stroke turbocharged direct injection diesel engine |
| Rotation speed (rpm) | 13 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 78.5 |
| Rod digging force (kN) | 55.7 |
| Travel speed (km/h) | 3.4-5.5 |
| Rotary hydraulic motor type | Quantitative swash plate plunger motor |
| Type of walking hydraulic motor | Variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 112 |
| Traveling Hydraulic Circuit (Mpa) | 33 |
| Rotary Hydraulic Circuit (Mpa) | 24 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump |
| Working Hydraulic Circuit (Mpa) | 33 |
| Pilot Oil Circuit (MPa) | 3.5 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 17.5 |
| Total transport length (mm) | 7270 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2800 |
| Full cab height (mm) | 2800 |
| Counterweight ground clearance (mm) | 900 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2380 |
| Back end turning radius (mm) | 2130 |
| Onboard width (mm) | 2800 |
| Total track length (mm) | 3340 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2610 |
| Maximum digging radius (mm) | 7740 |
| Maximum digging depth (mm) | 5090 |
| Maximum excavation height (mm) | 8070 |
| Maximum unloading height (mm) | 5710 |
| Maximum vertical digging depth (mm) | 4430 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 7610 |
| Maximum effective digging depth (mm) | 4870 |
