Product Description

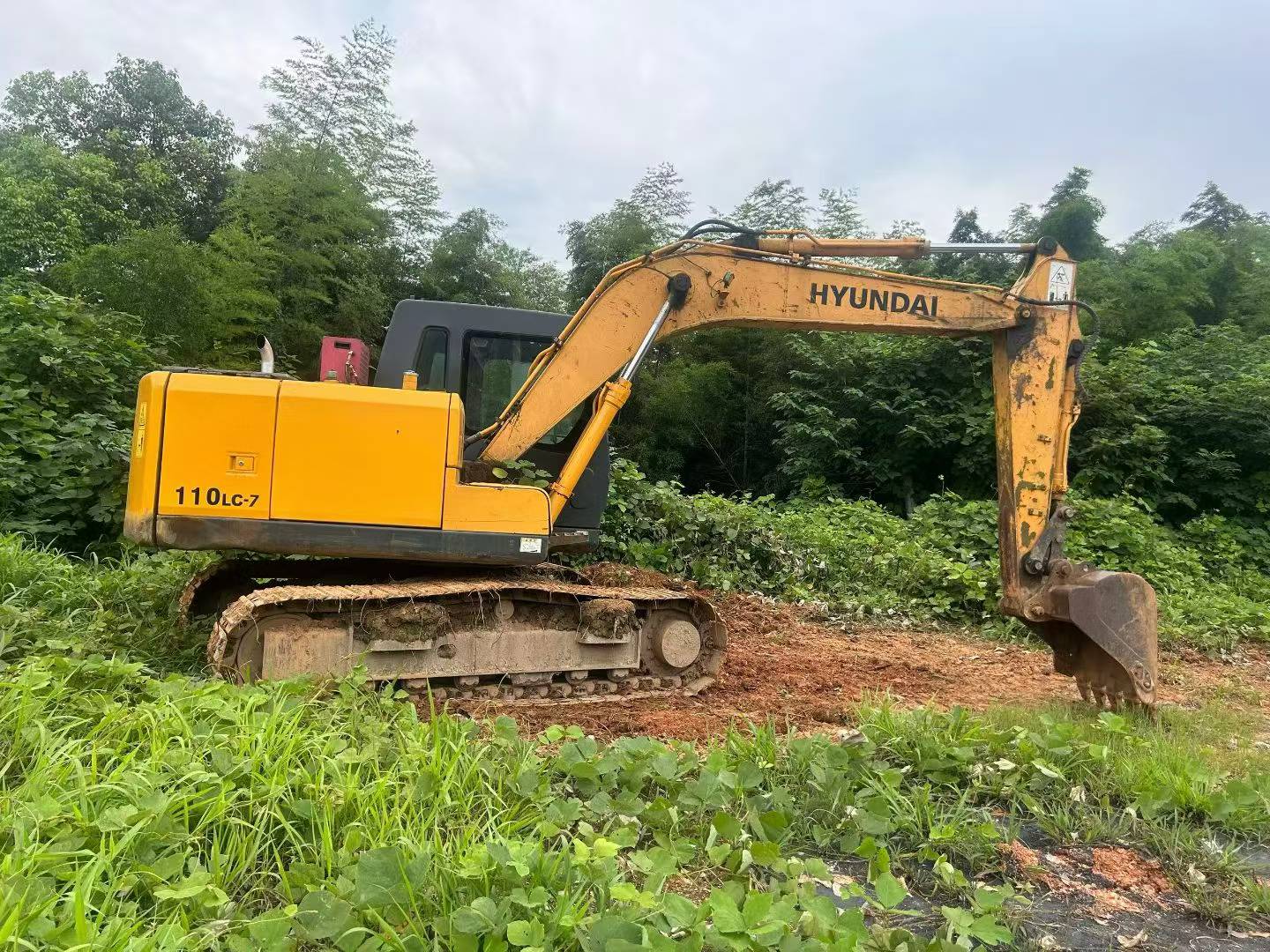

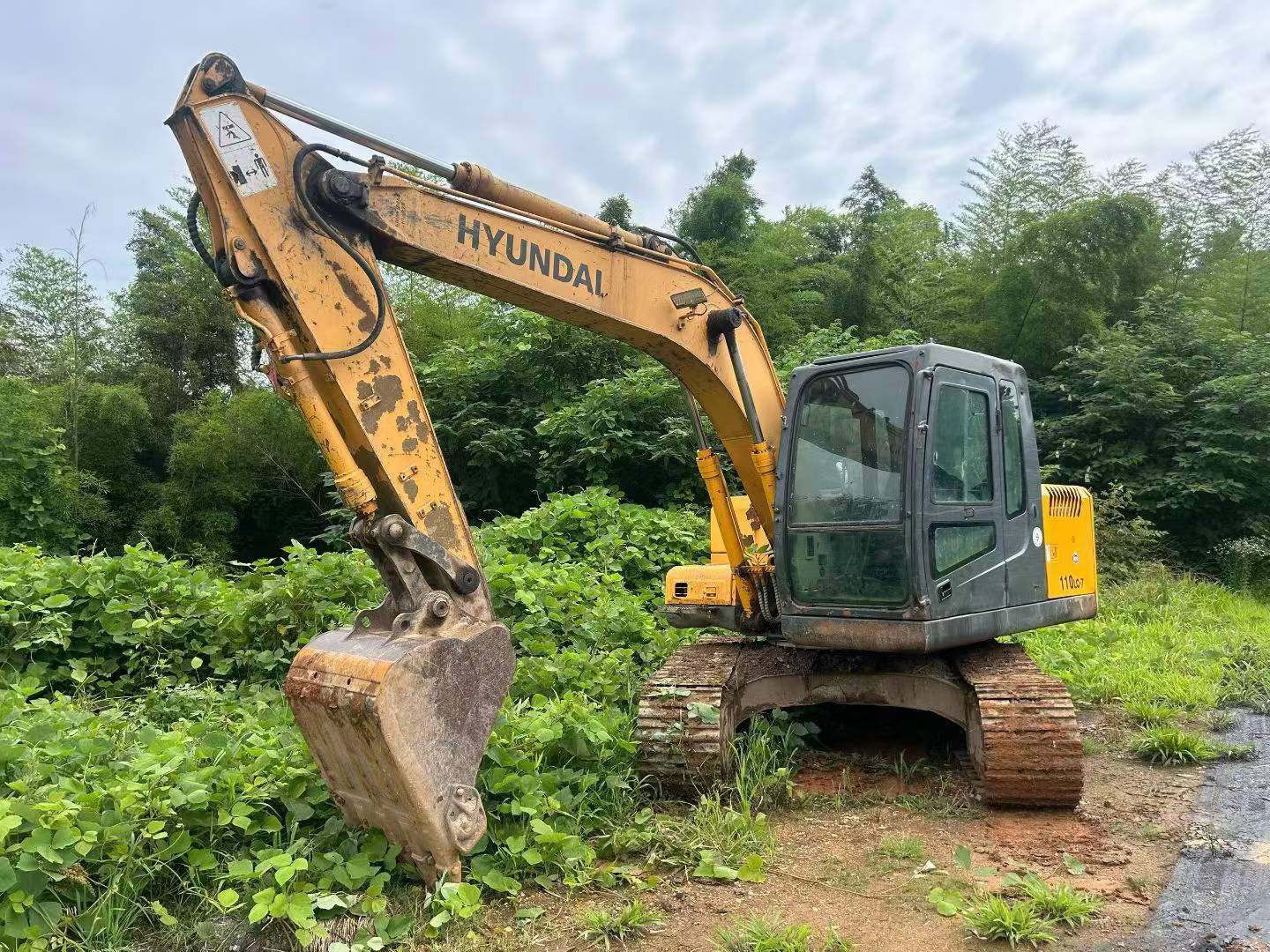

Discover the 2020 Hyundai R110-7, a robust and efficient excavator available for sale in Hunan, China. This machine is powered by a reliable imported Mitsubishi engine, ensuring both fuel efficiency and high performance. It has undergone minimal repainting, specifically on the counterweight side door, with all major components maintaining their original factory quality. The undercarriage has been recently replaced, enhancing its operational reliability. Notably, this excavator can perform all functions at idle speed, making it an ideal choice for a variety of construction and excavation tasks. Offered by a genuine seller, this R110-7 is ready to meet your project demands.
- Year: 2020
- Brand: Hyundai
- Model: R110-7
- Location: Hunan, China

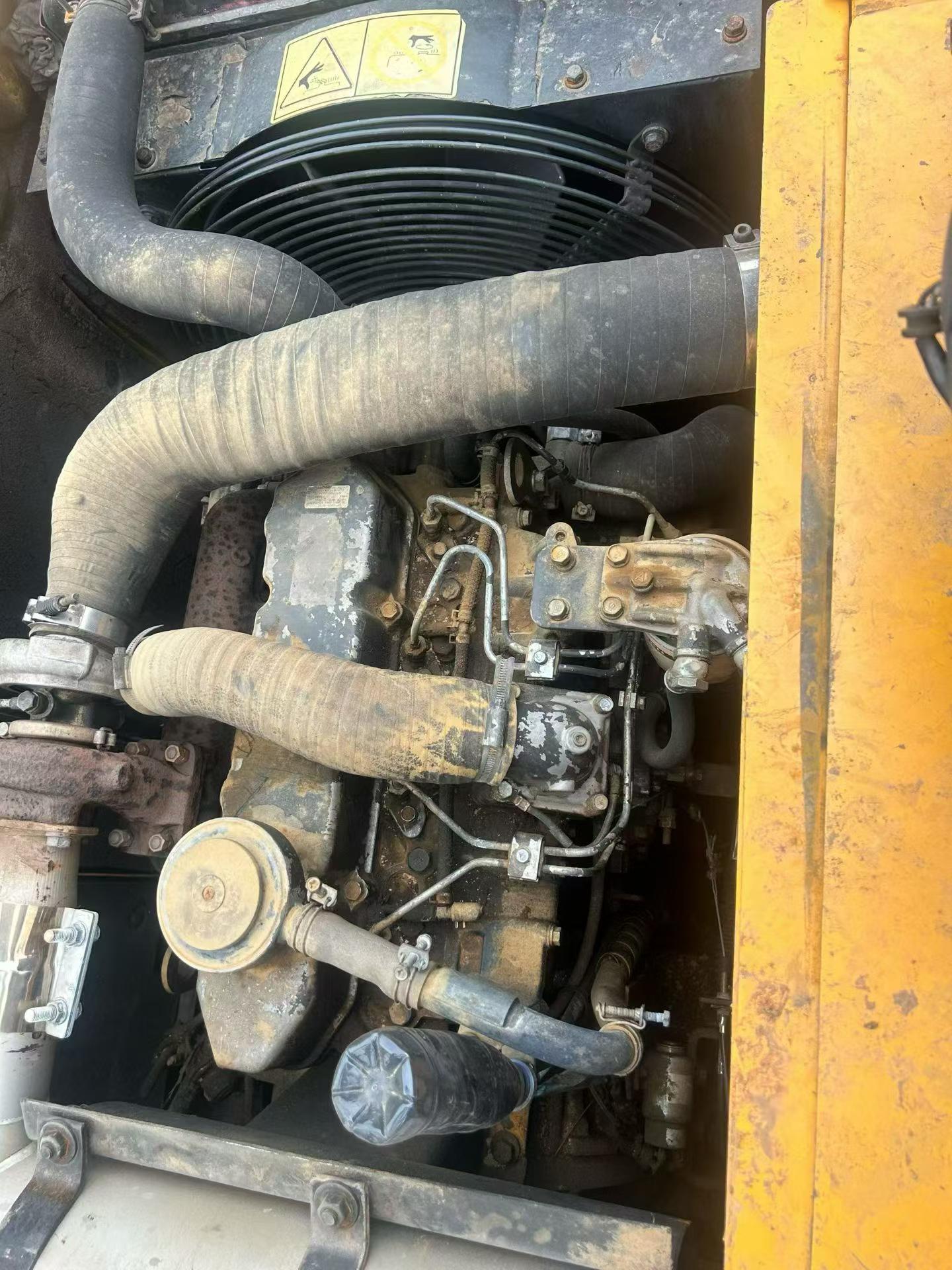

- Engine: Imported Mitsubishi, known for fuel efficiency and speed

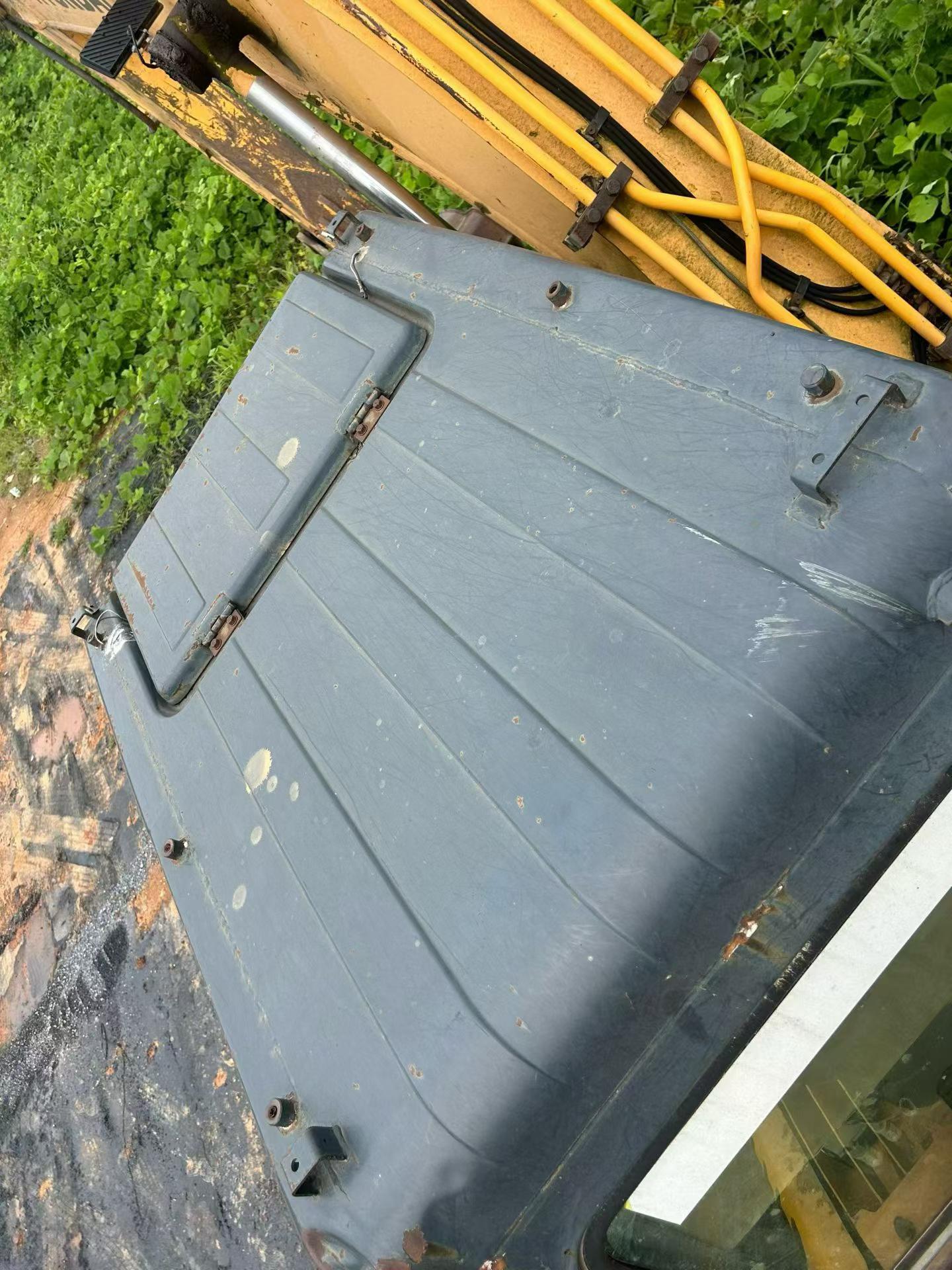

- Condition: Original factory quality parts; minor repainting on the counterweight side door

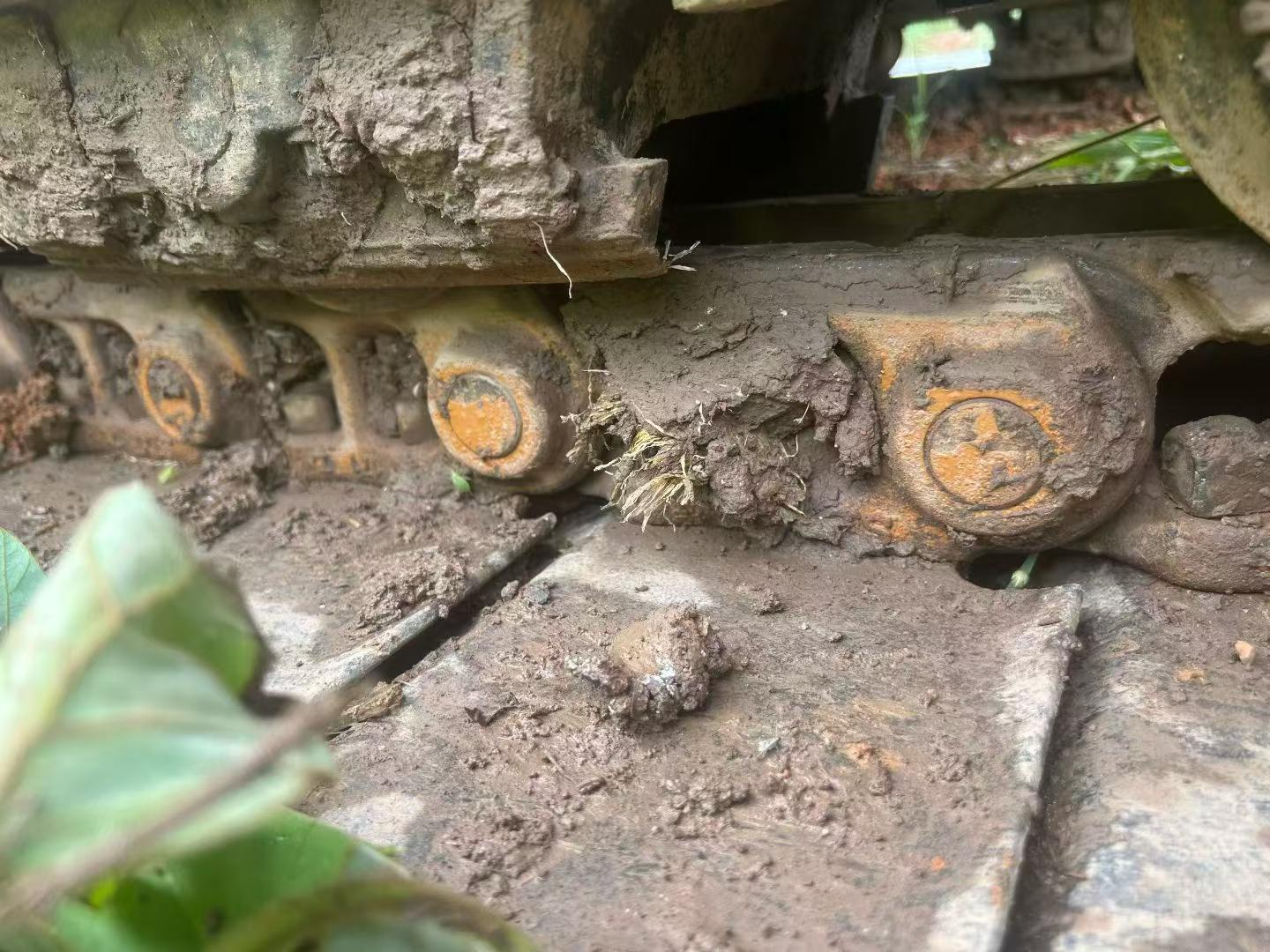

- Recent maintenance: Undercarriage replacement
| Specifications | Value |
|---|---|
| No. | 1112507 |
| Tonnage (tons) | 11 |
| Working weight (kg) | 11200 |
| Bucket capacity (m³) | 0.30-0.59 |
| Boom length (mm) | 4300 |
| Rod length (mm) | 2260 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi S4K-T |
| Rated power (kw/rpm) | 70/1950 |
| Cooling mode | water-cooling |
| Maximum torque (N.m/rpm) | 371.4 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.2 |
| Working form | Four-cylinder, four-stroke turbocharged direct injection diesel engine |
| Rotation speed (rpm) | 13 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 78.5 |
| Rod digging force (kN) | 55.7 |
| Travel speed (km/h) | 3.4-5.5 |

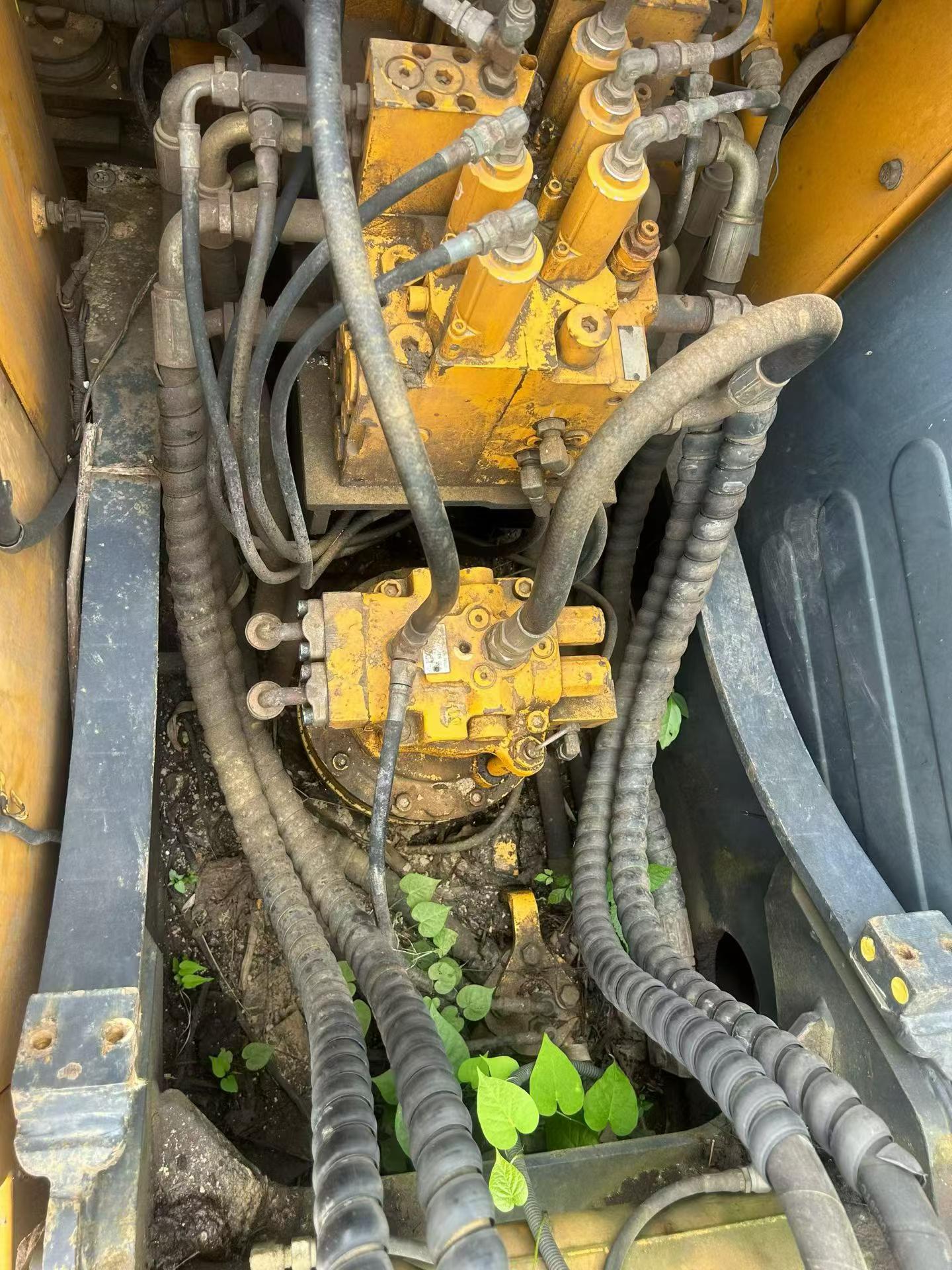

| Rotary hydraulic motor type | Quantitative swash plate plunger motor |
| Type of walking hydraulic motor | Variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 112 |
| Traveling Hydraulic Circuit (Mpa) | 33 |
| Rotary Hydraulic Circuit (Mpa) | 24 |
| Hydraulic crushing pipeline is standard | no |

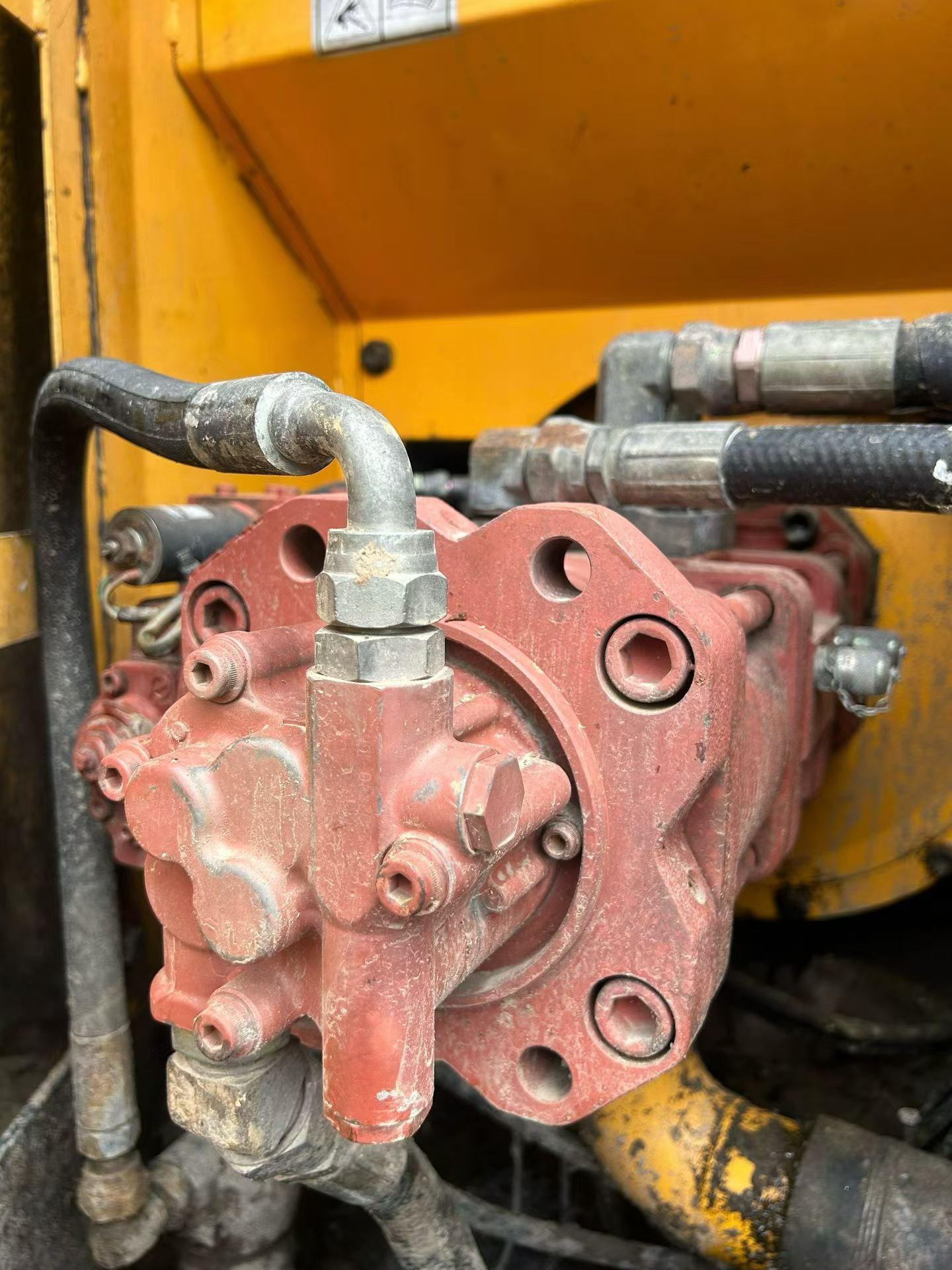

| Main pump type | 2× variable axial piston pump |
| Working Hydraulic Circuit (Mpa) | 33 |
| Pilot Oil Circuit (MPa) | 3.5 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 17.5 |
| Total transport length (mm) | 7270 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2800 |
| Full cab height (mm) | 2800 |
| Counterweight ground clearance (mm) | 900 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2380 |
| Back end turning radius (mm) | 2130 |
| Onboard width (mm) | 2800 |
| Total track length (mm) | 3340 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2610 |
| Maximum digging radius (mm) | 7740 |
| Maximum digging depth (mm) | 5090 |
| Maximum excavation height (mm) | 8070 |
| Maximum unloading height (mm) | 5710 |
| Maximum vertical digging depth (mm) | 4430 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 7610 |
| Maximum effective digging depth (mm) | 4870 |
