2020 Hyundai R150LC-9

1/9
Buy Hyundai R150LC-9 Used Excavator / 1
Buy Hyundai R150LC-9 Used Excavator / 2
Buy Hyundai R150LC-9 Used Excavator / 3
Buy Hyundai R150LC-9 Used Excavator / 4
Buy Hyundai R150LC-9 Used Excavator / 5
Buy Hyundai R150LC-9 Used Excavator / 6
Buy Hyundai R150LC-9 Used Excavator / 7
Buy Hyundai R150LC-9 Used Excavator / 8
Buy Hyundai R150LC-9 Used Excavator / 9

Product Description

This 2020 Hyundai R150LC-9 crawler excavator represents a reliable mid-size solution for construction and earthmoving operations. As a well-maintained unit from Hyundai's proven 9-series lineup, this machine combines operational efficiency with durability in the 15-ton class segment.

Currently located in Jiangsu, China, this excavator has been identified as a quality unit suitable for demanding job site applications. The R150LC-9 features Hyundai's established hydraulic system and robust undercarriage design, engineered for consistent performance across varied terrain conditions.

  • Year of Manufacture: 2020
  • Model: Hyundai R150LC-9
  • Category: Crawler Excavator
  • Location: Jiangsu Province, China
  • Condition: Well-maintained

Suitable for contractors seeking dependable equipment with recent manufacture date. Inspection welcomed prior to purchase.

SpecificationsValue
No.1162457
Tonnage (tons)15
Working weight (kg)13980
Bucket capacity (m³)0.23-0.71
Boom length (mm)4600
Rod length (mm)2500
Country of originPeking
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins B3.9-C
Rated power (kw/rpm)84/2100
Cooling modewater-cooling
Maximum torque (N.m/rpm)446.8
Number of cylinders (PCS)4
Displacement (L)3.9
Working formFour-cylinder four-stroke turbocharged direct injection engine
Ground specific pressure (Kpa)36
Rotation speed (rpm)12
Climbing ability (%)35
Bucket digging force (kN)101.9
Rod digging force (kN)65.6
Maximum tractive force (kN)130
Travel speed (km/h)3.2-5.5
Rotary hydraulic motor typeQuantitative swash plate plunger motor
Type of walking hydraulic motorVariable swash plate plunger motor
Maximum flow of main pump (l/min)2 x 123.5
Hydraulic crushing pipeline is standardno

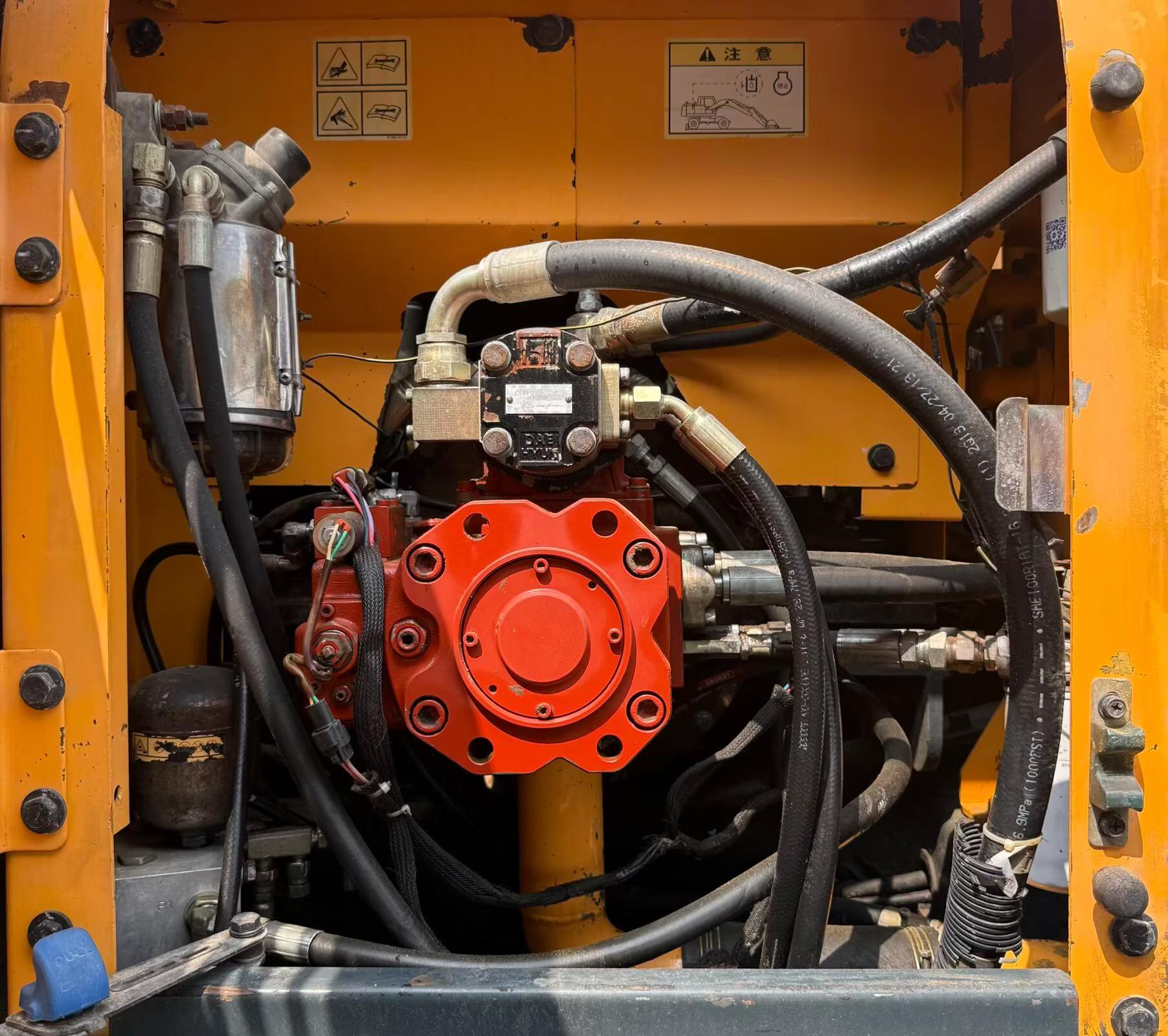

Main pump type2× variable axial piston pump
Working Hydraulic Circuit (Mpa)35
Fuel Tank (L)270
Hydraulic Tank (L)124
Total transport length (mm)7820
Total transport width (mm)2600
Total transport height (mm)2640
Full cab height (mm)2640
Minimum ground clearance (mm)440
Back end turning radius (mm)2310
Track gauge (mm)2000
Track plate width (mm)600
Total track width (mm)2600
Track ground length (mm)3000
Maximum digging radius (mm)8330
Maximum digging depth (mm)5550
Maximum excavation height (mm)8500
Maximum unloading height (mm)6080
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
see more

Overview

No.1162457

Brand Name:

Hyundai

Model Number:

R150LC-9

Year:

2020

Location:

Jiangsu China

Pub Date:

Are you interested in this machine?

Please contact us
