Product Description

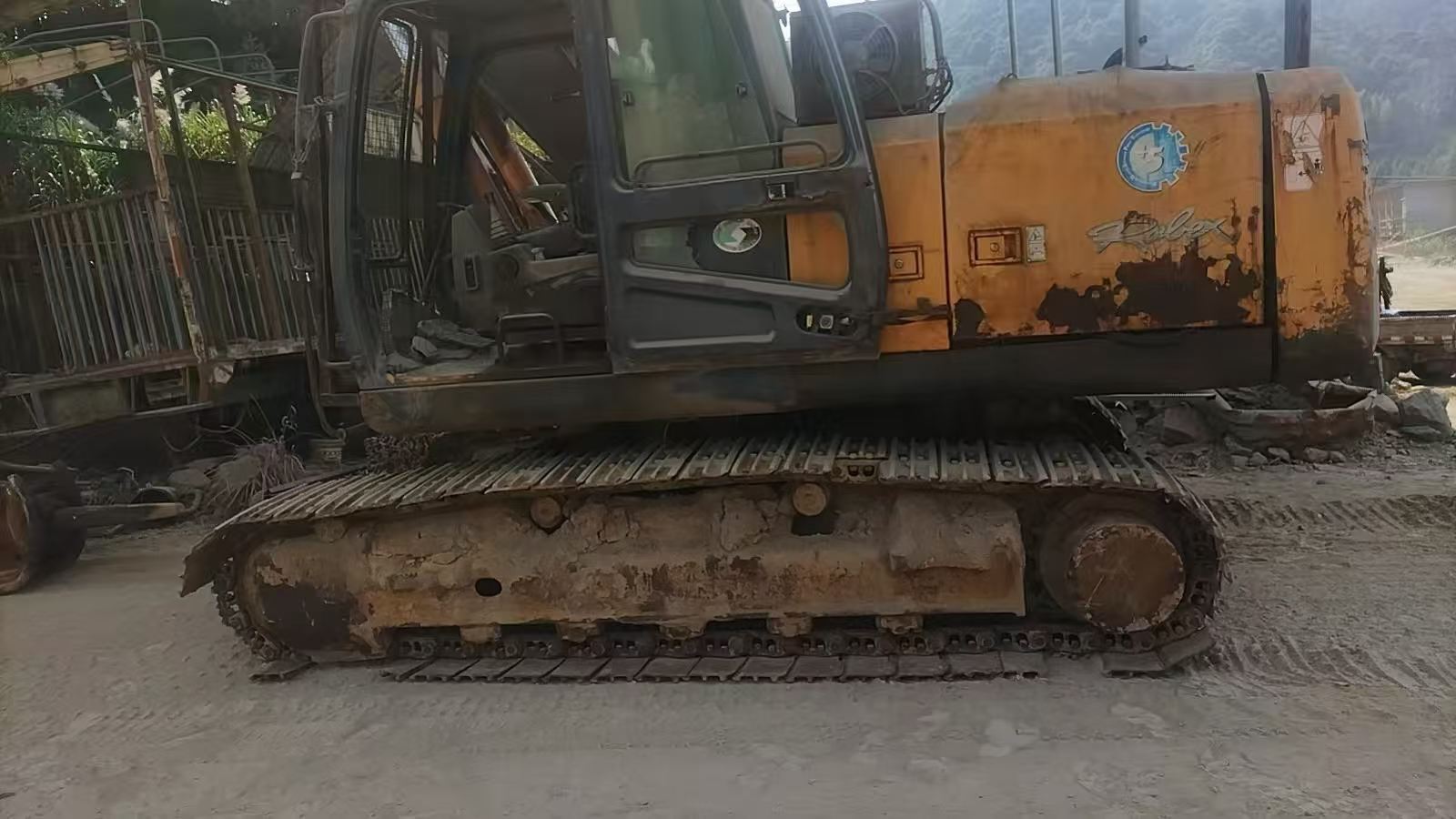

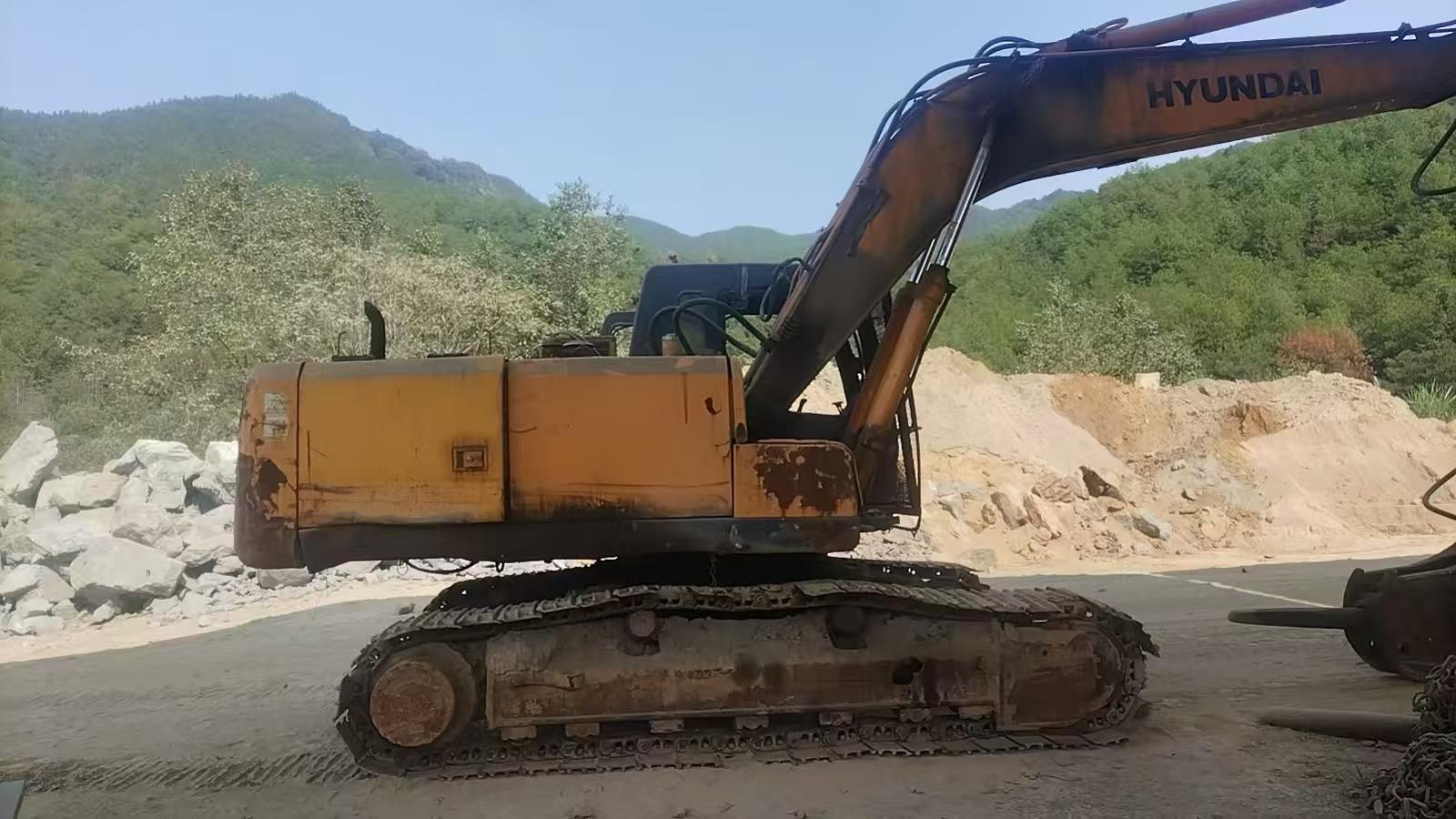

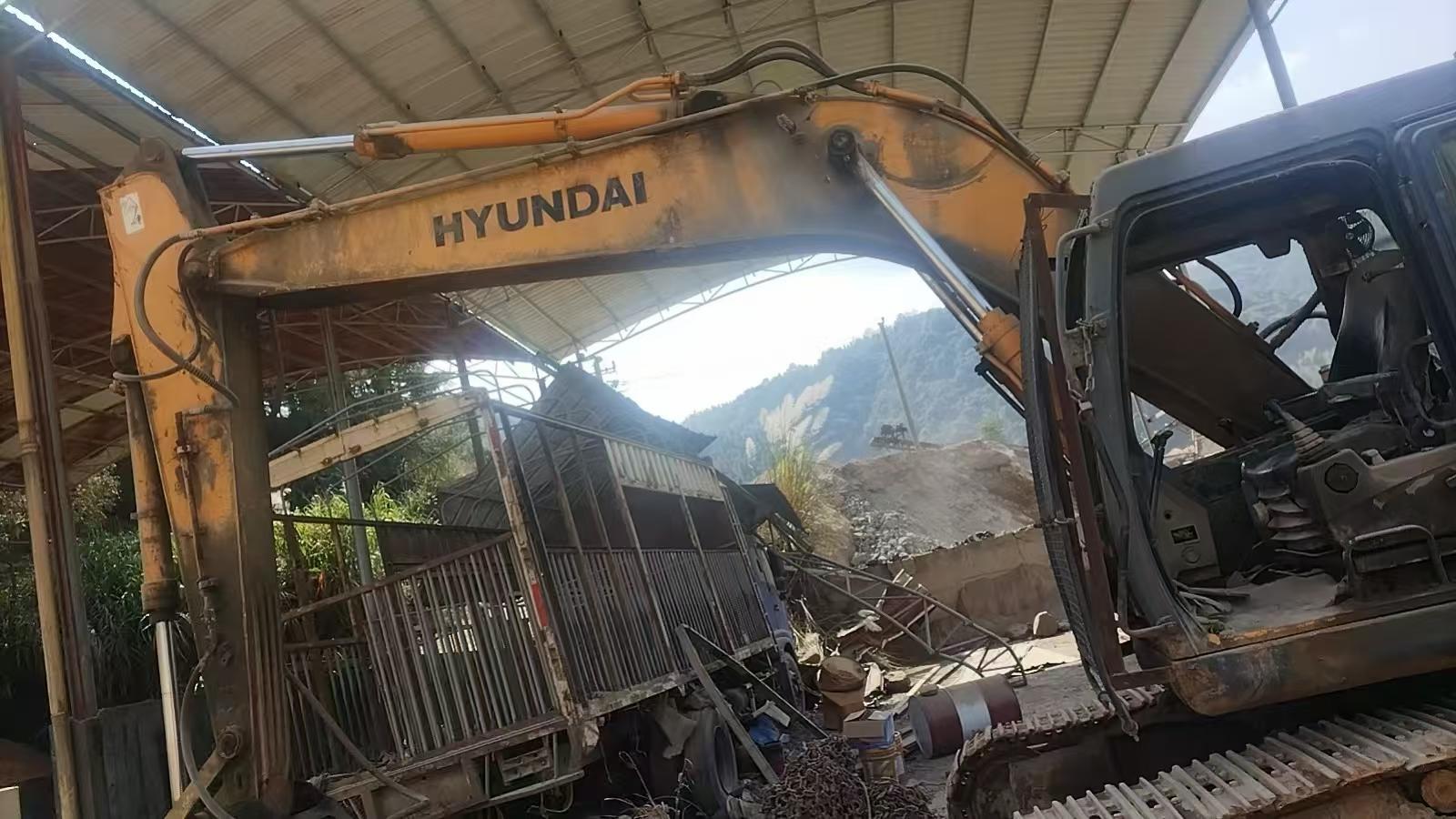

This 2020 Hyundai R215-7 crawler excavator offers dependable performance for medium to heavy-duty earthmoving applications. Sourced from Zhejiang, China, this machine comes equipped with a standard bucket configuration. The R215-7 series is recognized for its efficient fuel consumption, robust hydraulic system, and operator-friendly cab design.
Key features include:
- Operating weight approximately 21,500 kg
- Powerful engine delivering reliable output for demanding jobsites

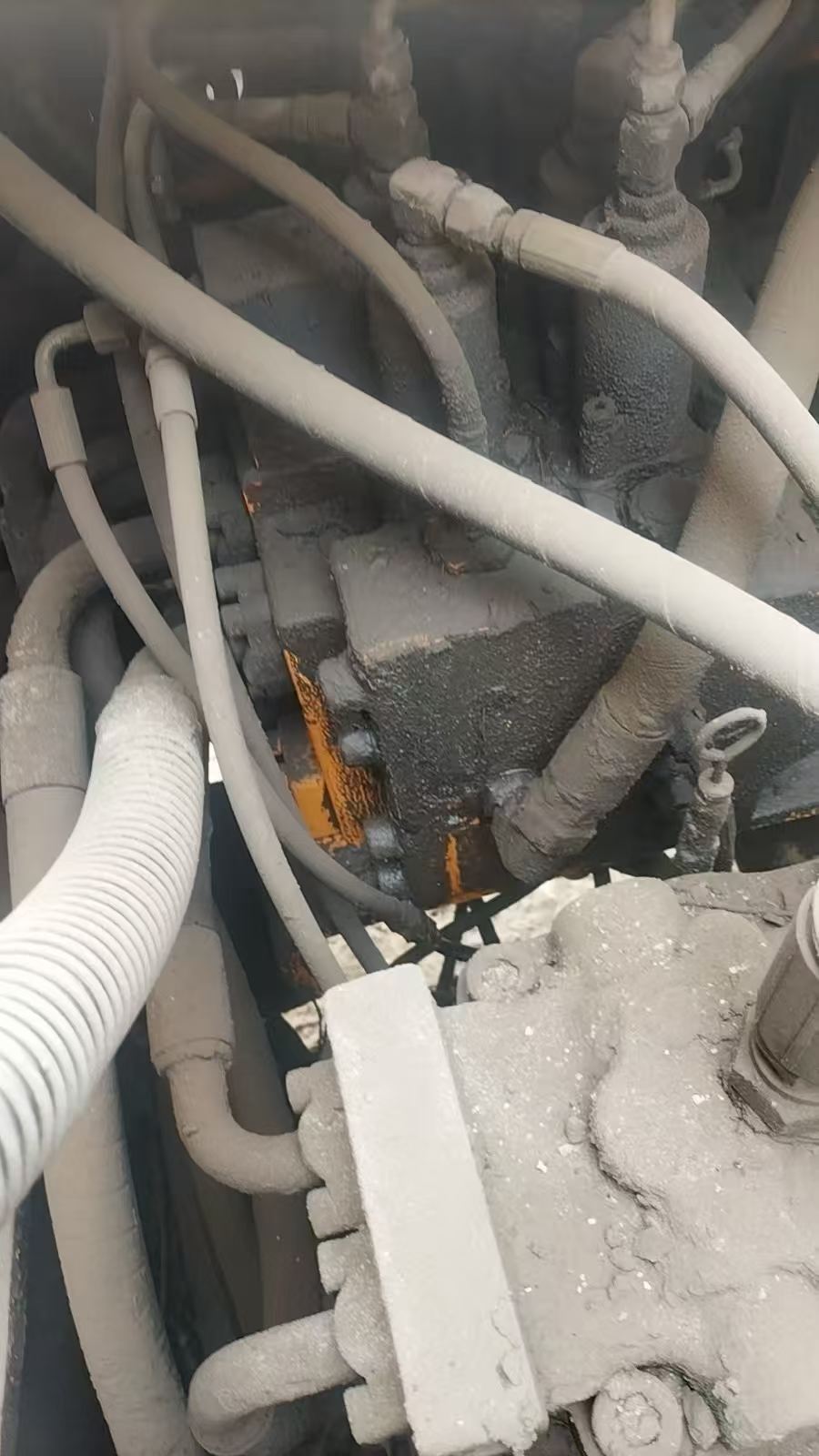

- Hydraulic system designed for smooth operation and precise control

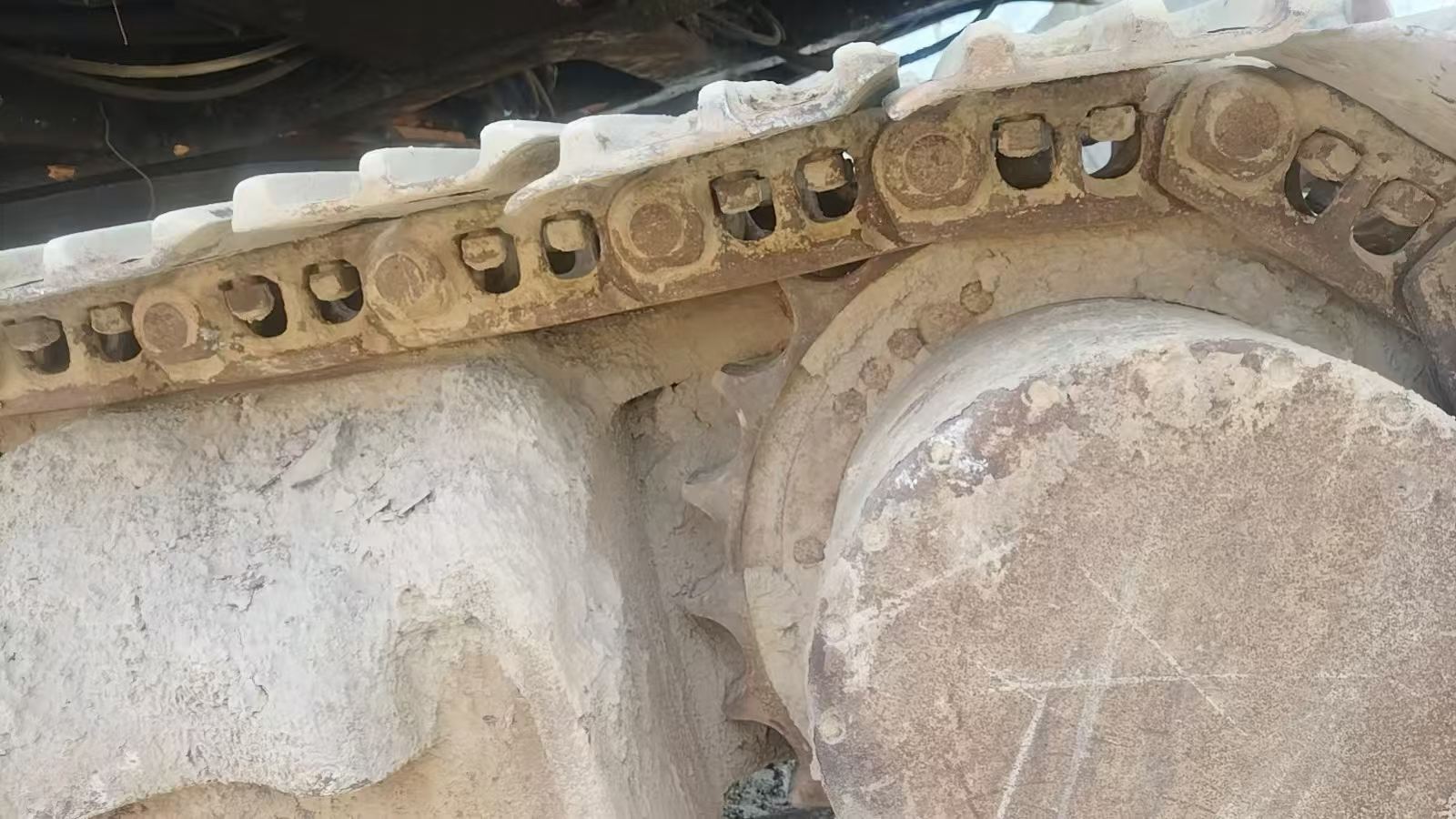

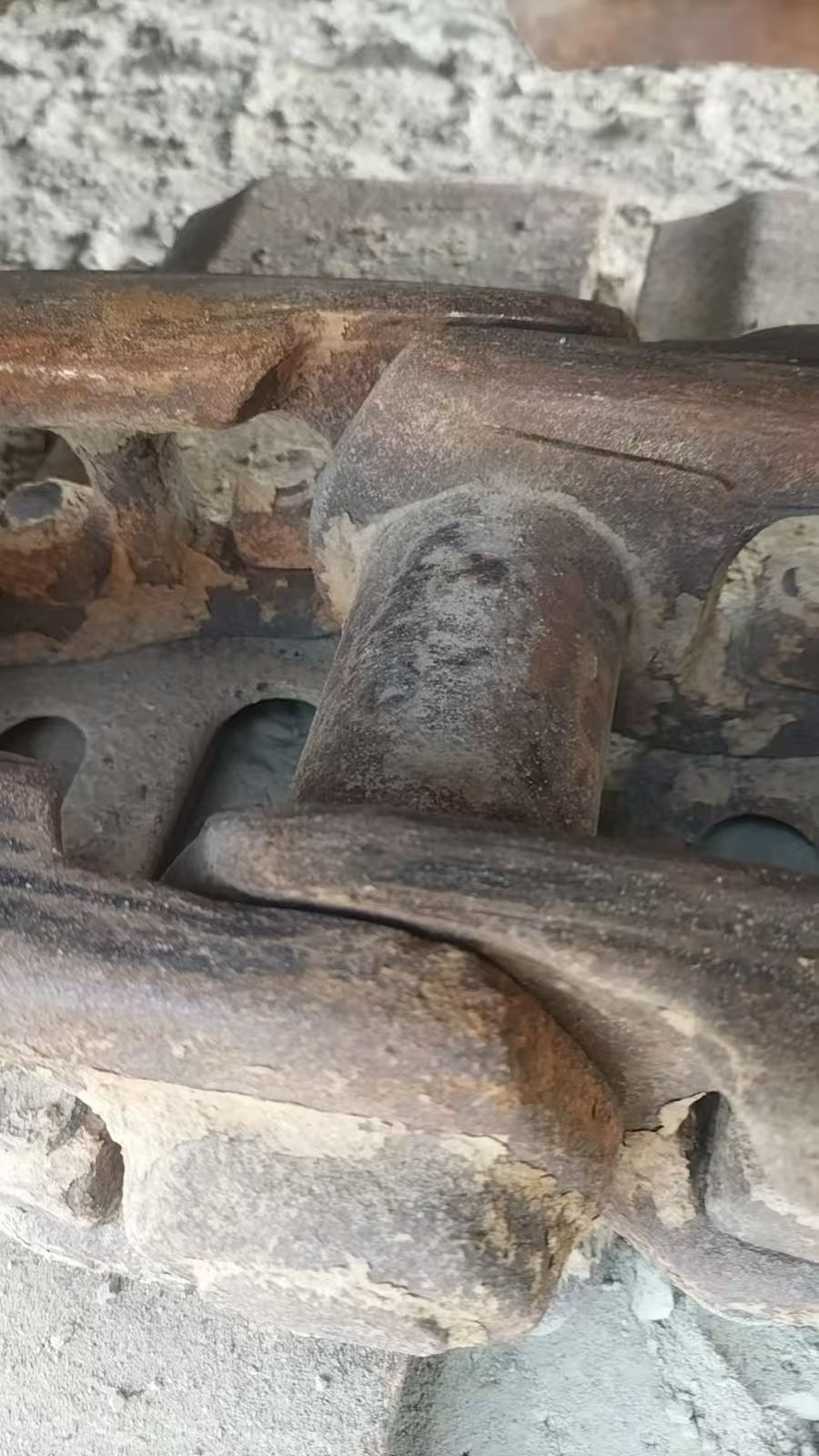

- Durable undercarriage built for extended service life
- Standard bucket included (hammer attachment not included)
This unit represents a cost-effective solution for contractors seeking proven excavation capacity. Suitable for construction, mining, and infrastructure projects. Pricing is negotiable based on inspection and final specifications. Contact us to discuss availability and arrange a technical evaluation.
| Specifications | Value |
|---|---|
| No. | 1173620 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20700 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2920 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

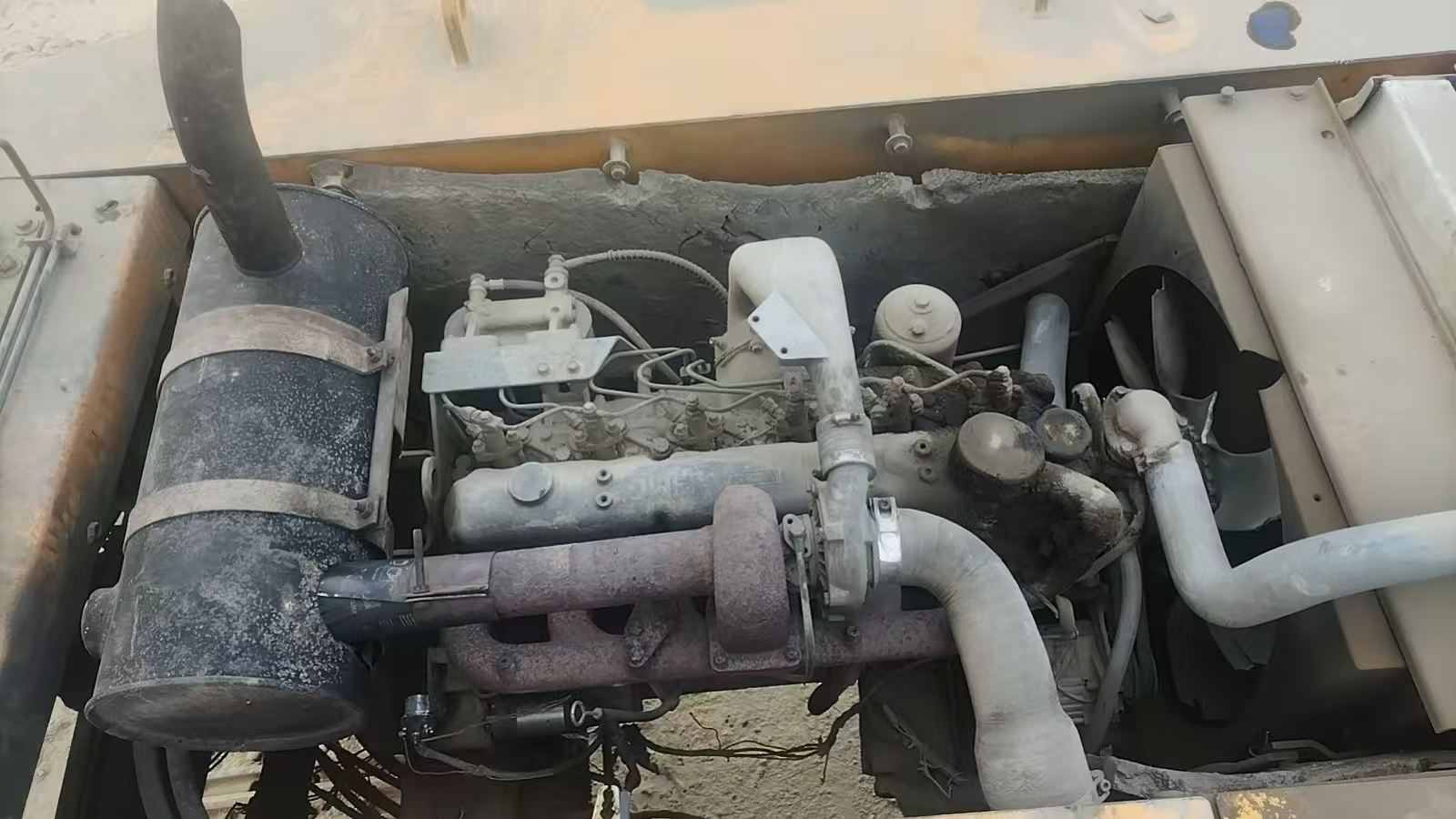

| Engine type | Hyundai D6BT-C |
| Rated power (kw/rpm) | 110/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 118 x 115 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7 |
| Working form | Six-cylinder four-stroke turbocharged direct injection engine |
| Ground specific pressure (Kpa) | 47 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 123.3 |
| Rod digging force (kN) | 95.1 |
| Travel speed (km/h) | 3.5/5.2 |
| Main overflow set pressure (Mpa) | 47 |
| Rotary hydraulic motor type | Quantitative swash plate axial piston motor |
| Type of walking hydraulic motor | Variable swash plate axial piston motor |
| Maximum flow of main pump (l/min) | 2 x 220 |
| Traveling Hydraulic Circuit (Mpa) | 280 |
| Rotary Hydraulic Circuit (Mpa) | 240 |

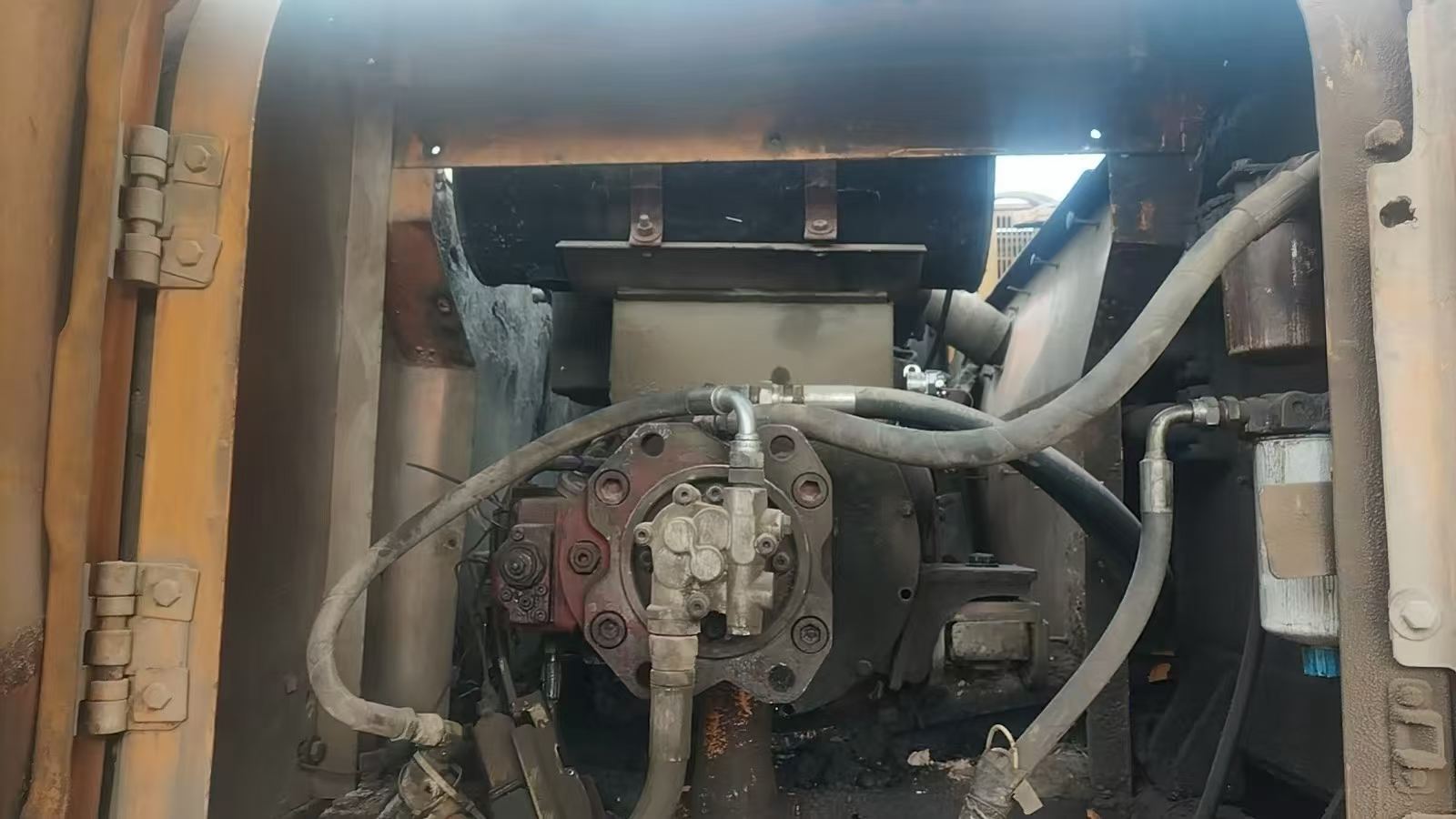

| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 280 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 * 80 * 1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 95 * 1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 125 * 85 * 1320 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 16.3 |
| Coolant (L) | 32.7 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9510 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2990 |
| Full cab height (mm) | 2920 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2830 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3360 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6800 |
| Maximum excavation height (mm) | 9730 |
| Maximum unloading height (mm) | 6910 |
| Maximum vertical digging depth (mm) | 6060 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9760 |
| Maximum effective digging depth (mm) | 6610 |
