Product Description

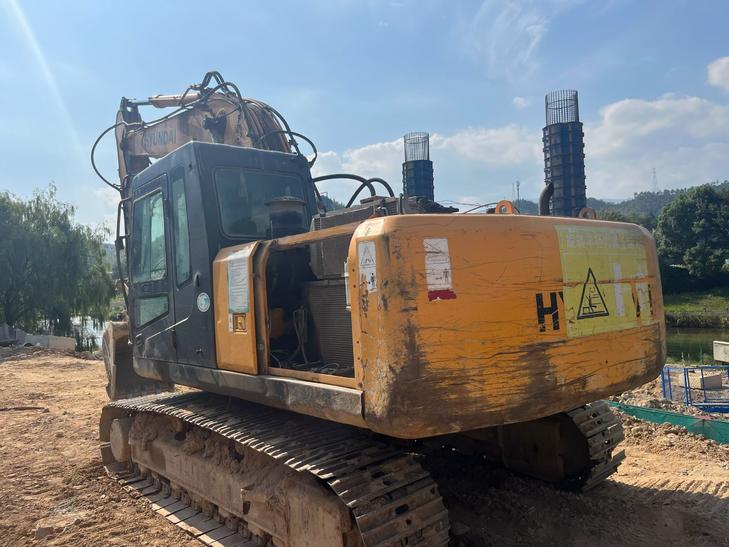

This 2015 Hyundai R215-7C excavator offers reliable performance for contractors seeking value in the mid-size crawler segment. The R215-7C is recognized for its balance of digging力 and fuel efficiency, making it suitable for earthmoving, trenching, and site development applications.
Key features of this unit include:
- Hyundai's proven hydraulic system for responsive control
- Durable undercarriage designed for extended service life
- Operator cabin with ergonomic layout
- Approximately 21-ton operating weight class
- Currently located in Zhejiang, China
This machine is competitively priced for the current market, presenting an opportunity for businesses looking to expand their fleet without the premium cost of new equipment. Suitable for demolition contractors, general construction firms, and civil engineering projects requiring a dependable mid-range excavator.
| Specifications | Value |
|---|---|
| No. | 1161598 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20700 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2990 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins B5.9-C |
| Rated power (kw/rpm) | 112/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Maximum torque (N.m) | 62.6/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.9 |
| Working form | Six-cylinder four-stroke turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 48 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 132.4 |
| Rod digging force (kN) | 95.1 |
| Maximum tractive force (kN) | 19500 |
| Travel speed (km/h) | 3.5-5.2 |
| Rotary hydraulic motor type | Quantitative swash plate axial piston motor |
| Type of walking hydraulic motor | Variable swash plate axial piston motor |
| Maximum flow of main pump (l/min) | 2 x 220 |
| Traveling Hydraulic Circuit (Mpa) | 300 |
| Rotary Hydraulic Circuit (Mpa) | 240 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 300 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 * 80 * 1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 95 * 1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 125 * 85 * 1320 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9510 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2990 |
| Full cab height (mm) | 2920 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2830 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3360 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6800 |
| Maximum excavation height (mm) | 9730 |
| Maximum unloading height (mm) | 6910 |
| Maximum vertical digging depth (mm) | 6060 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9760 |
| Maximum effective digging depth (mm) | 6610 |
