Product Description

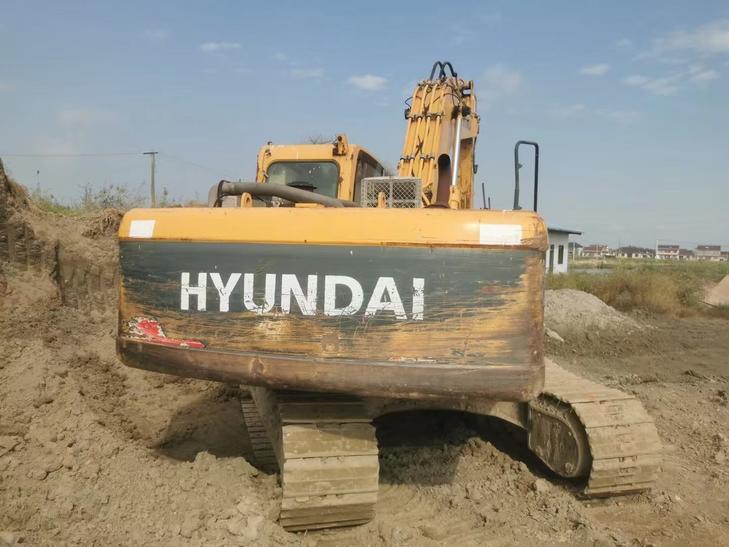

This 2020 Hyundai R215-9 excavator is currently available in Zhejiang, China. With approximately 70,000+ operating hours logged, this machine represents a well-documented unit from Hyundai's proven 9-series lineup. The R215-9 is recognized in the market for its reliable hydraulic systems and fuel efficiency in the 21-ton class.
- Year of Manufacture: 2020
- Model: Hyundai R215-9
- Location: Zhejiang Province, China
- Documentation: Detailed photos and operational video available
- Operating Hours: 70,000+
This excavator is suitable for earthmoving, site preparation, and general construction applications. Comprehensive visual documentation is provided to support remote inspection and evaluation. Contact us for additional technical information and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1163149 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2920 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hyundai D6BV-C |
| Rated power (kw/rpm) | 110/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Maximum torque (N.m) | 568.4 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.545 |
| Working form | Six-cylinder four-stroke turbocharged direct injection engine |
| Ground specific pressure (Kpa) | 48 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 143.7 |
| Rod digging force (kN) | 102.4 |
| Maximum tractive force (kN) | 195 |
| Travel speed (km/h) | 5.3/3.4 |
| Rotary hydraulic motor type | Quantitative swash plate axial piston pump |
| Type of walking hydraulic motor | Variable swash plate axial piston pump |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 265 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Pilot Oil Circuit (MPa) | 40 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 * 85 * 1055 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 100 * 1510 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 * 85 * 1290 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 16.3 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 275 |
| Total transport length (mm) | 9530 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2920 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3740 |
| Back end turning radius (mm) | 2840 |
| Onboard width (mm) | 2740 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9980 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6280 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9820 |
| Maximum effective digging depth (mm) | 6560 |
