Product Description

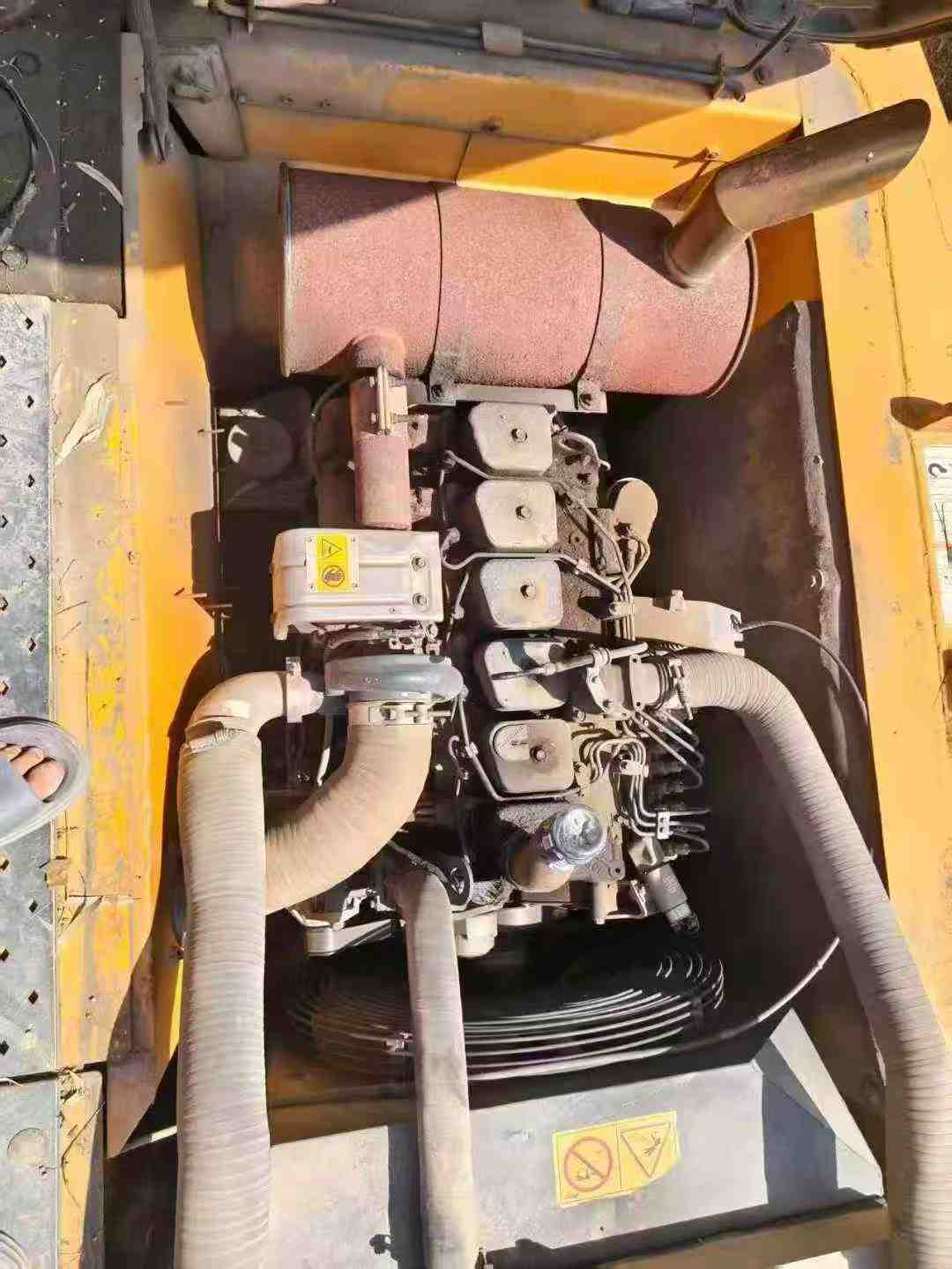

Sourced from Sichuan Luzhou, this 2016 Hyundai R215-9C delivers reliable 21-ton performance at a fraction of new equipment costs. Powered by a Cummins B5.9-C turbocharged intercooled engine producing 112 kW at 1950 rpm, this excavator combines proven joint-venture manufacturing quality with robust operational capabilities. The 0.92 m³ backhoe bucket generates 148.9 kN digging force, while dual variable axial piston pumps supply 2×222 L/min flow for responsive hydraulic performance.
- Maximum Reach: 9980 mm digging radius, 6730 mm depth
- Mobility: 5.2 km/h travel speed, 70% grading ability, 12 rpm slew
- Efficiency: Water-cooled 6-cylinder engine, 400L fuel capacity
- Stability: 20,900 kg working weight, 48 kPa ground pressure
- Dimensions: 9530×2800×3030 mm transport size
Originally manufactured in Jiangsu Province, this machine offers substantial savings compared to new purchases while maintaining the durability and parts support expected from Hyundai's heavy equipment lineup. Smart investment for contractors seeking dependable mid-size excavation capacity without premium pricing.
| Specifications | Value |
|---|---|
| No. | 1024483 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2920 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins B5.9-C(6BTAA) |
| Rated power (kw/rpm) | 112/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Maximum torque (N.m/rpm) | 613.48 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5880 |
| Working form | 6 cylinder, 4 stroke, turbocharged intercooled engine. |
| Ground specific pressure (Kpa) | 48 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 148.9 |
| Rod digging force (kN) | 106.8 |
| Maximum tractive force (kN) | 191.1 |
| Travel speed (km/h) | 3.5-5.2 |
| Rotary hydraulic motor type | Swash plate plunger motor with automatic braking |
| Type of walking hydraulic motor | Two-speed swashplate plunger motor with automatic brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 265 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Pilot Oil Circuit (MPa) | 40 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 * 85 * 1055 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 100 * 1510 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 * 85 * 1290 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 16.3 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 275 |
| Total transport length (mm) | 9530 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2920 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3740 |
| Back end turning radius (mm) | 2840 |
| Onboard width (mm) | 2740 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9980 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6280 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9820 |
| Maximum effective digging depth (mm) | 6560 |
