Product Description

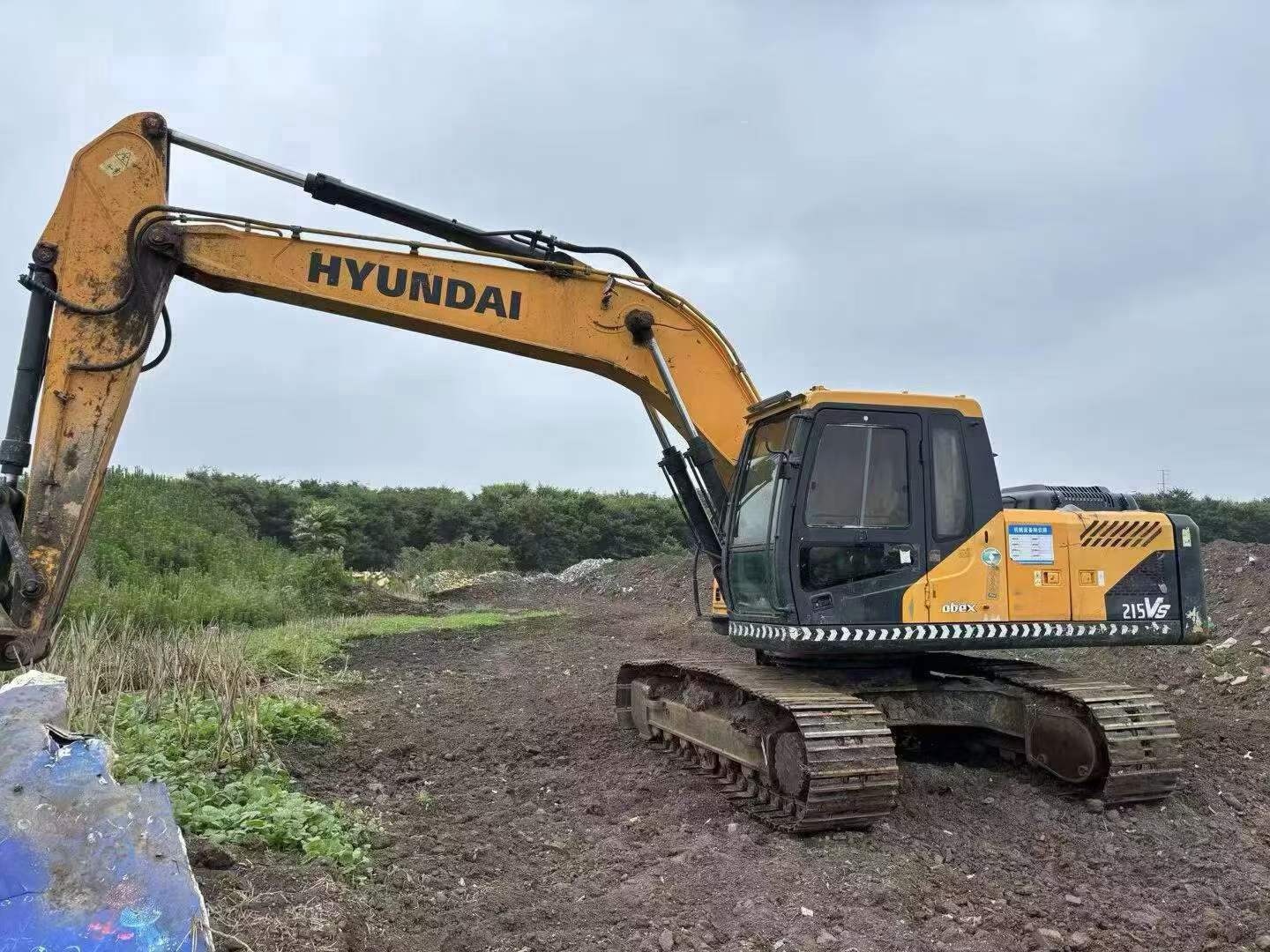

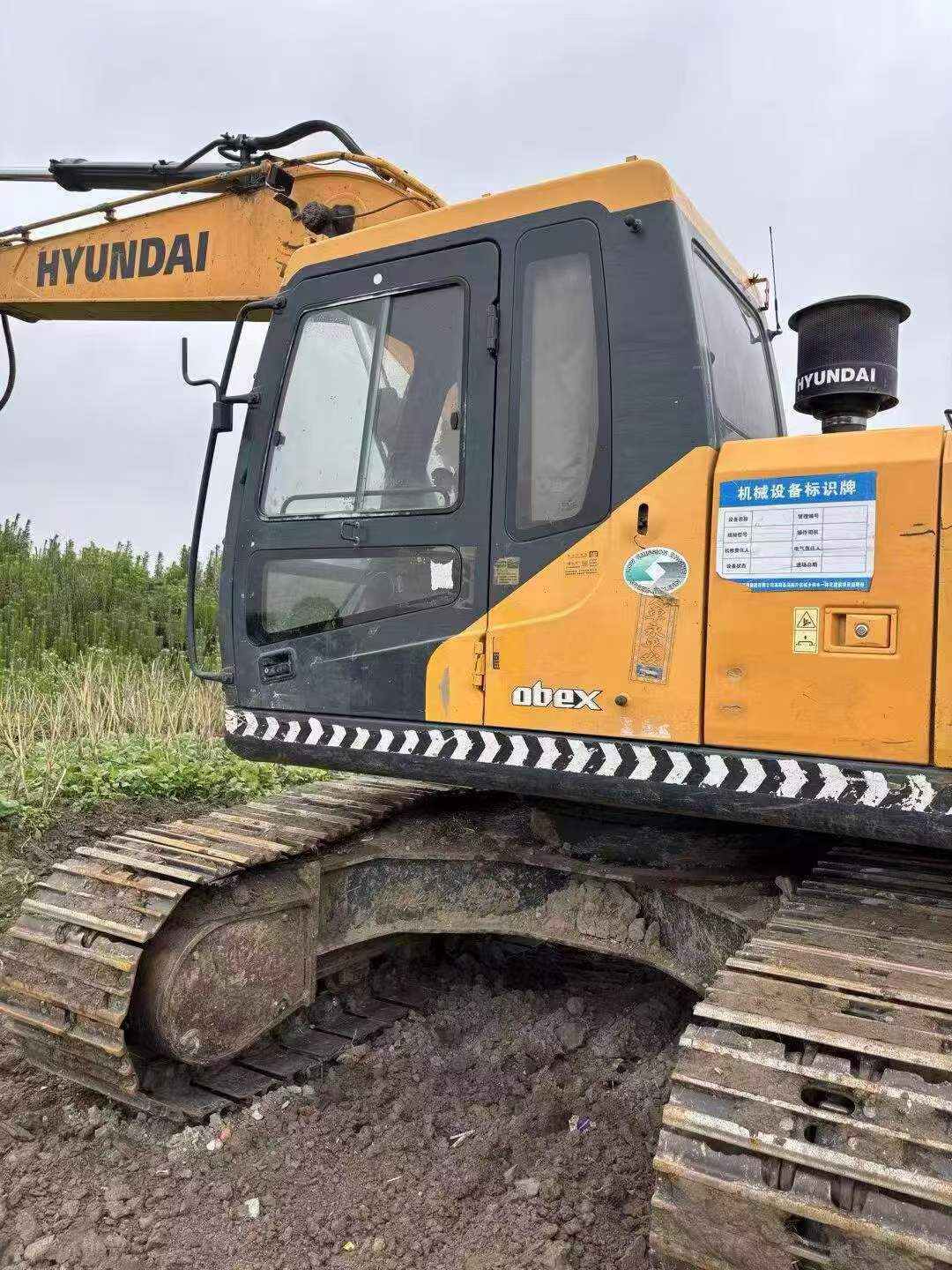

This 2017 Hyundai R215VS crawler excavator offers reliable performance for earthmoving and construction applications. Manufactured in late 2017, this machine comes from Zhejiang, China, and features original factory components throughout, ensuring authentic Hyundai quality and durability.
The R215VS is designed for medium-duty excavation work, combining operational efficiency with proven hydraulic systems. Key features include:
- Original equipment condition with no major modifications

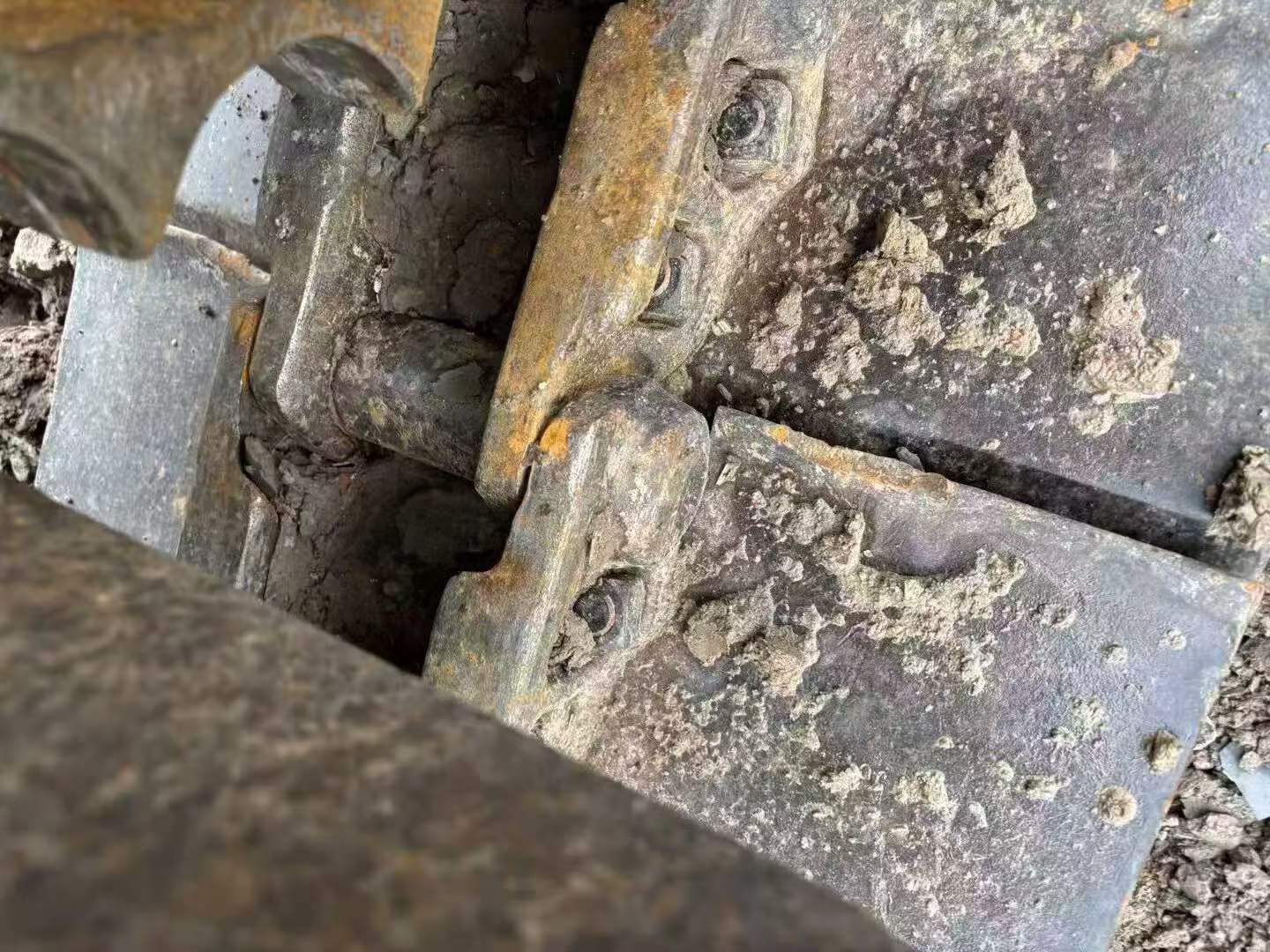

- Hyundai's proven undercarriage and hydraulic architecture
- Suitable for general excavation, trenching, and loading operations
- Competitively priced for the used equipment market
This excavator represents a cost-effective solution for contractors seeking dependable machinery with established OEM support. Currently located in Zhejiang Province, available for inspection and international shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1171167 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2920 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

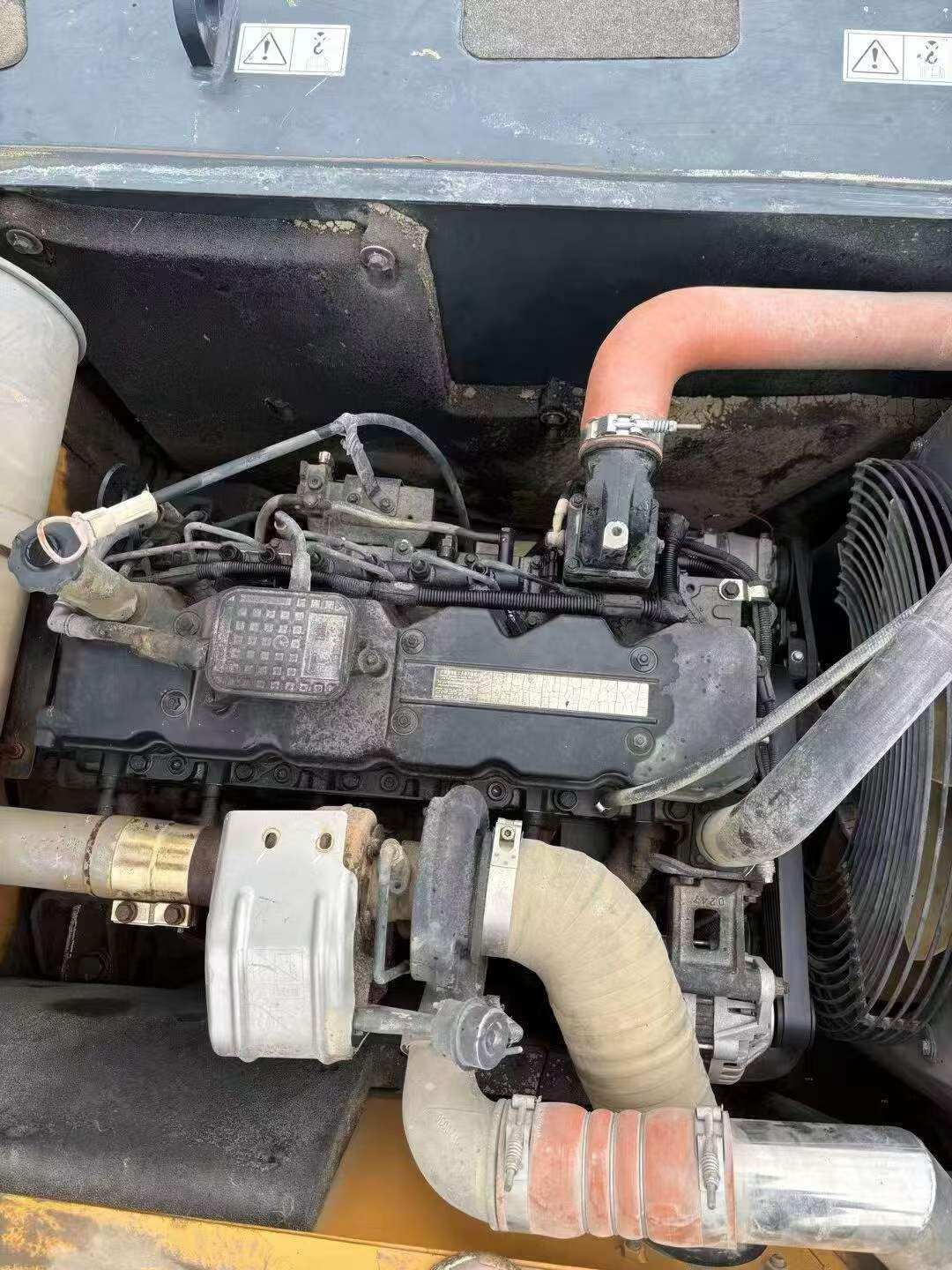

| Engine type | Cummins QSB7 |
| Rated power (kw/rpm) | 125 / 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Maximum torque (N.m) | 63 / 1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | 6-cylinder, 4-stroke, water-cooled turbocharged engine |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.6 / 3.7 |

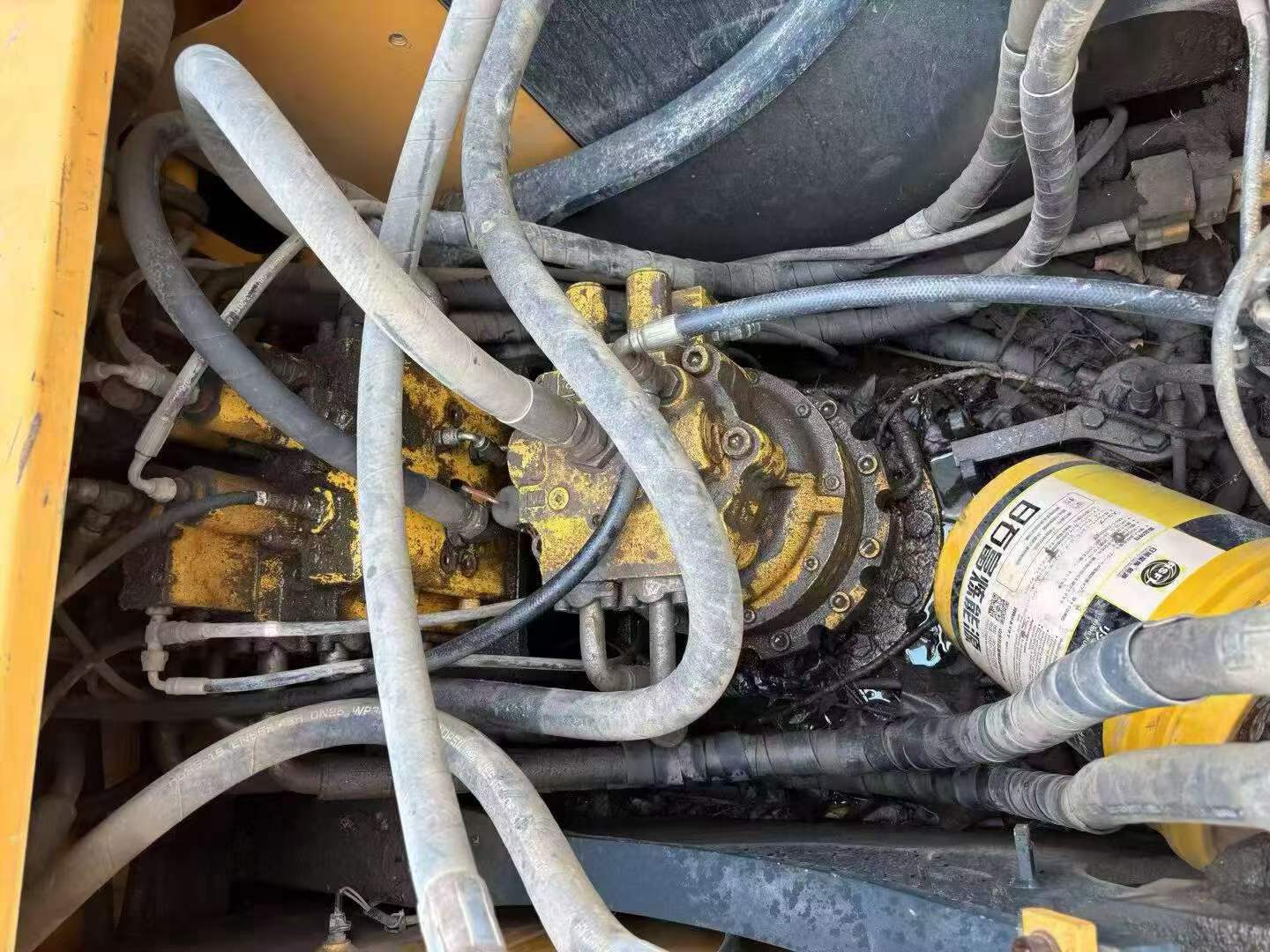

| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 350 |
| Rotary Hydraulic Circuit (Mpa) | 250 |

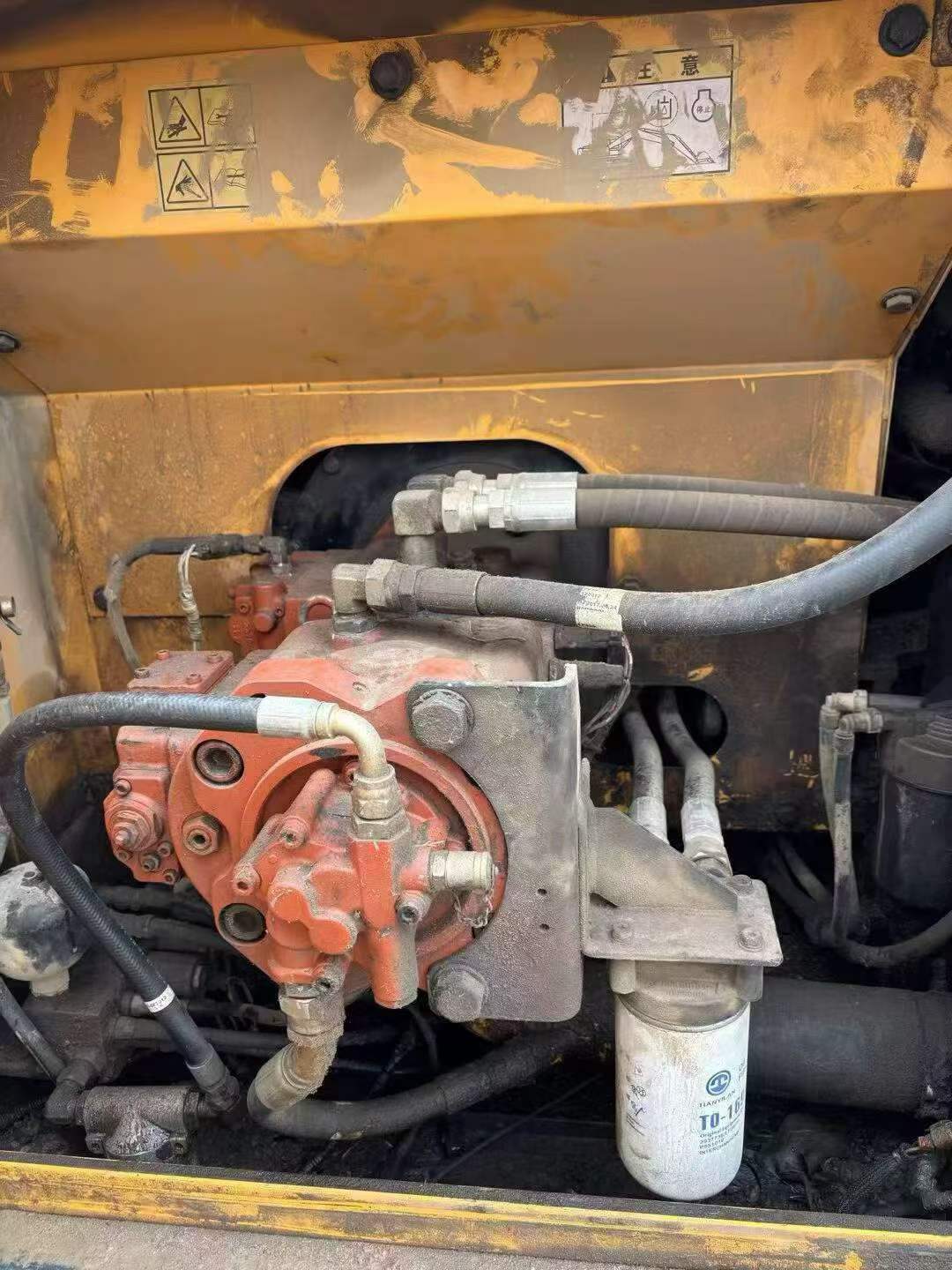

| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 300 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 120 x ø 80 x 1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 140 x ø 95 x 1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 125 x ø 85 x 1320 |
| Pilot pump type | Gear pump, interactive sensing fuel saving pump system |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9510 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3770 |
| Back end turning radius (mm) | 2830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6800 |
| Maximum excavation height (mm) | 9730 |
| Maximum unloading height (mm) | 6910 |
| Maximum vertical digging depth (mm) | 6060 |
| Maximum excavation radius of stop surface (mm) | 9760 |
