Product Description

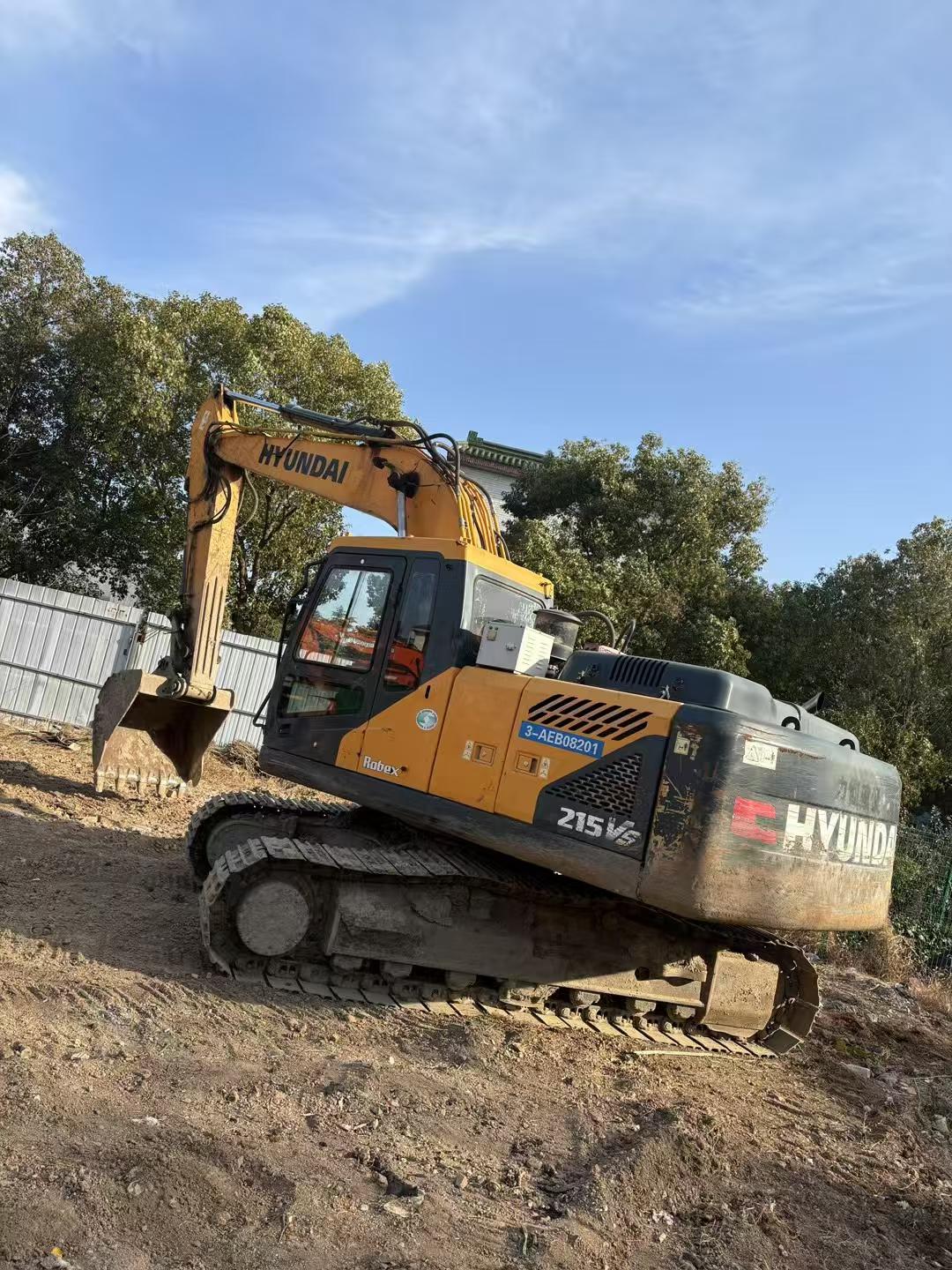

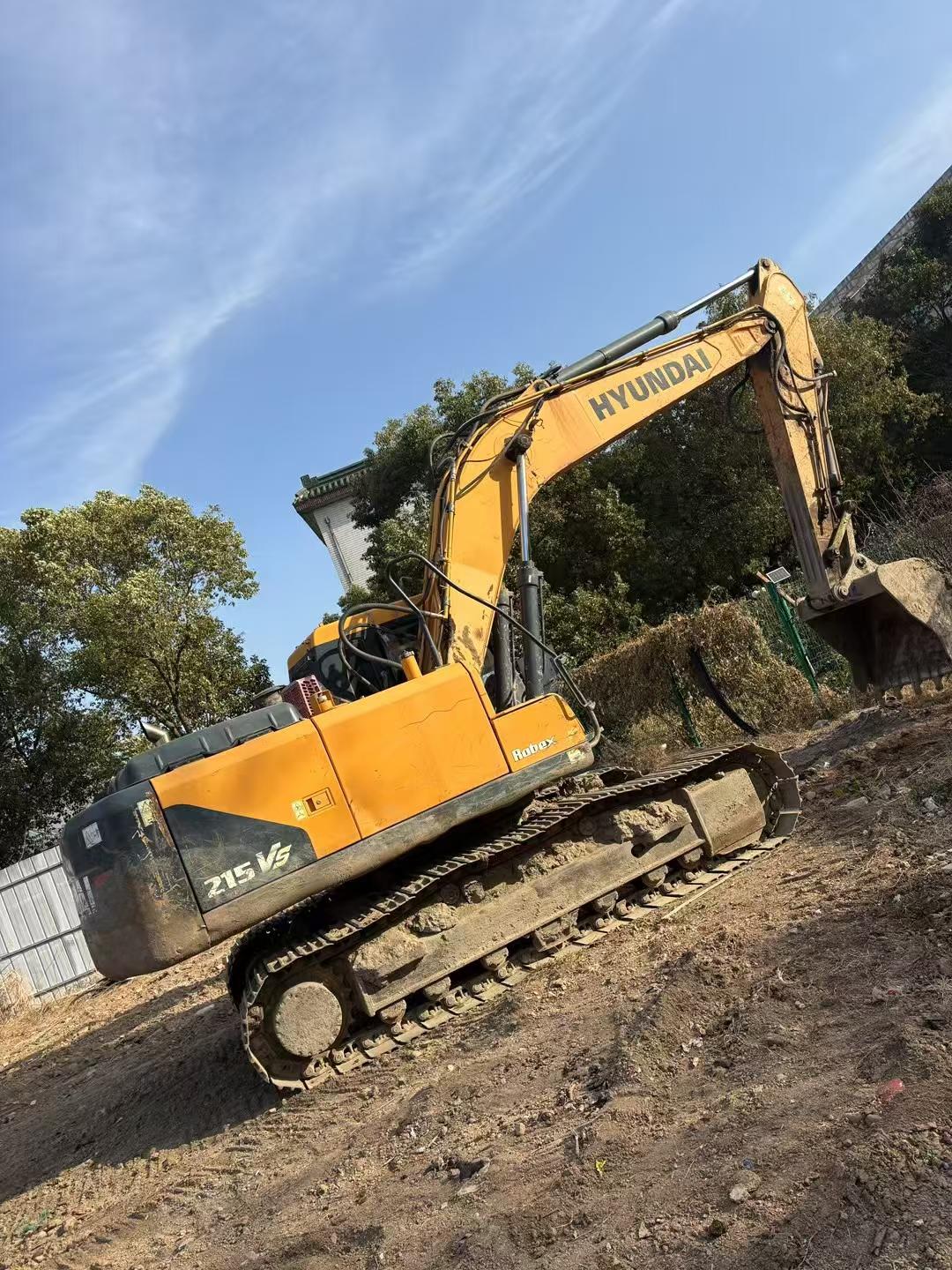

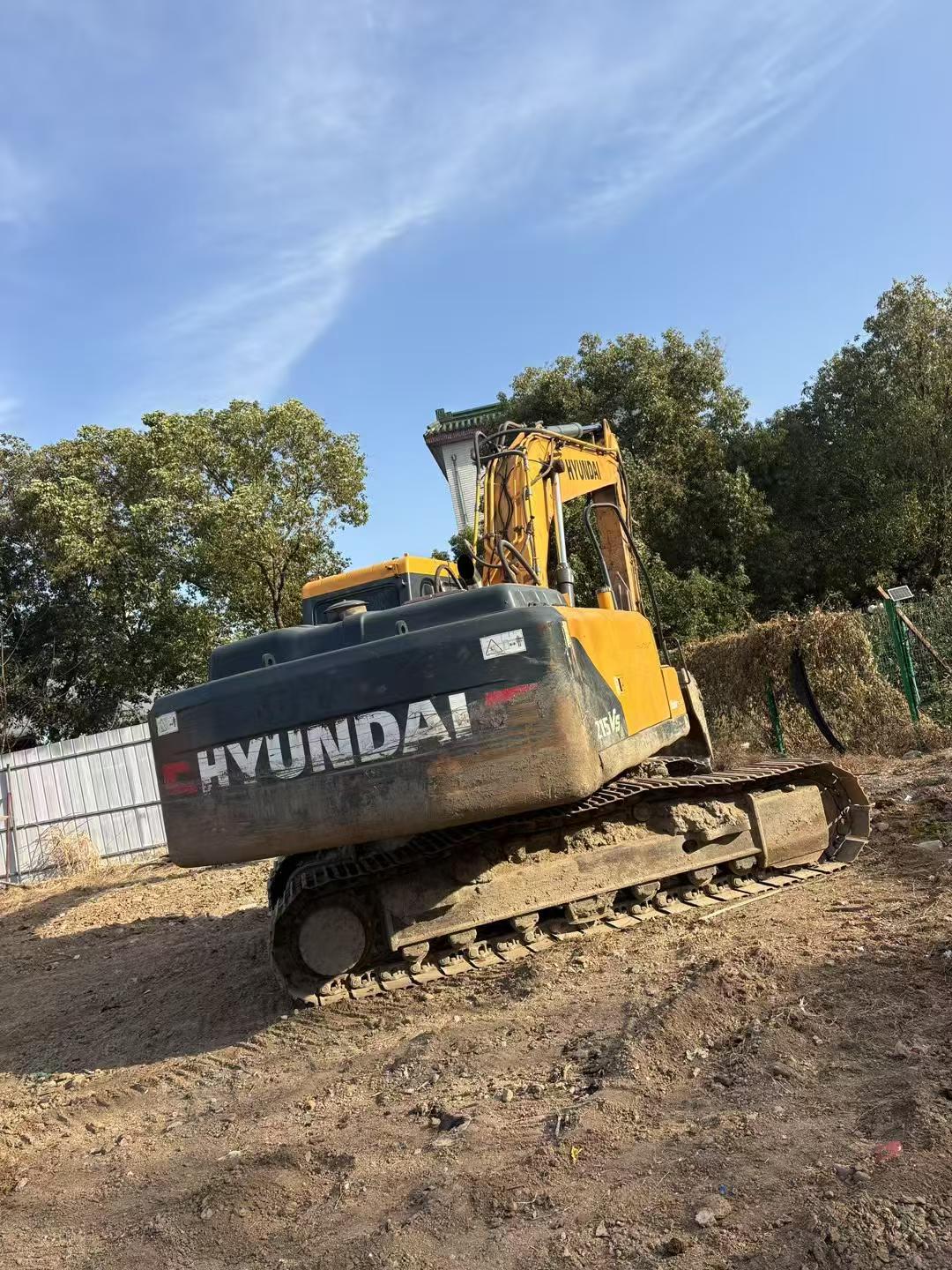

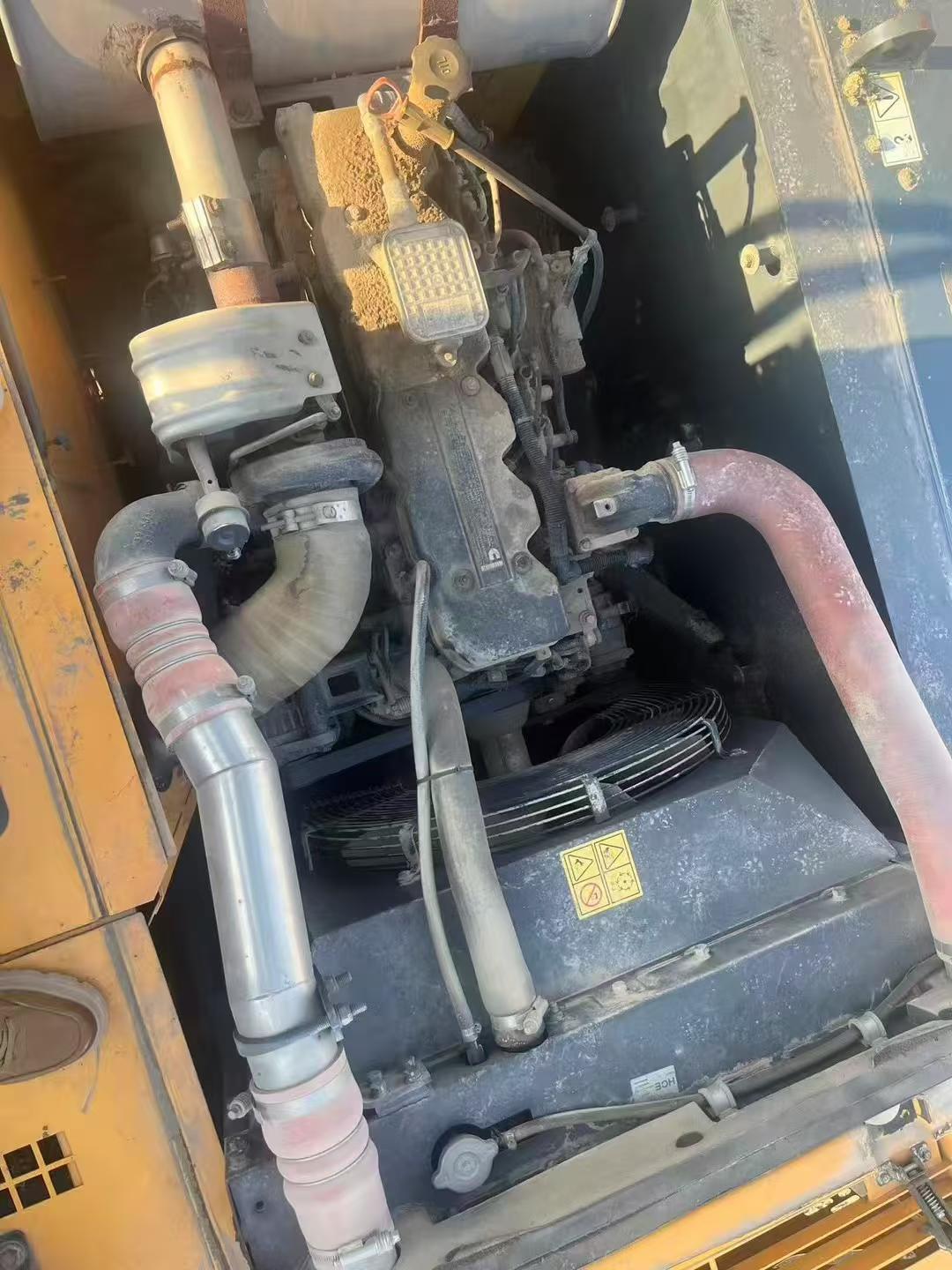

Featuring a robust 21-ton working weight and powered by a Cummins QSB7 engine, this 2018 Hyundai R215VS excavator is site-ready for your most demanding tasks. With a bucket capacity of 0.92 m³ and a maximum digging depth of 6800 mm, it excels in excavation and grading. Equipped with a 6-cylinder, 4-stroke, water-cooled turbocharged engine, it delivers 125 kW of power at 1900 rpm, ensuring efficient performance.
- Maximum travel speed: 5.6 / 3.7 km/h
- Boom length: 5650 mm, rod length: 2920 mm

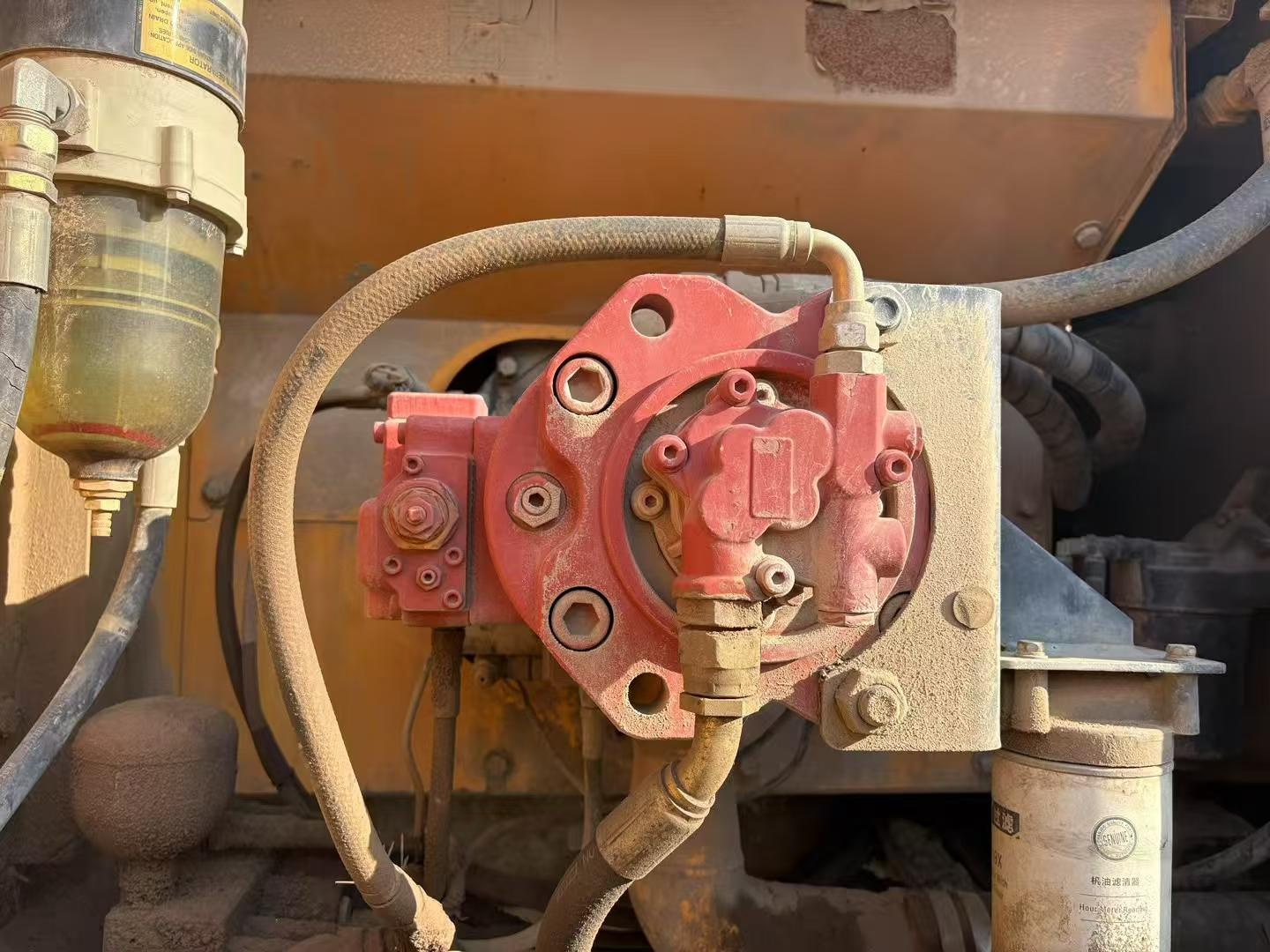

- Rotary hydraulic motor: Axial piston motor with automatic braking
- Walking hydraulic motor: Two-speed axial plunger motor with brake valve and parking brake
- Hydraulic system capacity: 270 L
- Counterweight ground clearance: 1060 mm
Designed for durability and reliability, this excavator is ideal for construction, demolition, and site preparation. Located in 浙江湖州, it's ready to tackle your next project with precision and power.
| Specifications | Value |
|---|---|
| No. | 1001605 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2920 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSB7 |
| Rated power (kw/rpm) | 125 / 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Maximum torque (N.m) | 63 / 1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | 6-cylinder, 4-stroke, water-cooled turbocharged engine |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.6 / 3.7 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 350 |
| Rotary Hydraulic Circuit (Mpa) | 250 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 300 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 120 x ø 80 x 1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 140 x ø 95 x 1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 125 x ø 85 x 1320 |
| Pilot pump type | Gear pump, interactive sensing fuel saving pump system |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9510 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3770 |
| Back end turning radius (mm) | 2830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6800 |
| Maximum excavation height (mm) | 9730 |
| Maximum unloading height (mm) | 6910 |
| Maximum vertical digging depth (mm) | 6060 |
| Maximum excavation radius of stop surface (mm) | 9760 |
