2020 Hyundai R215VS

1/9
Buy Hyundai R215VS Used Excavator / 1

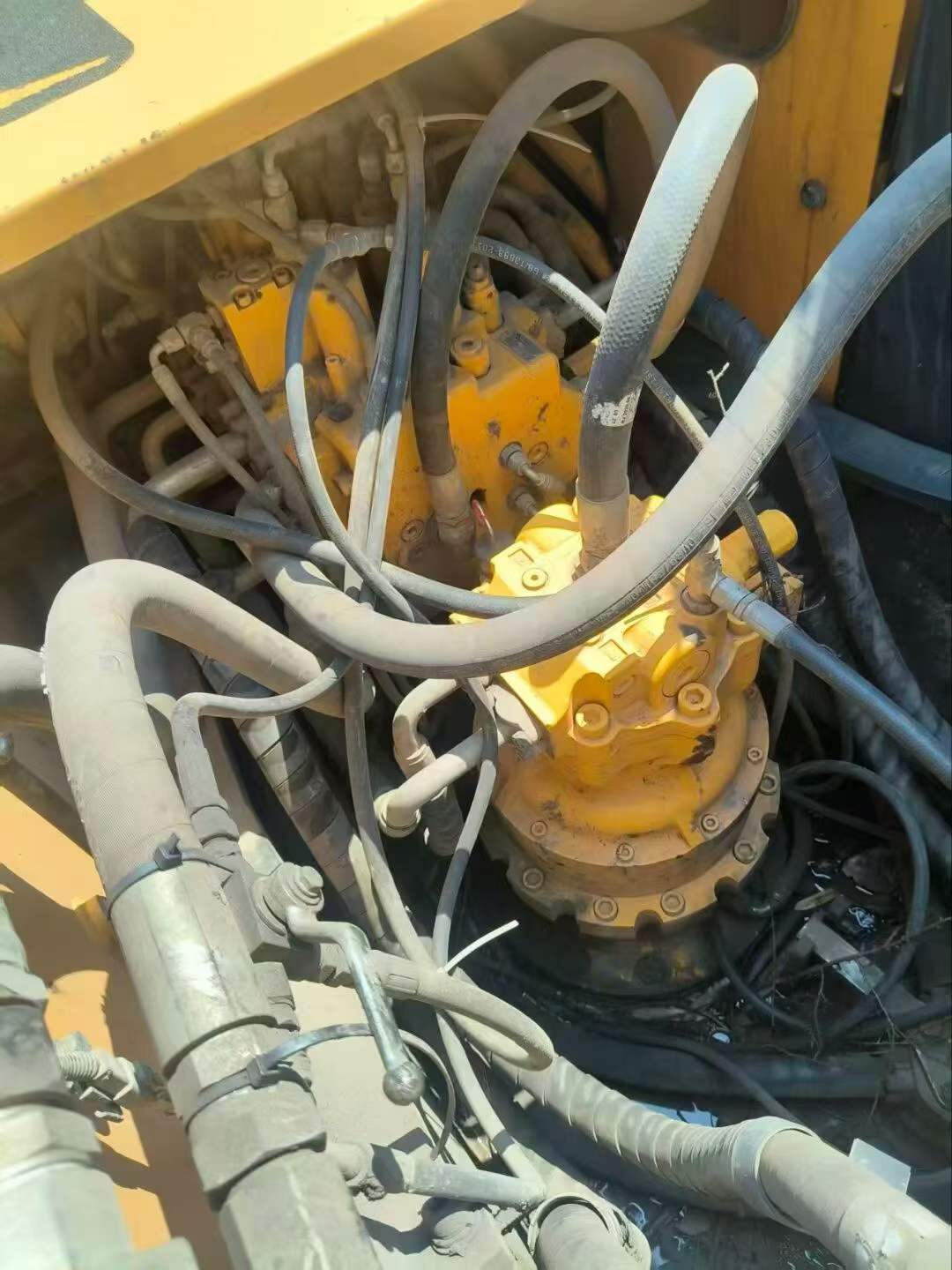

Buy Hyundai R215VS Used Excavator / 2

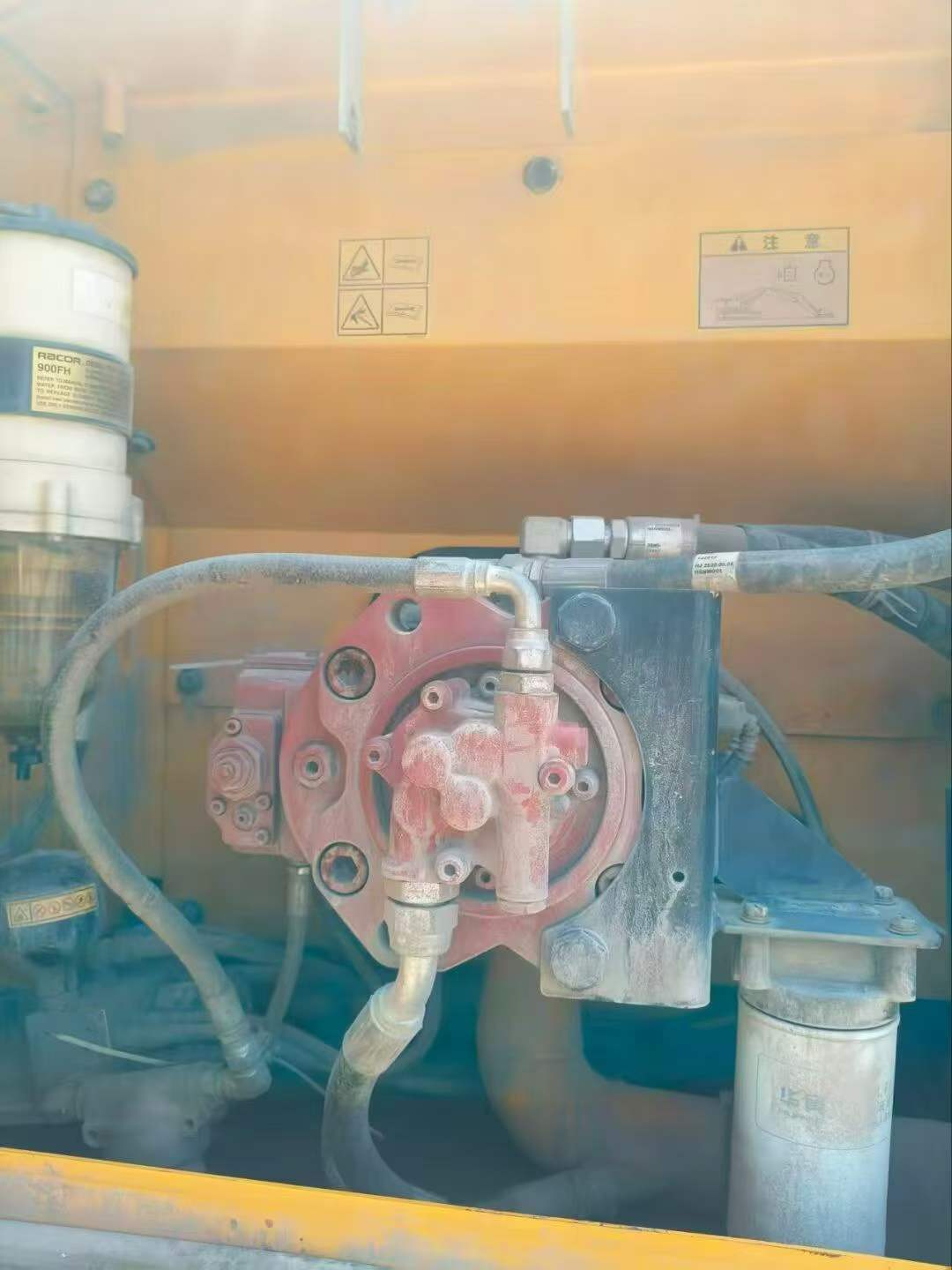

Buy Hyundai R215VS Used Excavator / 3

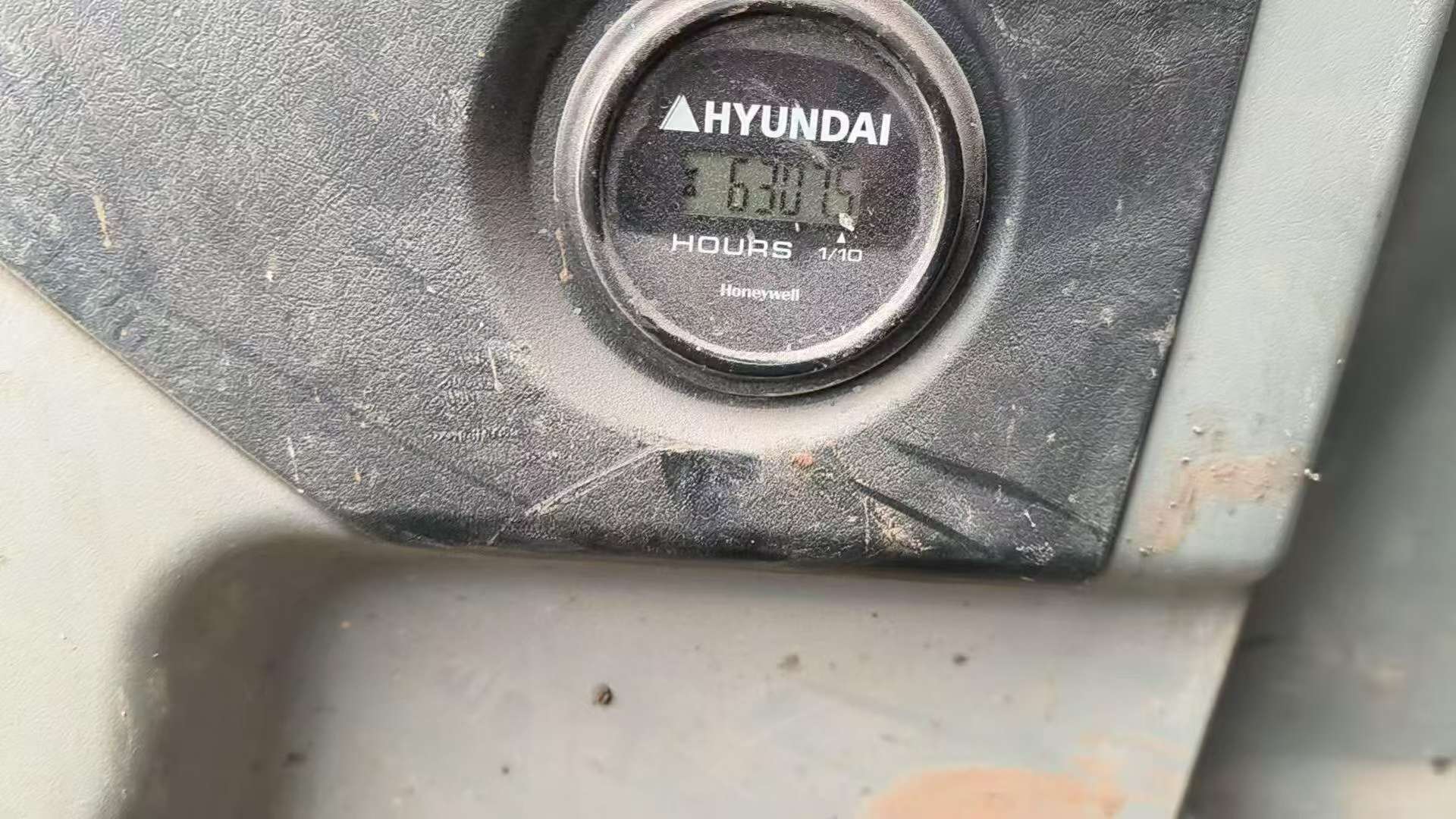

Buy Hyundai R215VS Used Excavator / 4

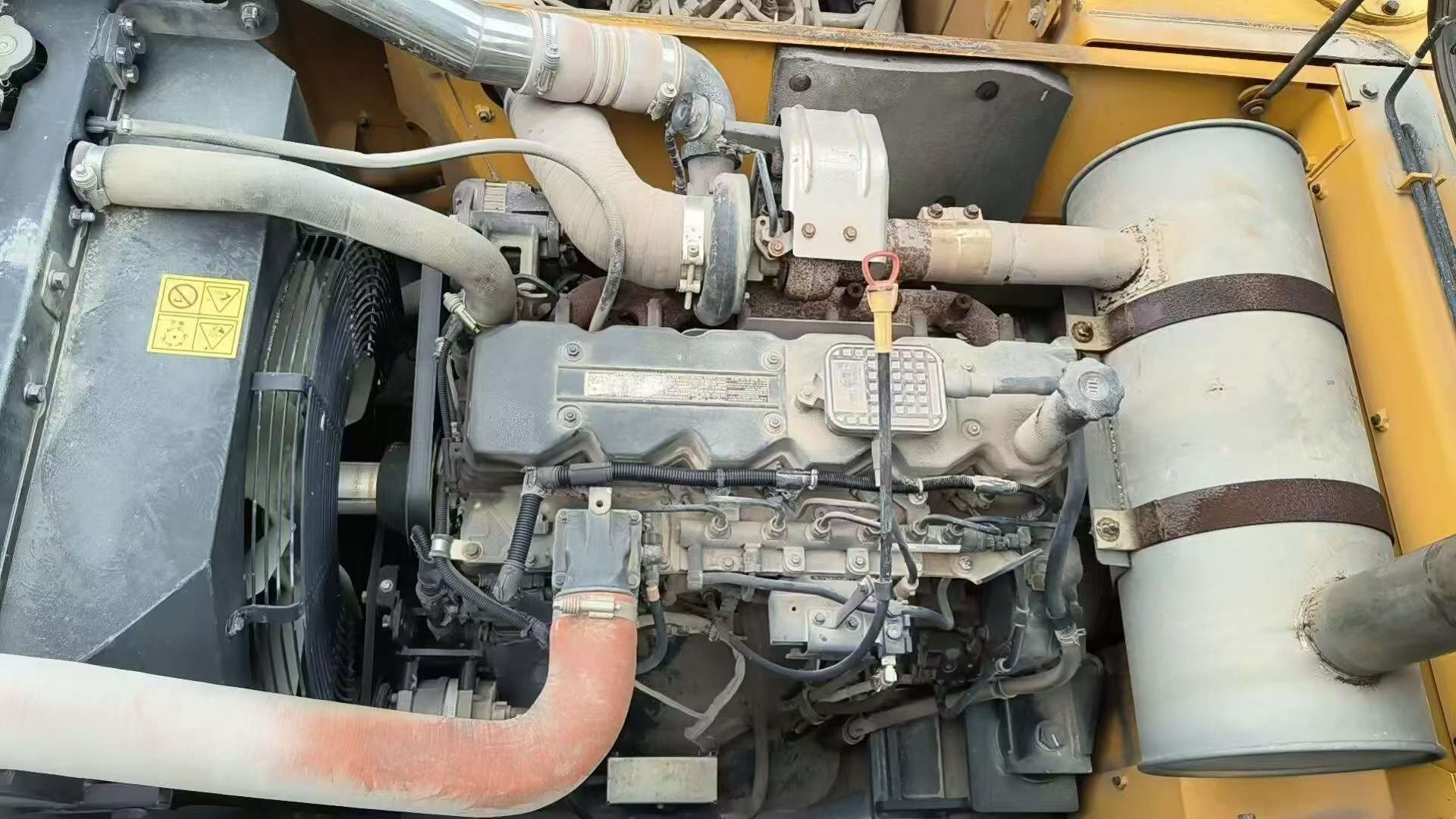

Buy Hyundai R215VS Used Excavator / 5

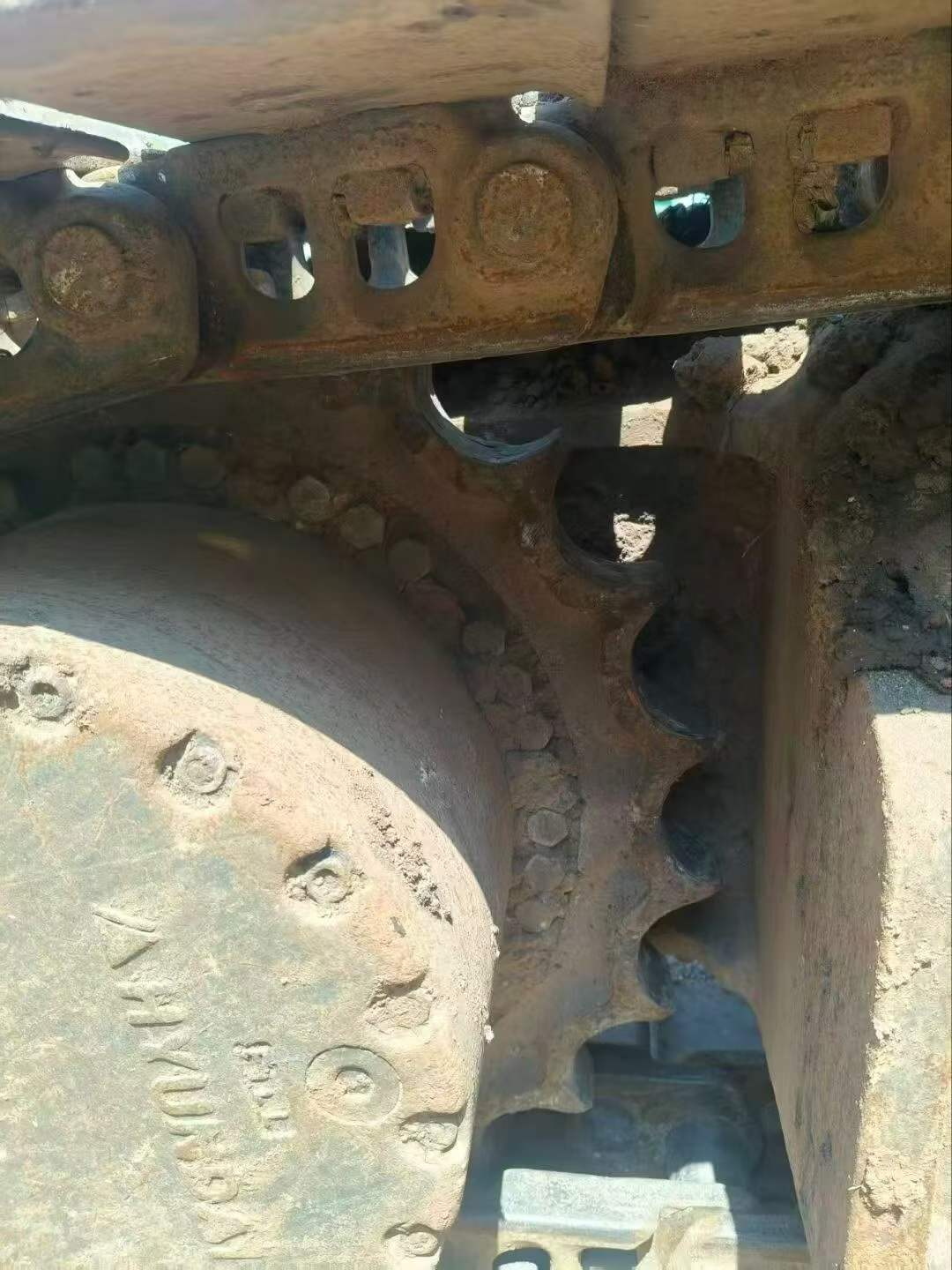

Buy Hyundai R215VS Used Excavator / 6

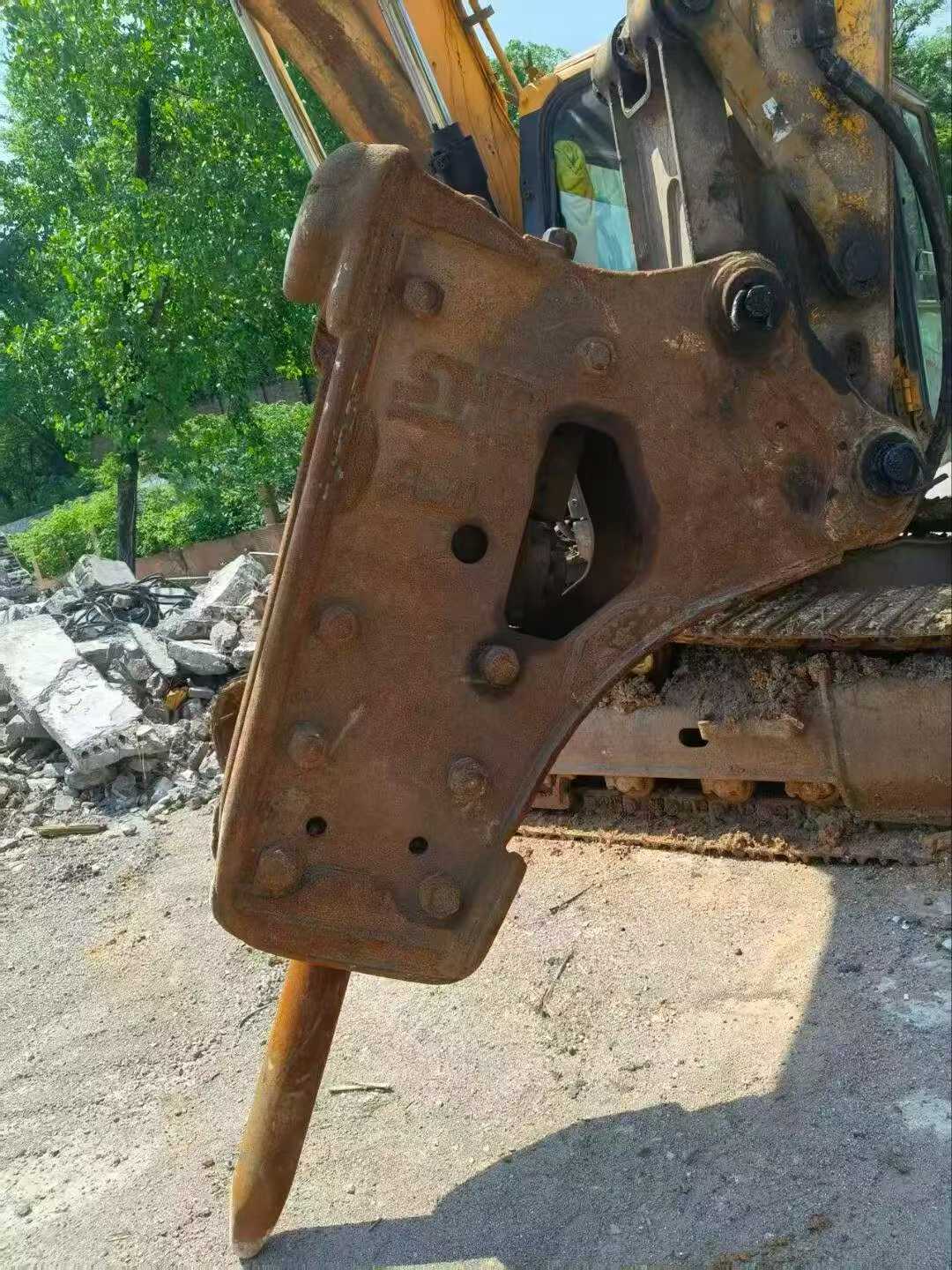

Buy Hyundai R215VS Used Excavator / 7

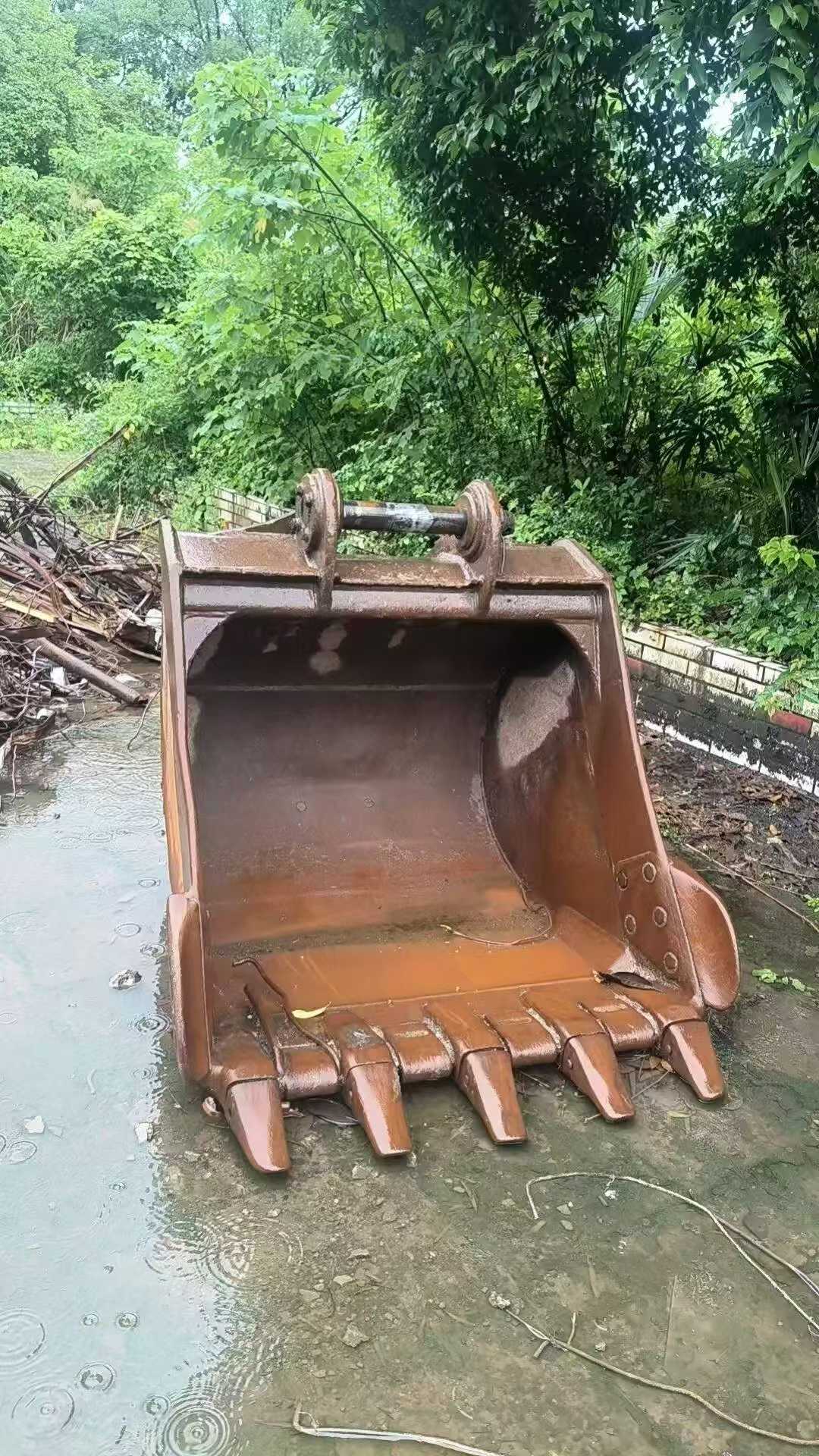

Buy Hyundai R215VS Used Excavator / 8
Buy Hyundai R215VS Used Excavator / 9

Product Description

Available now: 2020 Hyundai R215VS crawler excavator, currently located in Jiangxi, China. This machine was delivered in June 2020 and comes from a single owner with verified low hours. The equipment includes complete documentation and represents a well-maintained unit from Hyundai's reliable VS series.

Key features of this R215VS include:

  • Single-owner operation history with genuine hour meter readings
  • Complete service records and documentation package
  • Hyundai's proven hydraulic system for efficient cycle times
  • Standard VS series cab with operator comfort features
  • Ready for immediate deployment

This excavator suits contractors seeking dependable mid-size equipment with transparent ownership history. The machine is available for inspection in Jiangxi province. Contact us for detailed specifications, current condition reports, and export documentation assistance.

SpecificationsValue
No.1145262
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins QSB7
Rated power (kw/rpm)125 / 1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107 x 124
Maximum torque (N.m)63 / 1500
Number of cylinders (PCS)6
Displacement (L)6.7
Working form6-cylinder, 4-stroke, water-cooled turbocharged engine
Rotation speed (rpm)11.4
Climbing ability (%)70
Travel speed (km/h)5.6 / 3.7
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)2 x 222
Traveling Hydraulic Circuit (Mpa)350
Rotary Hydraulic Circuit (Mpa)250
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)300
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)1 - ø 120 x ø 80 x 1120
Bucket rod cylinders - Number × diameter × stroke (mm)1 - ø 140 x ø 95 x 1570
Boom cylinders - Number × diameter × stroke (mm)2 - ø 125 x ø 85 x 1320
Pilot pump typeGear pump, interactive sensing fuel saving pump system
Fuel Tank (L)340
Hydraulic Tank (L)180
Engine Oil changes (L)24
Coolant (L)35
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Counterweight ground clearance (mm)1060
Minimum turning radius of front working device (mm)3770
Back end turning radius (mm)2830
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Maximum excavation radius of stop surface (mm)9760
see more

Overview

No.1145262

Brand Name:

Hyundai

Model Number:

R215VS

Year:

2020

Location:

Jiangxi China

Pub Date
