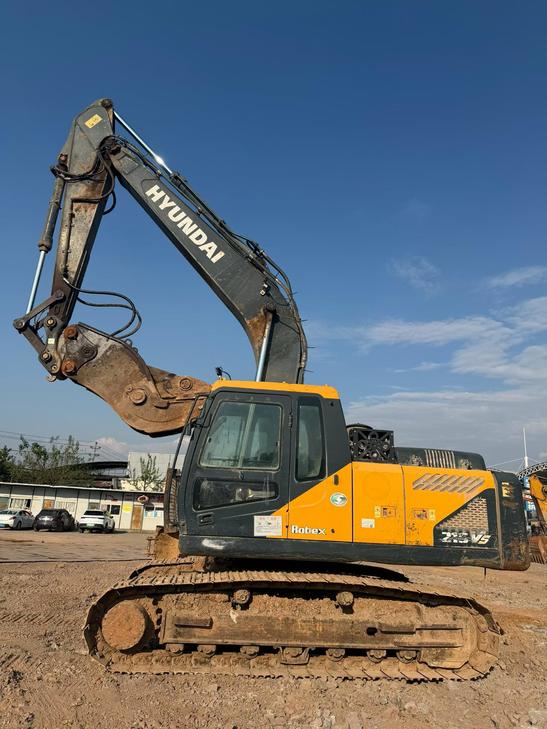

Buy Hyundai R215VS Used Excavator / 1
Buy Hyundai R215VS Used Excavator / 2
Buy Hyundai R215VS Used Excavator / 3
Buy Hyundai R215VS Used Excavator / 4
Buy Hyundai R215VS Used Excavator / 5
Buy Hyundai R215VS Used Excavator / 6
Buy Hyundai R215VS Used Excavator / 7
Buy Hyundai R215VS Used Excavator / 8
Buy Hyundai R215VS Used Excavator / 9

Product Description

This 2021 Hyundai R215VS crawler excavator offers 7,000 operating hours in original condition with factory paint. Located in Chongqing, China, this mid-size excavator comes fully equipped for versatile jobsite deployment.

The machine includes a comprehensive attachment package: hydraulic breaker, standard bucket, quick coupler, and grapple. This configuration enables immediate transition between demolition, excavation, and material handling tasks without downtime.

Key specifications:

  • Year: 2021
  • Operating hours: 7,000
  • Original paint and panels
  • Includes: breaker, bucket, quick coupler, grapple
  • Location: Chongqing, China

The R215VS provides reliable performance for contractors seeking a well-maintained excavator with low hours and factory condition. Financing options available. Suitable for earthmoving, demolition, and general construction applications.

SpecificationsValue
No.1145174
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins QSB7
Rated power (kw/rpm)125 / 1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107 x 124
Maximum torque (N.m)63 / 1500
Number of cylinders (PCS)6
Displacement (L)6.7
Working form6-cylinder, 4-stroke, water-cooled turbocharged engine
Rotation speed (rpm)11.4
Climbing ability (%)70
Travel speed (km/h)5.6 / 3.7
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)2 x 222
Traveling Hydraulic Circuit (Mpa)350
Rotary Hydraulic Circuit (Mpa)250
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)300
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)1 - ø 120 x ø 80 x 1120
Bucket rod cylinders - Number × diameter × stroke (mm)1 - ø 140 x ø 95 x 1570
Boom cylinders - Number × diameter × stroke (mm)2 - ø 125 x ø 85 x 1320
Pilot pump typeGear pump, interactive sensing fuel saving pump system
Fuel Tank (L)340
Hydraulic Tank (L)180
Engine Oil changes (L)24
Coolant (L)35
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Counterweight ground clearance (mm)1060
Minimum turning radius of front working device (mm)3770
Back end turning radius (mm)2830
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Maximum excavation radius of stop surface (mm)9760
see more

Overview

No.1145174

Brand Name:

Hyundai

Model Number:

R215VS

Year:

2021

Location:

Chongqing China
