2021 Hyundai R215VS

1/9
Buy Hyundai R215VS Used Excavator / 1
Buy Hyundai R215VS Used Excavator / 2
Buy Hyundai R215VS Used Excavator / 3
Buy Hyundai R215VS Used Excavator / 4
Buy Hyundai R215VS Used Excavator / 5
Buy Hyundai R215VS Used Excavator / 6
Buy Hyundai R215VS Used Excavator / 7
Buy Hyundai R215VS Used Excavator / 8
Buy Hyundai R215VS Used Excavator / 9

Product Description

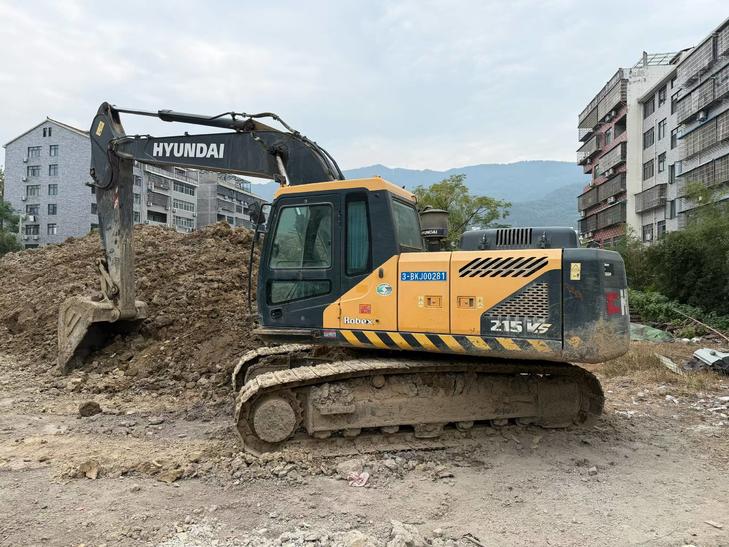

This 2021 Hyundai R215VS excavator is now available from Zhejiang, China. Owner-operated since new, this machine has been consistently maintained to ensure reliable performance in the field. The R215VS is known for its balanced combination of power and fuel efficiency, making it suitable for general construction, earthmoving, and site development applications.

Key features include:

  • 2021 model year with documented maintenance history
  • Owner-operated — single operator from new
  • Well-maintained condition throughout ownership
  • Located in Zhejiang Province, China
  • Complete certification documentation included

The Hyundai R215VS delivers dependable mid-size excavator performance with proven durability in demanding work environments. This unit represents an opportunity to acquire a recent-model machine with careful ownership history at competitive pricing.

SpecificationsValue
No.1157156
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

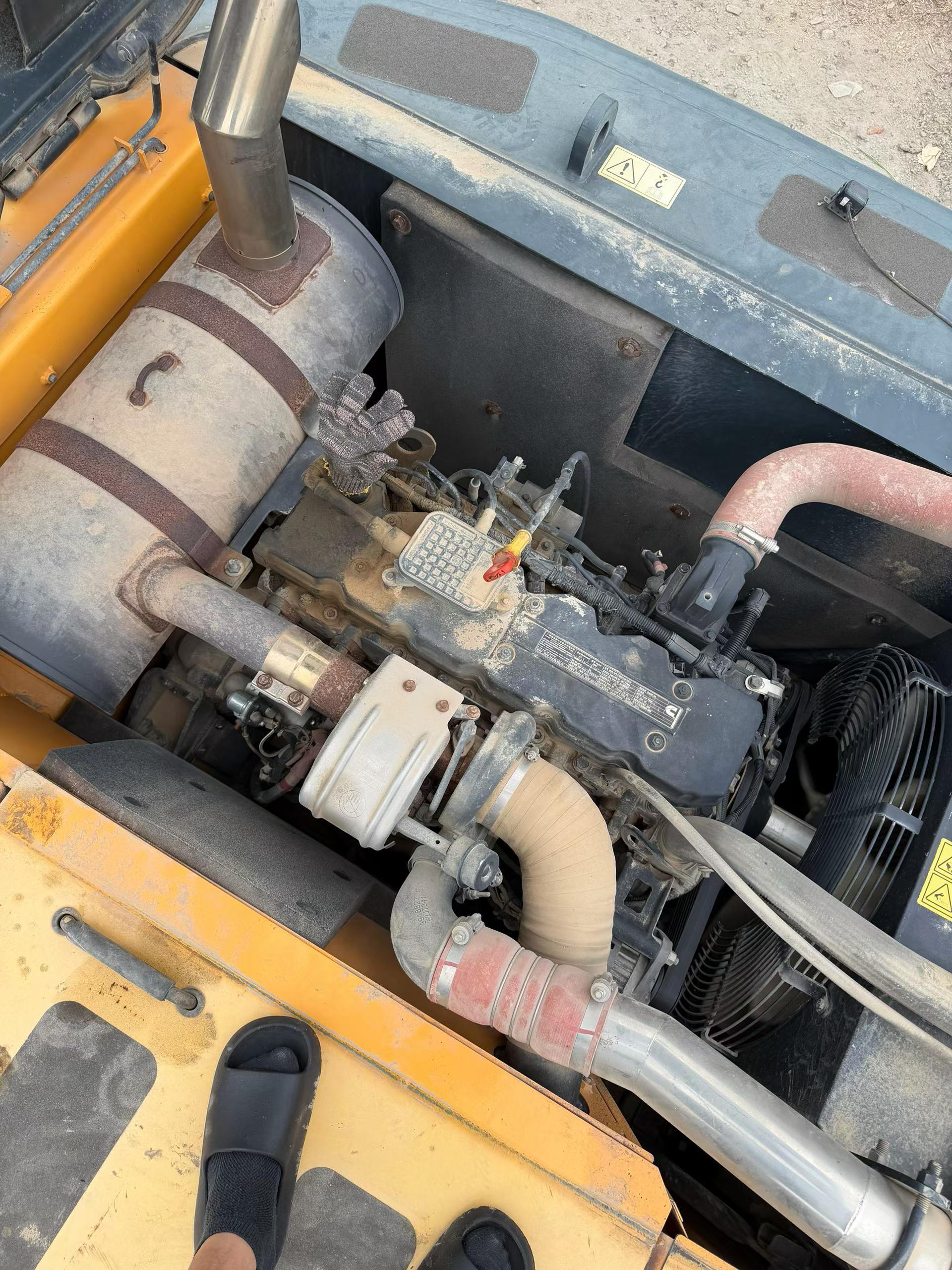

Engine typeCummins QSB7
Rated power (kw/rpm)125 / 1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107 x 124
Maximum torque (N.m)63 / 1500
Number of cylinders (PCS)6
Displacement (L)6.7
Working form6-cylinder, 4-stroke, water-cooled turbocharged engine
Rotation speed (rpm)11.4
Climbing ability (%)70
Travel speed (km/h)5.6 / 3.7
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)2 x 222
Traveling Hydraulic Circuit (Mpa)350
Rotary Hydraulic Circuit (Mpa)250
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)300
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)1 - ø 120 x ø 80 x 1120
Bucket rod cylinders - Number × diameter × stroke (mm)1 - ø 140 x ø 95 x 1570
Boom cylinders - Number × diameter × stroke (mm)2 - ø 125 x ø 85 x 1320
Pilot pump typeGear pump, interactive sensing fuel saving pump system
Fuel Tank (L)340
Hydraulic Tank (L)180
Engine Oil changes (L)24
Coolant (L)35
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Counterweight ground clearance (mm)1060
Minimum turning radius of front working device (mm)3770
Back end turning radius (mm)2830
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Maximum excavation radius of stop surface (mm)9760
see more

Overview

No.1157156

Brand Name:

Hyundai

Model Number:

R215VS

Year:

2021

Location:

Zhejiang China

Pub Date:
