Product Description

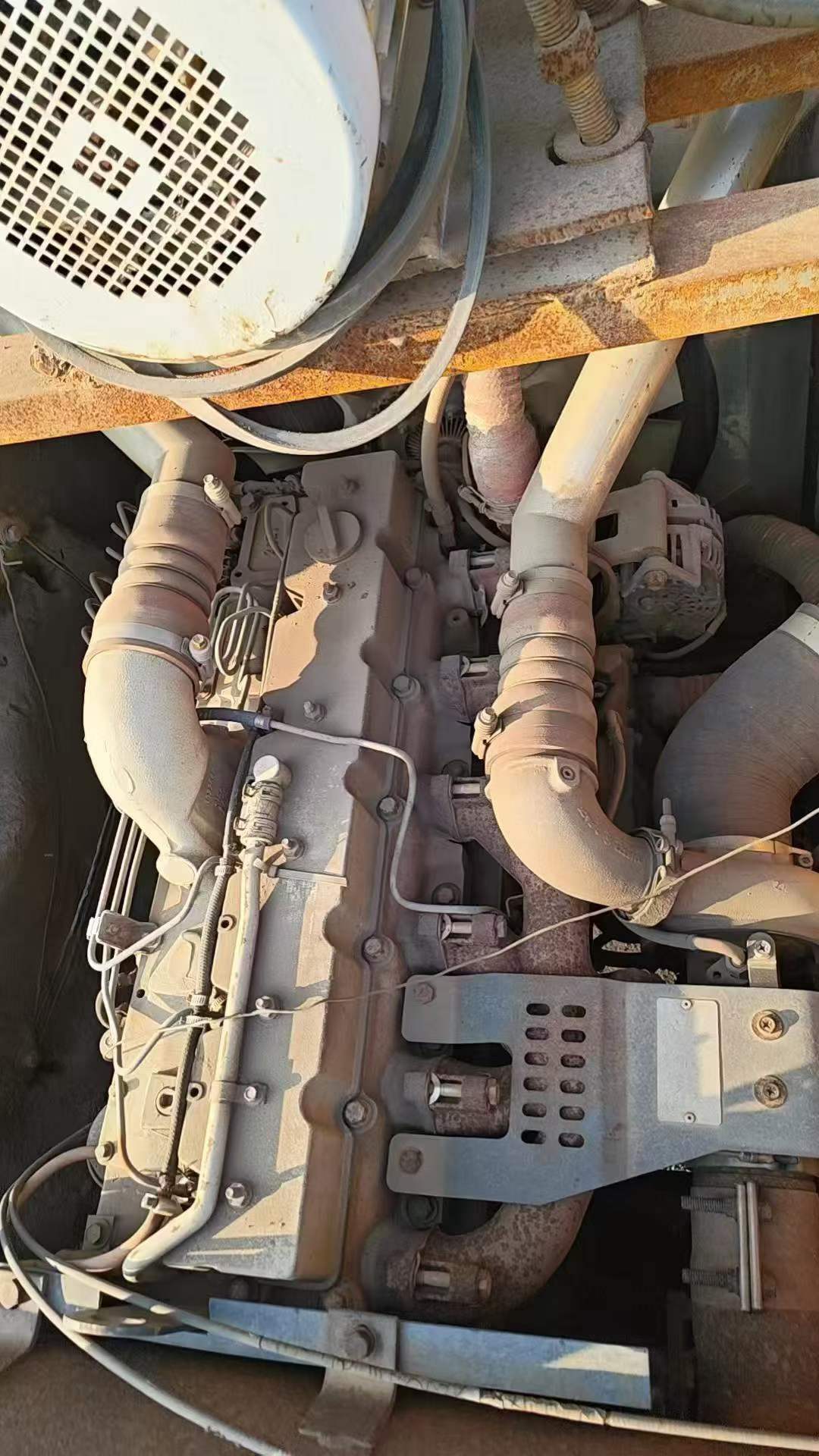

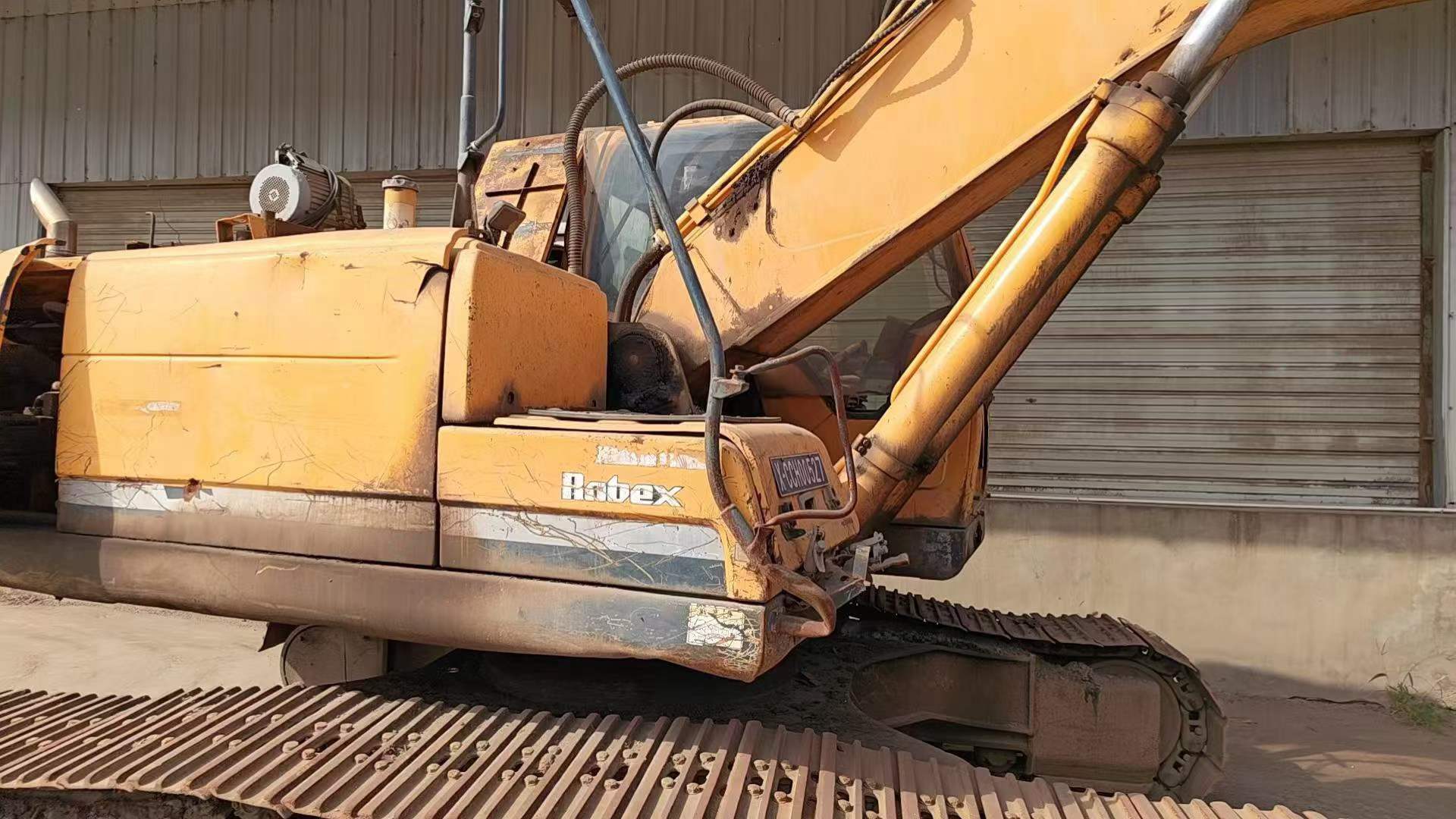

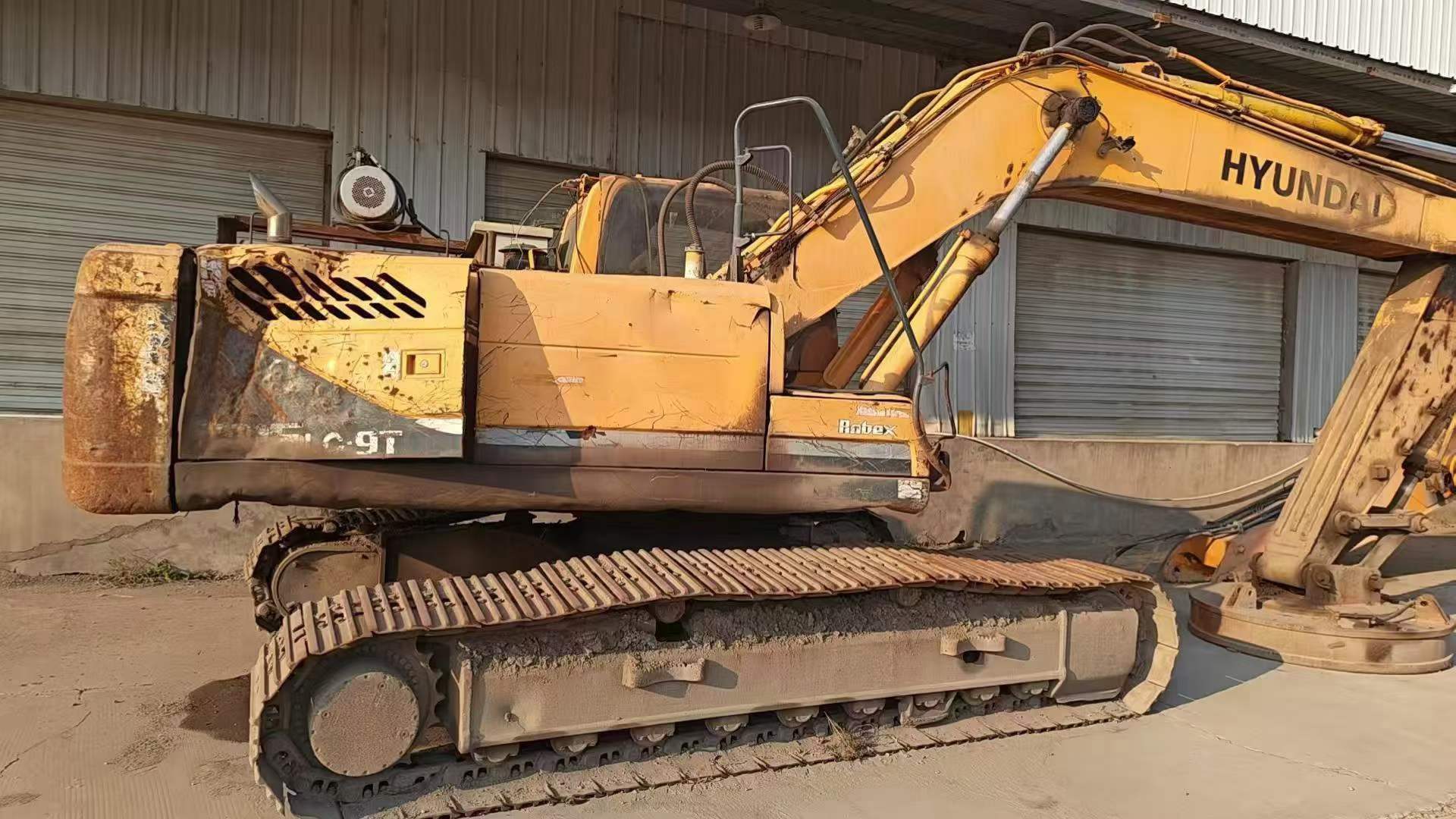

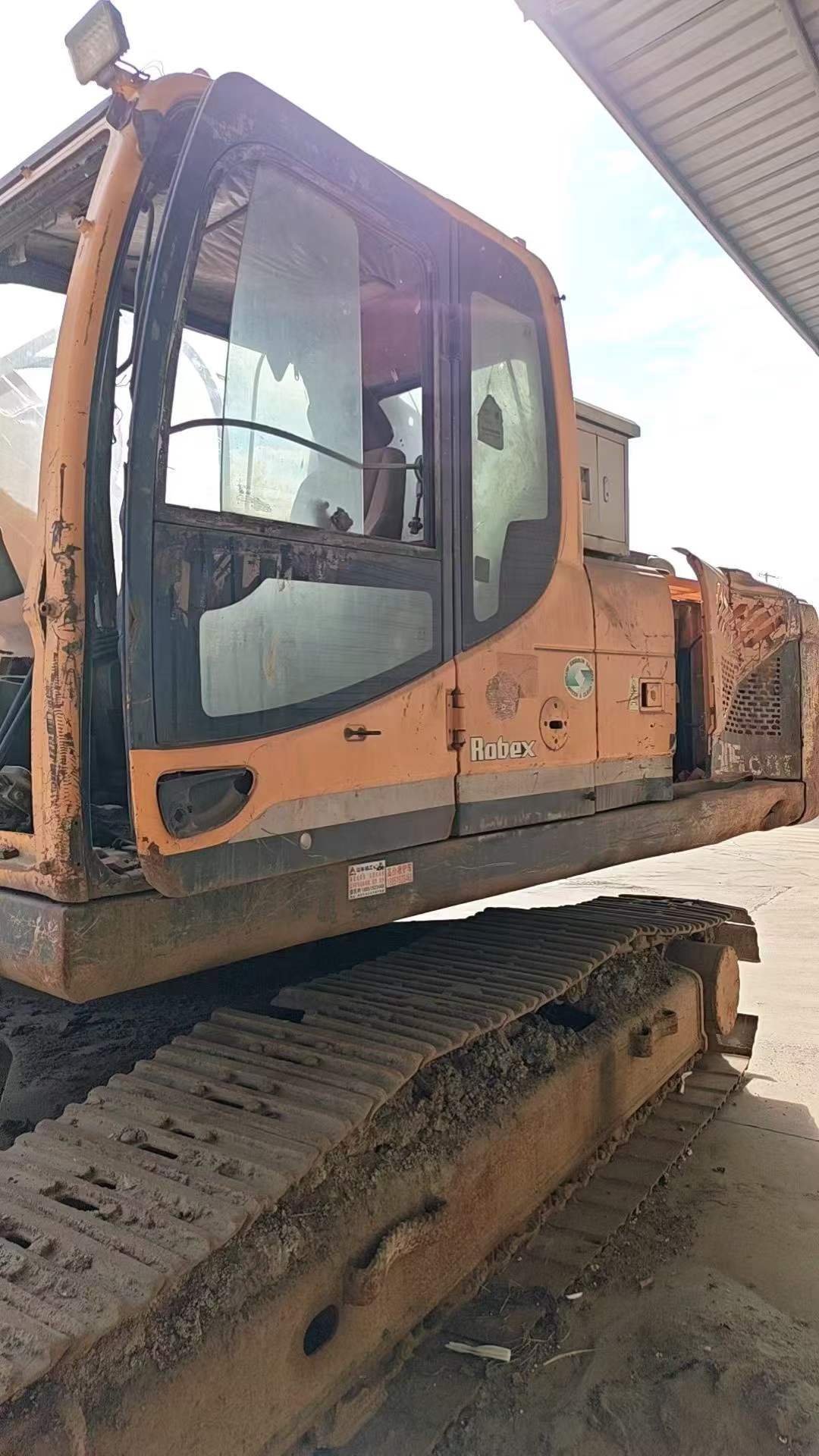

Built for demanding operators who require precision and control, the 2013 Hyundai R275LC-9T is a 27-ton class excavator offering a commanding balance of power, reach, and worksite maneuverability. Powered by a Cummins C8.3-C six-cylinder, four-stroke turbocharged intercooled engine producing 196 kW at 1,900 RPM, this machine delivers 1,218 Nm of peak torque with reliable water-cooled performance across extended shifts.
From the operator's seat, visibility and handling define the R275LC-9T experience. The cab is designed to reduce fatigue during long operating cycles, with intuitive controls managing a dual variable swash plate axial piston hydraulic system — main pump output reaching 2×222 L/min at 35 MPa working pressure. Stable ground bearing pressure of just 51 kPa and a 600mm track plate width ensure confident footing across varied terrain.
- Bucket digging force: 178 kN | Rod digging force: 125 kN
- Maximum digging radius: 10,200 mm | Maximum digging depth: 6,900 mm
- Maximum tractive force: 211.6 kN | Climbing ability: 35°
- Travel speed: 5.3 / 3.3 km/h (high/low range)
- Fuel tank: 400 L | Hydraulic tank: 165 L
- Currently located in Zhejiang, China — available for global export
| Specifications | Value |
|---|---|
| No. | 1142264 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 25700 |
| Bucket capacity (m³) | 1.35 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 2850 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins C8.3-C |
| Rated power (kw/rpm) | 196/1900 |
| Cooling mode | water-cooling |
| Maximum torque (N.m/rpm) | 1218.1 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.3 |
| Working form | Six-cylinder four-stroke turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 178 |
| Rod digging force (kN) | 125 |
| Maximum tractive force (kN) | 211.6 |
| Travel speed (km/h) | 5.3/3.3 |
| Main overflow set pressure (Mpa) | 35 |
| Rotary hydraulic motor type | Quantitative swash plate axial piston motor |
| Type of walking hydraulic motor | Variable swash plate axial piston motor |
| Maximum flow of main pump (l/min) | 2*222 |

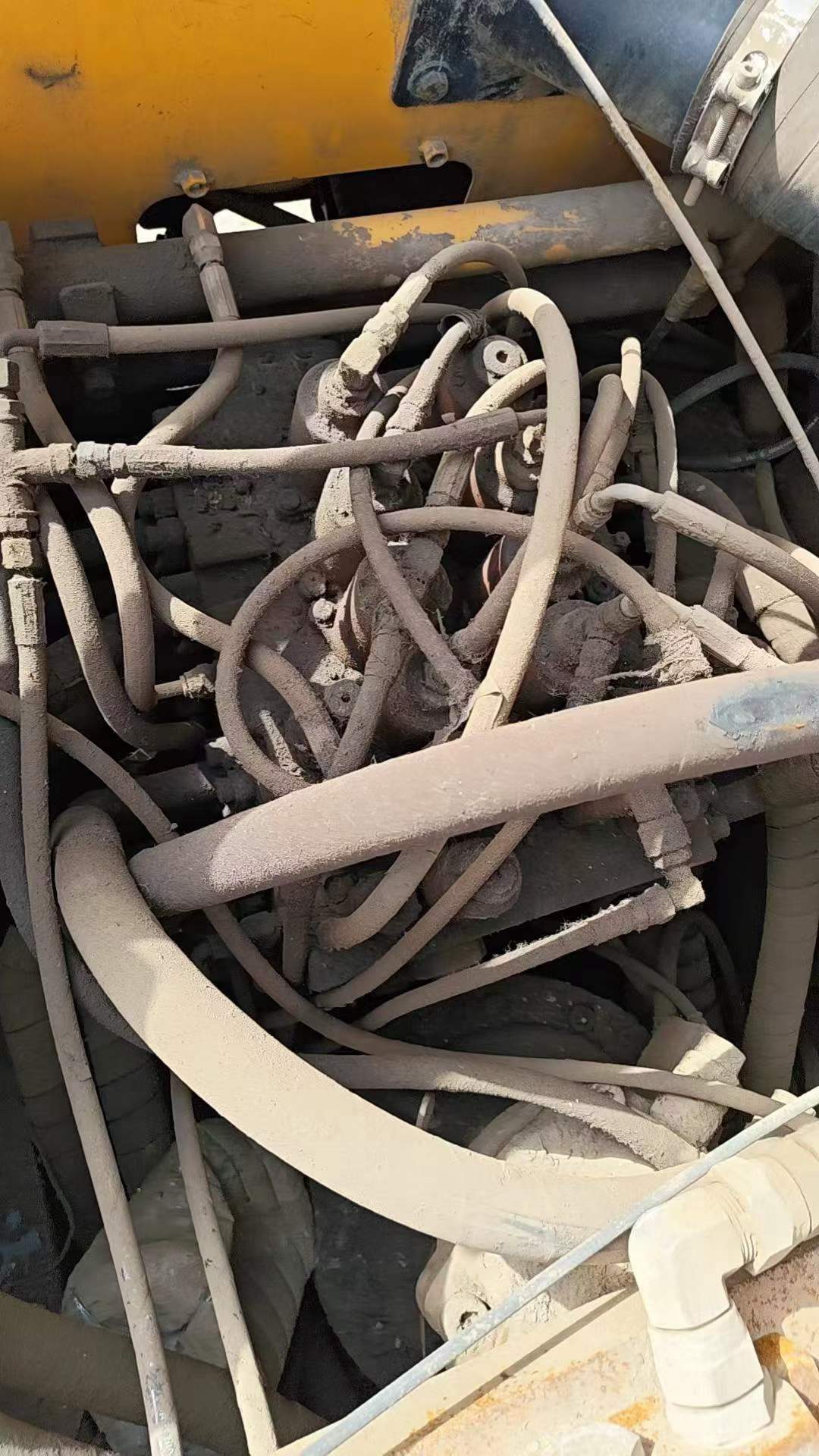

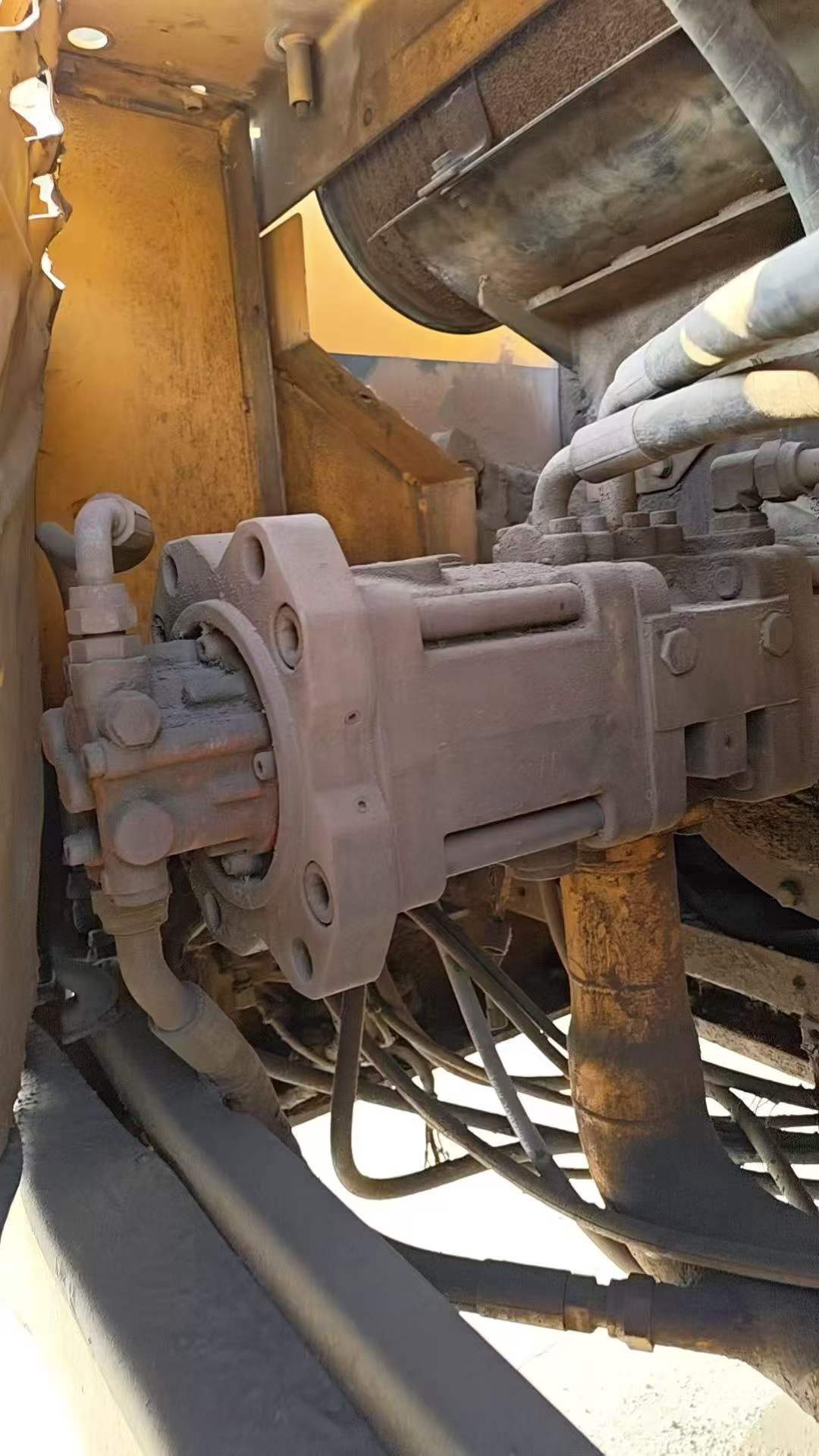

| Main pump type | 2* variable swash plate axial piston pump |
| Working Hydraulic Circuit (Mpa) | 35 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 165 |
| Total transport length (mm) | 9930 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3280 |
| Full cab height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1115 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 3036 |
| Onboard width (mm) | 2840 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2580 |

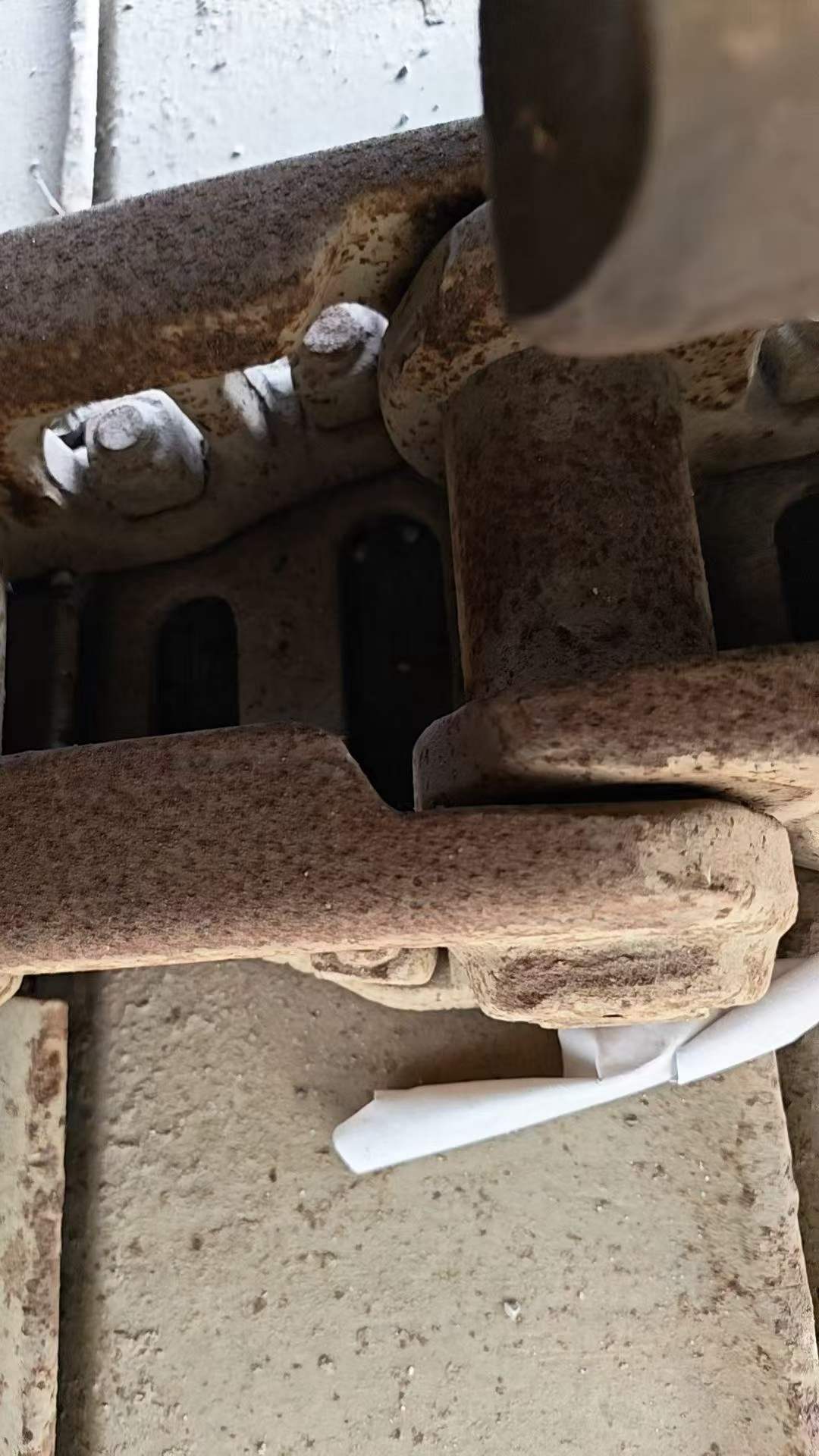

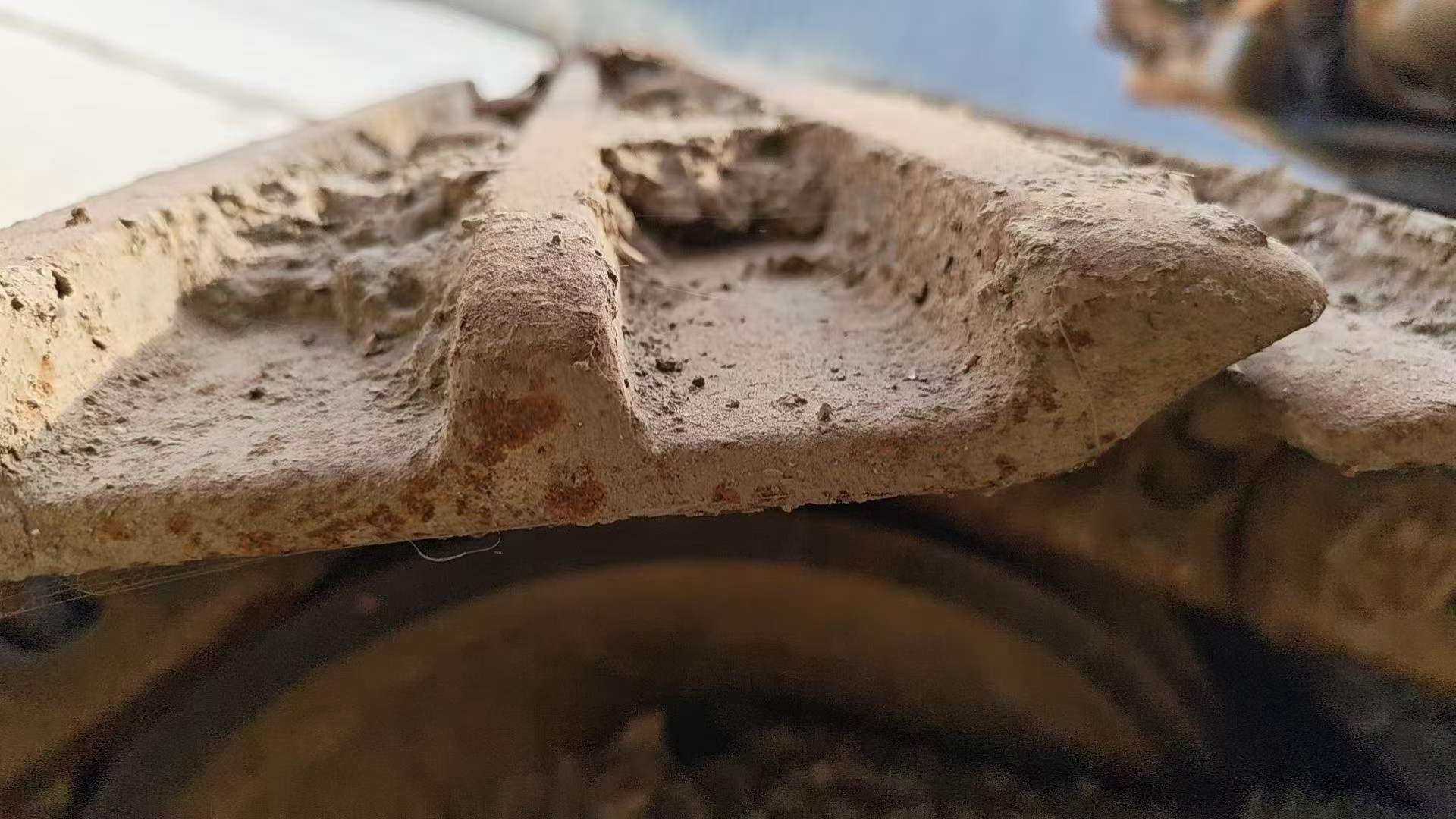

| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3830 |
| Maximum height at minimum turning radius (mm) | 3600 |
| Maximum digging radius (mm) | 10200 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 9960 |
| Maximum unloading height (mm) | 6900 |
| Maximum vertical digging depth (mm) | 6020 |
| Maximum excavation radius of stop surface (mm) | 10050 |
| Maximum effective digging depth (mm) | 6700 |
