Product Description
This 2018 Hyundai R275LVS crawler excavator offers reliable performance for medium to heavy-duty earthmoving applications. Currently located in Fujian, China, this machine represents solid value in the used equipment market. The R275LVS is known for its efficient hydraulic system and operator comfort, making it suitable for construction, quarrying, and infrastructure projects.
- Year of Manufacture: 2018
- Model: Hyundai R275LVS
- Machine Type: Crawler Excavator
- Current Location: Fujian Province, China
- Condition: Used, competitively priced
The Hyundai R275LVS provides a balanced combination of digging force, reach, and fuel efficiency for its operating class. This unit is available for inspection and ready for export or domestic delivery. Contact us for current pricing, detailed specifications, and shipping arrangements to your project site.
| Specifications | Value |
|---|---|
| No. | 1167130 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 25700 |
| Bucket capacity (m³) | 1.35 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 2850 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

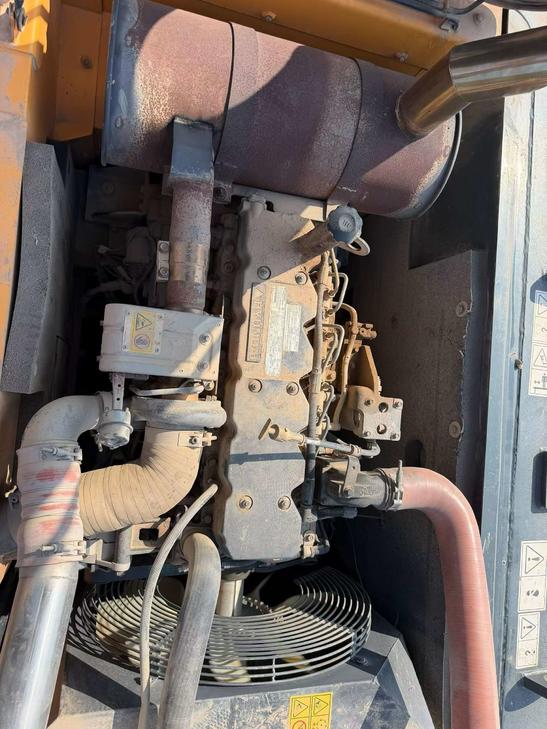

| Engine type | HYUNDAI HE6.7 |
| Rated power (kw/rpm) | 146 / 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Maximum torque (N.m) | 95 / 1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | 6-cylinder, 4-stroke, water-cooled turbocharged engine |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.3 / 3.3 |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 30 |
| Control Hydraulic Circuit (Mpa) | 4 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-ø130 ×ø90×1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-ø145× ø105×1620 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-ø135 ×ø95×1380 |
| Pilot pump type | Gear pump, interactive sensing fuel saving pump system |
| Fuel Tank (L) | 440 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 285 |
| Theoretical fuel consumption (L/h) | 165 |
| Total transport length (mm) | 9922 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3280 |
| Full cab height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1115 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 3028 |
| Onboard width (mm) | 2840 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10200 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 9960 |
| Maximum unloading height (mm) | 6900 |
| Maximum vertical digging depth (mm) | 6020 |
| Maximum excavation radius of stop surface (mm) | 10050 |
| Maximum effective digging depth (mm) | 6700 |
