Product Description

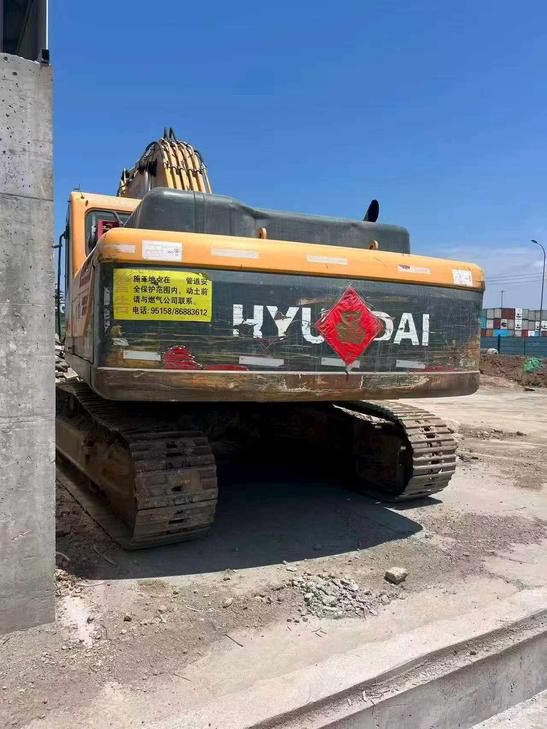

This 2020 Hyundai R305LC-7 crawler excavator represents a reliable choice for contractors seeking proven heavy earthmoving capability. Located in Shandong, China, this 30-ton class machine combines Hyundai's established engineering with practical field performance suited to excavation, grading, and material handling applications.
The R305LC-7 features a long-carriage configuration optimized for stability during extended-reach work. Its operational design balances digging force with fuel efficiency, making it suitable for infrastructure projects, site development, and general construction activities. With limited operating hours since its 2020 manufacture, this unit offers dependable service potential for export markets or regional deployment.
- 30-ton operating weight class
- Long-carriage (LC) undercarriage configuration
- Hyundai Tier 3 engine technology
- Located in Shandong, China
- Available for international shipping
| Specifications | Value |
|---|---|
| No. | 1167376 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 29400 |
| Bucket capacity (m³) | 1.38 |
| Boom length (mm) | 6250 |
| Rod length (mm) | 3050 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins C8.3-C |
| Rated power (kw/rpm) | 190/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.27 |
| Ground specific pressure (Kpa) | 56 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 192.2 |
| Rod digging force (kN) | 128.5 |
| Travel speed (km/h) | 3.1-5.2 |
| Maximum flow of main pump (l/min) | 2 x 260 |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 265 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 140 * 95 * 1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 * 110 * 1765 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 100 * 1465 |
| Fuel Tank (L) | 480 |
| Hydraulic Tank (L) | 210 |
| Engine Oil changes (L) | 19 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 320 |
| Total transport length (mm) | 10560 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3290 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3200 |
| Total track length (mm) | 4940 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 4030 |
| Maximum digging radius (mm) | 10820 |
| Maximum digging depth (mm) | 7500 |
| Maximum excavation height (mm) | 10160 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 6410 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10620 |
| Maximum effective digging depth (mm) | 7300 |
