Product Description

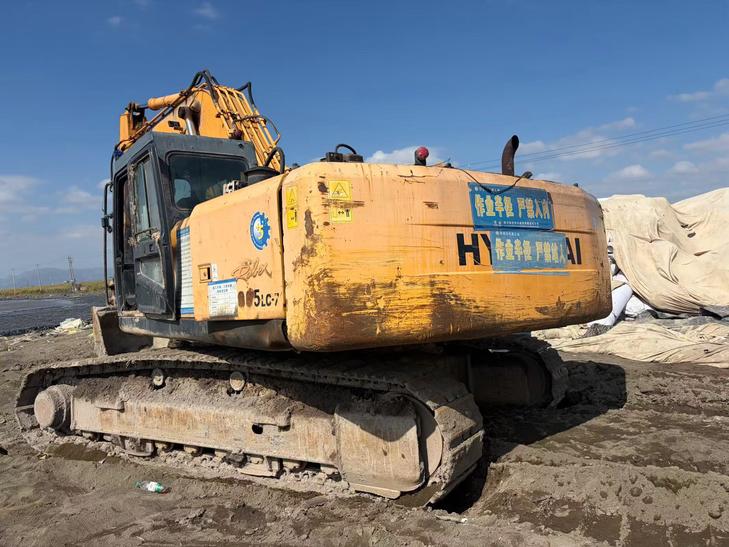

This 2020 Hyundai R305LC-7 crawler excavator offers reliable performance for medium to heavy-duty excavation and earthmoving applications. Operating from Zhejiang, China, this machine represents solid value in the 30-ton class segment. The R305LC-7 features Hyundai's proven hydraulic system and fuel-efficient engine technology, designed for demanding job site conditions.
- Year of Manufacture: 2020
- Model: R305LC-7 (long crawler configuration)
- Location: Zhejiang Province, China
- Competitive pricing available for qualified buyers
- Suitable for construction, mining, and infrastructure projects
Hyundai's 7-series excavators are known for operator comfort, serviceability, and robust construction. This unit is available for immediate inspection and delivery. Contact us for detailed specifications, operating hours, and current condition assessment.
| Specifications | Value |
|---|---|
| No. | 1169540 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 29400 |
| Bucket capacity (m³) | 1.38 |
| Boom length (mm) | 6250 |
| Rod length (mm) | 3050 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins C8.3-C |
| Rated power (kw/rpm) | 190/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.27 |
| Ground specific pressure (Kpa) | 56 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 192.2 |
| Rod digging force (kN) | 128.5 |
| Travel speed (km/h) | 3.1-5.2 |
| Maximum flow of main pump (l/min) | 2 x 260 |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 265 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 140 * 95 * 1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 * 110 * 1765 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 100 * 1465 |
| Fuel Tank (L) | 480 |
| Hydraulic Tank (L) | 210 |
| Engine Oil changes (L) | 19 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 320 |
| Total transport length (mm) | 10560 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3290 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3200 |
| Total track length (mm) | 4940 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 4030 |
| Maximum digging radius (mm) | 10820 |
| Maximum digging depth (mm) | 7500 |
| Maximum excavation height (mm) | 10160 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 6410 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10620 |
| Maximum effective digging depth (mm) | 7300 |
