2018 Hyundai R305LVS

1/9

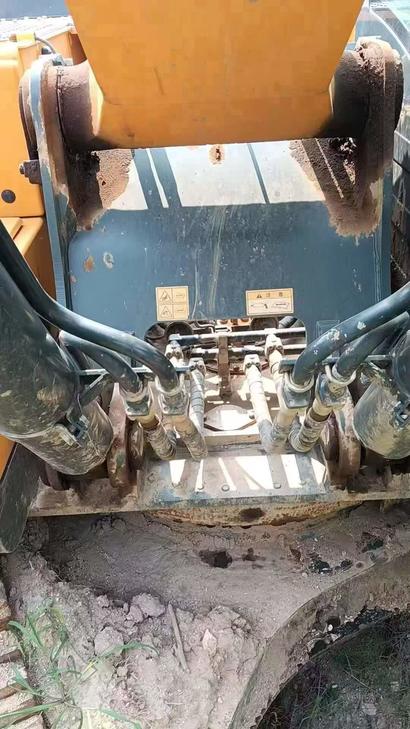

Buy Hyundai R305LVS Used Excavator / 1
Buy Hyundai R305LVS Used Excavator / 2
Buy Hyundai R305LVS Used Excavator / 3
Buy Hyundai R305LVS Used Excavator / 4
Buy Hyundai R305LVS Used Excavator / 5
Buy Hyundai R305LVS Used Excavator / 6
Buy Hyundai R305LVS Used Excavator / 7
Buy Hyundai R305LVS Used Excavator / 8
Buy Hyundai R305LVS Used Excavator / 9

Product Description

This 2018 Hyundai R305LVS excavator represents a well-maintained example of Hyundai's reliable 30-ton class hydraulic excavator platform. Sourced from Zhejiang, China, this machine demonstrates the build quality and operational efficiency that has made the R305LVS a trusted choice for heavy earthmoving and construction applications worldwide.

Key features of the Hyundai R305LVS include:

  • Proven hydraulic system delivering consistent performance across demanding jobsite conditions
  • Operator-focused cabin design with ergonomic controls for extended shift comfort
  • Robust undercarriage engineered for stability and durability in varied terrain
  • Fuel-efficient engine meeting operational cost requirements for contractors and fleet operators

This unit is available for immediate inspection and export coordination. Contact our sales team for complete service records, shipping arrangements, and technical specifications tailored to your operational requirements.

SpecificationsValue
No.1143270
Tonnage (tons)30
Working weight (kg)30200
Bucket capacity (m³)1.44
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHYUNDAI HE6.7
Rated power (kw/rpm)169/ 1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107 x 124
Number of cylinders (PCS)6
Displacement (L)6.7
Rotation speed (rpm)10.2
Climbing ability (%)70
Travel speed (km/h)5.6/3.2
Maximum flow of main pump (l/min)2 x 252
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1-135 x 95 x 1185
Bucket rod cylinders - Number × diameter × stroke (mm)1-150 x 110 x 1765
Boom cylinders - Number × diameter × stroke (mm)2-140 x 100 x 1465
Fuel Tank (L)560
Hydraulic Tank (L)190
Engine Oil changes (L)24
Coolant (L)50
Hydraulic System (L)330
Total transport length (mm)10453
Total transport width (mm)3200
Total transport height (mm)3350
Full cab height (mm)3010
Counterweight ground clearance (mm)1190
Minimum turning radius of front working device (mm)4300
Back end turning radius (mm)3196
Onboard width (mm)2980
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)48
Maximum digging radius (mm)10590
Maximum digging depth (mm)7180
Maximum excavation height (mm)10030
Maximum unloading height (mm)7000
Maximum vertical digging depth (mm)6120
Maximum excavation radius of stop surface (mm)10400
see more

Overview

No.1143270

Brand Name:

Hyundai

Model Number:

R305LVS

Year:

2018

Location:

Zhejiang China

Pub Date
