Product Description

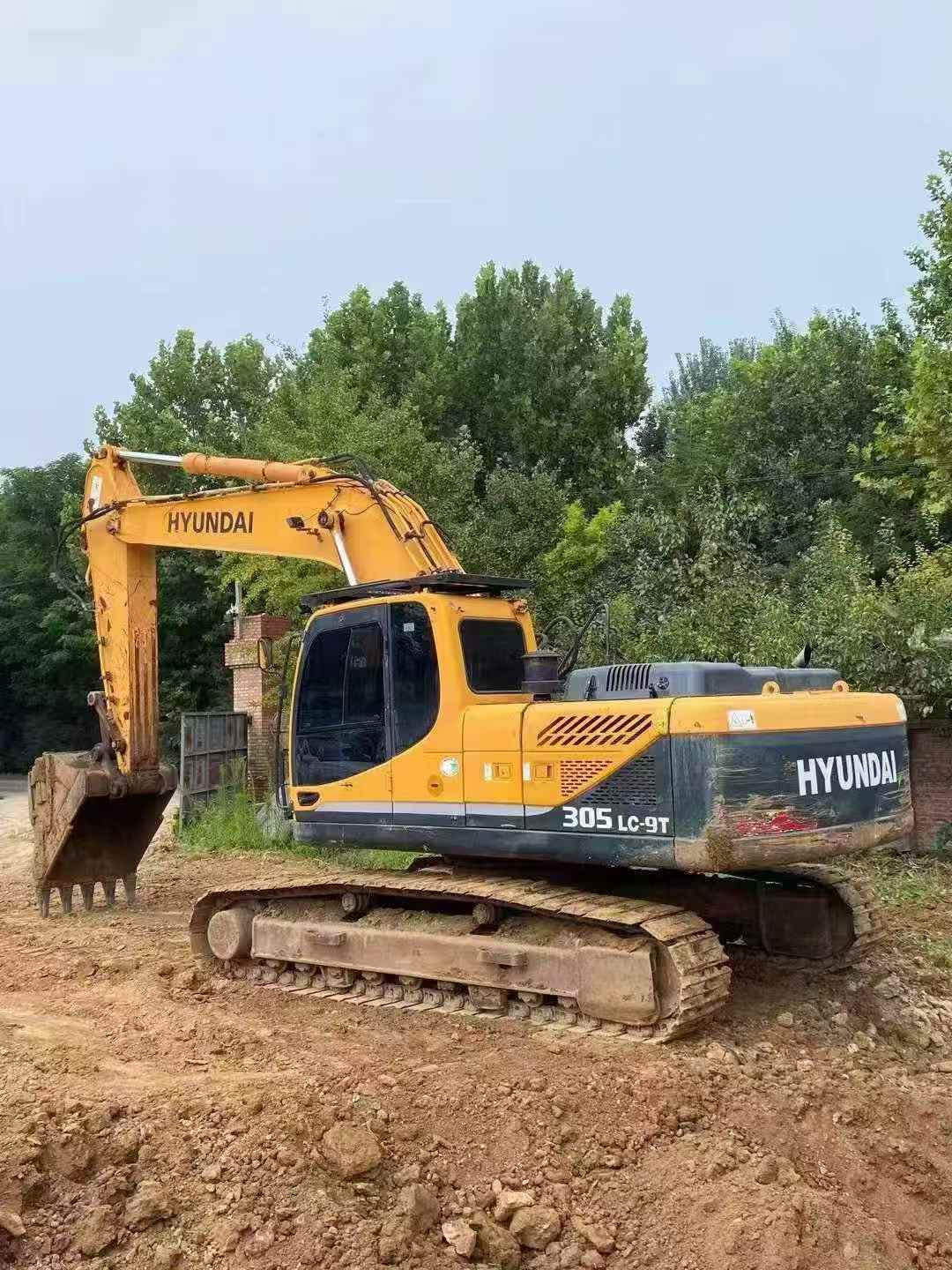

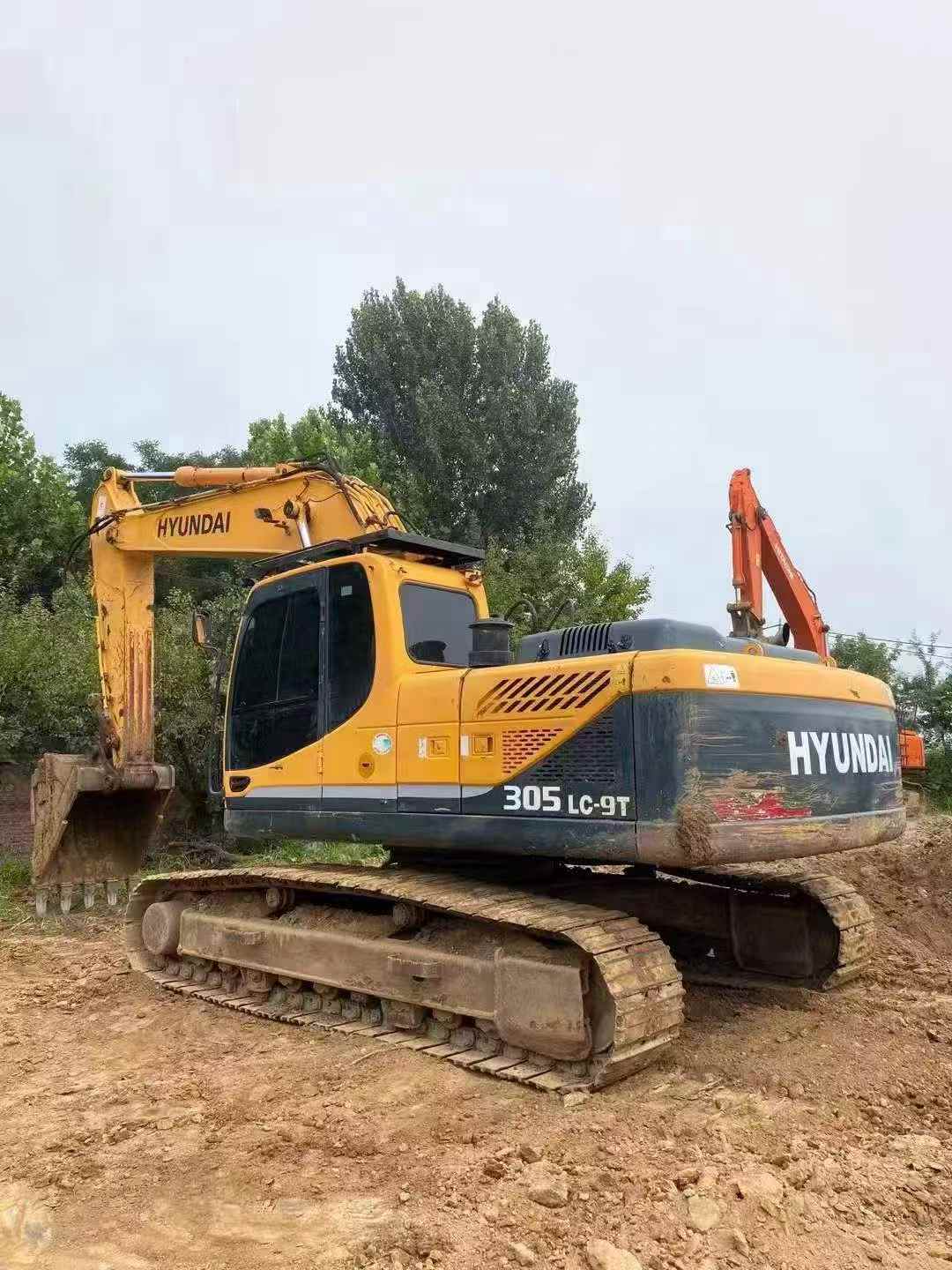

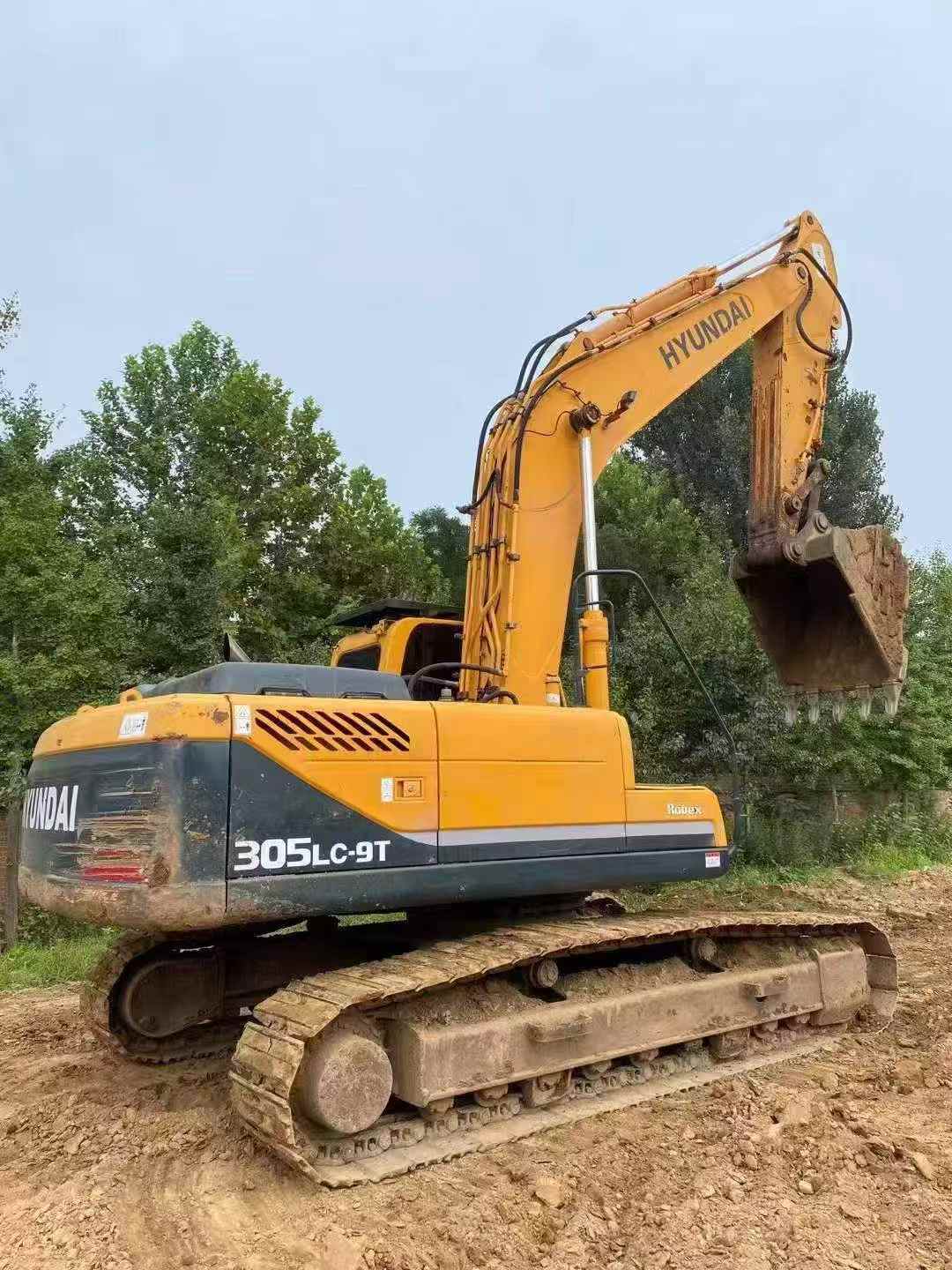

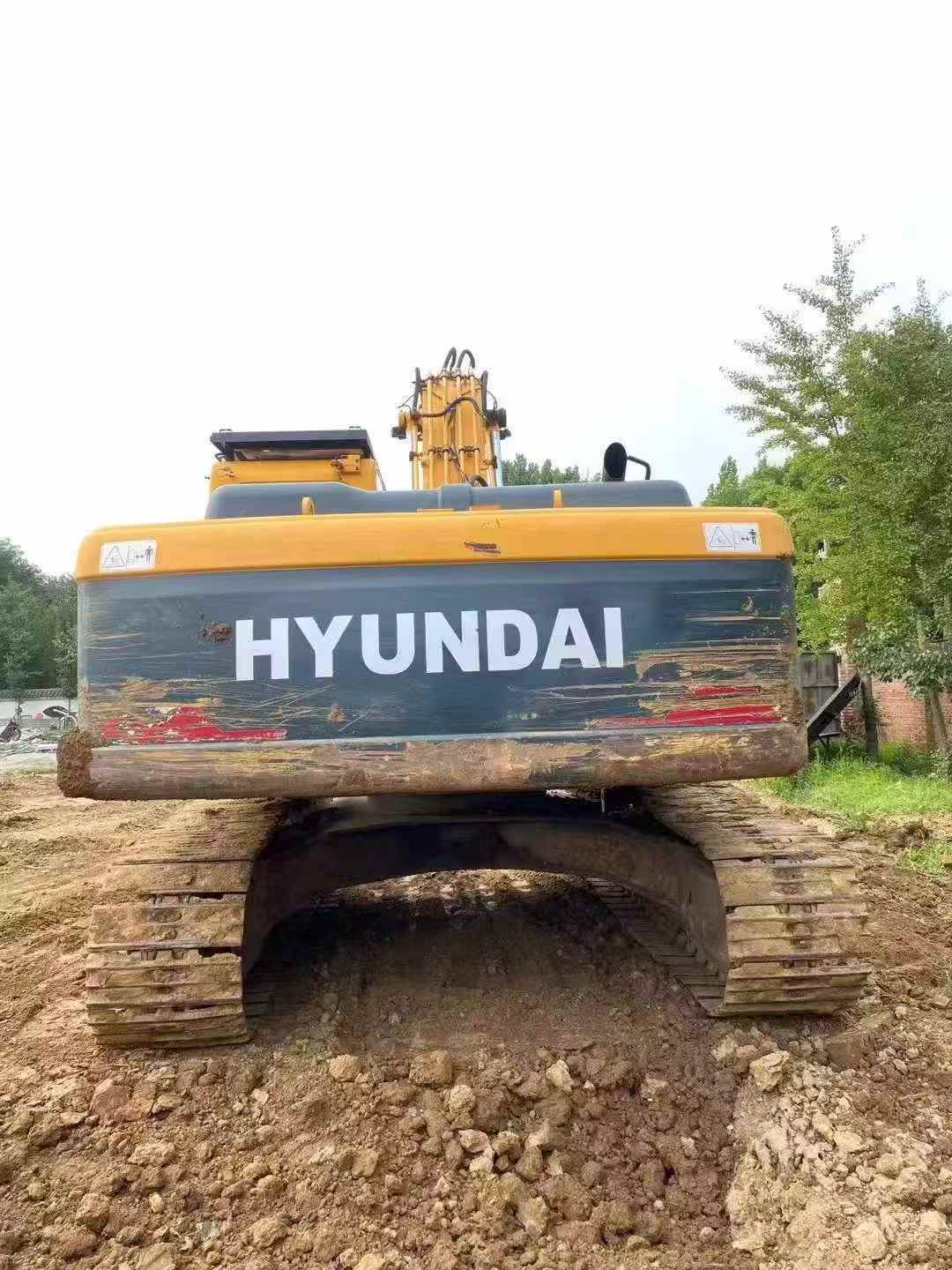

Discover the 2020 Hyundai R305LVS, a meticulously maintained and ready-to-operate heavy machine, currently available in Hebei, China. This used excavator boasts an impressive original paint condition, reflecting its well-cared-for status by a single owner. The machine has been primarily used on construction sites, ensuring its reliability and robust performance. Regular maintenance has kept this R305LVS in top working condition, making it an ideal choice for any project. Comprehensive video and photo documentation are available for review, and potential buyers are welcome to inspect and test the machine. Contact us to arrange a viewing or for more information.
- Year: 2020
- Brand: Hyundai
- Model: R305LVS
- Location: Hebei, China
- Condition: Excellent, with original paint
- Maintenance: Regularly serviced
| Specifications | Value |
|---|---|
| No. | 1115318 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30200 |
| Bucket capacity (m³) | 1.44 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

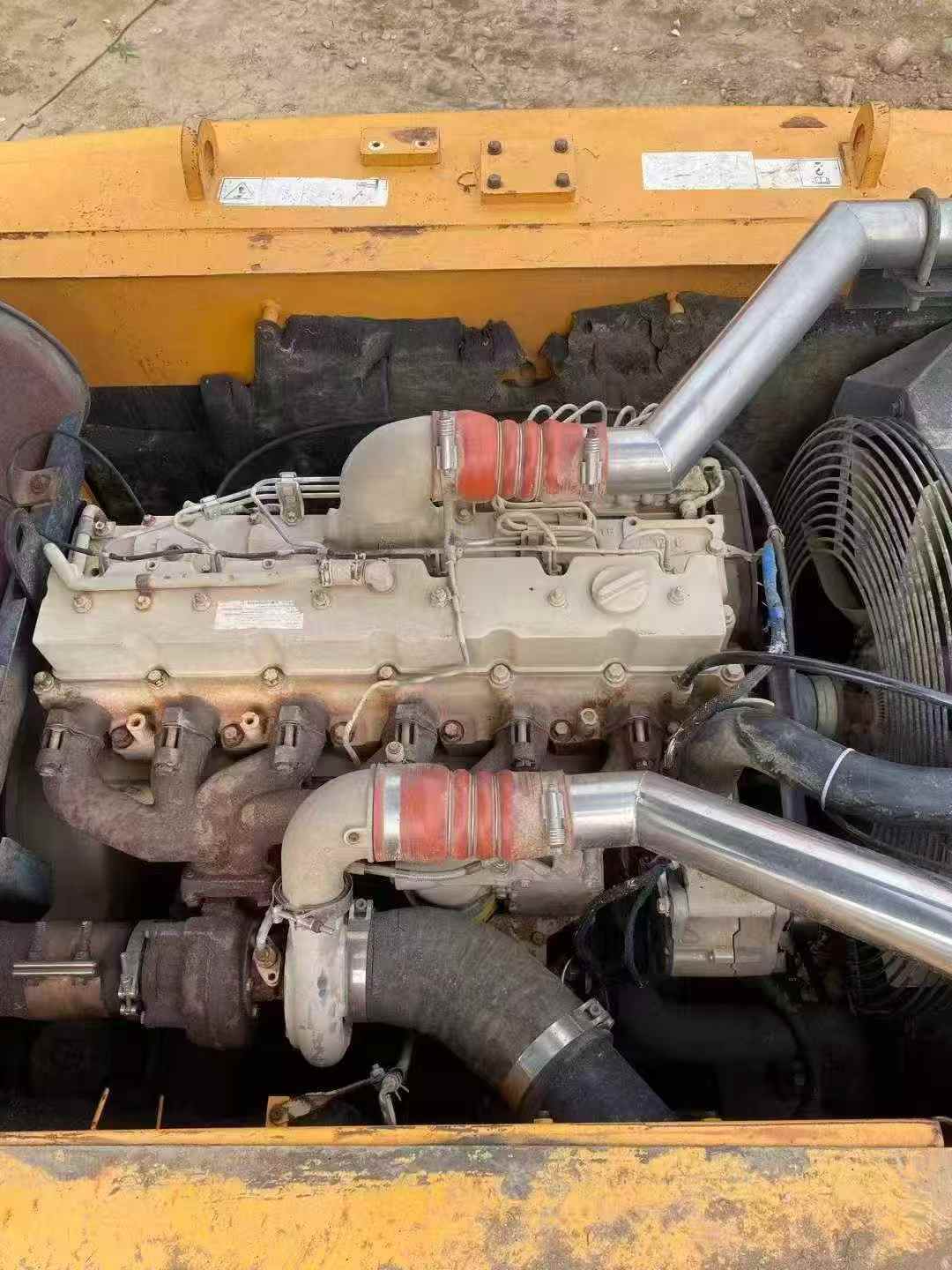

| Engine type | HYUNDAI HE6.7 |
| Rated power (kw/rpm) | 169/ 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.6/3.2 |
| Maximum flow of main pump (l/min) | 2 x 252 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-135 x 95 x 1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-150 x 110 x 1765 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 100 x 1465 |
| Fuel Tank (L) | 560 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 330 |
| Total transport length (mm) | 10453 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3350 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum turning radius of front working device (mm) | 4300 |
| Back end turning radius (mm) | 3196 |
| Onboard width (mm) | 2980 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 48 |
| Maximum digging radius (mm) | 10590 |
| Maximum digging depth (mm) | 7180 |
| Maximum excavation height (mm) | 10030 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 6120 |
| Maximum excavation radius of stop surface (mm) | 10400 |
