Product Description

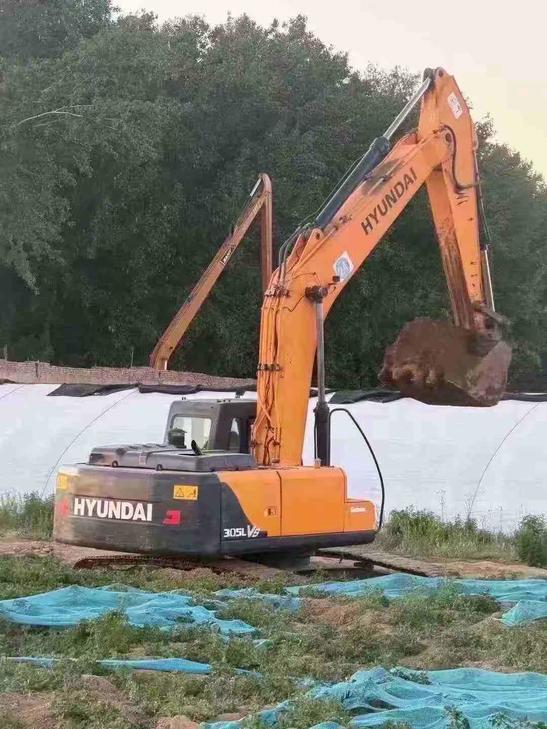

Discover the reliability and power of the 2020 Hyundai R305LVS, available for purchase in Peking, China. This excavator is in prime condition, offering unmatched performance and speed. Ideal for construction sites requiring robust and efficient machinery, the R305LVS delivers strong digging capabilities with a leak-proof major components system, ensuring minimal maintenance and downtime. Ready to be put to work immediately, this machine promises to meet your project's demands without any additional investment required. Experience the quality and durability that Hyundai is known for, making it an excellent addition to your fleet.
- Year: 2020
- Brand: Hyundai
- Model: R305LVS
- Location: Peking, China
| Specifications | Value |
|---|---|
| No. | 1165114 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30200 |
| Bucket capacity (m³) | 1.44 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE6.7 |
| Rated power (kw/rpm) | 169/ 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.6/3.2 |
| Maximum flow of main pump (l/min) | 2 x 252 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-135 x 95 x 1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-150 x 110 x 1765 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 100 x 1465 |
| Fuel Tank (L) | 560 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 330 |
| Total transport length (mm) | 10453 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3350 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum turning radius of front working device (mm) | 4300 |
| Back end turning radius (mm) | 3196 |
| Onboard width (mm) | 2980 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 48 |
| Maximum digging radius (mm) | 10590 |
| Maximum digging depth (mm) | 7180 |
| Maximum excavation height (mm) | 10030 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 6120 |
| Maximum excavation radius of stop surface (mm) | 10400 |
