2020 Hyundai R305LVS

1/9

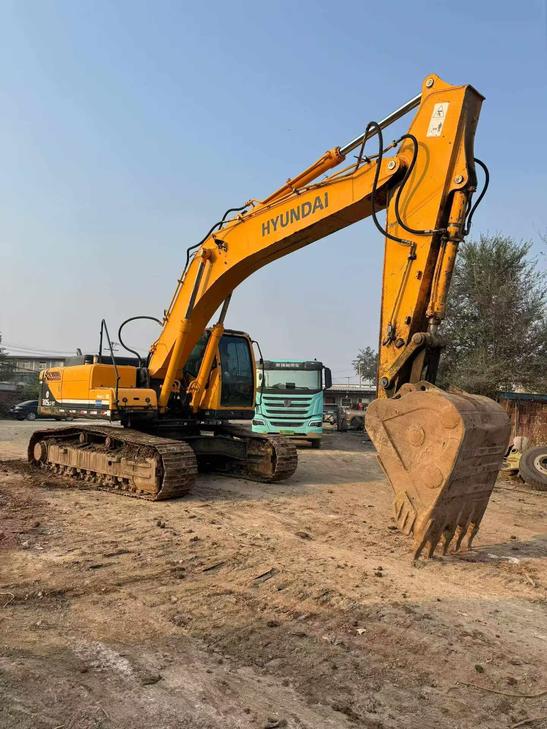

Buy Hyundai R305LVS Used Excavator / 1
Buy Hyundai R305LVS Used Excavator / 2
Buy Hyundai R305LVS Used Excavator / 3
Buy Hyundai R305LVS Used Excavator / 4
Buy Hyundai R305LVS Used Excavator / 5
Buy Hyundai R305LVS Used Excavator / 6
Buy Hyundai R305LVS Used Excavator / 7
Buy Hyundai R305LVS Used Excavator / 8
Buy Hyundai R305LVS Used Excavator / 9

Product Description

This 2020 Hyundai R305LVS excavator offers reliable performance for demanding earthmoving operations. With an operating weight of approximately 30 tonnes and powered by a robust diesel engine, this machine delivers the power and stability required for heavy construction, mining, and infrastructure projects.

  • Year: 2020
  • Model: Hyundai R305LVS
  • Operating Weight: ~30,000 kg
  • Original chassis and undercarriage
  • Well-maintained electrical systems
  • Current Location: Hebei, China

The R305LVS features Hyundai's proven hydraulic system, designed for fuel efficiency and operational productivity. This unit has been maintained in excellent condition with original factory components intact. Suitable for contractors seeking dependable mid-size excavation equipment with established performance credentials in Asian markets.

SpecificationsValue
No.1169520
Tonnage (tons)30
Working weight (kg)30200
Bucket capacity (m³)1.44
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHYUNDAI HE6.7
Rated power (kw/rpm)169/ 1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107 x 124
Number of cylinders (PCS)6
Displacement (L)6.7
Rotation speed (rpm)10.2
Climbing ability (%)70
Travel speed (km/h)5.6/3.2
Maximum flow of main pump (l/min)2 x 252
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1-135 x 95 x 1185
Bucket rod cylinders - Number × diameter × stroke (mm)1-150 x 110 x 1765
Boom cylinders - Number × diameter × stroke (mm)2-140 x 100 x 1465
Fuel Tank (L)560
Hydraulic Tank (L)190
Engine Oil changes (L)24
Coolant (L)50
Hydraulic System (L)330
Total transport length (mm)10453
Total transport width (mm)3200
Total transport height (mm)3350
Full cab height (mm)3010
Counterweight ground clearance (mm)1190
Minimum turning radius of front working device (mm)4300
Back end turning radius (mm)3196
Onboard width (mm)2980
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)48
Maximum digging radius (mm)10590
Maximum digging depth (mm)7180
Maximum excavation height (mm)10030
Maximum unloading height (mm)7000
Maximum vertical digging depth (mm)6120
Maximum excavation radius of stop surface (mm)10400
see more

Overview

No.1169520

Brand Name:

Hyundai

Model Number:

R305LVS

Year:

2020

Location:

Hebei China

Pub Date:
