HOME>>Hyundai>>Hyundai R350LVS

2018 Hyundai R350LVS

1/5

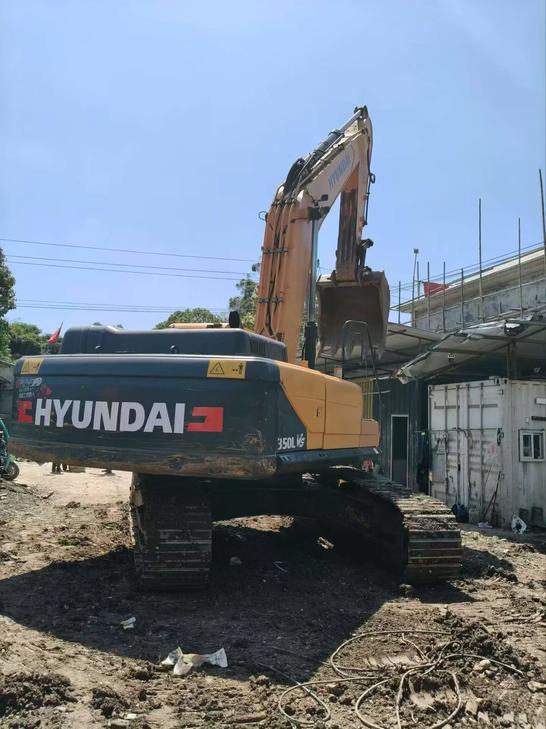

Buy Hyundai R350LVS Used Excavator / 1
Buy Hyundai R350LVS Used Excavator / 2
Buy Hyundai R350LVS Used Excavator / 3
Buy Hyundai R350LVS Used Excavator / 4
Buy Hyundai R350LVS Used Excavator / 5

Product Description

Built to endure the toughest jobsites, this 2018 Hyundai R350LVS excavator from Sichuan demonstrates exceptional longevity and reliable performance. Operating at 35 tons with a robust 33,200 kg working weight, this proven workhorse delivers consistent power through its HYUNDAI HE8.9 engine, generating 221 kW at 1850 rpm. Engineered for demanding applications, it features a 1.60 m³ backhoe bucket capacity and impressive reach specifications: 10,920 mm maximum digging radius and 6,970 mm maximum digging depth.

  • Water-cooled 8.9L six-cylinder engine for sustained heavy-duty operation
  • Dual variable plunger pumps with 2 × 315 l/min flow for hydraulic efficiency
  • 6,450 mm boom and 2,850 mm rod configuration optimized for versatility
  • 70% climbing ability and 9.8 rpm rotation speed for challenging terrain
  • Large capacity tanks: 560L fuel, 330L hydraulic system for extended runtime
  • Joint venture/import manufacturing quality with proven durability standards

With five years of field-tested reliability since manufacture, this R350LVS represents dependable value for contractors requiring a battle-tested excavator ready for immediate deployment.

SpecificationsValue
No.1046609
Tonnage (tons)35
Working weight (kg)33200
Bucket capacity (m³)1.60
Boom length (mm)6450
Rod length (mm)2850
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHYUNDAI HE8.9
Rated power (kw/rpm)221 / 1850
Cooling modewater-cooling
Cylinder diameter × stroke (mm)114 x 145
Number of cylinders (PCS)6
Displacement (L)8.9
Rotation speed (rpm)9.8
Climbing ability (%)70
Travel speed (km/h)6.3/3.5
Type of walking hydraulic motorAxial piston motor
Maximum flow of main pump (l/min)2 x 315
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1-140 x 100 x 1285
Bucket rod cylinders - Number × diameter × stroke (mm)1-160 x 110 x 1685
Boom cylinders - Number × diameter × stroke (mm)2-150 x 105 x 1480
Fuel Tank (L)560
Hydraulic Tank (L)190
Engine Oil changes (L)31.7
Coolant (L)50
Hydraulic System (L)330
Total transport length (mm)10990
Total transport width (mm)3280
Total transport height (mm)3460
Full cab height (mm)3090
Counterweight ground clearance (mm)1200
Minimum turning radius of front working device (mm)4520
Back end turning radius (mm)3330
Onboard width (mm)3265
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)48
Maximum digging radius (mm)10920
Maximum digging depth (mm)6970
Maximum excavation height (mm)10540
Maximum unloading height (mm)7380
Maximum vertical digging depth (mm)6270
Maximum excavation radius of stop surface (mm)10710
Maximum effective digging depth (mm)6800
see more

Overview

No.1046609

Brand Name:

Hyundai

Model Number:

R350LVS

Year:

2018

Location:

Sichuan China

Pub Date
