2019 Hyundai R350LVS

1/6
Buy Hyundai R350LVS Used Excavator / 1

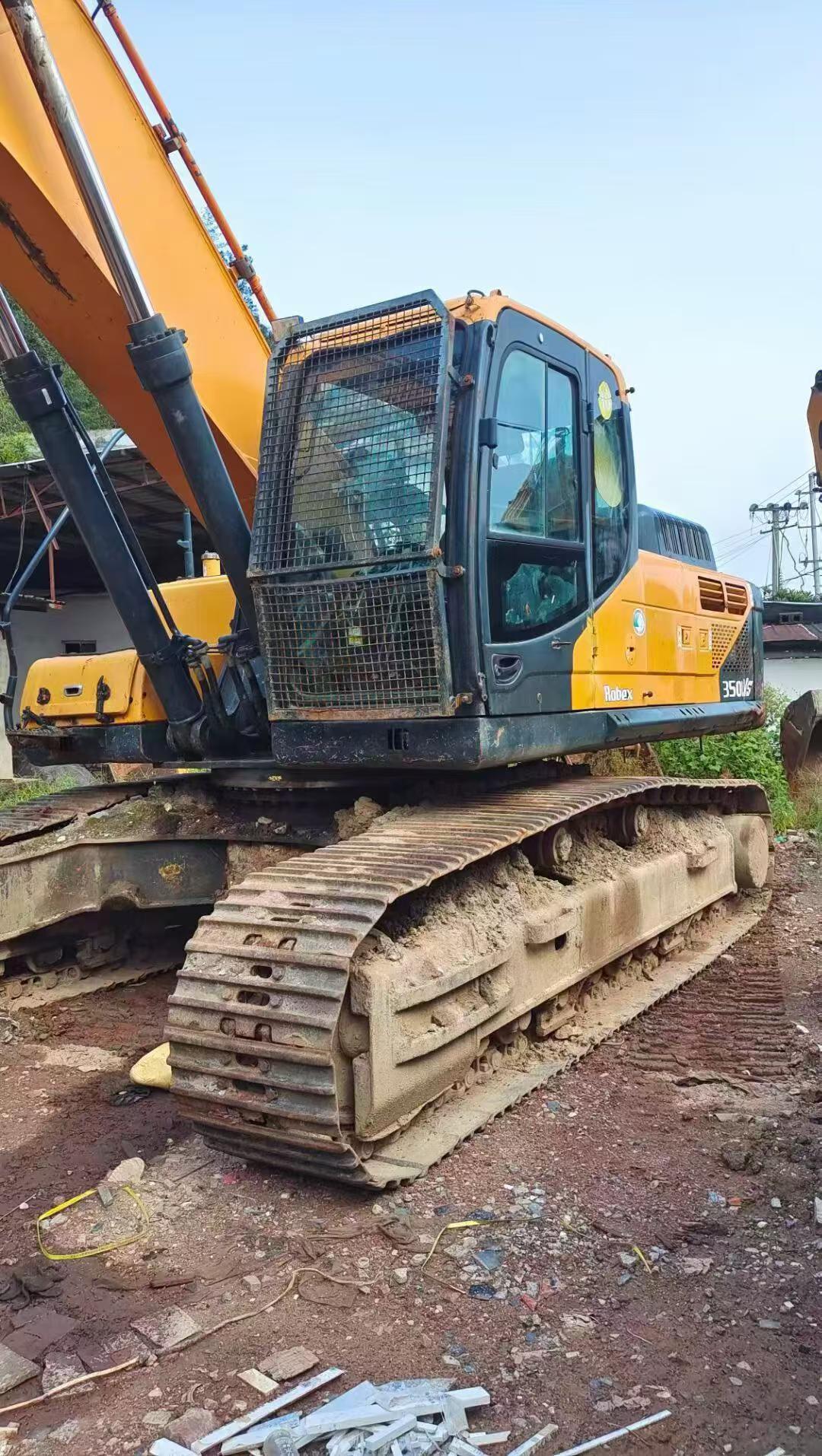

Buy Hyundai R350LVS Used Excavator / 2

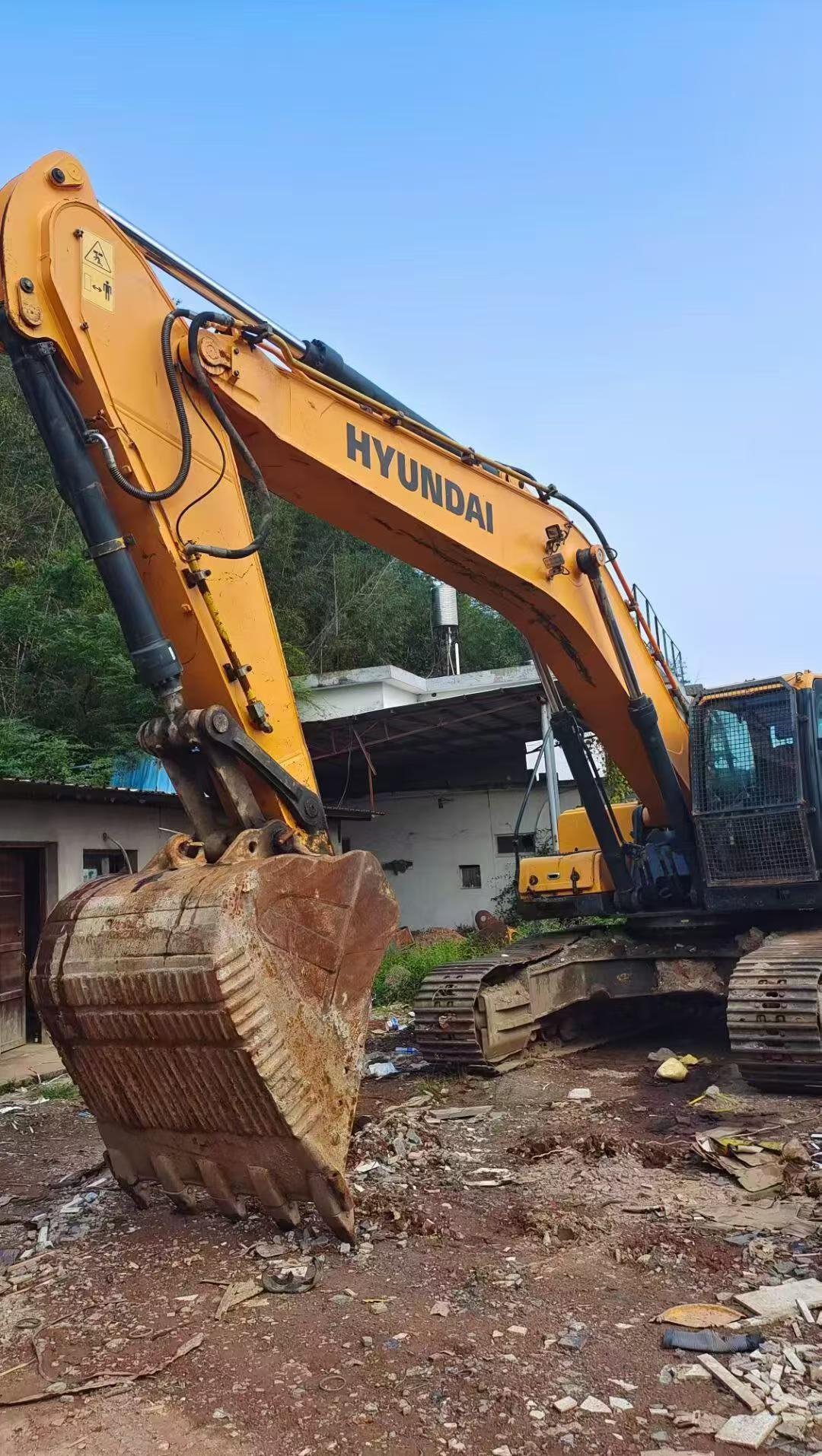

Buy Hyundai R350LVS Used Excavator / 3

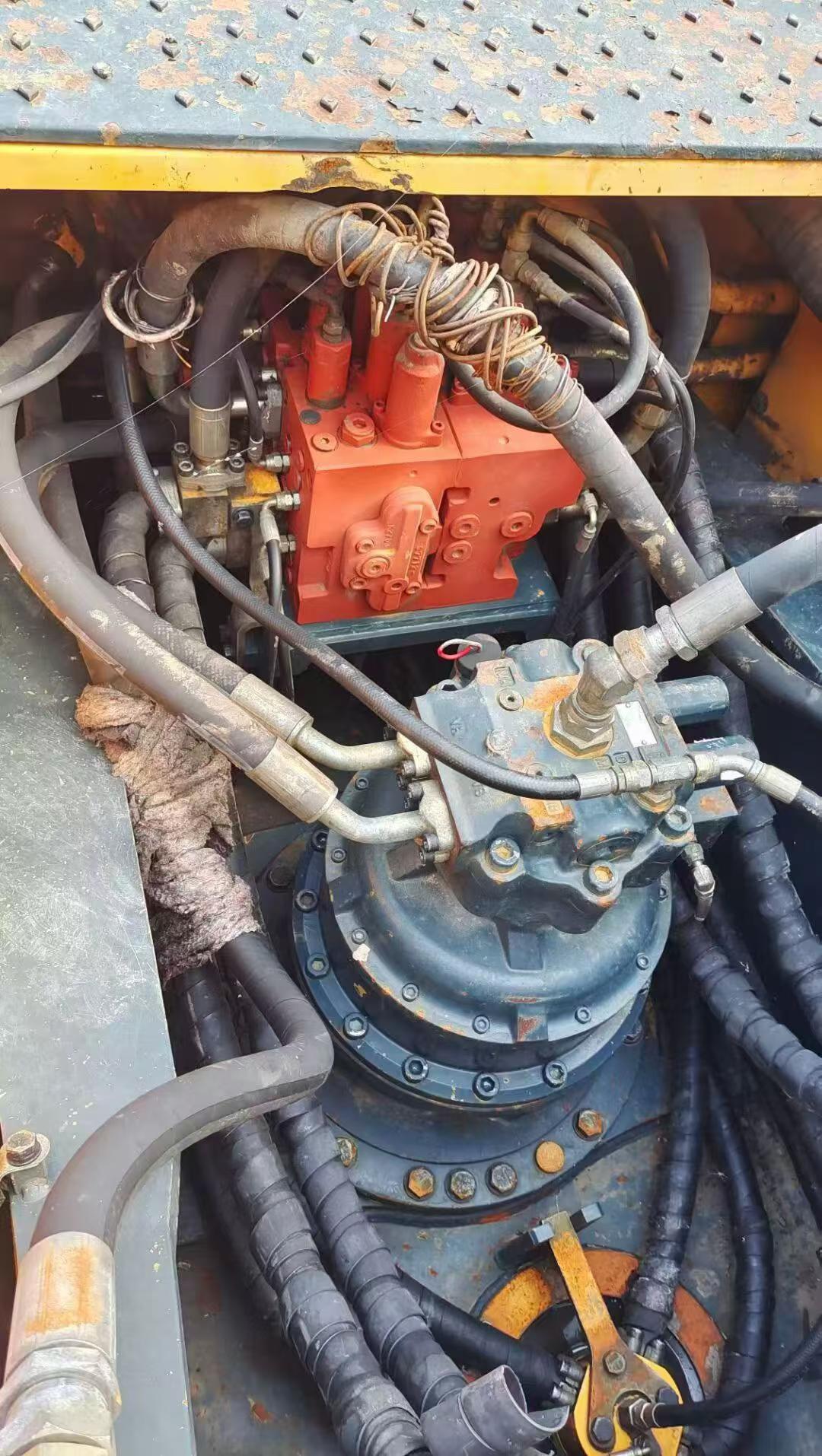

Buy Hyundai R350LVS Used Excavator / 4

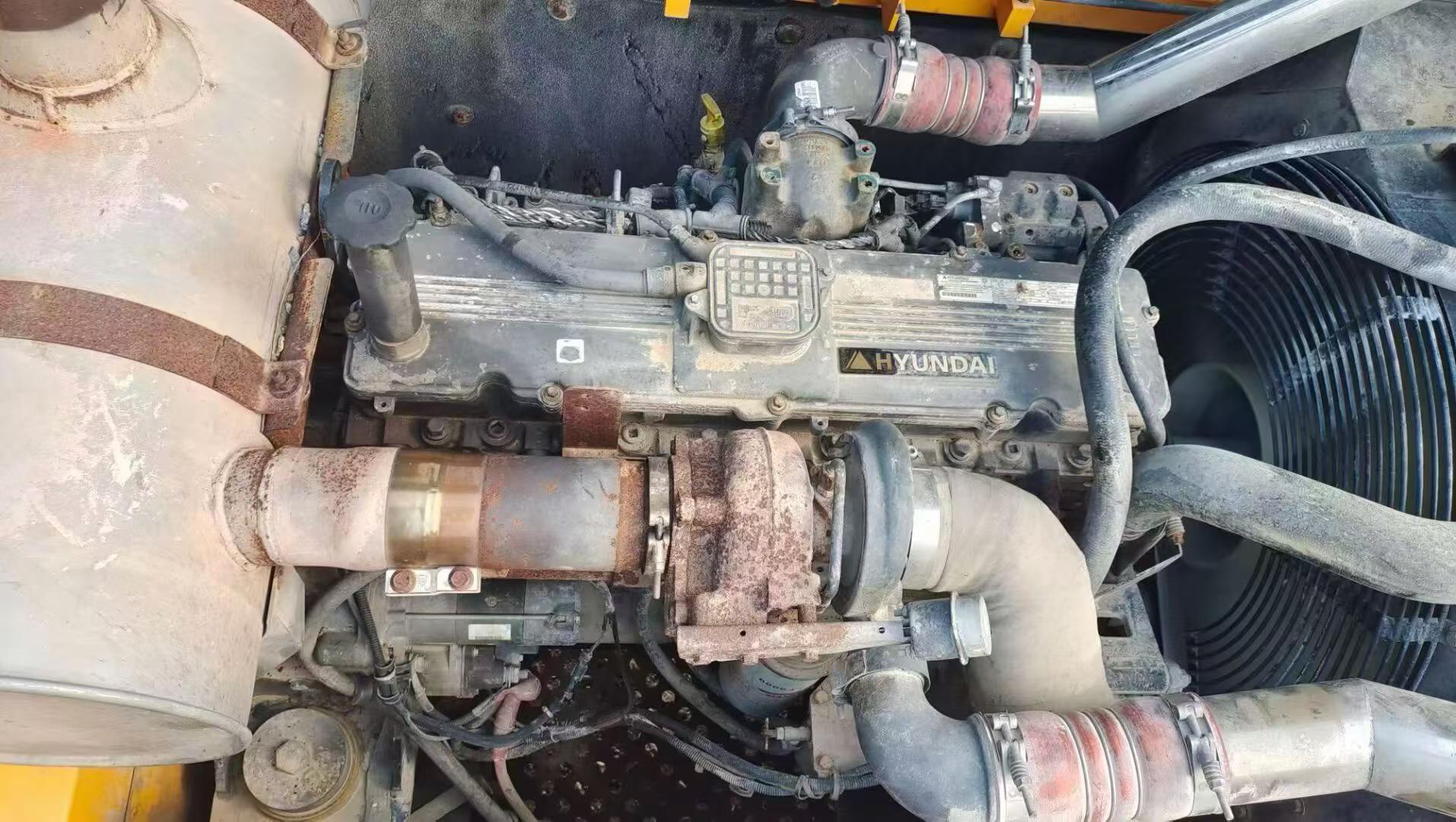

Buy Hyundai R350LVS Used Excavator / 5

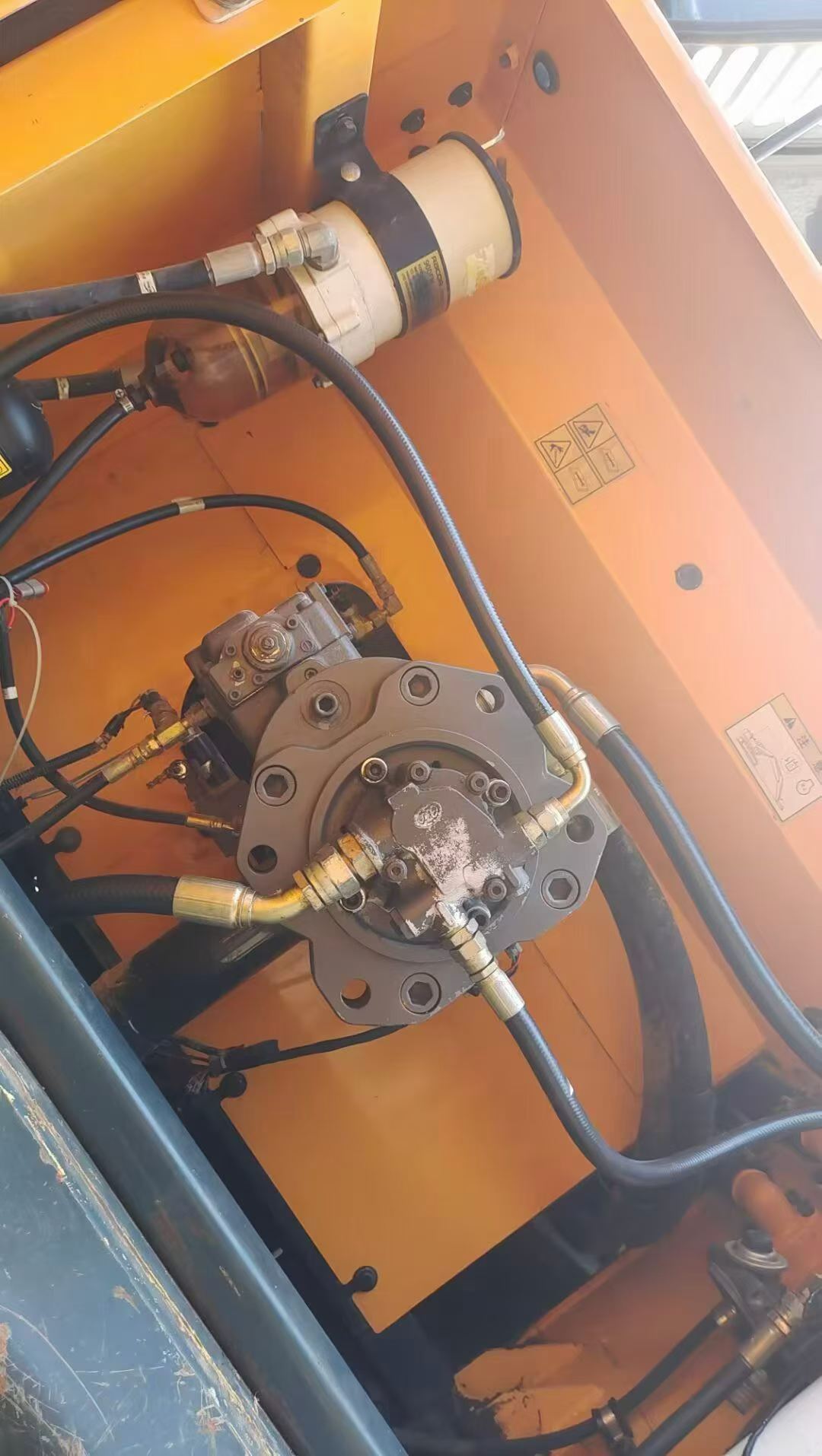

Buy Hyundai R350LVS Used Excavator / 6

Product Description

This 2019 Hyundai R350LVS crawler excavator represents an excellent opportunity for contractors seeking reliable mid-size excavation equipment. Originating from Hunan, China, this machine was put into service in May 2019 and has accumulated approximately 2,400 operating hours under single ownership, indicating consistent use with proper maintenance intervals.

The R350LVS is recognized in the heavy equipment industry for its balanced performance across demolition, earthmoving, and general construction applications. Key attributes include:

  • Hyundai's proven hydraulic system delivering efficient digging performance
  • Spacious operator cabin with standard climate control
  • Robust undercarriage designed for varied terrain conditions
  • Operating weight class suitable for mid-scale projects

This excavator is available for immediate inspection and export from its current location in Hunan Province. Complete service records and operational verification can be arranged for qualified buyers.

SpecificationsValue
No.1174204
Tonnage (tons)35
Working weight (kg)33200
Bucket capacity (m³)1.60
Boom length (mm)6450
Rod length (mm)2850
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHYUNDAI HE8.9
Rated power (kw/rpm)221 / 1850
Cooling modewater-cooling
Cylinder diameter × stroke (mm)114 x 145
Number of cylinders (PCS)6
Displacement (L)8.9
Rotation speed (rpm)9.8
Climbing ability (%)70
Travel speed (km/h)6.3/3.5
Type of walking hydraulic motorAxial piston motor
Maximum flow of main pump (l/min)2 x 315
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1-140 x 100 x 1285
Bucket rod cylinders - Number × diameter × stroke (mm)1-160 x 110 x 1685
Boom cylinders - Number × diameter × stroke (mm)2-150 x 105 x 1480
Fuel Tank (L)560
Hydraulic Tank (L)190
Engine Oil changes (L)31.7
Coolant (L)50
Hydraulic System (L)330
Total transport length (mm)10990
Total transport width (mm)3280
Total transport height (mm)3460
Full cab height (mm)3090
Counterweight ground clearance (mm)1200
Minimum turning radius of front working device (mm)4520
Back end turning radius (mm)3330
Onboard width (mm)3265
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)48
Maximum digging radius (mm)10920
Maximum digging depth (mm)6970
Maximum excavation height (mm)10540
Maximum unloading height (mm)7380
Maximum vertical digging depth (mm)6270
Maximum excavation radius of stop surface (mm)10710
Maximum effective digging depth (mm)6800
see more

Overview

No.1174204

Brand Name:

Hyundai

Model Number:

R350LVS

Year:

2019

Location:

Hunan China

Pub Date:
