2021 Hyundai R350LVS

1/5

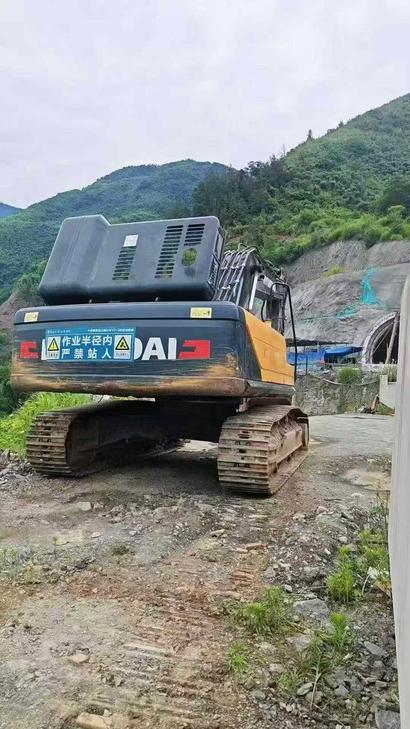

Buy Hyundai R350LVS Used Excavator / 1
Buy Hyundai R350LVS Used Excavator / 2
Buy Hyundai R350LVS Used Excavator / 3
Buy Hyundai R350LVS Used Excavator / 4
Buy Hyundai R350LVS Used Excavator / 5

Product Description

This 2021 Hyundai R350LVS excavator offers reliable performance for demanding construction and earthmoving applications. Currently located in Sichuan, China, this machine represents solid value in the mid-size excavator segment with minimal operational hours since manufacture.

The R350LVS is engineered for productivity in heavy-duty environments, featuring Hyundai's proven hydraulic system and robust undercarriage design. This model delivers consistent digging force and efficient fuel consumption, making it suitable for infrastructure projects, mining support operations, and large-scale site development.

Key features include:

  • 2021 model year with low operational hours
  • 35-ton operating weight class
  • Reliable engine and hydraulic performance
  • Durable construction for extended service life
  • Currently positioned in Sichuan, China

Competitively priced for the pre-owned heavy equipment market, this excavator is ready for deployment in your next project.

SpecificationsValue
No.1162819
Tonnage (tons)35
Working weight (kg)33200
Bucket capacity (m³)1.60
Boom length (mm)6450
Rod length (mm)2850
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHYUNDAI HE8.9
Rated power (kw/rpm)221 / 1850
Cooling modewater-cooling
Cylinder diameter × stroke (mm)114 x 145
Number of cylinders (PCS)6
Displacement (L)8.9
Rotation speed (rpm)9.8
Climbing ability (%)70
Travel speed (km/h)6.3/3.5
Type of walking hydraulic motorAxial piston motor
Maximum flow of main pump (l/min)2 x 315
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1-140 x 100 x 1285
Bucket rod cylinders - Number × diameter × stroke (mm)1-160 x 110 x 1685
Boom cylinders - Number × diameter × stroke (mm)2-150 x 105 x 1480
Fuel Tank (L)560
Hydraulic Tank (L)190
Engine Oil changes (L)31.7
Coolant (L)50
Hydraulic System (L)330
Total transport length (mm)10990
Total transport width (mm)3280
Total transport height (mm)3460
Full cab height (mm)3090
Counterweight ground clearance (mm)1200
Minimum turning radius of front working device (mm)4520
Back end turning radius (mm)3330
Onboard width (mm)3265
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)48
Maximum digging radius (mm)10920
Maximum digging depth (mm)6970
Maximum excavation height (mm)10540
Maximum unloading height (mm)7380
Maximum vertical digging depth (mm)6270
Maximum excavation radius of stop surface (mm)10710
Maximum effective digging depth (mm)6800
see more

Overview

No.1162819

Brand Name:

Hyundai

Model Number:

R350LVS

Year:

2021

Location:

Sichuan China

Pub Date:
