2021 Hyundai R350LVS

1/5

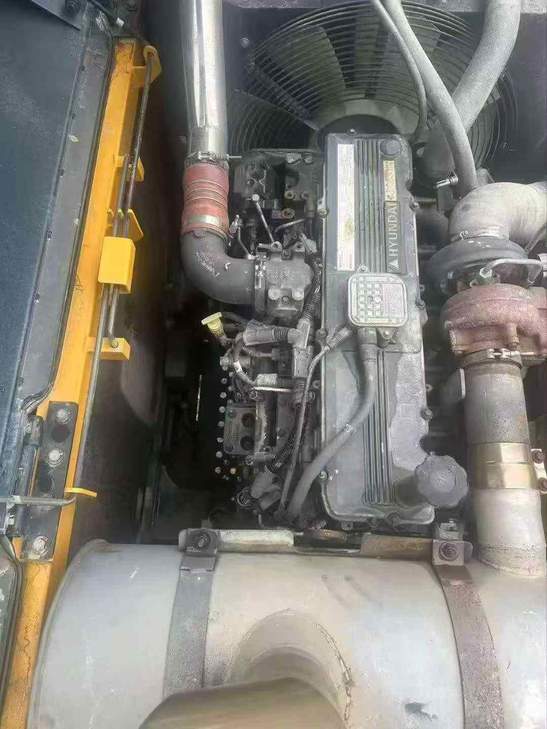

Buy Hyundai R350LVS Used Excavator / 1
Buy Hyundai R350LVS Used Excavator / 2
Buy Hyundai R350LVS Used Excavator / 3
Buy Hyundai R350LVS Used Excavator / 4
Buy Hyundai R350LVS Used Excavator / 5

Product Description

This 2021 Hyundai R350LVS excavator represents a solid investment for contractors seeking reliable performance in demanding applications. Currently located in Sichuan, China, this machine offers approximately three years of operational history with the proven R350LVS platform known for its robust hydraulic system and fuel efficiency.

Key highlights include:

  • Recent model year with substantial remaining service life
  • Hyundai's established 35-ton class excavator design
  • Suitable for earthmoving, mining support, and heavy construction projects
  • Competitively priced for the pre-owned equipment market

The R350LVS configuration delivers the power and reach required for medium to large-scale operations while maintaining operational economy. Available for inspection in Sichuan province. Contact our sales team for detailed service records, current machine hours, and shipping arrangements to your location.

SpecificationsValue
No.1163905
Tonnage (tons)35
Working weight (kg)33200
Bucket capacity (m³)1.60
Boom length (mm)6450
Rod length (mm)2850
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHYUNDAI HE8.9
Rated power (kw/rpm)221 / 1850
Cooling modewater-cooling
Cylinder diameter × stroke (mm)114 x 145
Number of cylinders (PCS)6
Displacement (L)8.9
Rotation speed (rpm)9.8
Climbing ability (%)70
Travel speed (km/h)6.3/3.5
Type of walking hydraulic motorAxial piston motor
Maximum flow of main pump (l/min)2 x 315
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1-140 x 100 x 1285
Bucket rod cylinders - Number × diameter × stroke (mm)1-160 x 110 x 1685
Boom cylinders - Number × diameter × stroke (mm)2-150 x 105 x 1480
Fuel Tank (L)560
Hydraulic Tank (L)190
Engine Oil changes (L)31.7
Coolant (L)50
Hydraulic System (L)330
Total transport length (mm)10990
Total transport width (mm)3280
Total transport height (mm)3460
Full cab height (mm)3090
Counterweight ground clearance (mm)1200
Minimum turning radius of front working device (mm)4520
Back end turning radius (mm)3330
Onboard width (mm)3265
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)48
Maximum digging radius (mm)10920
Maximum digging depth (mm)6970
Maximum excavation height (mm)10540
Maximum unloading height (mm)7380
Maximum vertical digging depth (mm)6270
Maximum excavation radius of stop surface (mm)10710
Maximum effective digging depth (mm)6800
see more

Overview

No.1163905

Brand Name:

Hyundai

Model Number:

R350LVS

Year:

2021

Location:

Sichuan China

Pub Date:
