Product Description

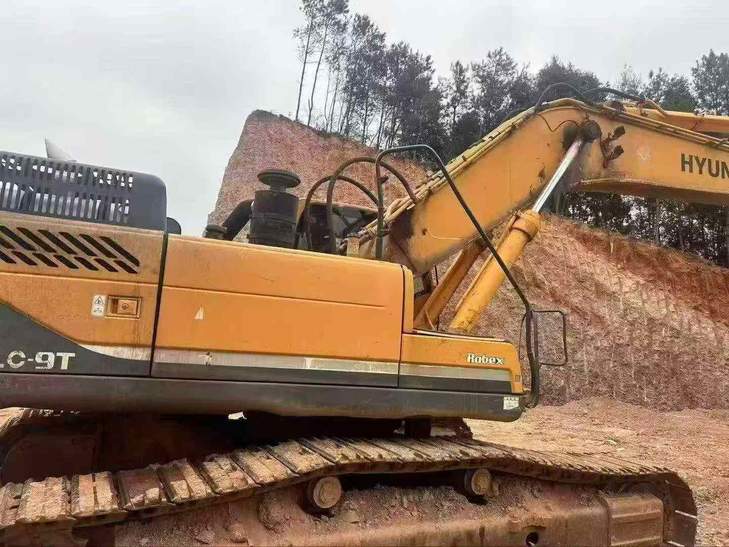

Discover the reliability and durability of the 2014 Hyundai R385LC-9, a robust excavator designed for heavy-duty applications. Located in Sichuan, China, this used machine is priced at 90,000 yuan, offering an excellent value for its performance capabilities. Ideal for construction, mining, and infrastructure projects, the R385LC-9 is known for its powerful digging force, efficient fuel consumption, and comfortable operator environment. This model has been a trusted choice among industry professionals, combining Hyundai's advanced technology with rugged design to handle the most challenging tasks.
- Year: 2014
- Brand: Hyundai
- Model: R385LC-9
- Location: Sichuan, China
- Price: 90,000 yuan
| Specifications | Value |
|---|---|
| No. | 1164829 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38200 |
| Bucket capacity (m³) | 1.62 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3200 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSL |
| Rated power (kw/rpm) | 221/1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 145 |
| Maximum torque (N.m/rpm) | 1450 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8900 |
| Working form | Six-cylinder four-stroke turbocharged intercooled EFI engine |
| Ground specific pressure (Kpa) | 68 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 228.5 |
| Rod digging force (kN) | 156.9 |
| Travel speed (km/h) | 3.0-4.8 |
| Main overflow set pressure (Mpa) | 36 |
| Rotary hydraulic motor type | Quantitative swash plate axial piston motor |
| Type of walking hydraulic motor | Variable swash plate axial piston motor |
| Maximum flow of main pump (l/min) | 2 x 288 |
| Traveling Hydraulic Circuit (Mpa) | 36 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 33 |
| Pilot Oil Circuit (MPa) | 4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1295 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 170 x 1760 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 160 x 1500 |
| Fuel Tank (L) | 550 |
| Hydraulic Tank (L) | 210 |
| Engine Oil changes (L) | 33.5 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 415 |
| Total transport length (mm) | 11120 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3450 |
| Full cab height (mm) | 3175 |
| Counterweight ground clearance (mm) | 1290 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4450 |
| Back end turning radius (mm) | 3415 |
| Onboard width (mm) | 2980 |
| Total track length (mm) | 5280 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4340 |
| Maximum digging radius (mm) | 11250 |
| Maximum digging depth (mm) | 7520 |
| Maximum excavation height (mm) | 10570 |
| Maximum unloading height (mm) | 7410 |
| Maximum vertical digging depth (mm) | 6330 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11040 |
| Maximum effective digging depth (mm) | 7360 |
