Product Description

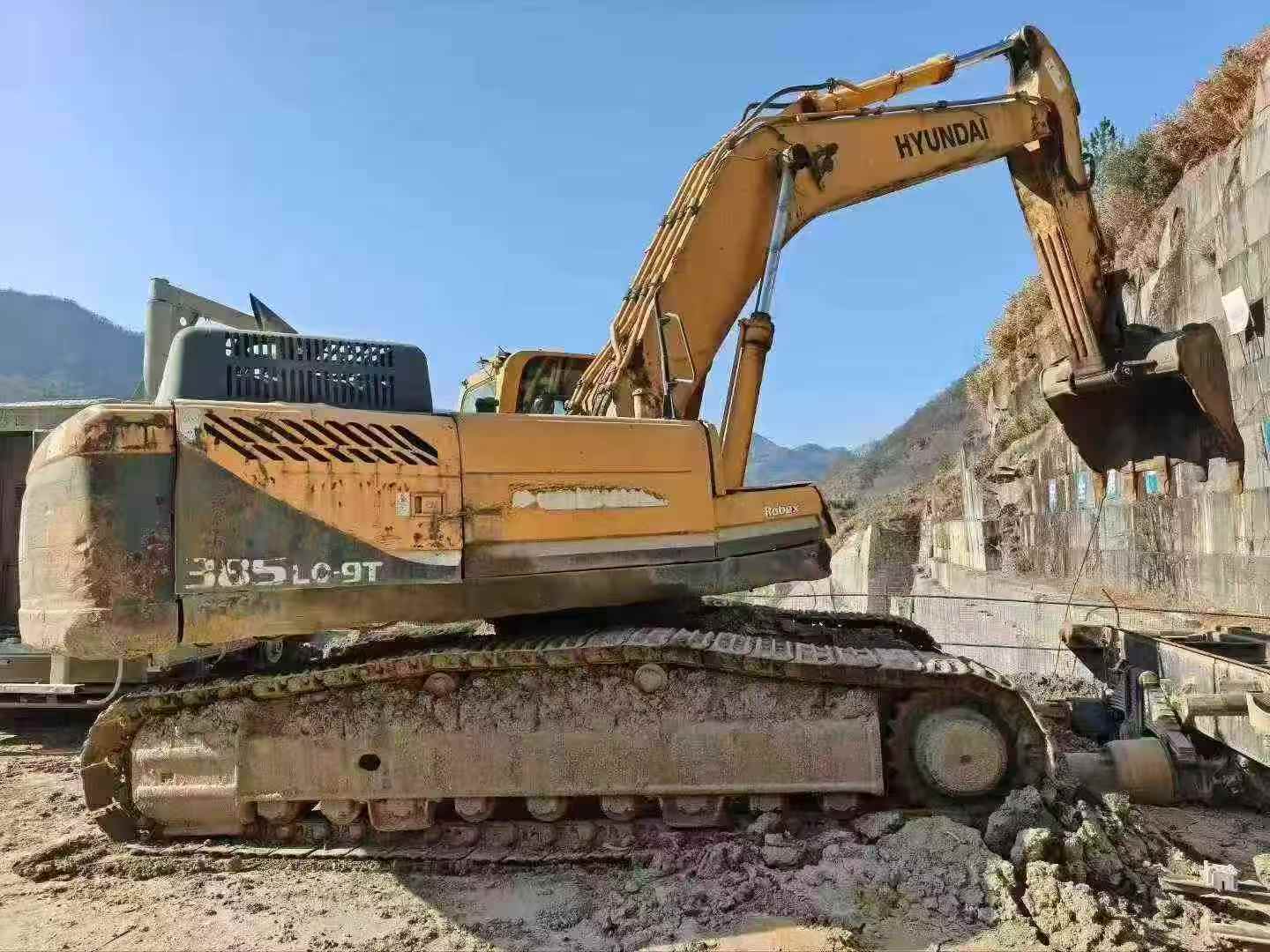

Commanding a 38-ton workhorse from Guizhou, operators will appreciate the refined control and stability engineered into this 2016 Hyundai R385LC-9T crawler excavator. Built with joint venture precision and powered by a Cummins QSM11-C engine delivering 263 kW at 1900 rpm, this machine combines robust digging force with responsive handling. The 228.5 kN bucket digging force and 176.5 kN arm digging force provide confident material penetration across demanding jobsites.
Operator-focused design features include:
- Spacious cabin positioned at 3175 mm height for superior visibility across the 11,910 mm maximum digging radius
- Smooth 9.3 rpm rotation speed enabling precise positioning without jarring movements
- Low 68 kPa ground pressure distributing weight evenly for enhanced stability on soft terrain
- Dual variable axial piston pumps (2 × 288 L/min) delivering consistent hydraulic response
- Impressive 70% (35°) climbing ability maintaining traction on steep grades
- 550 mm minimum ground clearance protecting undercarriage while maintaining maneuverability
With a 6500 mm boom and 2800 mm arm configuration, this excavator balances reach and breakout force for produc
| Specifications | Value |
|---|---|
| No. | 1009857 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38600 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 2800 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

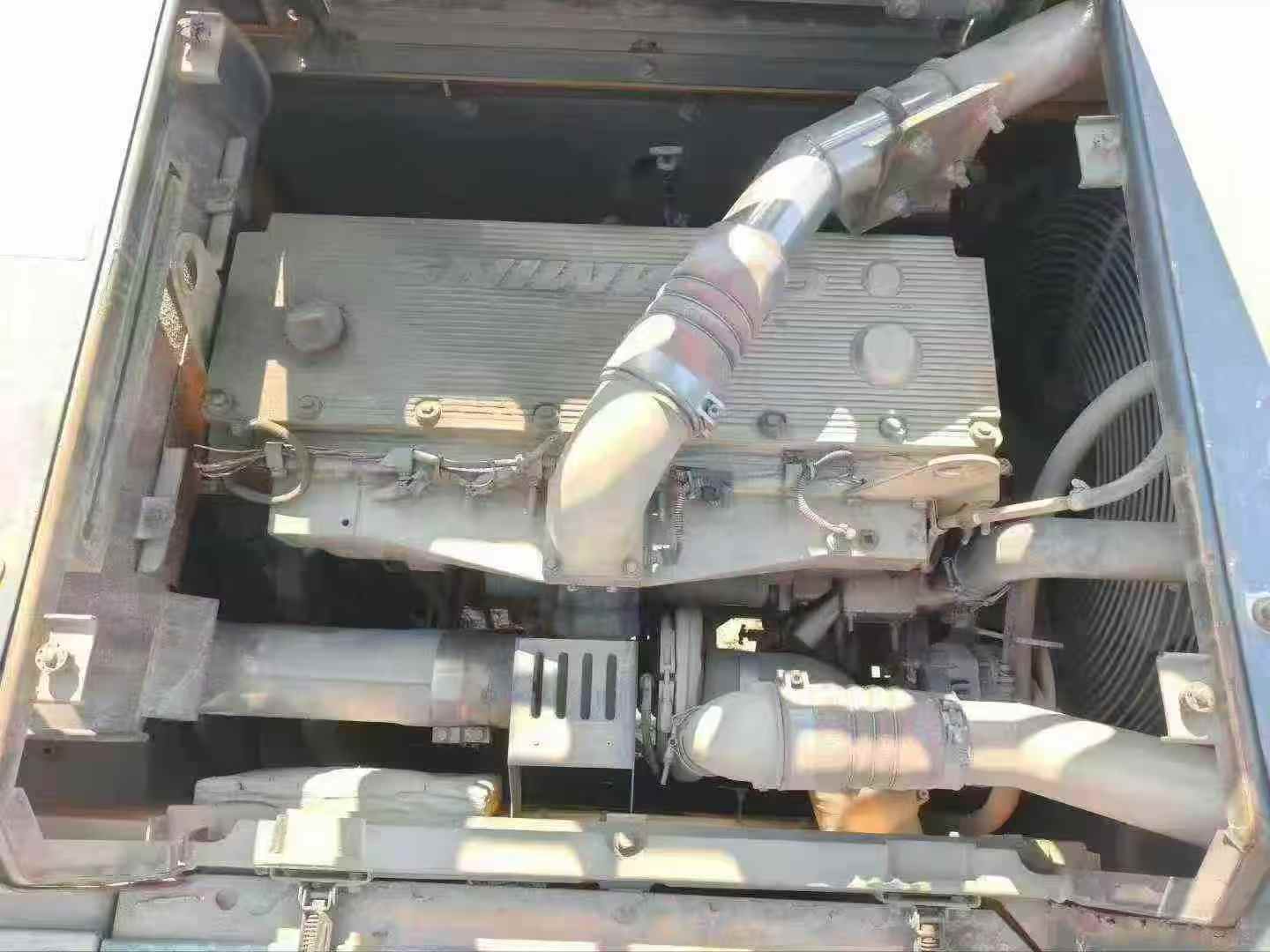

| Engine type | Cummins QSM11-C |
| Rated power (kw/rpm) | 263/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 145 |
| Maximum torque (N.m/rpm) | 1788.5 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11 |
| Working form | Six-cylinder four-stroke turbocharged intercooled EFI engine |
| Ground specific pressure (Kpa) | 68 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 228.5 |
| Rod digging force (kN) | 176.5 |
| Maximum tractive force (kN) | 313.6 |
| Travel speed (km/h) | 3.0-4.8 |
| Main overflow set pressure (Mpa) | 33 |

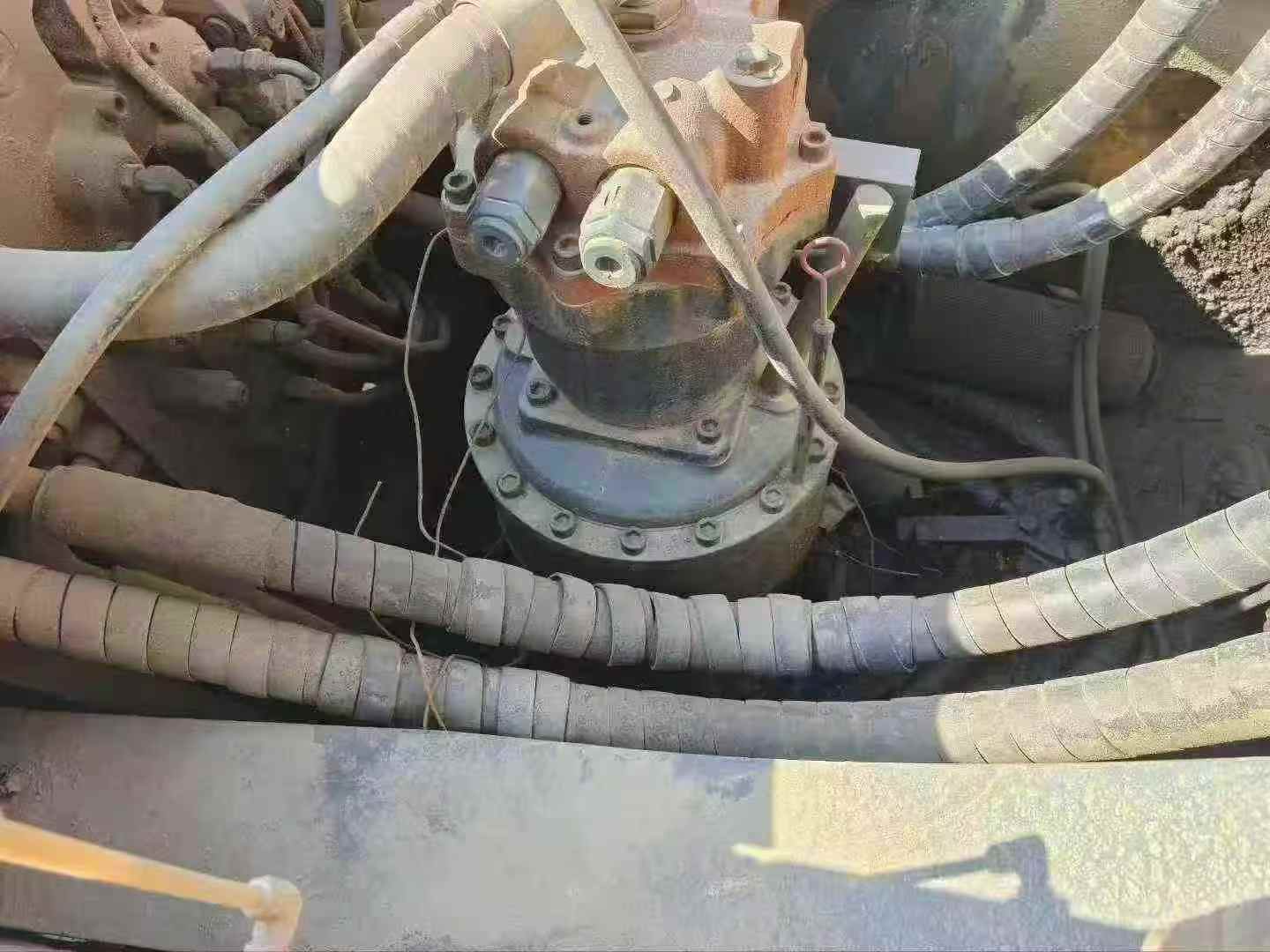

| Rotary hydraulic motor type | Quantitative swash plate axial piston motor |
| Type of walking hydraulic motor | Variable swash plate axial piston motor |
| Maximum flow of main pump (l/min) | 2 x 288 |
| Traveling Hydraulic Circuit (Mpa) | 360 |
| Rotary Hydraulic Circuit (Mpa) | 290 |
| Hydraulic crushing pipeline is standard | no |

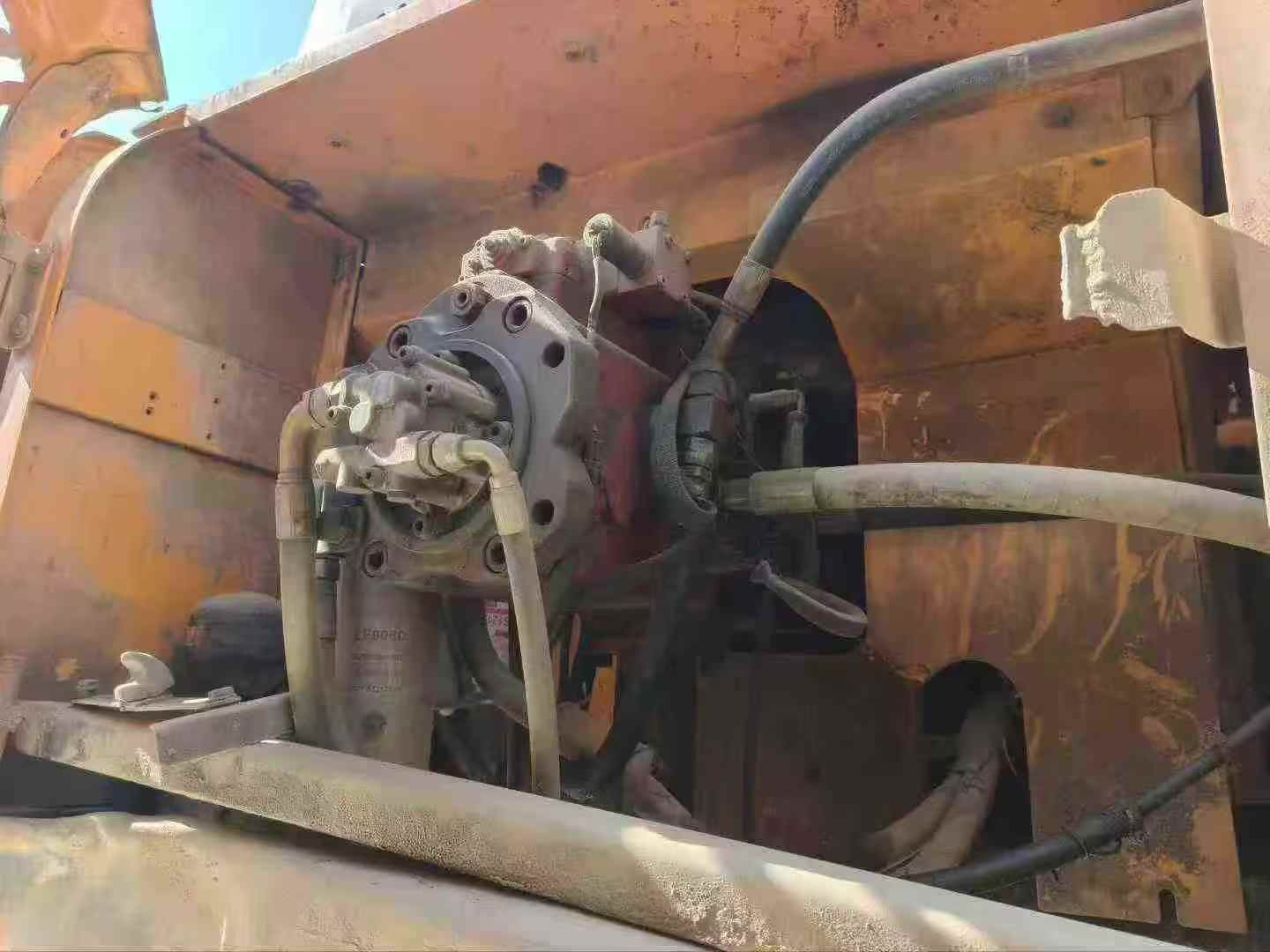

| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Pilot Oil Circuit (MPa) | 40 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1295 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1760 |
| Boom cylinders - Number × diameter × stroke (mm) | 160 x 1500 |
| Fuel Tank (L) | 550 |
| Hydraulic Tank (L) | 210 |
| Engine Oil changes (L) | 33.5 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 415 |
| Total transport length (mm) | 11240 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3570 |
| Full cab height (mm) | 3175 |
| Counterweight ground clearance (mm) | 1290 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4600 |
| Back end turning radius (mm) | 3415 |
| Onboard width (mm) | 2980 |
| Total track length (mm) | 5280 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4340 |
| Maximum digging radius (mm) | 11910 |
| Maximum digging depth (mm) | 7120 |
| Maximum excavation height (mm) | 10420 |
| Maximum unloading height (mm) | 7410 |
| Maximum vertical digging depth (mm) | 6220 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10680 |
| Maximum effective digging depth (mm) | 7360 |
