2018 Hyundai R385LVS

1/9

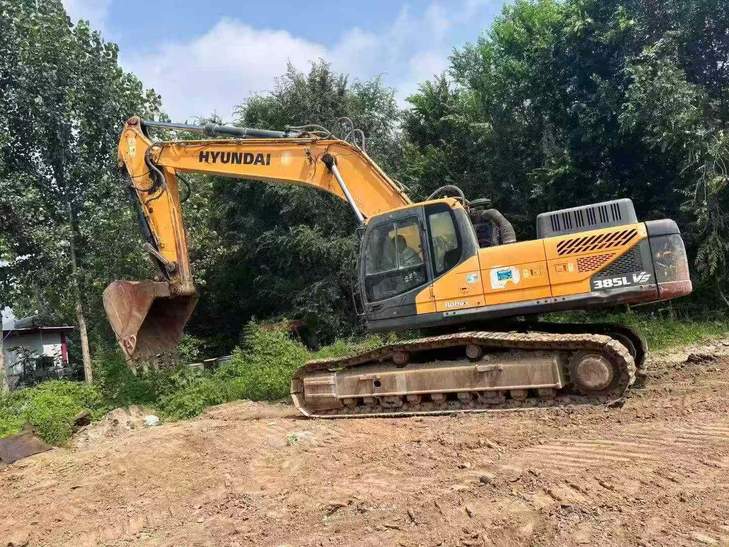

Buy Hyundai R385LVS Used Excavator / 1
Buy Hyundai R385LVS Used Excavator / 2
Buy Hyundai R385LVS Used Excavator / 3
Buy Hyundai R385LVS Used Excavator / 4
Buy Hyundai R385LVS Used Excavator / 5
Buy Hyundai R385LVS Used Excavator / 6
Buy Hyundai R385LVS Used Excavator / 7
Buy Hyundai R385LVS Used Excavator / 8
Buy Hyundai R385LVS Used Excavator / 9

Product Description

This 2018 Hyundai R385LVS excavator represents a solid mid-life investment for contractors seeking proven hydraulic performance. With approximately six years of service, this machine comes from a first-owner fleet in Sichuan, China, indicating consistent operational history and traceable maintenance records.

The R385LVS series delivers reliable digging force and fuel efficiency suited for infrastructure projects, quarry work, and large-scale earthmoving applications. Hyundai's hydraulic system and undercarriage components are engineered for demanding terrain conditions common throughout Asian markets.

  • Year: 2018
  • Model: Hyundai R385LVS
  • Location: Sichuan, China
  • Ownership: First owner, fleet-maintained
  • Availability: Part of 200-unit direct inventory

Direct acquisition from verified first-owner source ensures transparent service history. Suitable for buyers seeking operational heavy equipment with established performance credentials in challenging site conditions.

SpecificationsValue
No.1163917
Tonnage (tons)38
Working weight (kg)38,900
Bucket capacity (m³)1.9
Boom length (mm)6150
Rod length (mm)2800
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHYUNDAI HE8.9
Rated power (kw/rpm)221/1850
Cooling modewater-cooling
Cylinder diameter × stroke (mm)114*145
Number of cylinders (PCS)6
Displacement (L)8.9
Rotation speed (rpm)9.5
Climbing ability (%)70
Travel speed (km/h)5.0 / 3.2
Maximum flow of main pump (l/min)2*315
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1*150*105*1295
Bucket rod cylinders - Number × diameter × stroke (mm)1*170*120*1760
Boom cylinders - Number × diameter × stroke (mm)2*160*110*1500
Pilot pump typeGear pump
Fuel Tank (L)610
Hydraulic Tank (L)210
Engine Oil changes (L)31.7
Coolant (L)50
Hydraulic System (L)415
Total transport length (mm)10830
Total transport width (mm)3340
Total transport height (mm)3680
Counterweight ground clearance (mm)1290
Minimum turning radius of front working device (mm)4220
Back end turning radius (mm)3415
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)51
Maximum digging radius (mm)10520
Maximum digging depth (mm)6750
Maximum excavation height (mm)10150
Maximum unloading height (mm)7030
Maximum vertical digging depth (mm)4480
Maximum excavation radius of stop surface (mm)10290
Maximum effective digging depth (mm)6580
see more

Overview

No.1163917

Brand Name:

Hyundai

Model Number:

R385LVS

Year:

2018

Location:

Sichuan China

Pub Date:
