2020 Hyundai R385LVS

1/9
Buy Hyundai R385LVS Used Excavator / 1

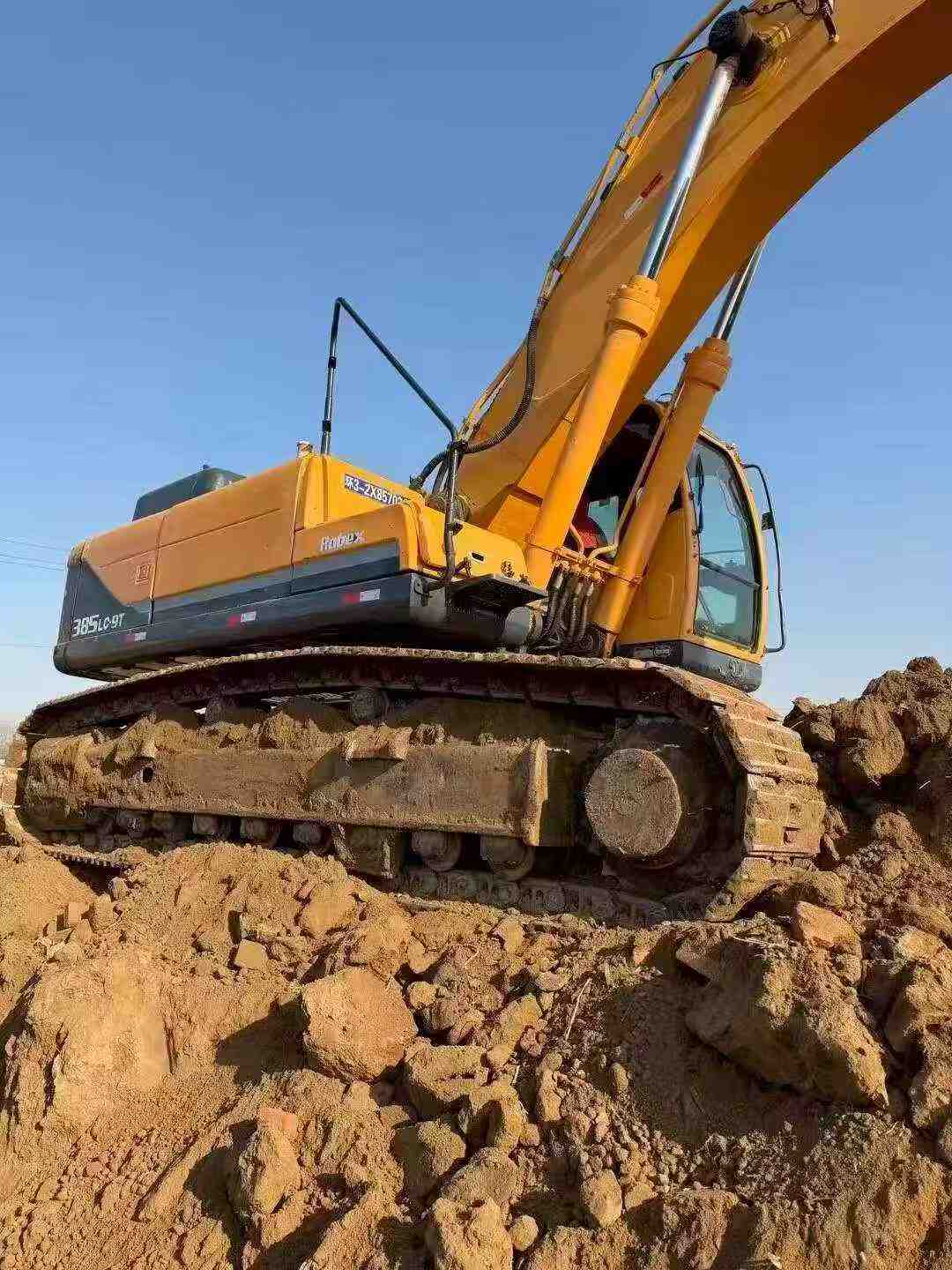

Buy Hyundai R385LVS Used Excavator / 2

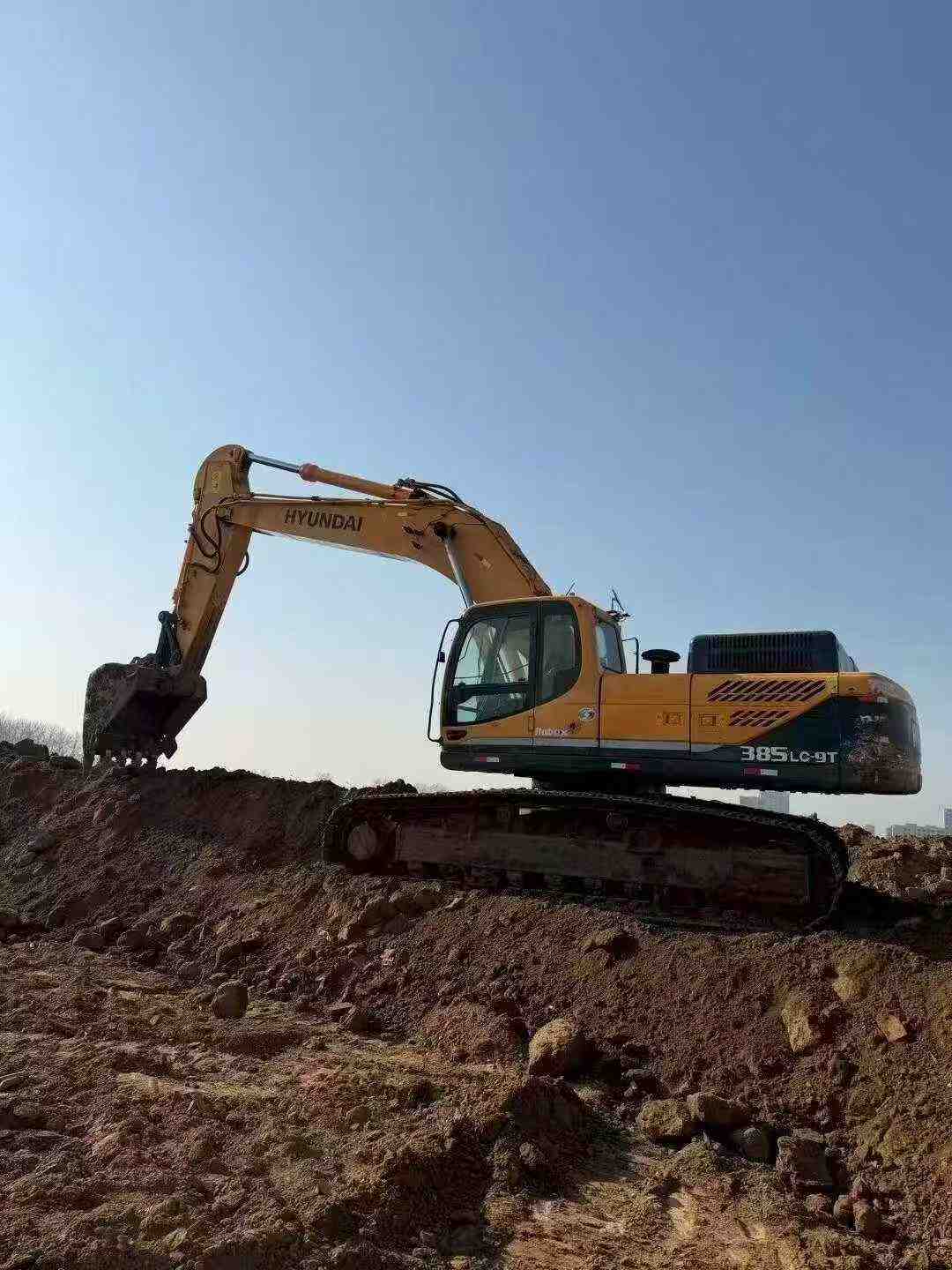

Buy Hyundai R385LVS Used Excavator / 3

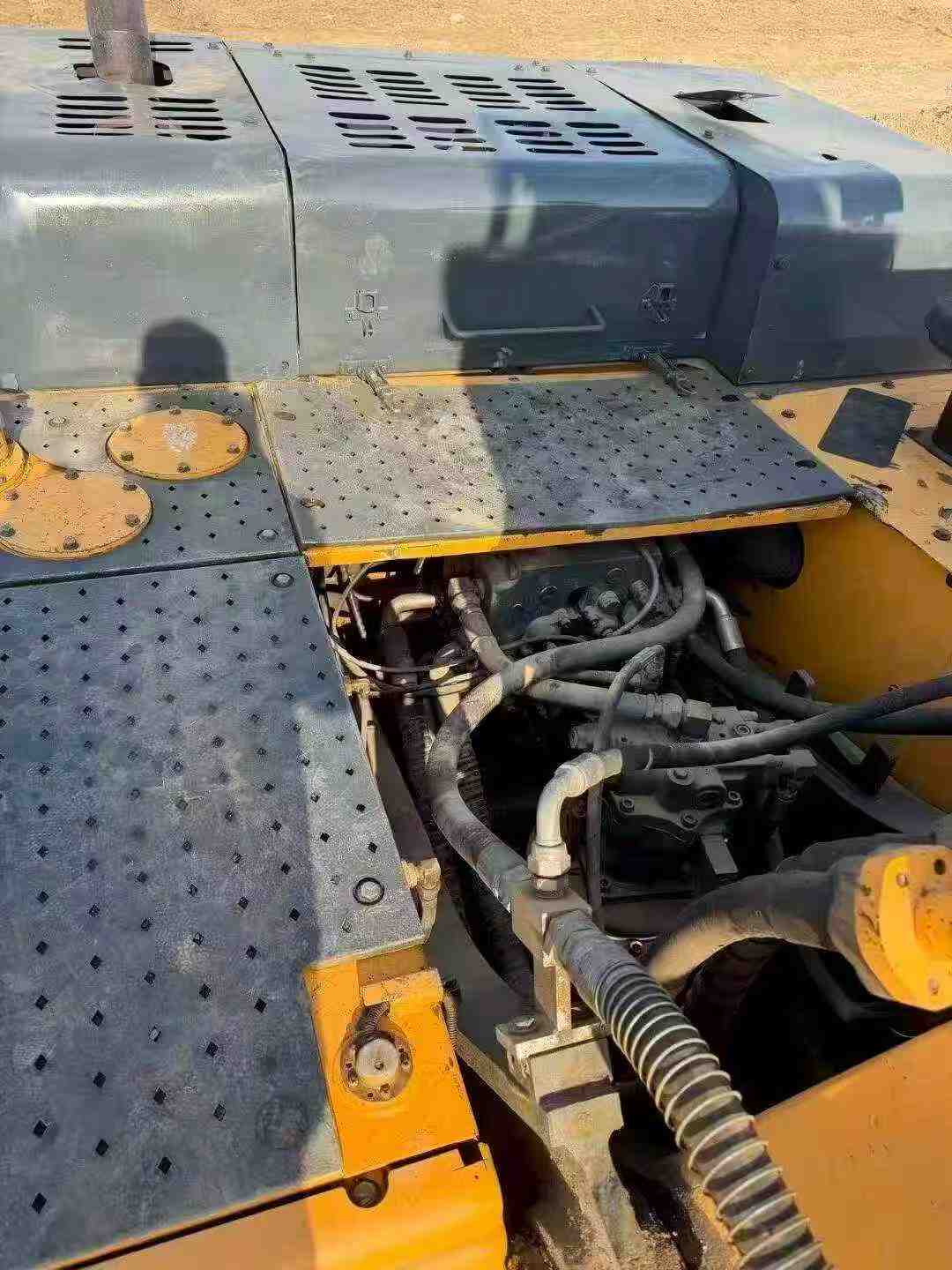

Buy Hyundai R385LVS Used Excavator / 4

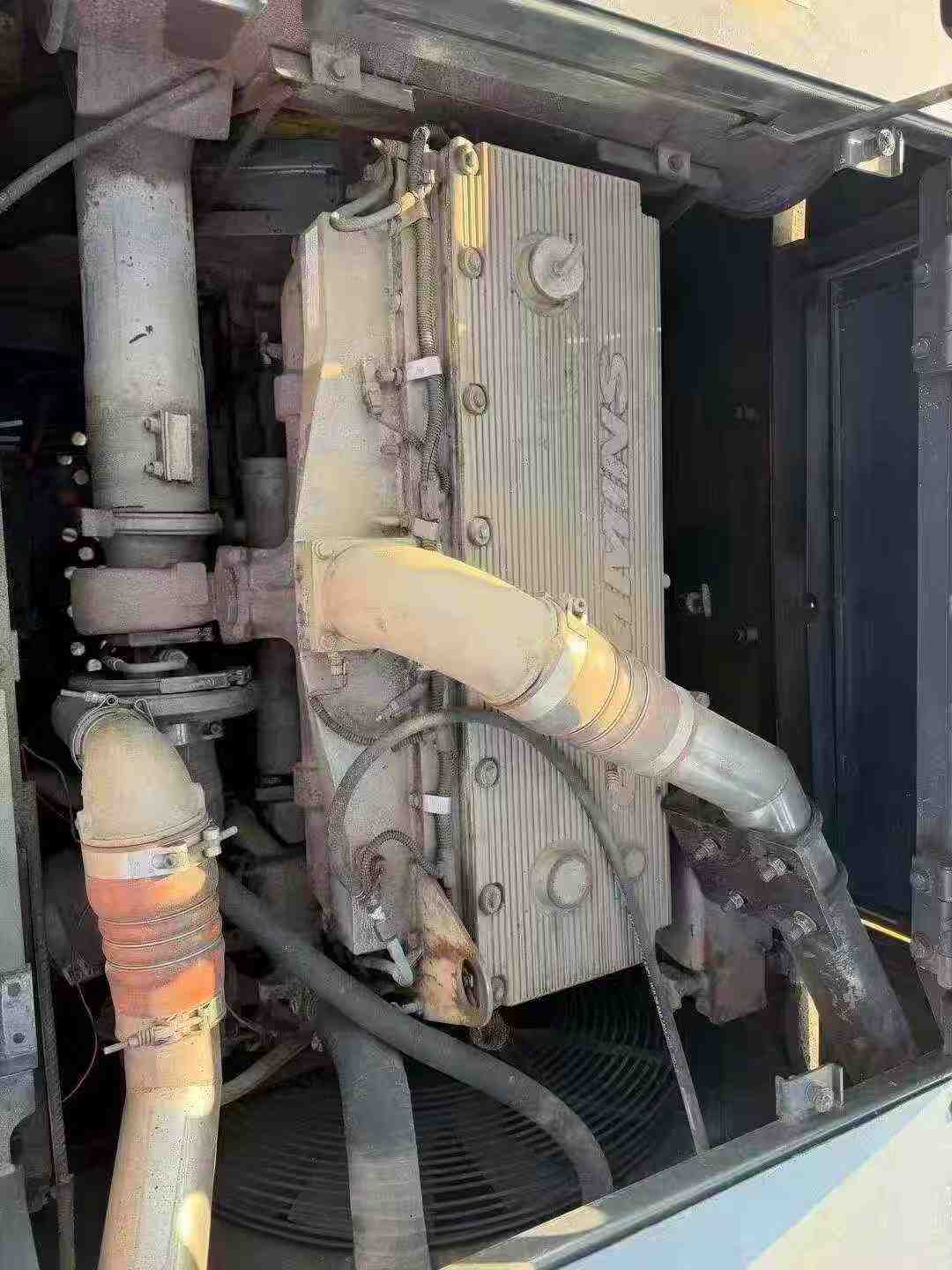

Buy Hyundai R385LVS Used Excavator / 5

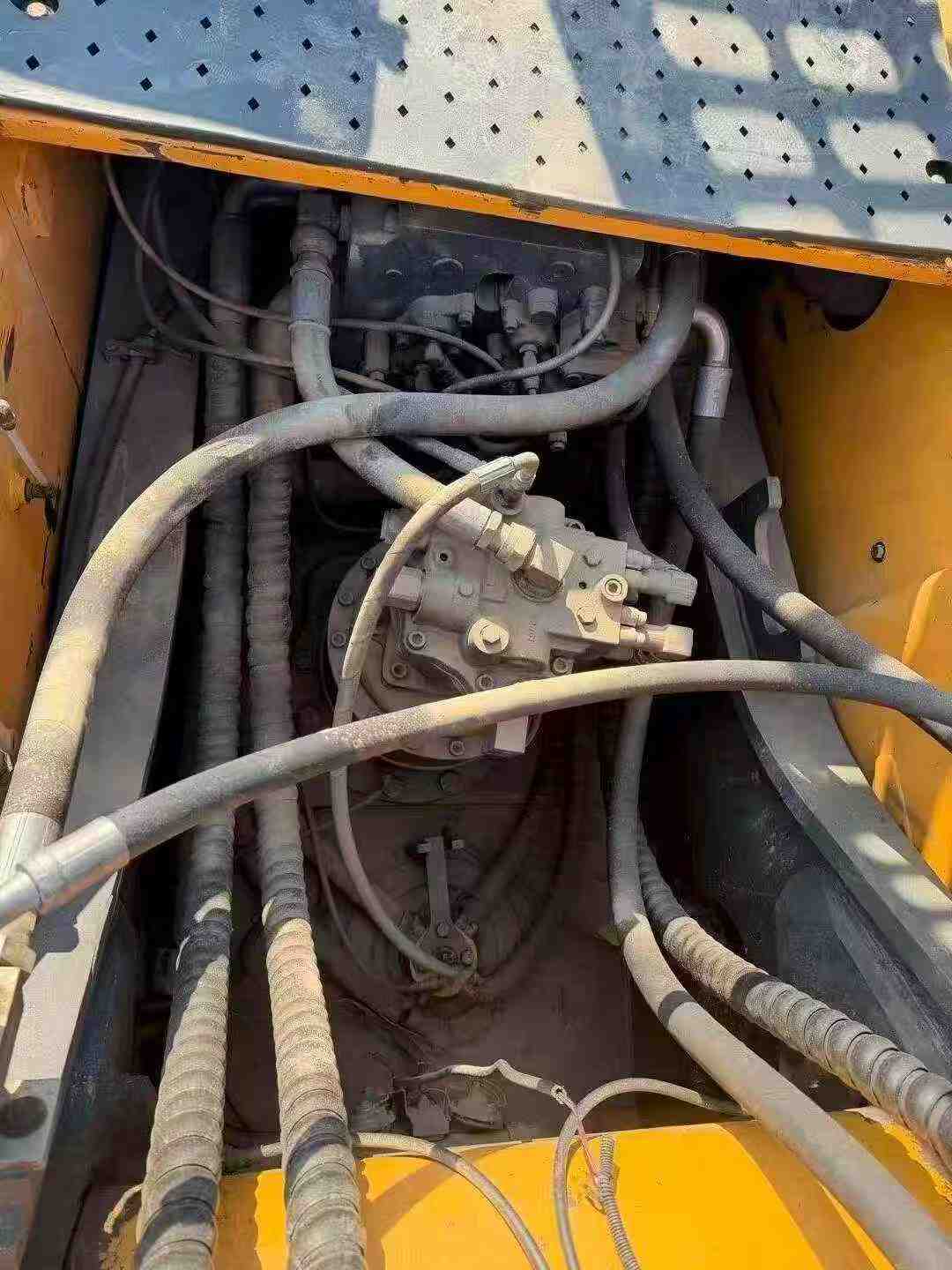

Buy Hyundai R385LVS Used Excavator / 6

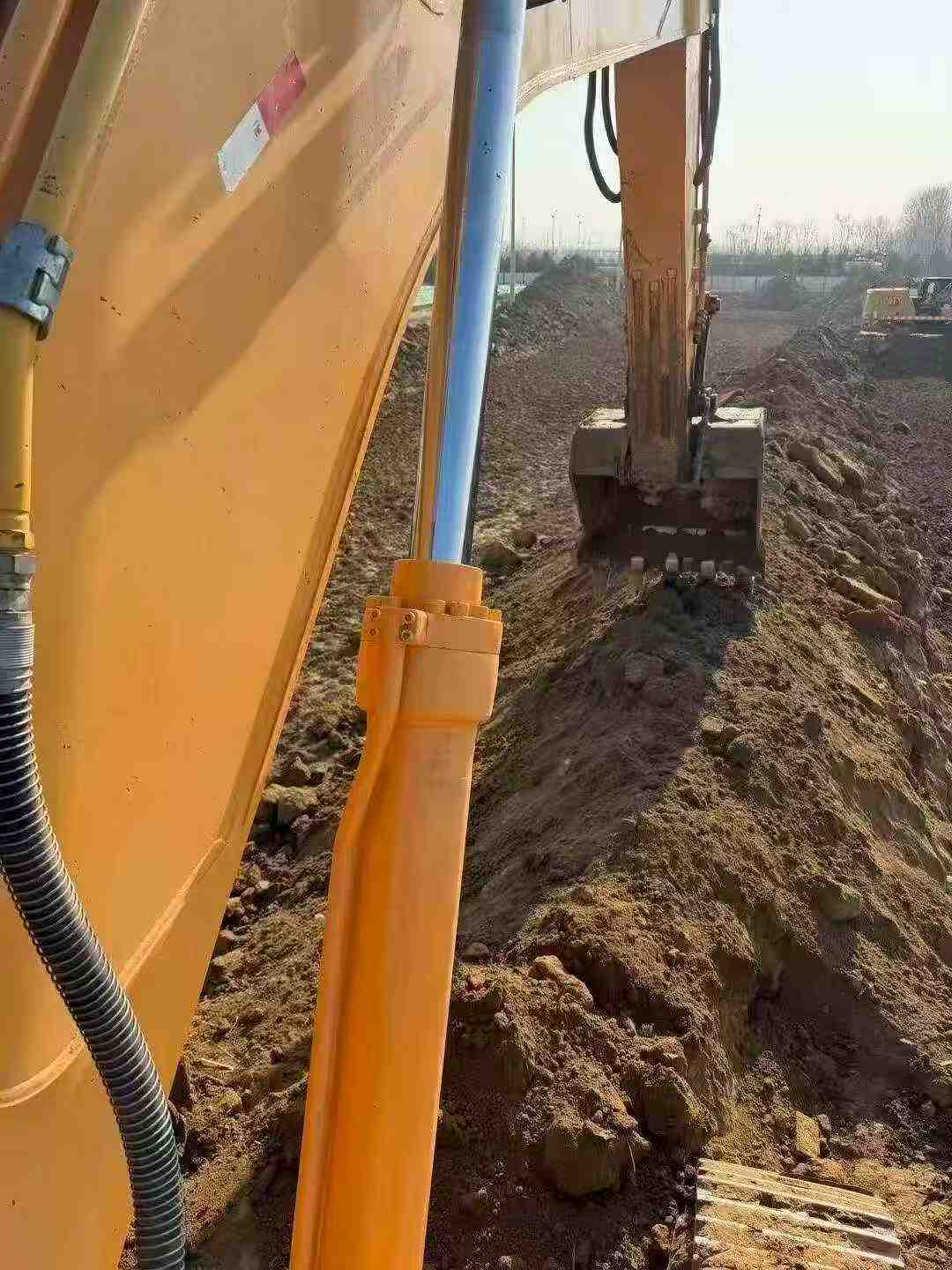

Buy Hyundai R385LVS Used Excavator / 7
Buy Hyundai R385LVS Used Excavator / 8

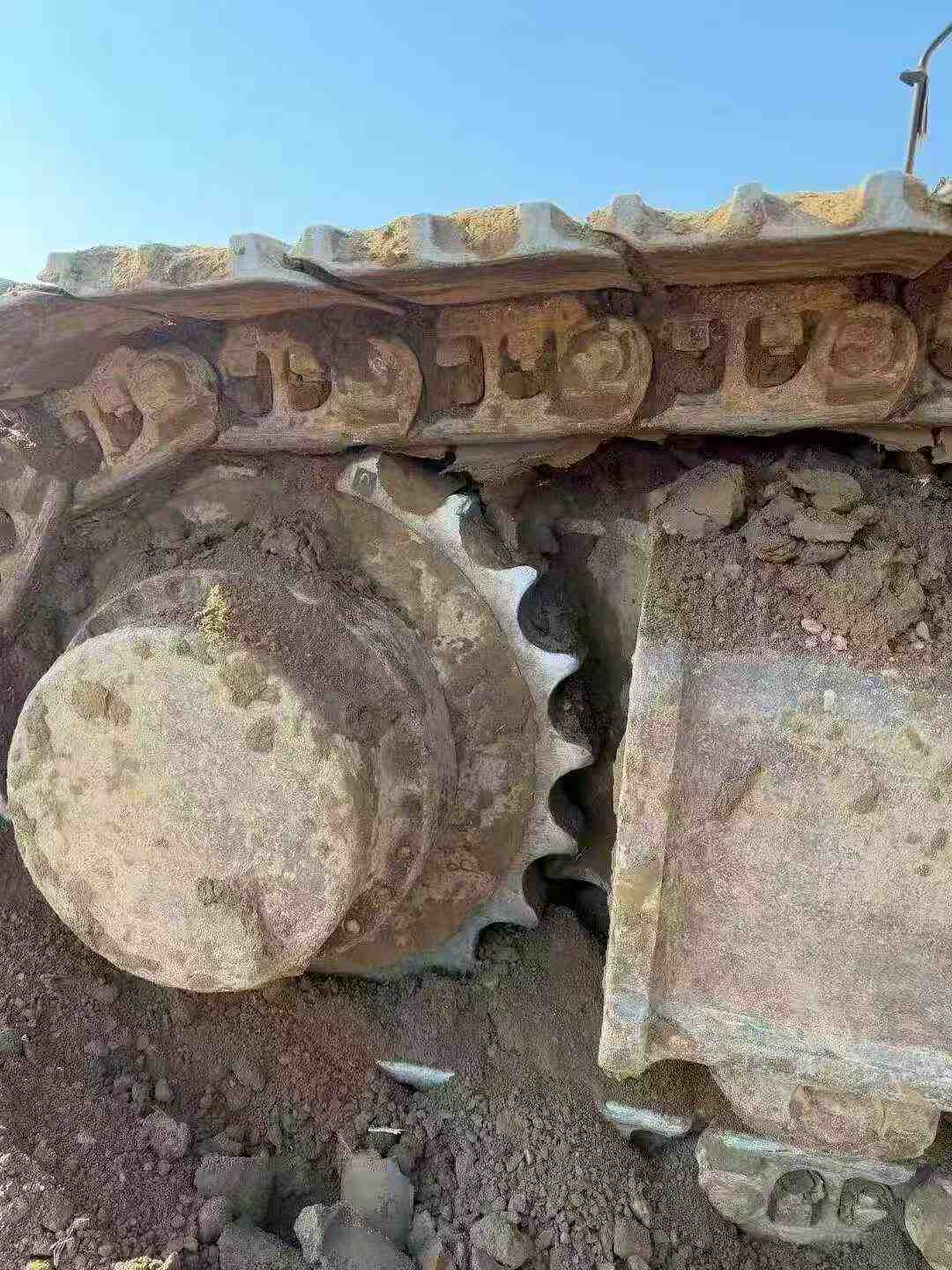

Buy Hyundai R385LVS Used Excavator / 9

Product Description

This 2020 Hyundai R385LVS excavator from Hebei, China demonstrates exceptional condition with performance comparable to a near-new machine. The unit features no major component disassembly and operates leak-free, indicating careful ownership and proper maintenance throughout its service life.

Key attributes include:

  • Original factory bucket in excellent working order

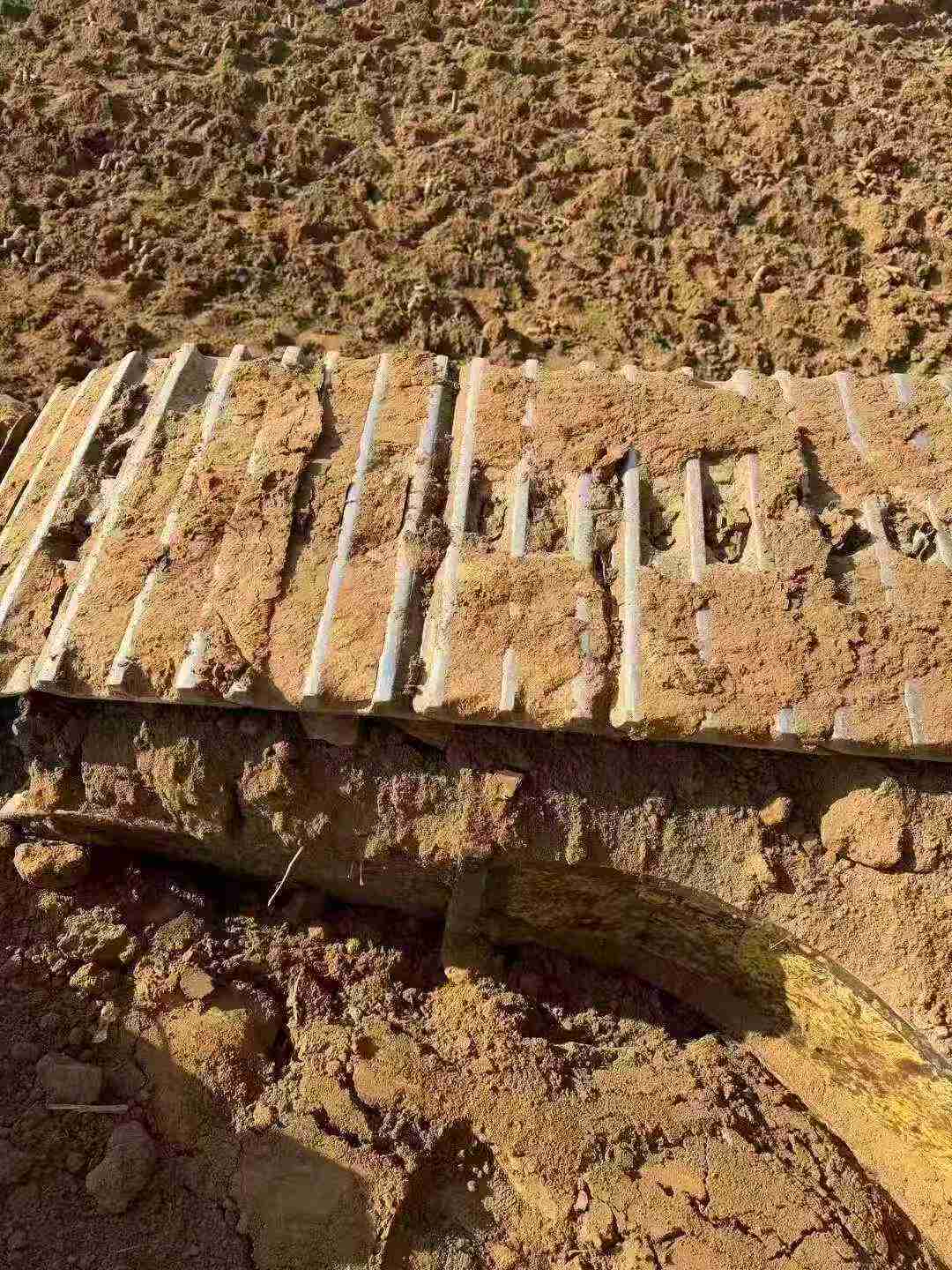

  • Track pads at approximately 90% remaining life
  • Undercarriage free from impact damage or excessive wear
  • Proven earthmoving configuration suitable for excavation and material handling
  • Available for on-site operational demonstration

The R385LVS offers reliable hydraulic performance and operational efficiency for contractors seeking dependable equipment. This unit represents a cost-effective solution for earthwork operations requiring proven machinery with documented care and minimal operational wear.

SpecificationsValue
No.1168998
Tonnage (tons)38
Working weight (kg)38,900
Bucket capacity (m³)1.9
Boom length (mm)6150
Rod length (mm)2800
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHYUNDAI HE8.9
Rated power (kw/rpm)221/1850
Cooling modewater-cooling
Cylinder diameter × stroke (mm)114*145
Number of cylinders (PCS)6
Displacement (L)8.9
Rotation speed (rpm)9.5
Climbing ability (%)70
Travel speed (km/h)5.0 / 3.2
Maximum flow of main pump (l/min)2*315
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1*150*105*1295
Bucket rod cylinders - Number × diameter × stroke (mm)1*170*120*1760
Boom cylinders - Number × diameter × stroke (mm)2*160*110*1500
Pilot pump typeGear pump
Fuel Tank (L)610
Hydraulic Tank (L)210
Engine Oil changes (L)31.7
Coolant (L)50
Hydraulic System (L)415
Total transport length (mm)10830
Total transport width (mm)3340
Total transport height (mm)3680
Counterweight ground clearance (mm)1290
Minimum turning radius of front working device (mm)4220
Back end turning radius (mm)3415
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)51
Maximum digging radius (mm)10520
Maximum digging depth (mm)6750
Maximum excavation height (mm)10150
Maximum unloading height (mm)7030
Maximum vertical digging depth (mm)4480
Maximum excavation radius of stop surface (mm)10290
Maximum effective digging depth (mm)6580
see more

Overview

No.1168998

Brand Name:

Hyundai

Model Number:

R385LVS

Year:

2020

Location:

Hebei China

Pub Date:
