Product Description

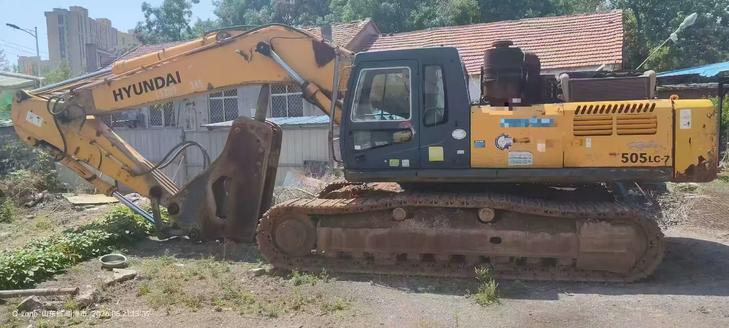

Discover the 2020 Hyundai R505LC-7, a robust and reliable excavator, now available in Shandong, China. This used machine is equipped with a hammer but lacks a bucket, making it ideal for specific demolition and construction tasks. Priced competitively at around 100,000 to 200,000 CNY, this unit is ready for immediate sale, offering a cost-effective solution for your project needs. The R505LC-7 model is known for its durability and efficiency, ensuring that you receive a machine capable of handling demanding work environments. Ideal for businesses looking to enhance their fleet with a powerful and versatile piece of equipment.
- Year: 2020
- Brand: Hyundai
- Model: R505LC-7
- Location: Shandong, China
- Equipped with a hammer, no bucket included
- Priced between 100,000 to 200,000 CNY
| Specifications | Value |
|---|---|
| No. | 1111042 |
| Tonnage (tons) | 50 |
| Working weight (kg) | 48800 |
| Bucket capacity (m³) | 2.2 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 3380 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSM11-C |
| Rated power (kw/rpm) | 263/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125 x 147 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10800 |
| Ground specific pressure (Kpa) | 84 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 292.2 |
| Rod digging force (kN) | 196.1 |
| Travel speed (km/h) | 3.3-5.2 |
| Maximum flow of main pump (l/min) | 2 x 380 |
| Traveling Hydraulic Circuit (Mpa) | 345 |
| Rotary Hydraulic Circuit (Mpa) | 285 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 170 * 115 * 1370 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 190 * 130 * 1820 |
| Boom cylinders - Number × diameter × stroke (mm) | 170 * 115 * 1570 |
| Fuel Tank (L) | 610 |
| Hydraulic Tank (L) | 250 |
| Engine Oil changes (L) | 37.9 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 380 |
| Total transport length (mm) | 11980 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3670 |
| Full cab height (mm) | 3390 |
| Counterweight ground clearance (mm) | 1500 |
| Minimum ground clearance (mm) | 770 |
| Back end turning radius (mm) | 3720 |
| Total track length (mm) | 5460 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4470 |
| Maximum digging radius (mm) | 12100 |
| Maximum digging depth (mm) | 7610 |
| Maximum excavation height (mm) | 11120 |
| Maximum unloading height (mm) | 7750 |
| Maximum vertical digging depth (mm) | 6380 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11870 |
| Maximum effective digging depth (mm) | 7460 |
