Product Description

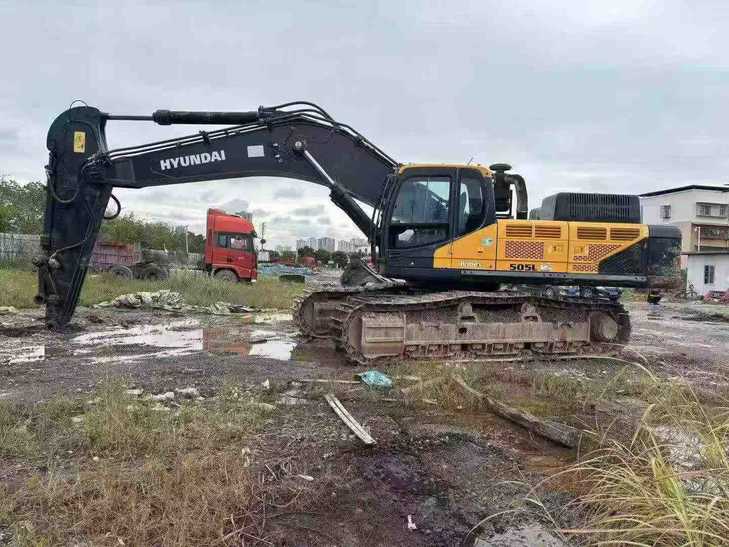

This 2020 Hyundai R505LVS excavator represents a solid addition to any heavy construction or mining fleet. Manufactured at the end of 2020, this machine comes equipped with the proven R505LVS platform known for reliability in demanding applications. Currently located in Sichuan, China, this unit is available without bucket attachment, allowing operators to configure it according to specific project requirements.
Key features include:
- 2020 model year with low operational hours
- Hyundai R505LVS specification designed for large-scale earthmoving
- Hydraulic system engineered for consistent performance
- Cab design focused on operator comfort during extended shifts
- Available for immediate inspection in Sichuan, China
This excavator suits contractors seeking dependable heavy equipment for infrastructure projects, quarrying operations, or large-scale site development. Contact us to arrange technical evaluation and discuss logistics for your location.
| Specifications | Value |
|---|---|
| No. | 1167246 |
| Tonnage (tons) | 50 |
| Working weight (kg) | 50200 |
| Bucket capacity (m³) | 2.8 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSM11 |
| Rated power (kw/rpm) | 299/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125*147.1 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.8 |
| Working form | 4-stroke, water-cooled, in-line turboturbo-charged air-to-air cooled engine |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.1/3.25 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 405 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 170 x ø 115 x 1370 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 190 x ø 130 x 1820 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 170 x ø 115 x 1570 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 295 |
| Engine Oil changes (L) | 38 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 486 |
| Total transport length (mm) | 11710 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3810 |
| Counterweight ground clearance (mm) | 1275 |
| Back end turning radius (mm) | 3780 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 53 |
| Maximum digging radius (mm) | 11050 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 10280 |
| Maximum unloading height (mm) | 6990 |
| Maximum vertical digging depth (mm) | 4570 |
| Maximum excavation radius of stop surface (mm) | 10830 |
| Maximum effective digging depth (mm) | 6740 |
