Product Description
This 2021 Hyundai R505LVS excavator represents a robust solution for demanding excavation and earthmoving operations. Manufactured by Hyundai Construction Equipment, this crawler excavator combines the power and reliability expected from the R505 series with professional-grade performance capabilities. Currently located in Sichuan, China, this machine comes equipped with a hydraulic breaker attachment, expanding its versatility for demolition, rock breaking, and heavy construction applications.
- Year of Manufacture: 2021
- Model: Hyundai R505LVS
- Operating Weight Class: Approximately 50 tons
- Configuration: Crawler excavator with hydraulic breaker
- Current Location: Sichuan Province, China
- Condition: Used, operational
Ideal for contractors and industrial operators seeking proven heavy excavation capacity with attachment flexibility. Contact us for detailed specifications, inspection arrangements, and international shipping solutions.
| Specifications | Value |
|---|---|
| No. | 1168721 |
| Tonnage (tons) | 50 |
| Working weight (kg) | 50200 |
| Bucket capacity (m³) | 2.8 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

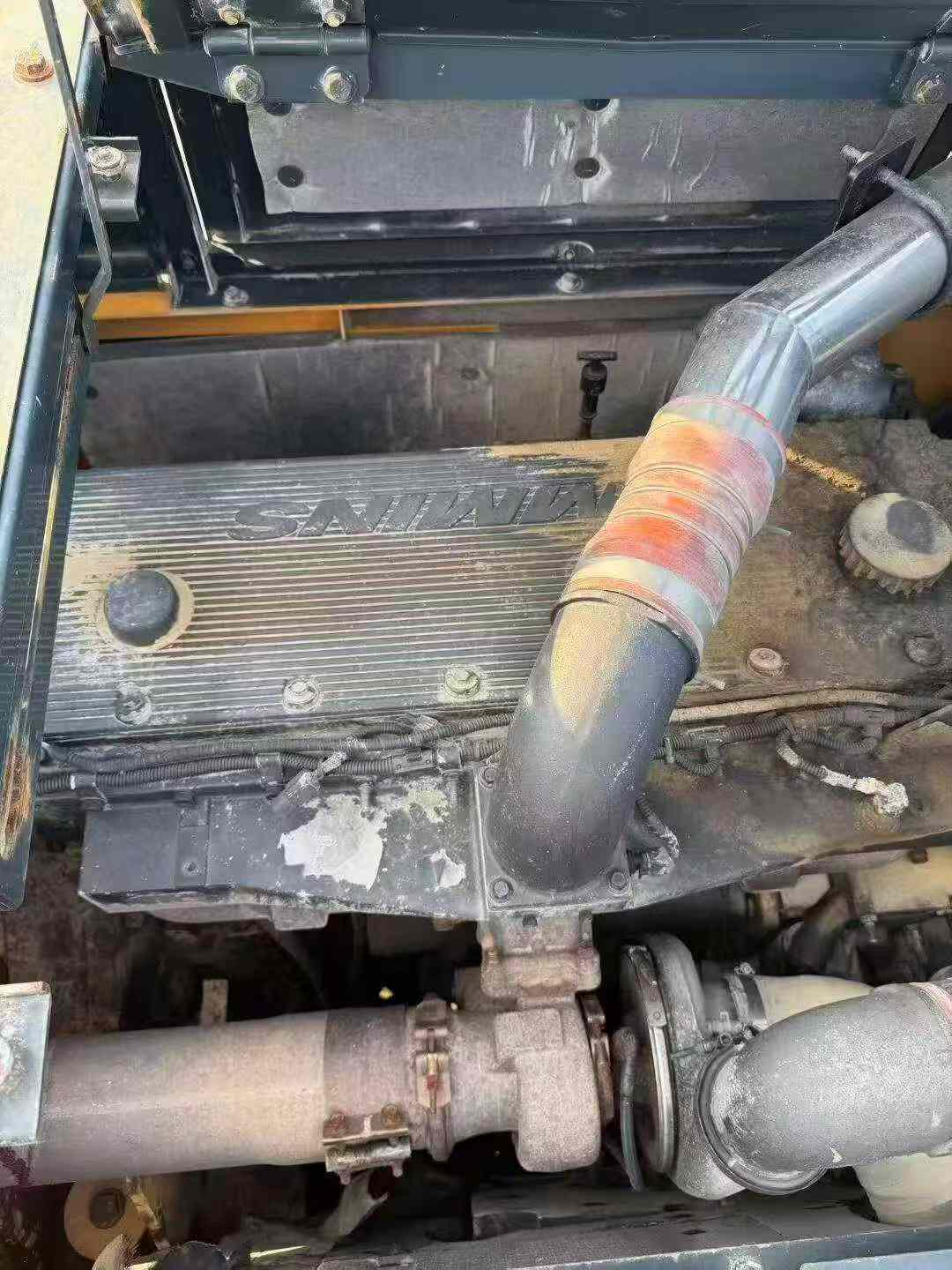

| Engine type | Cummins QSM11 |
| Rated power (kw/rpm) | 299/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125*147.1 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.8 |
| Working form | 4-stroke, water-cooled, in-line turboturbo-charged air-to-air cooled engine |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.1/3.25 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 405 |

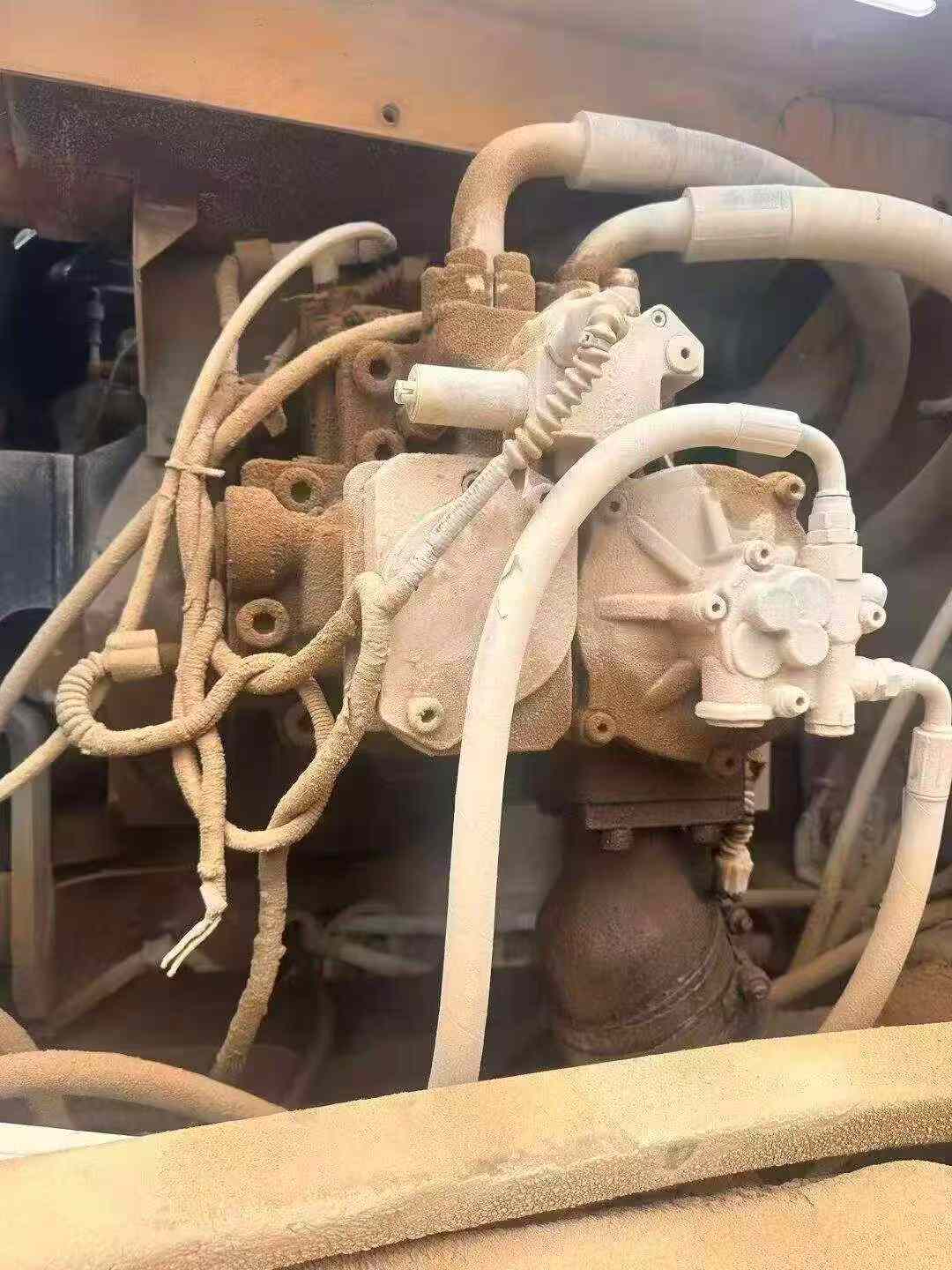

| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 170 x ø 115 x 1370 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 190 x ø 130 x 1820 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 170 x ø 115 x 1570 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 295 |
| Engine Oil changes (L) | 38 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 486 |
| Total transport length (mm) | 11710 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3810 |
| Counterweight ground clearance (mm) | 1275 |
| Back end turning radius (mm) | 3780 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 53 |
| Maximum digging radius (mm) | 11050 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 10280 |
| Maximum unloading height (mm) | 6990 |
| Maximum vertical digging depth (mm) | 4570 |
| Maximum excavation radius of stop surface (mm) | 10830 |
| Maximum effective digging depth (mm) | 6740 |
