Product Description

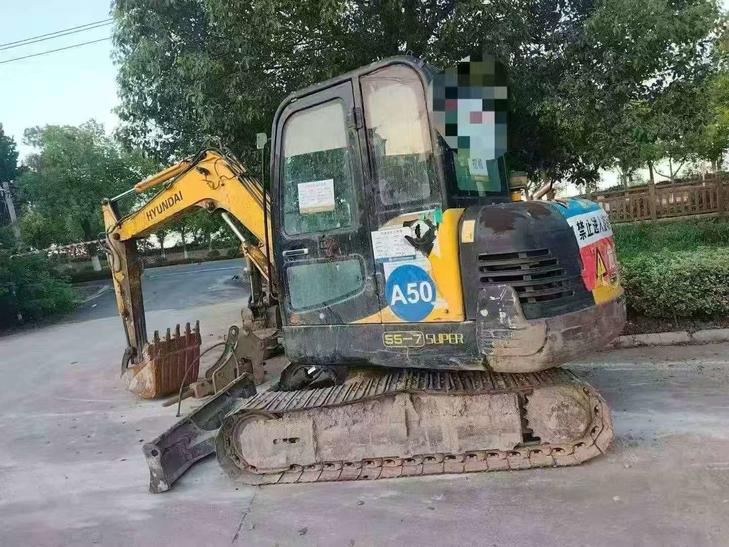

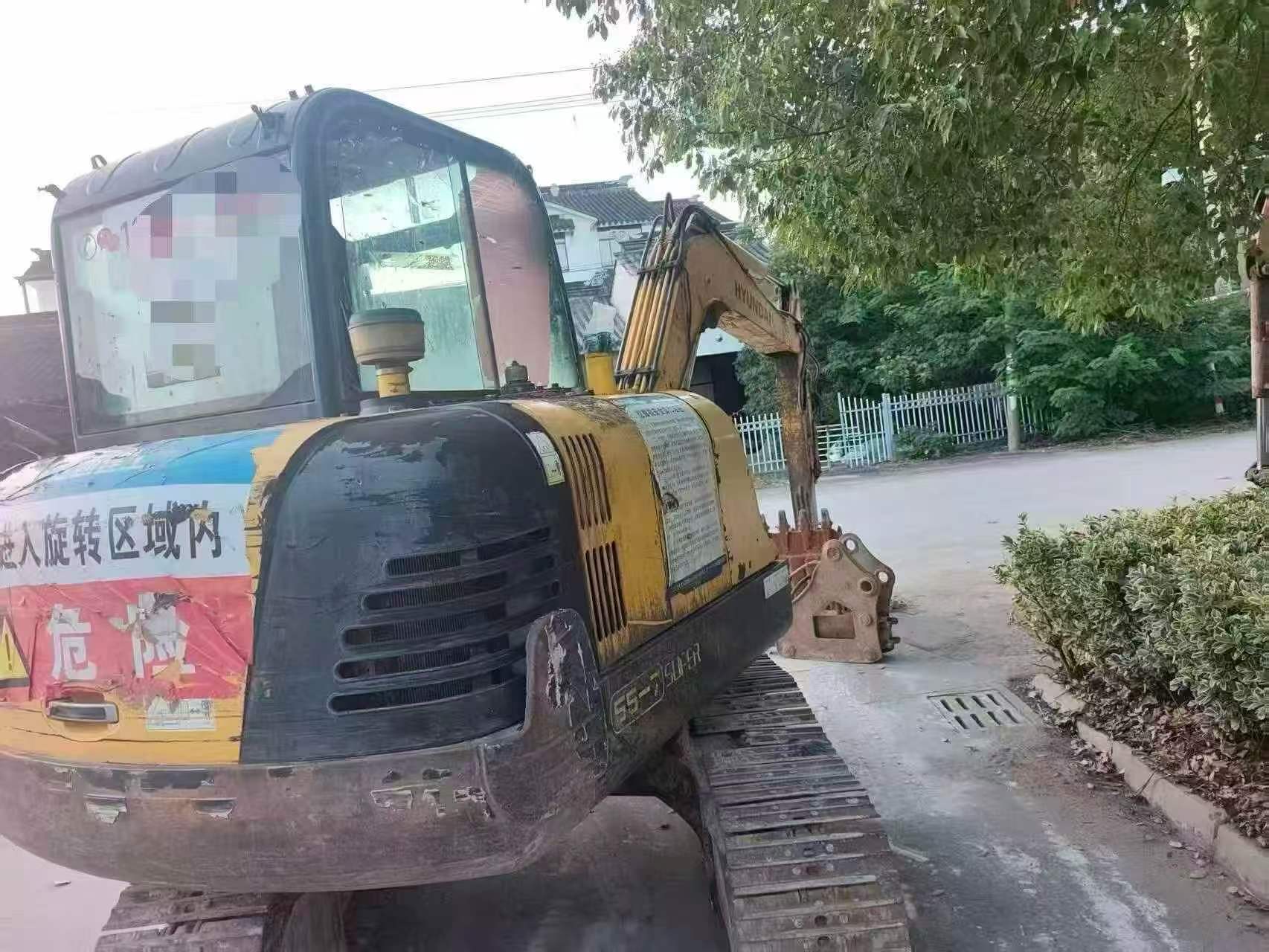

Discover the reliability and efficiency of the 2014 Hyundai R55-7, a robust mini excavator available for purchase in Guizhou, China. This machine has been a trusted workhorse in various construction and excavation projects, boasting over 20,000 hours of operation. Priced at ¥386, it represents a cost-effective solution for businesses looking to enhance their fleet without compromising on quality or performance. The Hyundai R55-7 is known for its durability and ease of maintenance, making it an excellent choice for demanding job sites.
- Year: 2014
- Brand: Hyundai
- Model: R55-7
- Location: Guizhou, China
- Operational Hours: Over 20,000
- Price: ¥386
| Specifications | Value |
|---|---|
| No. | 1130019 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5500 |
| Bucket capacity (m³) | 0.06-0.18 |
| Boom length (mm) | 2900 |
| Rod length (mm) | 1600 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanma 4TNV94L |
| Rated power (kw/rpm) | 40/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 36.3 |
| Rod digging force (kN) | 26.7 |
| Travel speed (km/h) | 2.2-4.0 |
| Maximum flow of main pump (l/min) | 2 x 55 |
| Traveling Hydraulic Circuit (Mpa) | 220 |
| Rotary Hydraulic Circuit (Mpa) | 180 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Pilot Oil Circuit (MPa) | 35 |
| Fuel Tank (L) | 125 |
| Hydraulic Tank (L) | 80 |
| Engine Oil changes (L) | 92 |
| Total transport length (mm) | 6004 |
| Total transport width (mm) | 1865 |
| Total transport height (mm) | 2548 |
| Full cab height (mm) | 2548 |
| Counterweight ground clearance (mm) | 695 |
| Minimum ground clearance (mm) | 325 |
| Back end turning radius (mm) | 1770 |
| Total track length (mm) | 2525 |
| Track gauge (mm) | 1445 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1845 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6110 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5652 |
| Maximum unloading height (mm) | 4010 |
| Maximum vertical digging depth (mm) | 3050 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 5970 |
