Product Description

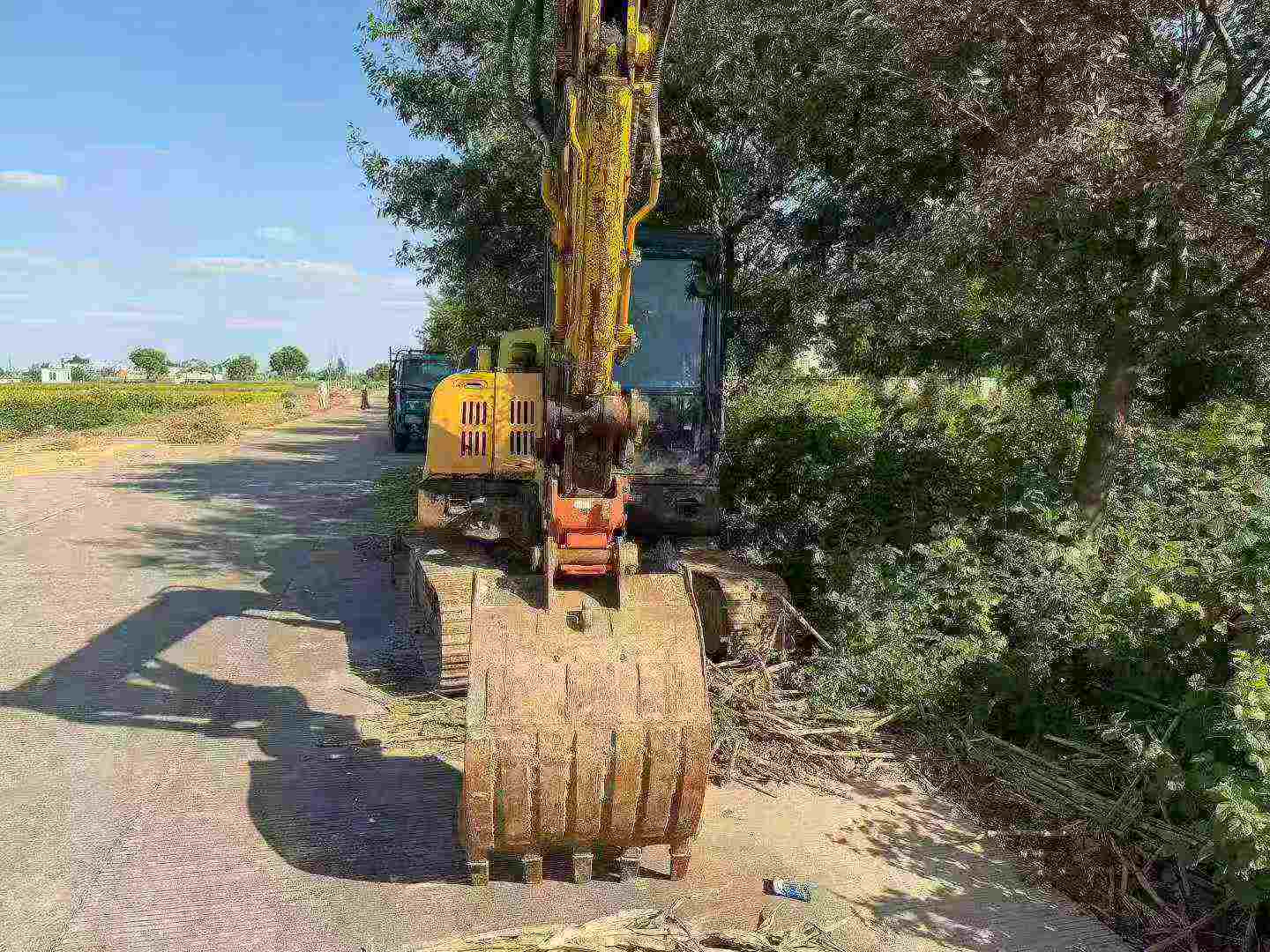

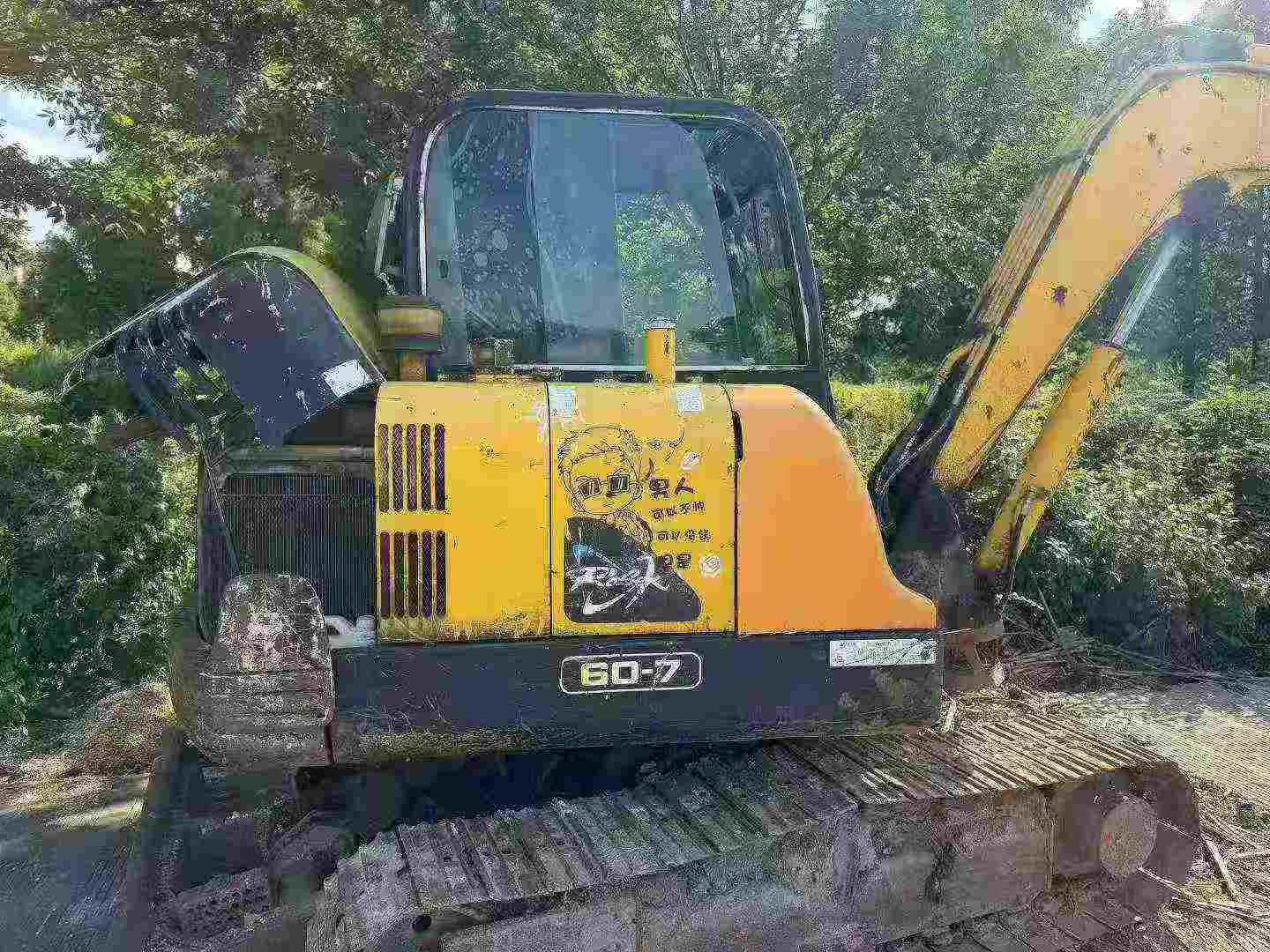

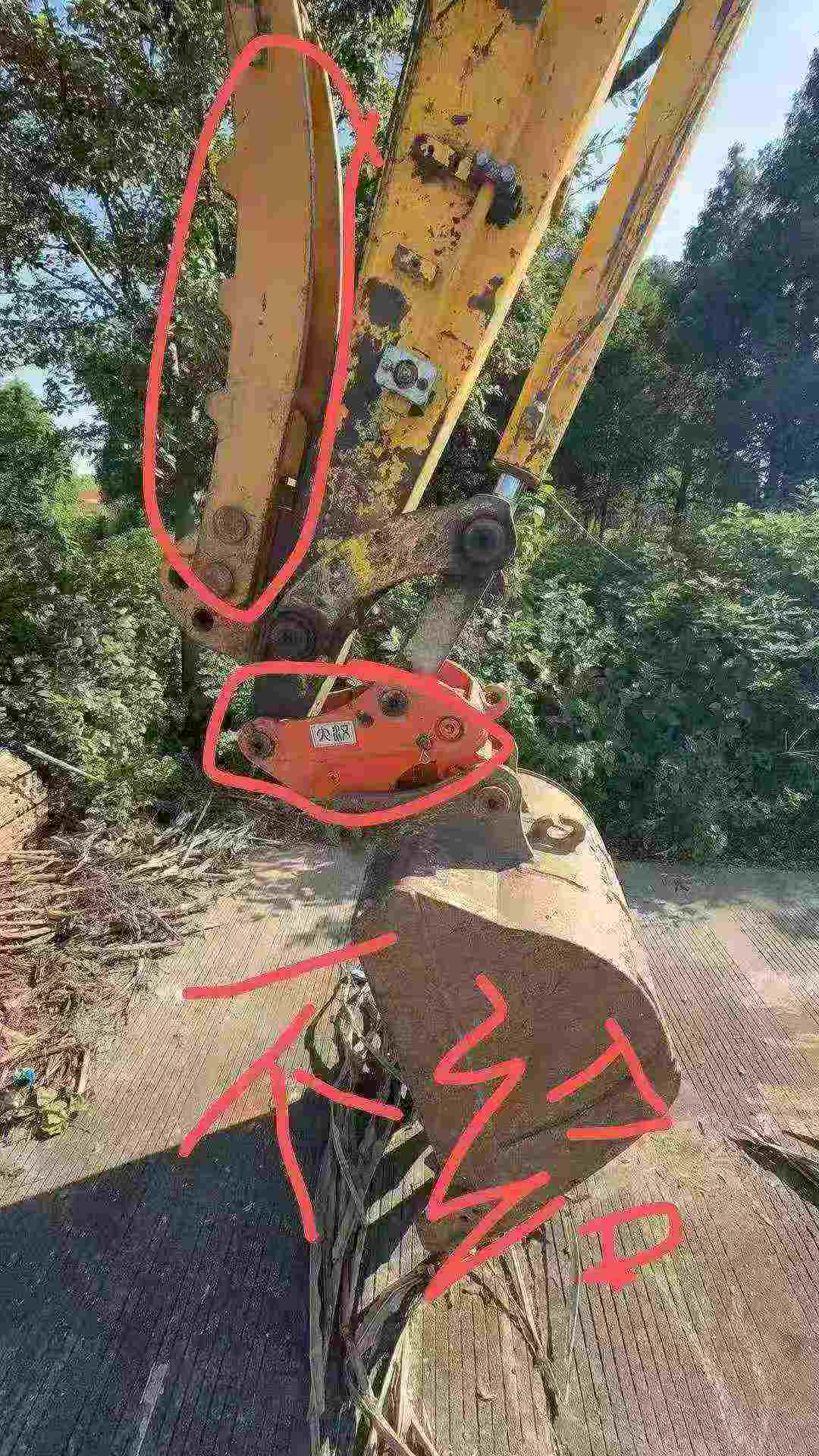

Discover a reliable and cost-effective solution with this 2010 Hyundai R60-7 excavator, currently located in Jiangsu, China. Known for its robust performance and durability, this machine has been well-maintained and is in excellent working condition. The chassis is in particularly good shape, ensuring stability and reliability on the job site. This unit is offered without additional attachments, making it an economical choice for businesses looking to enhance their fleet without unnecessary extras. Ideal for construction, landscaping, and utility work, the Hyundai R60-7 is ready to meet your project needs.
- Year: 2010
- Brand: Hyundai
- Model: R60-7
- Location: Jiangsu, China

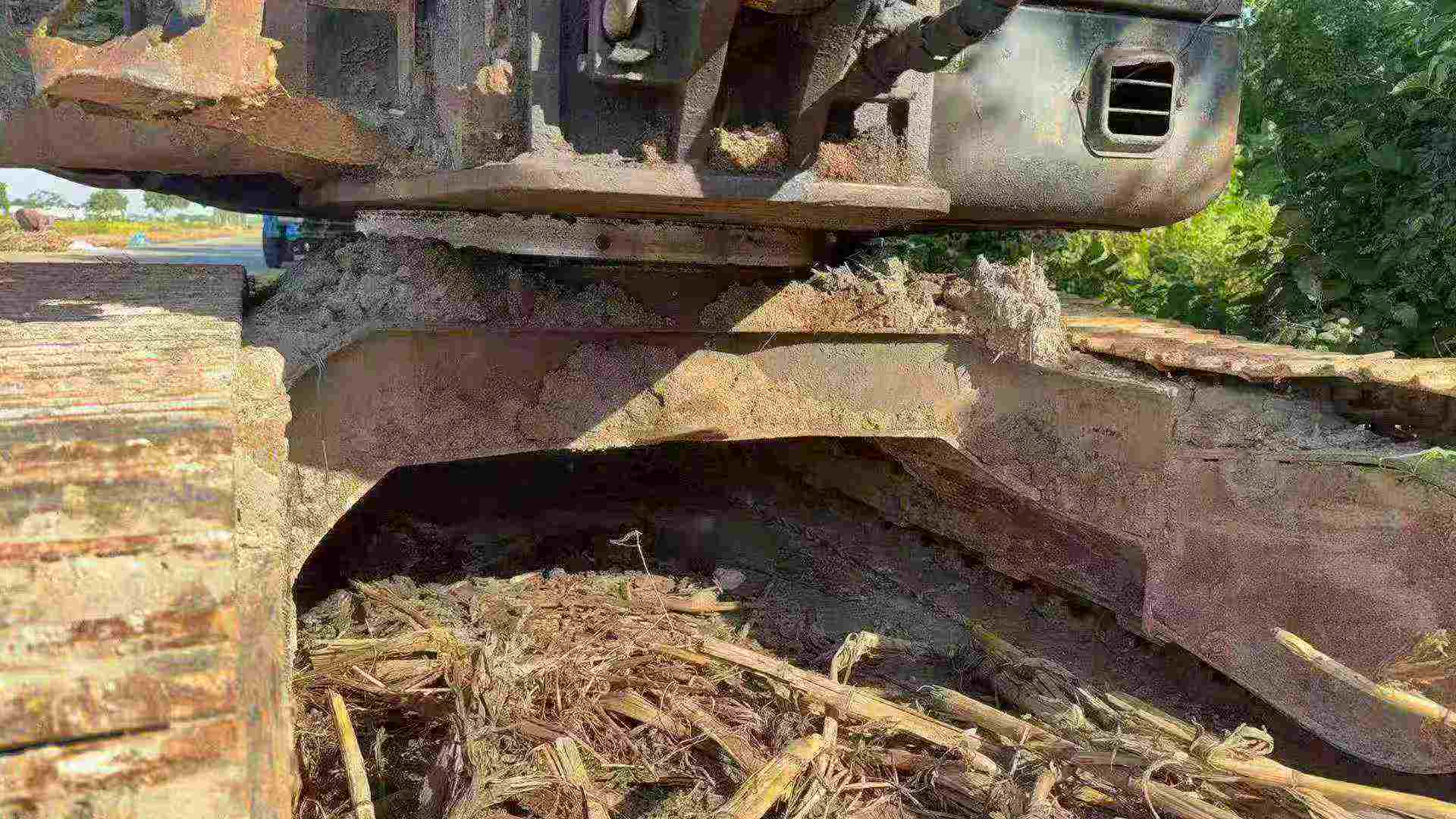

- Condition: Well-maintained, with a strong chassis
- Inclusions: Machine only, no attachments
| Specifications | Value |
|---|---|
| No. | 1174554 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.06-0.21 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

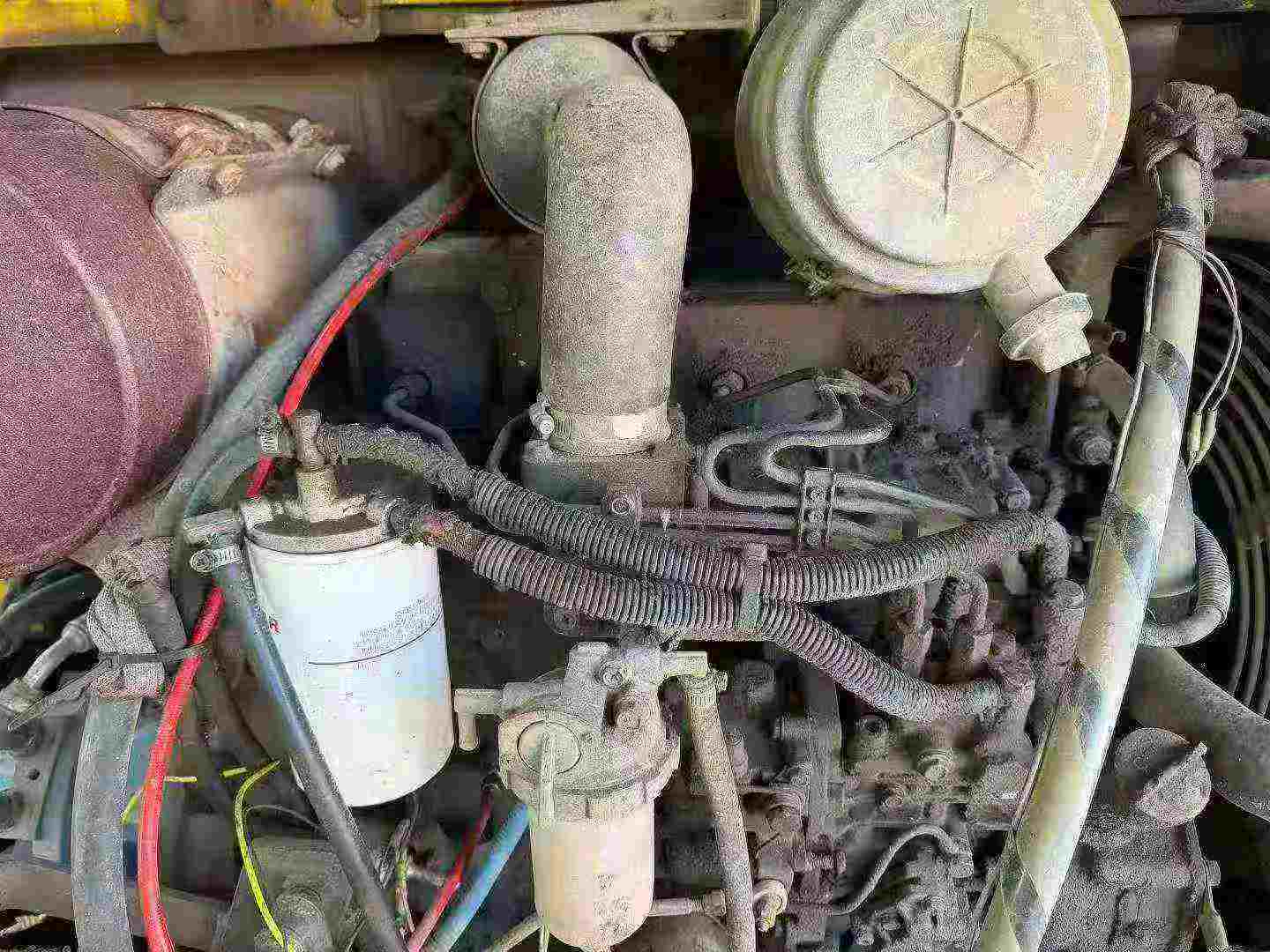

| Engine type | Yanmar Yanma 4TNV94L |
| Rated power (kw/rpm) | 40/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 37.7 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.2-4.0 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 70 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1520 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1920 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4050 |
| Maximum vertical digging depth (mm) | 3200 |
| Dodging plate width × height (mm) | 1920 x 350 |
| Maximum excavation radius of stop surface (mm) | 6010 |
| Maximum effective digging depth (mm) | 3420 |
