Product Description

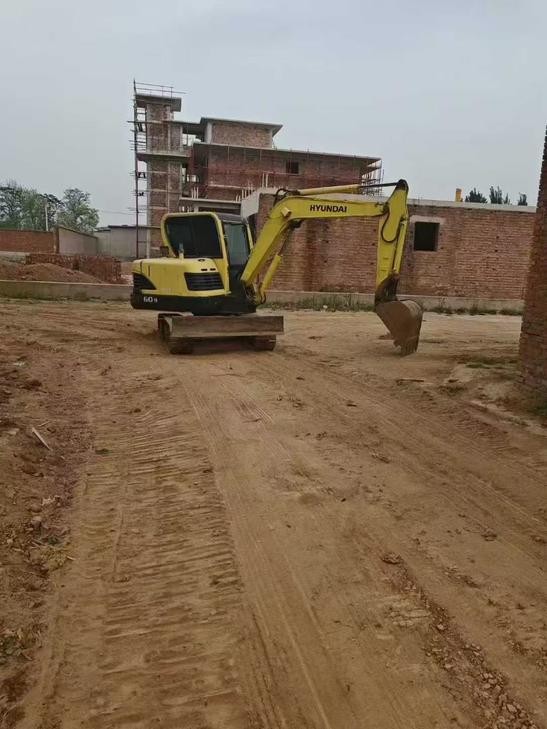

Built for precision work in confined spaces, this 2013 Hyundai R60-9 mini excavator delivers reliable performance across digging, grading, and demolition tasks. Powered by a Yanmar 4TNV94L engine generating 39kW at 2200rpm, this 6-ton machine combines compact dimensions with serious digging capability. Maximum digging depth reaches 3,820mm, while the 6,150mm maximum reach tackles trenching, foundation work, and utility installations with efficiency.
Equipped with dual variable axial piston pumps and a water-cooled 4-cylinder engine, this Hyundai operates reliably in demanding conditions. The 38.5kN bucket digging force and 29kN arm force handle tough material, from compacted soil to demolition debris. With a 1,650mm rear swing radius and 1,920mm total width, maneuver confidently on congested job sites without sacrificing productivity.
- Working weight: 5,660kg with 0.07-0.21m³ bucket capacity
- Transport dimensions: 5,900mm (L) × 1,920mm (W) × 2,550mm (H)
- Hydraulic system: 125L fuel tank, 70L hydraulic reservoir
- Performance: 70% gradeability, 2.2-4.0km/h travel speed
- Currently located in Hunan, ready for immediate deployment
| Specifications | Value |
|---|---|
| No. | 1019838 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5660 |
| Bucket capacity (m³) | 0.07-0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanma 4TNV94L |
| Rated power (kw/rpm) | 39/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 38.5 |
| Rod digging force (kN) | 29 |
| Travel speed (km/h) | 2.2-4.0 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Fuel Tank (L) | 125 |
| Hydraulic Tank (L) | 70 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1520 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1920 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4050 |
| Maximum vertical digging depth (mm) | 3200 |
| Dodging plate width × height (mm) | 1920 x 350 |
| Maximum excavation radius of stop surface (mm) | 6010 |
