2020 Hyundai R60-9

1/9
Buy Hyundai R60-9 Used Excavator / 1
Buy Hyundai R60-9 Used Excavator / 2
Buy Hyundai R60-9 Used Excavator / 3
Buy Hyundai R60-9 Used Excavator / 4
Buy Hyundai R60-9 Used Excavator / 5
Buy Hyundai R60-9 Used Excavator / 6
Buy Hyundai R60-9 Used Excavator / 7
Buy Hyundai R60-9 Used Excavator / 8
Buy Hyundai R60-9 Used Excavator / 9

Product Description

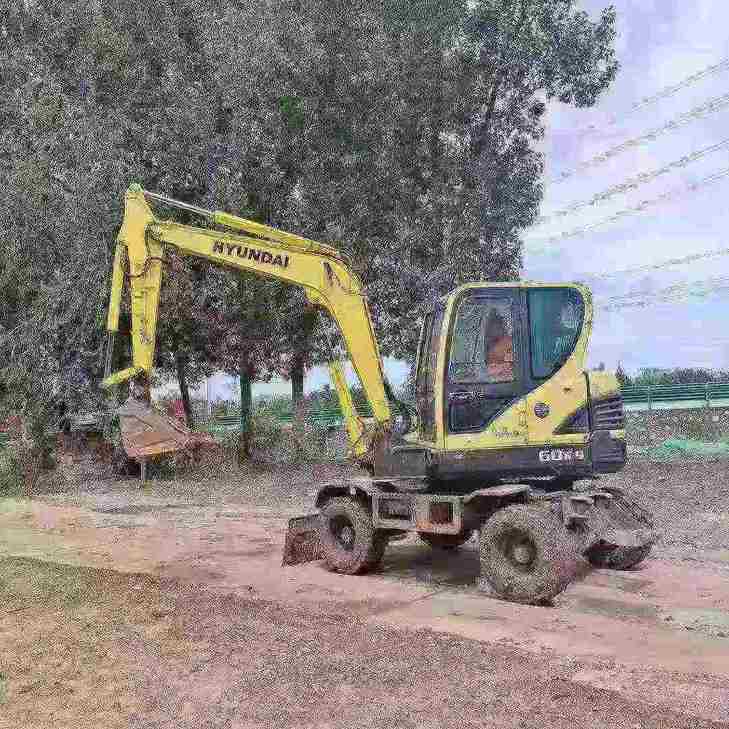

This 2020 Hyundai R60-9 wheeled excavator is available from first-hand sources in Sichuan, China. The R60-9 combines the mobility advantages of a wheeled chassis with the performance of Hyundai's proven 6-ton class platform, making it well-suited for urban construction, utility work, and projects requiring frequent site changes.

Key features of this unit:

  • Model year 2020 with documented first-hand ownership
  • Hyundai R60-9 wheeled configuration for rapid transit between job sites
  • 6-ton operating class with standard bucket and arm setup
  • Located in Sichuan Province, China
  • Competitively priced at RMB 115,000

This machine offers a practical solution for contractors seeking a mobile excavator with the reliability of Hyundai's construction equipment heritage. Inspection and verification recommended prior to purchase.

SpecificationsValue
No.1137570
Tonnage (tons)6
Working weight (kg)5660
Bucket capacity (m³)0.07-0.21
Boom length (mm)3000
Rod length (mm)1600
Country of originPeking
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar Yanma 4TNV94L
Rated power (kw/rpm)39/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Rotation speed (rpm)9.3
Climbing ability (%)70/35 °
Bucket digging force (kN)38.5
Rod digging force (kN)29
Travel speed (km/h)2.2-4.0
Hydraulic crushing pipeline is standardno
Main pump type2× variable axial piston pump + gear pump
Fuel Tank (L)125
Hydraulic Tank (L)70
Total transport length (mm)5900
Total transport width (mm)1920
Total transport height (mm)2550
Full cab height (mm)2550
Minimum ground clearance (mm)380
Back end turning radius (mm)1650
Track gauge (mm)1520
Track plate width (mm)400
Total track width (mm)1920
Track ground length (mm)1990
Maximum digging radius (mm)6150
Maximum digging depth (mm)3820
Maximum excavation height (mm)5780
Maximum unloading height (mm)4050
Maximum vertical digging depth (mm)3200
Dodging plate width × height (mm)1920 x 350
Maximum excavation radius of stop surface (mm)6010
see more

Overview

No.1137570

Brand Name:

Hyundai

Model Number:

R60-9

Year:

2020

Location:

Sichuan China

Pub Date
