Product Description
Discover the 2021 Hyundai R75VS, a robust and versatile excavator now available in Hunan, China. This used machine is equipped with a hydraulic clamp, enhancing its functionality for a variety of tasks including demolition, recycling, and material handling. Priced just over 100,000 CNY, this excavator offers excellent value for businesses looking to expand their fleet without compromising on quality or performance. The Hyundai R75VS is known for its durability and efficiency, making it a reliable choice for demanding construction projects. Immediate availability ensures that you can quickly integrate this powerful tool into your operations, minimizing downtime and maximizing productivity.
- Year: 2021
- Brand: Hyundai
- Model: R75VS
- Location: Hunan, China
- Price: Just over 100,000 CNY

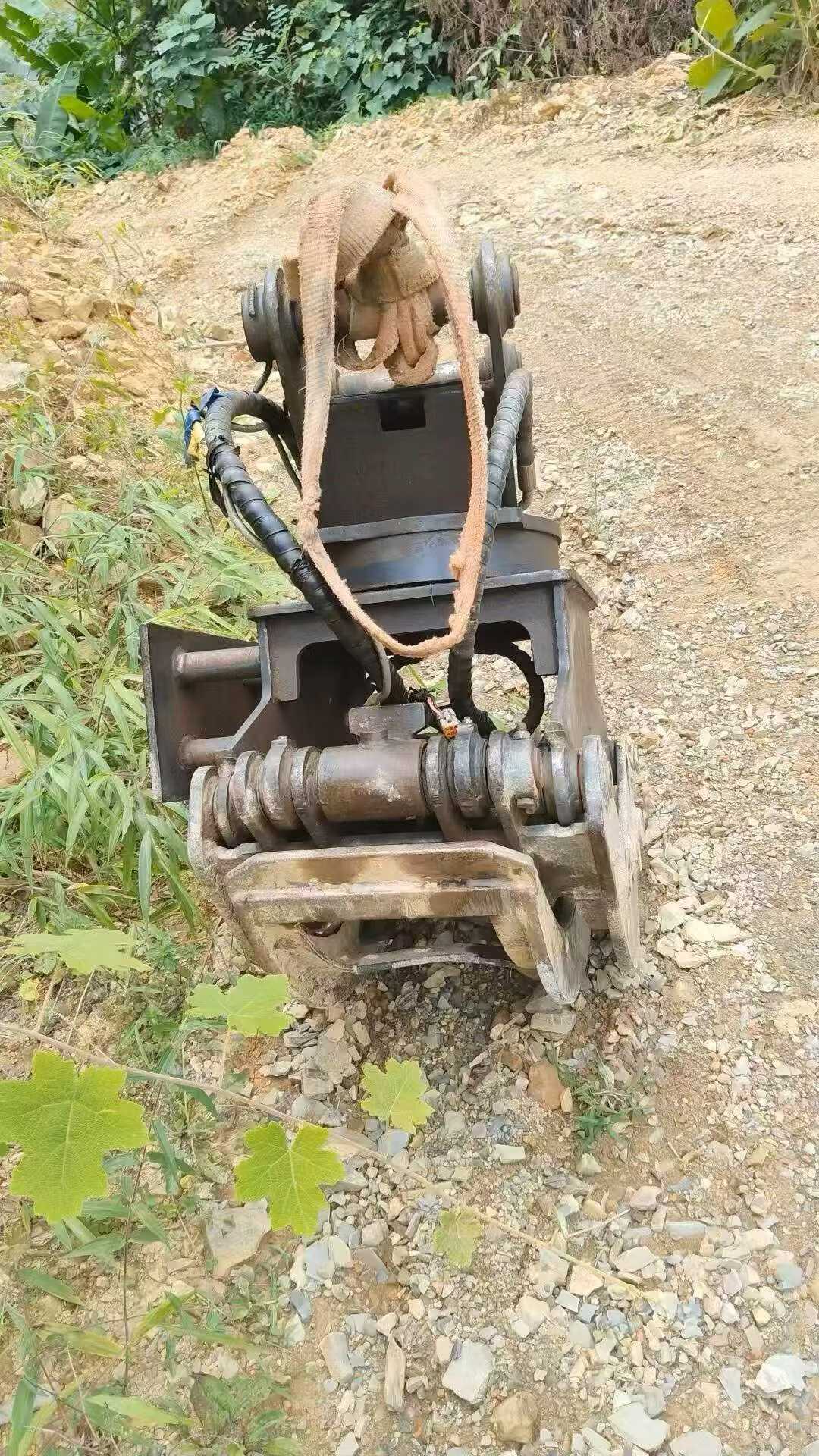

- Equipped with a hydraulic clamp
- Immediate availability
| Specifications | Value |
|---|---|
| No. | 1131563 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.32 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

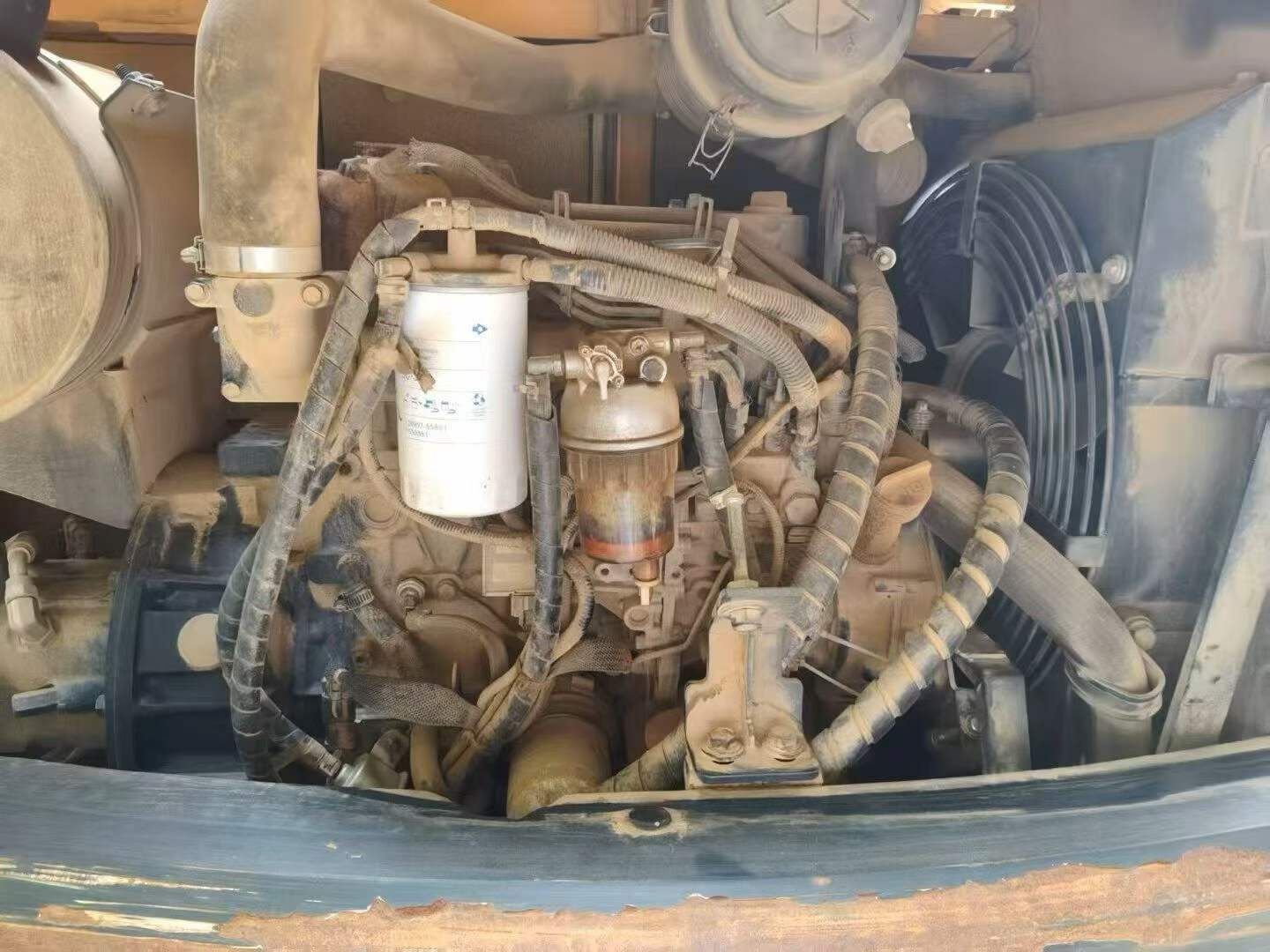

| Engine type | Yanmar 4TNV98-z |
| Rated power (kw/rpm) | 44.4 / 2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 24.5/1575 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.319 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Rotation speed (rpm) | 12.2 |
| Climbing ability (%) | 58 |
| Travel speed (km/h) | 4.7 / 2.9 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 75.6 (2 x 20) |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 90 * 55 * 665 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 95 * 60 * 860 |
| Boom cylinders - Number × diameter × stroke (mm) | 115 * 70 * 980 |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 75 |
| Engine Oil changes (L) | 12 |
| Coolant (L) | 11 |
| Hydraulic System (L) | 130 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2690 |
| Full cab height (mm) | 2650 |
| Counterweight ground clearance (mm) | 755 |
| Minimum turning radius of front working device (mm) | 1750 |
| Back end turning radius (mm) | 1750 |
| Onboard width (mm) | 2250 |
| Track plate width (mm) | 450/600 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6330 |
| Maximum digging depth (mm) | 4150 |
| Maximum excavation height (mm) | 7260 |
| Maximum unloading height (mm) | 5170 |
| Maximum vertical digging depth (mm) | 3200 |
| Bulldozer lift or depth (mm) | 400/280 |
| Dodging plate width × height (mm) | 2200*460 |
| Maximum excavation radius of stop surface (mm) | 6190 |
| Maximum effective digging depth (mm) | 3810 |
