Product Description

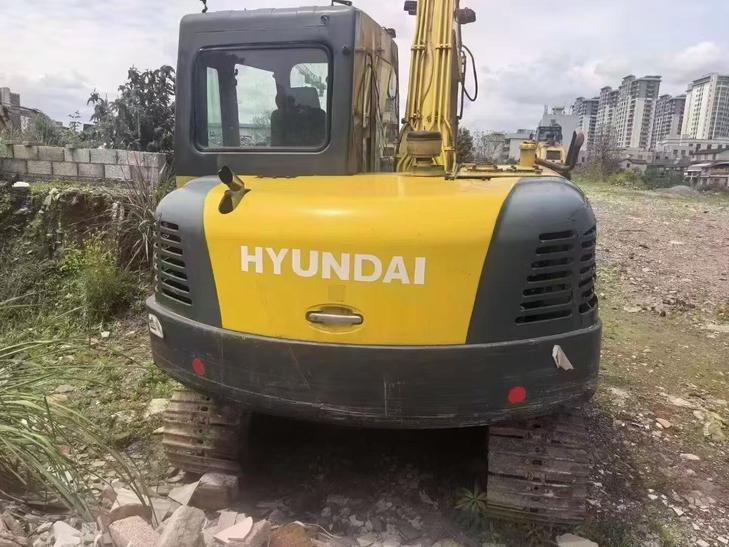

This 2020 Hyundai R80-7 is a compact crawler excavator offered from stock in Hunan, China. As an 8-tonne-class machine, it suits utility trenching, site preparation, landscaping and light demolition work, where a smaller footprint and lower transport cost matter more than raw digging capacity. The unit is used and is presented for sale as inspected.
The listing covers a working configuration rather than a bare carrier: a digging bucket and a hydraulic breaker are both included, so one machine can handle excavation and breaking duty without a second attachment purchase.
- Year: 2020
- Brand: Hyundai
- Model: R80-7
- Class: 8-tonne crawler excavator
- Included: bucket and hydraulic breaker
- Location: Hunan, China
- Indicated price: 30,000+ RMB
Third-party inspection is welcome, and additional photos or video of the machine running can be provided on request. Loading and export documentation can be arranged. Contact us to confirm current availability and terms.
| Specifications | Value |
|---|---|
| No. | 1157511 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7801.8 |
| Bucket capacity (m³) | 0.28 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1670 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanma 4TNV94L |
| Rated power (kw/rpm) | 44.7 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.3 |
| Ground specific pressure (Kpa) | 32.3 |
| Rotation speed (rpm) | 12 |
| Bucket digging force (kN) | 44.1 |
| Rod digging force (kN) | 38.2 |
| Travel speed (km/h) | 4.8 |
| Rotary hydraulic motor type | Axial quantitative plunger motor |
| Type of walking hydraulic motor | Axial variable piston motor |
| Maximum flow of main pump (l/min) | 2 x 75.6 |
| Traveling Hydraulic Circuit (Mpa) | 30 |
| Rotary Hydraulic Circuit (Mpa) | 190 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump |
| Working Hydraulic Circuit (Mpa) | 28 |
| Pilot Oil Circuit (MPa) | 3.5 |
| Fuel Tank (L) | 135 |
| Engine Oil changes (L) | 12 |
| Coolant (L) | 10.8 |
| Hydraulic System (L) | 130 |
| Total transport length (mm) | 6325 |
| Total transport width (mm) | 2200 |
| Total transport height (mm) | 2640 |
| Full cab height (mm) | 2640 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2130 |
| Maximum digging radius (mm) | 6330 |
| Maximum digging depth (mm) | 4150 |
| Maximum excavation height (mm) | 7260 |
| Maximum unloading height (mm) | 5170 |
| Maximum vertical digging depth (mm) | 3200 |
| Maximum excavation radius of stop surface (mm) | 6190 |
