2017 JohnDeere E210

1/9

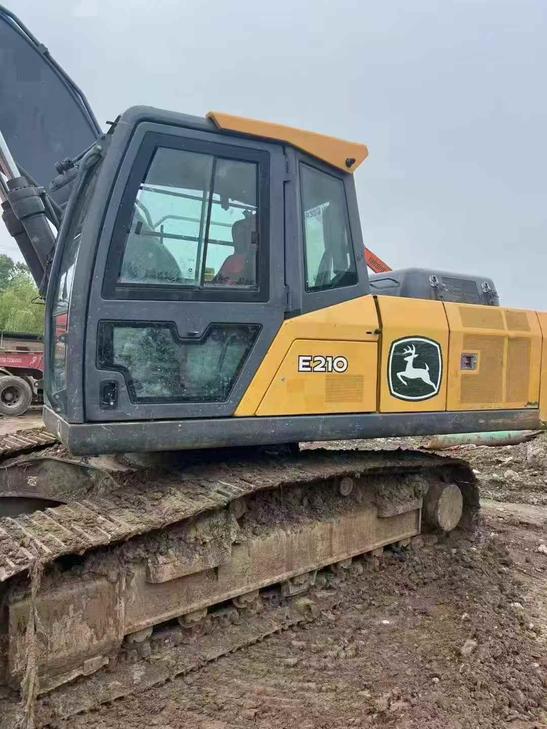

Buy JohnDeere E210 Used Excavator / 1
Buy JohnDeere E210 Used Excavator / 2
Buy JohnDeere E210 Used Excavator / 3
Buy JohnDeere E210 Used Excavator / 4
Buy JohnDeere E210 Used Excavator / 5
Buy JohnDeere E210 Used Excavator / 6
Buy JohnDeere E210 Used Excavator / 7
Buy JohnDeere E210 Used Excavator / 8
Buy JohnDeere E210 Used Excavator / 9

Product Description

This 2017 John Deere E210 excavator represents a well-maintained machine ready for earthmoving operations. Manufactured in late 2017 and purchased new in 2018, this unit shows minimal wear with original factory components throughout. The undercarriage remains in excellent condition with strong structural integrity.

  • Year: 2017
  • Make: John Deere
  • Model: E210
  • Location: Jiangsu Province, China
  • Condition: Original factory parts, no modifications
  • Undercarriage: Excellent condition
  • Major components: Dry, no oil leaks reported
  • Primary use: Earthmoving applications

All major components operate as expected with no reported hydraulic leaks. This machine has been primarily used for soil excavation work and is available for immediate inspection in Jiangsu Province.

SpecificationsValue
No.1076881
Tonnage (tons)21
Working weight (kg)21100~23100
Bucket capacity (m³)1.0
Boom length (mm)5680
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)117/2000
Maximum torque (N.m)639/1500
Number of cylinders (PCS)4
Displacement (L)4.5
Working form
Ground specific pressure (Kpa)38-58.3
Rotation speed (rpm)12.5
Climbing ability (%)70
Bucket digging force (kN)150
Rod digging force (kN)111
Maximum tractive force (kN)216
Travel speed (km/h)3.2/5.5
Turning torque (Nm)61
Maximum flow of main pump (l/min)224 x 2
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)27.3
Main pump type
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)3.9
Pilot pump flow (L/min)20*1
Fuel Tank (L)390
Hydraulic Tank (L)141
Engine Oil changes (L)14.7
Coolant (L)26
Hydraulic System (L)260
Total transport length (mm)9790
Total transport width (mm)2800
Total transport height (mm)3299
Full cab height (mm)3024
Counterweight ground clearance (mm)1089
Minimum ground clearance (mm)469
Minimum turning radius of front working device (mm)3660
Back end turning radius (mm)3042
Total track length (mm)4072
Track gauge (mm)2200
Track plate width (mm)600
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)45
Maximum digging radius (mm)10040
Maximum digging depth (mm)6730
Maximum excavation height (mm)9810
Maximum unloading height (mm)6790
Maximum vertical digging depth (mm)6090
Maximum excavation radius of stop surface (mm)9820
see more

Overview

No.1076881

Brand Name:

JohnDeere

Model Number:

E210

Year:

2017

Location:

Jiangsu China

Pub Date
