Product Description

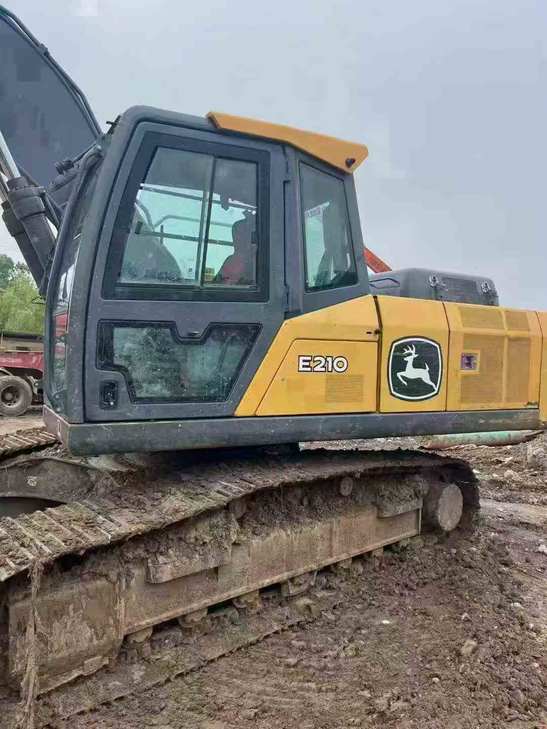

Built for demanding fleet operations, this 2017 John Deere E210 21-ton hydraulic excavator offers proven reliability as a high-performing backup unit or primary fleet addition for contractors running tight project schedules. Sourced directly from Hunan, China, this machine is ready to step in and maintain jobsite momentum without interruption.
- Operating Weight: 21,100–23,100 kg with a 1.0 m³ backhoe bucket for consistent material handling
- Engine Performance: 4-cylinder, 4.5L engine rated at 117 kW / 2,000 RPM with 639 N·m peak torque
- Digging Reach: Maximum digging radius of 10,040 mm and digging depth of 6,730 mm
- Digging Force: 150 kN bucket force and 111 kN rod force for tough excavation cycles
- Hydraulic Output: Dual main pumps delivering 224 L/min each, operating at 34.3 MPa working pressure
- Mobility: Travel speeds up to 5.5 km/h with 70% gradeability and 216 kN maximum tractive force
- Ground Stability: 600 mm track plates with 38–58.3 kPa ground pressure for varied terrain
When your primary machines are fully committed, having a dependable E210 in reserve keeps productivity on schedule and downtime off the books.
| Specifications | Value |
|---|---|
| No. | 1080342 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21100~23100 |
| Bucket capacity (m³) | 1.0 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117/2000 |
| Maximum torque (N.m) | 639/1500 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.5 |
| Working form | |
| Ground specific pressure (Kpa) | 38-58.3 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 150 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 216 |
| Travel speed (km/h) | 3.2/5.5 |
| Turning torque (Nm) | 61 |
| Maximum flow of main pump (l/min) | 224 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.3 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 20*1 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 141 |
| Engine Oil changes (L) | 14.7 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 9790 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3299 |
| Full cab height (mm) | 3024 |
| Counterweight ground clearance (mm) | 1089 |
| Minimum ground clearance (mm) | 469 |
| Minimum turning radius of front working device (mm) | 3660 |
| Back end turning radius (mm) | 3042 |
| Total track length (mm) | 4072 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10040 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6790 |
| Maximum vertical digging depth (mm) | 6090 |
| Maximum excavation radius of stop surface (mm) | 9820 |
