Product Description
This 2017 John Deere E240 excavator is now available for immediate sale from Yunnan, China. With approximately six years of operational history, this mid-size excavator represents reliable John Deere engineering designed for demanding construction and earthmoving applications.
The machine comes equipped with a hydraulic hammer attachment, adding versatility for breaking and demolition work alongside standard excavation tasks. This configuration enhances the unit's utility across multiple job site requirements.
- Year of Manufacture: 2017
- Make: John Deere
- Model: E240
- Current Location: Yunnan Province, China

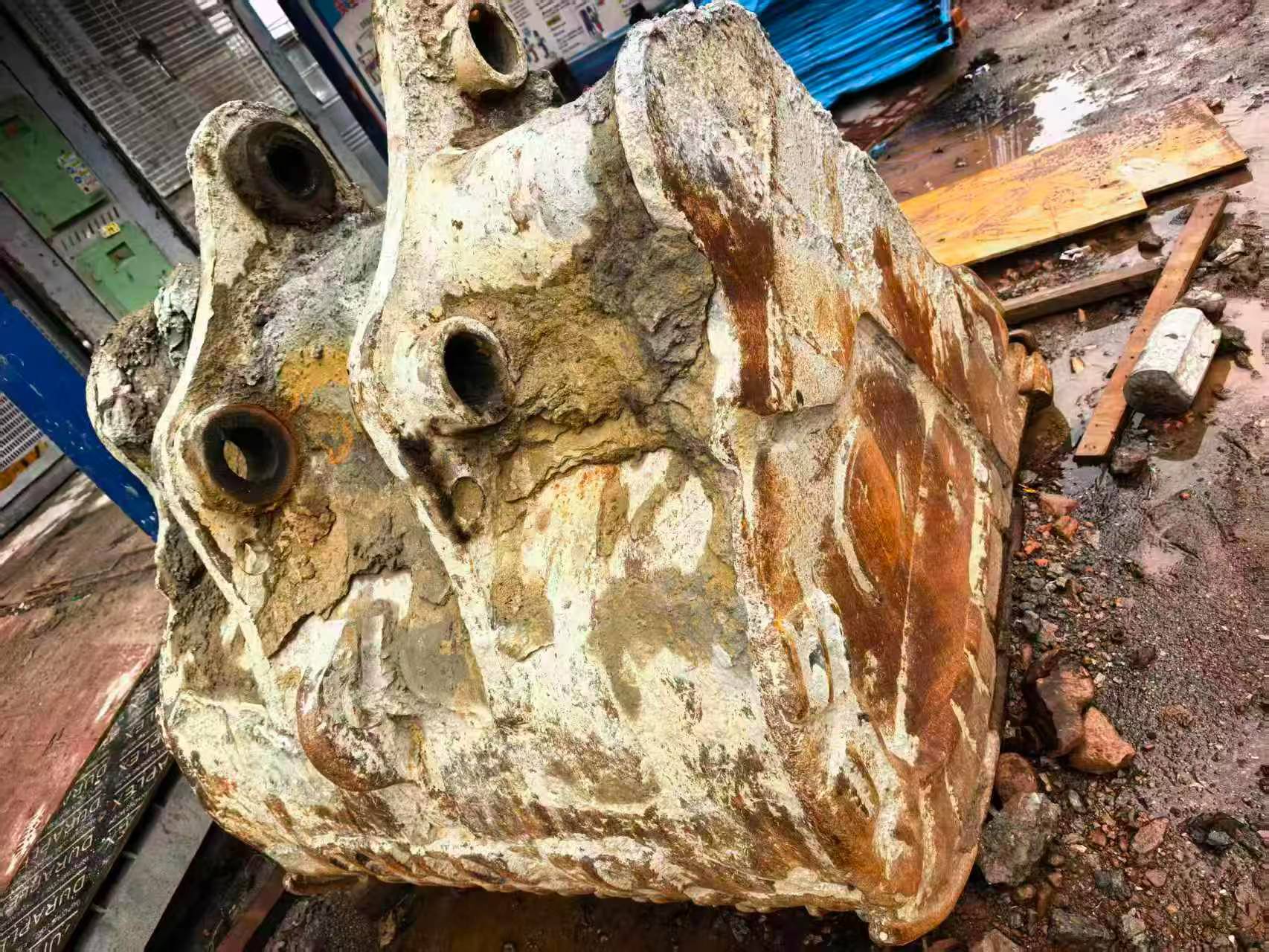

- Included Equipment: Hydraulic hammer bucket attachment
- Status: Available for immediate purchase
This excavator is priced competitively for quick sale. Suitable for contractors, demolition companies, and construction firms seeking dependable used equipment. Contact us for detailed specifications, current condition assessment, and shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1156080 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24200-25600 |
| Bucket capacity (m³) | 1.3 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 143/2000 |
| Maximum torque (N.m) | 927/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.8 |
| Working form | |
| Ground specific pressure (Kpa) | 53.1 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 70 (35°) |
| Bucket digging force (kN) | 176 |
| Rod digging force (kN) | 134 |
| Maximum tractive force (kN) | 228 |
| Travel speed (km/h) | 3.4/5.7 |
| Turning torque (Nm) | 69 |
| Maximum flow of main pump (l/min) | 2 x 234 |
| Traveling Hydraulic Circuit (Mpa) | 36.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 20 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 141 |
| Engine Oil changes (L) | 20 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 10180 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3346 |
| Full cab height (mm) | 3027 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 445 |
| Minimum turning radius of front working device (mm) | 4010 |
| Back end turning radius (mm) | 3100 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4262 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3834 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10370 |
| Maximum digging depth (mm) | 7160 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6870 |
| Maximum vertical digging depth (mm) | 6200 |
| Maximum excavation radius of stop surface (mm) | 10140 |
